Resolution Multifunctional Handheld Infrared Night Vision With Customized Support OBM

  • Resolution Multifunctional Handheld Infrared Night Vision With Customized Support OBM
  • Resolution Multifunctional Handheld Infrared Night Vision With Customized Support OBM
  • Resolution Multifunctional Handheld Infrared Night Vision With Customized Support OBM
Place of Origin China
Brand Name Particle
Model Number NVD3000
Minimum Order Quantity 1
Price $17,000
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Laser Ranging Minimum Range ≤50m Lens Focal Length 70mm
Resolution 2592×1944@2.7um Diopter -4SD～+4SD
Customized Support OED,ODM,OBM IR Detector 640×512@12um
Application Outdoor,Law Enforcement Evidence Collection,Fire Patrol Operating Temperature -40℃～+55℃
Infrared Recognition Distance Mid-Size Vehicle：≥2.8km; Standing Man：≥1km Infrared Detector 640×512@12um
Infrared Focal Length 70mm FOV ≥6.3°×5.0°
Visible Light Recognition Distance Mid-Size Vehicle：≥6.6km；Standing Man：≥3km Visible Light Resolution 2592×1944@2.7um
Visible Light Focal Length 105mm Visible Light Focal Length Adaptation Range 50m～∞
Visible Light ≥3.2°×2.4° Laser Ranging （1）Minimum Range：≤50m； （2）Maximum Range：≥6km； （3）Precision：≤2m； （4）Accurate Rate：≥98%； （5）Repeat Frequency：≥0.5Hz
Laser Ranging Logic Select To Display The First Or Last Target Capability Measured Laser Ranging Wavelength Human Eye Safety Band
Positioning Precision ≤7m（CEP），≤10m（PE） Magnetic Azimuth ≤0.5°（RMS）
Target Positioning Accuracy At 2km Of The Distance，≤20m（CEP） Digital Zoom 1×~4×
Working Time（Room Temperature） ≥10h Memory Storage 32G
IP Grade IP67 Weight ≤1.6kg
External Interface Data USB External Interface Video PAL
Communication RS232 Interface Type Reserved Picatinny Rail
Defog Support
Highlight

Multifunctional infrared night vision

,

4x infrared night vision

,

1x hand held night vision
Leave a Message
Product Description

Resolution Multifunctional Handheld Infrared Night Vision with Customized Support OBM



APPLICATIONS

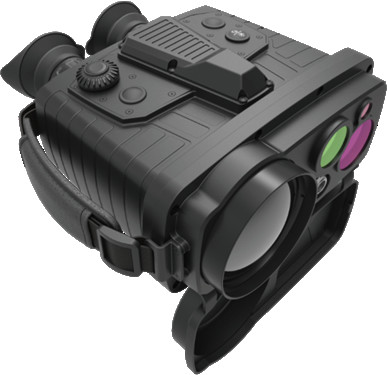

The JP NVD3000 is a state-of-the-art binocular handheld uncooled thermal imaging telescope. It combines a thermal imaging detector and visible light sensor, allowing for quick switching between image types. Integrated satellite positioning, laser ranging, and an electronic compass provide precise self-positioning and target positioning data. Ideal for field observation, surveillance, and target location acquisition, the JP NVD3000 is designed to excel in various scenarios, ensuring reliable performance.

Technical Parameters:

Product model NVD3000
Infrared
Mid-Size Vehicle ≥2.8km
Standing Man ≥1km
Infrared detection resolution 640×512@12um
Lens focal length 70mm
Infrared FOV ≥6.3°×5.0°
Visible Light
Mid-Size Vehicle ≥6.6km
Standing Man ≥3km
Resolution 2592×1944@2.7um
Focal Length 105mm
Focal Length Adaptation Range 50m～∞
Visible FOV ≥3.2°×2.4°
Defog Support
Laser Ranging
Minimum Range ≤50m；
Maximum Range ≥6km；
Precision ≤2m；
Repeat Frequency ≥0.5Hz；
Ranging Logic Select to display the first or last target capability measured；
Laser Wavelength Human eye safety band；
Positioning Orientation
Positioning Precision ≤7m(CEP),≤10m(PE)
Magnetic Azimuth ≤0.5°(RMS)
Target Positioning Accuracy at 2km of the distance,≤20m(CEP)
Other
Diopter -4SD～+4SD；
Digital zoom 1×~4×；
Working Time(Room temperature ≥10h
Memory Storage 32G；
Operating Temperature -40℃～+55℃；
IP Grade IP67；
Weight ≤1.6kg；



* These parameters are for illustrative purposes only and are subject to change without prior notice due to product updates and improvements.



NVD 3000 Details:



Resolution Multifunctional Handheld Infrared Night Vision With Customized Support OBM 0



► Thermal imaging observation mode and visible light observation mode can be switched with one click, and screen brightness, contrast, image quality enhancement, etc. can be personalized
Resolution Multifunctional Handheld Infrared Night Vision With Customized Support OBM 1

► Supports guided search function after entering target coordinates
Resolution Multifunctional Handheld Infrared Night Vision With Customized Support OBM 2

► PIP
Resolution Multifunctional Handheld Infrared Night Vision With Customized Support OBM 3

► Supports fog penetration function in visible light (color, black and white) observation mode
Resolution Multifunctional Handheld Infrared Night Vision With Customized Support OBM 4

► Laser ranging and real-time display of distance, longitude, latitude, elevation and other data of the measured target
Resolution Multifunctional Handheld Infrared Night Vision With Customized Support OBM 5

► Relative ranging function supports relative distance calculation between targets
Resolution Multifunctional Handheld Infrared Night Vision With Customized Support OBM 6
