High Sensitivity Infrared Night Vision For Enhanced Detection In Low Light Conditions

  • High Sensitivity Infrared Night Vision For Enhanced Detection In Low Light Conditions
  • High Sensitivity Infrared Night Vision For Enhanced Detection In Low Light Conditions
  • High Sensitivity Infrared Night Vision For Enhanced Detection In Low Light Conditions
  • High Sensitivity Infrared Night Vision For Enhanced Detection In Low Light Conditions
  • High Sensitivity Infrared Night Vision For Enhanced Detection In Low Light Conditions
  • High Sensitivity Infrared Night Vision For Enhanced Detection In Low Light Conditions
  • High Sensitivity Infrared Night Vision For Enhanced Detection In Low Light Conditions
Place of Origin China
Brand Name Particle
Model Number NVD3000
Minimum Order Quantity 1
Price $17,000
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Infrared Recognition Distance Mid-Size Vehicle：≥2.8km; Standing Man：≥1km Infrared Detector 640×512@12um
Infrared Focal Length 70mm FOV ≥6.3°×5.0°
Visible Light Recognition Distance Mid-Size Vehicle：≥6.6km；Standing Man：≥3km Visible Light Resolution 2592×1944@2.7um
Visible Light Focal Length 105mm Visible Light Focal Length Adaptation Range 50m～∞
Visible Light ≥3.2°×2.4° Laser Ranging Minimum Range ≤50m
Laser Ranging （1）Minimum Range：≤50m； （2）Maximum Range：≥6km； （3）Precision：≤2m； （4）Accurate Rate：≥98%； （5）Repeat Frequency：≥0.5Hz Laser Ranging Logic Select To Display The First Or Last Target Capability Measured
Laser Ranging Wavelength Human Eye Safety Band Positioning Precision ≤7m（CEP），≤10m（PE）
Magnetic Azimuth ≤0.5°（RMS） Target Positioning Accuracy At 2km Of The Distance，≤20m（CEP）
Diopter -4SD～+4SD Digital Zoom 1×~4×
Working Time（Room Temperature） ≥10h Memory Storage 32G
Operating Temperature -40℃～+55℃ IP Grade IP67
Weight ≤1.6kg External Interface Data USB
External Interface Video PAL Communication RS232
Interface Type Reserved Picatinny Rail Defog Support
Highlight

High Sensitivity Infrared Night Vision

,

Enhanced Detection Infrared Night Vision

,

Low Light Conditions Infrared Night Vision
Leave a Message
Product Description

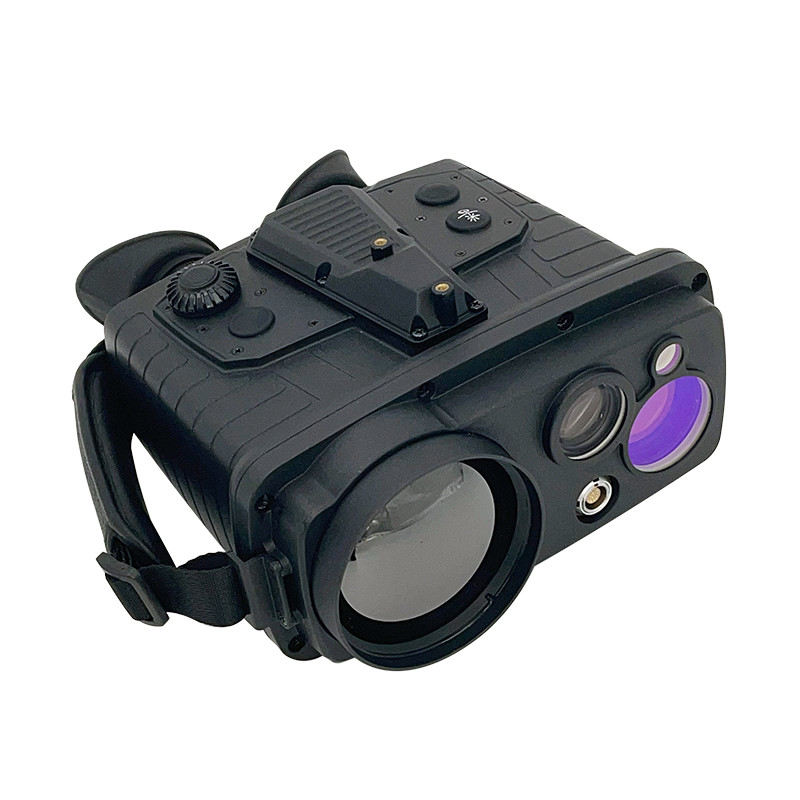

Multifunctional Handheld Infrared Night Vision with High Sensitivity for Enhanced Detection in Low Light Conditions

Description And Features

The NVD3000 Handheld Binocular Uncooled Thermal Image Telescope stands as the epitome of cutting - edge optical technology, engineered to meet the demands of a wide array of scenarios. Central to its design is an exquisitely sensitive 640x512@12um thermal detector. This detector is so powerful that it can detect medium - sized vehicles from as far as 2.8 km away and human - sized targets at a distance of up to 1 km.



The NVD3000 features a convenient one - key switch that enables seamless transitions between thermal imaging and visible light modes. This is made possible by a 2592x1944@2.7um resolution visible light sensor. The device is equipped with an infrared camera boasting a 70mm focal length and a visible light camera with a 105mm focal length. Together, these cameras guarantee exceptional clarity and detail, even when observing objects at long ranges.



Integrated within the NVD3000 is a laser rangefinder that offers remarkable precision up to 6 km. It not only measures the distance but also provides longitude, latitude, and elevation data. Additionally, it supports relative ranging, which is invaluable for determining the positions between multiple targets.



Functionality is further enhanced with real - time display of positioning and orientation data. The NVD3000 also offers a picture - in - picture mode and a digital zoom that ranges from 1x to 4x. Built to last, this device has an IP67 waterproof rating and can operate in temperatures spanning from - 40°C to + 55°C, ensuring its reliability in the harshest of environments.



With a continuous usage time of up to 10 hours and 32GB of internal memory, the NVD3000 provides ample storage for capturing and storing images and videos. Thanks to its high level of integration and practical features, the NVD3000 has become an indispensable tool for field observation, surveillance, and target location acquisition.

Lightweight, Long-Lasting, and Highly Customizable



Weighing no more than 1.6kg, this device provides over 10 hours of battery life and includes 32GB of internal storage. It features a 70mm focal length infrared camera for exceptional target detection, along with customizable settings for screen brightness, contrast, and image quality enhancement.



High Sensitivity Infrared Night Vision For Enhanced Detection In Low Light Conditions 0

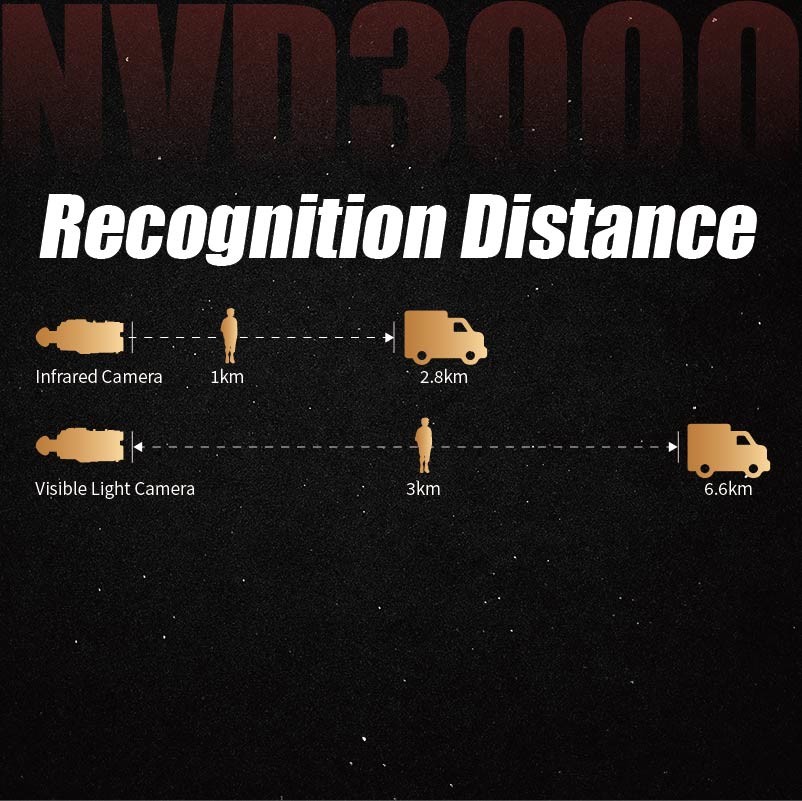

Enhanced Recognition Distances



Detects human targets up to 1km and vehicles up to 2.8km with the infrared camera. The visible light camera extends the range, identifying human targets at 3km and vehicles at 6.6km, ensuring accurate target identification across varying distances and conditions.



High Sensitivity Infrared Night Vision For Enhanced Detection In Low Light Conditions 1



Observation Mode Switch



Effortlessly switch between thermal imaging and visible light modes with a single button. This feature allows you to adapt quickly to different viewing environments, ensuring you always have the optimal visual clarity.

In infrared mode, you can seamlessly transition between black-hot and white-hot display options. This dual-mode functionality enhances target detection and visibility in various conditions, providing you with the precise details needed for accurate observation.



High Sensitivity Infrared Night Vision For Enhanced Detection In Low Light Conditions 2

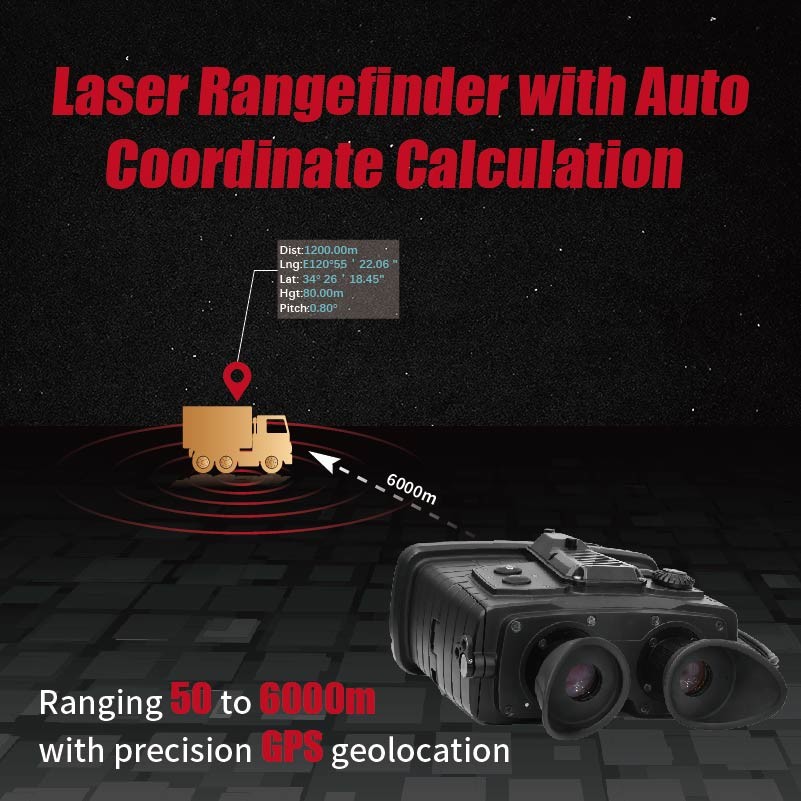

Laser Rangefinder with Auto Coordinate Calculation



Featuring automatic coordinate calculation, this advanced laser rangefinder delivers precise distance measurements from 50 to 6000mm. With integrated GPS geolocation, it ensures accurate targeting and location data, making it essential for high-accuracy applications, from terrain mapping to precise targeting in any environment.



High Sensitivity Infrared Night Vision For Enhanced Detection In Low Light Conditions 3



Adjustable Electronic Zoom



Offers an electronic zoom range from 1.00x to 4.00x, enabling precise focus and enhanced detail at varying distances for clear target visualization.



High Sensitivity Infrared Night Vision For Enhanced Detection In Low Light Conditions 4



Target Coordinate Input for Guided Search



Allows input of target coordinates, enabling direct entry of specific location data. Enhances search functionality by guiding the device to focus on the desired area, streamlining target location and identification with precision and efficiency.



High Sensitivity Infrared Night Vision For Enhanced Detection In Low Light Conditions 5



PIP Mode, Target Focused



PIP mode, Instantly pinpoint and highlight the target with PIP Mode, ensuring rapid identification even in outdoor environments.



High Sensitivity Infrared Night Vision For Enhanced Detection In Low Light Conditions 6

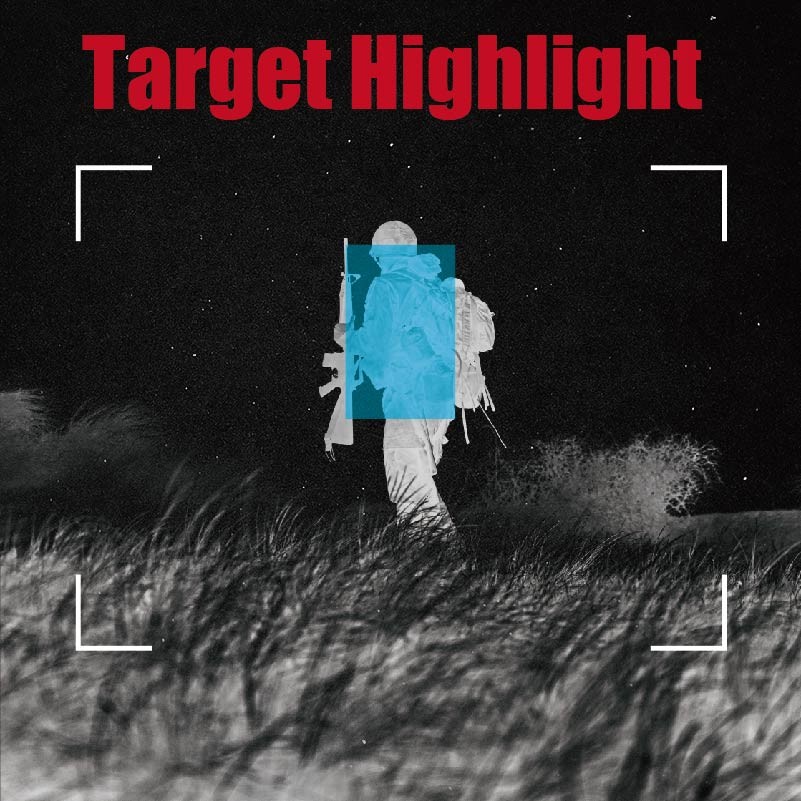

AccurateTarget Highlighting



Enables accurate and clear identification of targets, even in challenging environments. Automatically highlights key subjects within the field of view, enhancing visibility and situational awareness for easier focus on critical details during nighttime or low-visibility operations.



High Sensitivity Infrared Night Vision For Enhanced Detection In Low Light Conditions 7

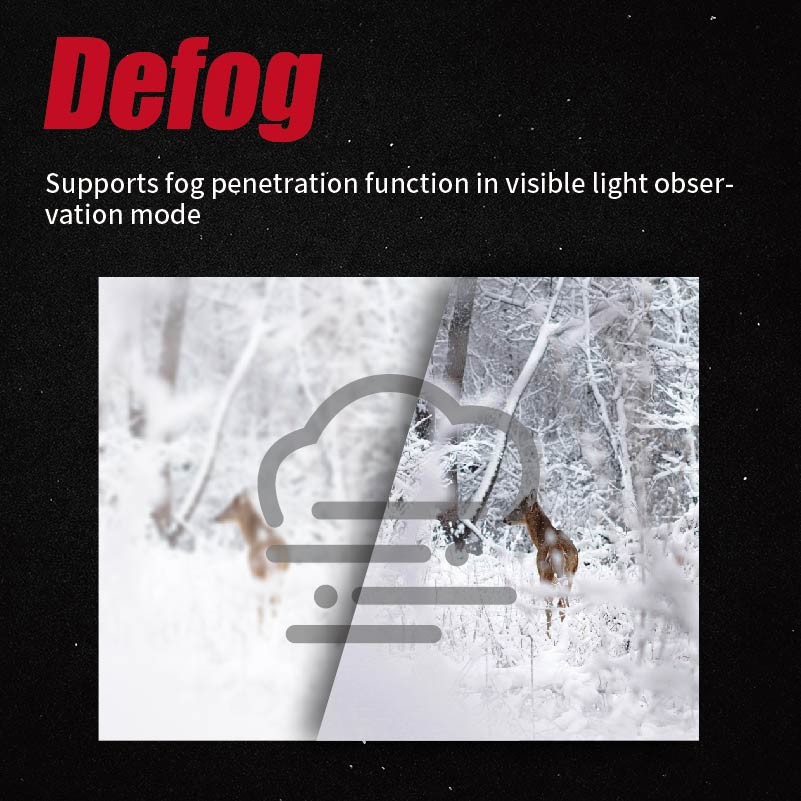

Clearer Vision with Defog Function



Includes a defog function in visible light observation mode, enhancing image clarity in foggy or misty environments. This feature effectively mitigates the impact of fog, ensuring targets remain visible and details are sharp, even in adverse weather conditions.



High Sensitivity Infrared Night Vision For Enhanced Detection In Low Light Conditions 8

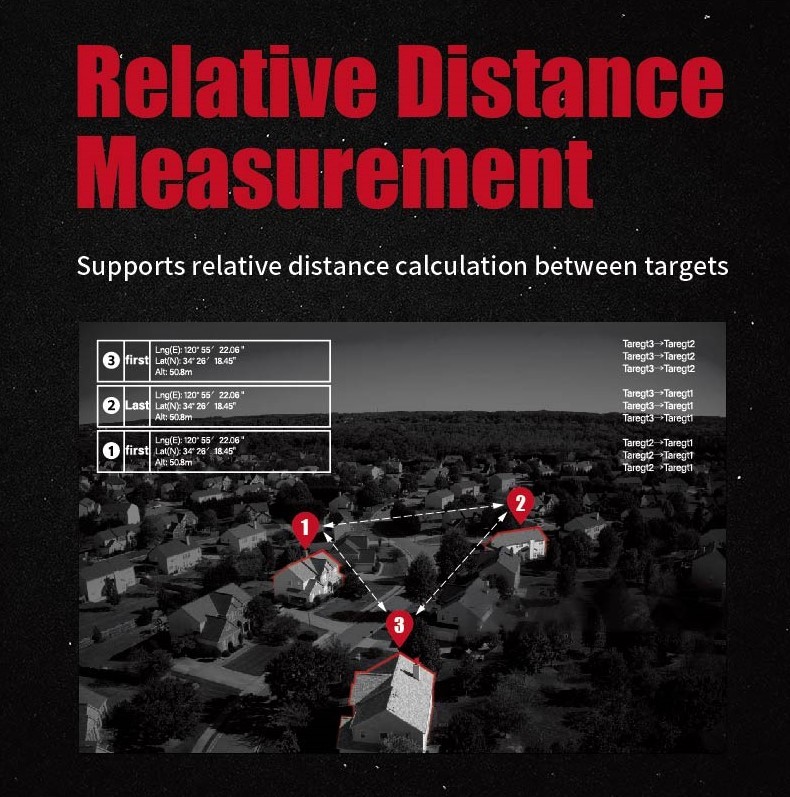

Precise Relative Ranging



Supports relative ranging, allowing accurate measurement of distances between multiple targets. Enhances coordination and situational awareness in dynamic environments.



High Sensitivity Infrared Night Vision For Enhanced Detection In Low Light Conditions 9



Applications



Infrared and Visible Light Fusion Scope for Clearer Imaging 8




Image Gallery



High Sensitivity Infrared Night Vision For Enhanced Detection In Low Light Conditions 11   High Sensitivity Infrared Night Vision For Enhanced Detection In Low Light Conditions 12   High Sensitivity Infrared Night Vision For Enhanced Detection In Low Light Conditions 13



Technical Parameters


    Product model

NVD3000

    Infrared

Mid-Size Vehicle,km

≥2.8

Standing Man,km

≥1

Infrared detection resolution,Pixel@um

640×512@12um

Lens focal length,mm

70

Infrared FOV,°

≥6.3×5.0

    Visible Light

Mid-Size Vehicle,km

≥6.6

Standing Man,km

≥3

Resolution,Pixel@um

2592×1944@2.7um

Focal Length,mm

105

Focal Length Adaptation Range,m

50～∞

Visible FOV,°

≥3.2×2.4

Defog

Support

    Laser Ranging

Minimum Range,m

≤50

Maximum Range,km

≥6

Precision,m

≤2

Repeat Frequency,Hz

≥0.5

Ranging Logic

Select to display the first or last target capability measured

Laser Wavelength

Human eye safety band

    Positioning Orientation

Positioning Precision,m

≤7(CEP),≤10(PE)

Magnetic Azimuth,°

≤0.5(RMS)

Target Positioning Accuracy,m

at 2km of the distance,≤20(CEP)

    Other

Diopter,SD

-4～+4

Digital zoom,×

1~4

Working Time(Room temperature,h

≥10

Memory Storage,G

32

Operating Temperature,℃

-40～+55

IP Grade

IP67

Weight,kg

≤1.6
