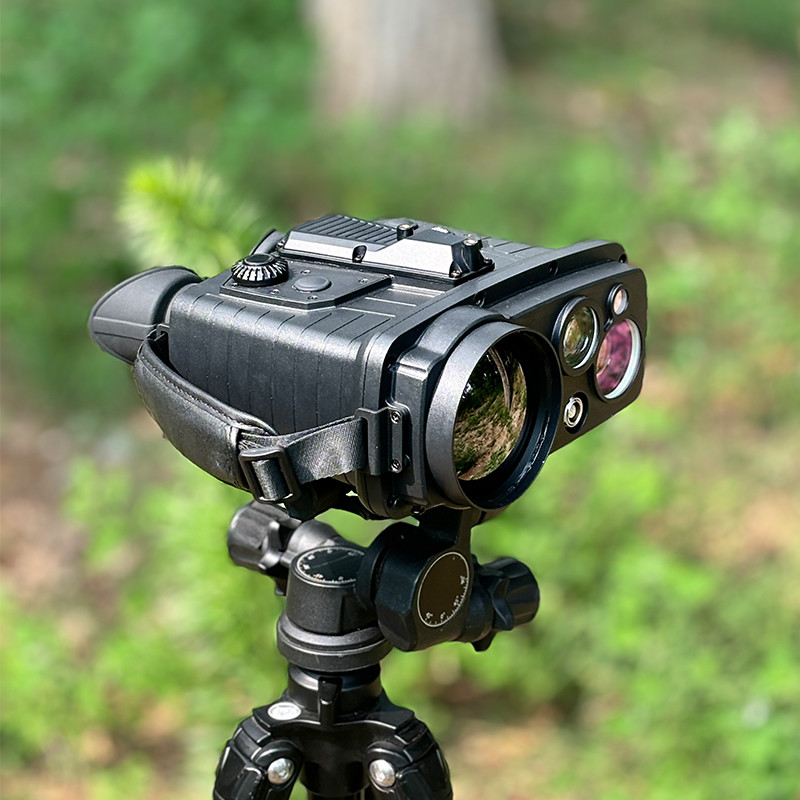

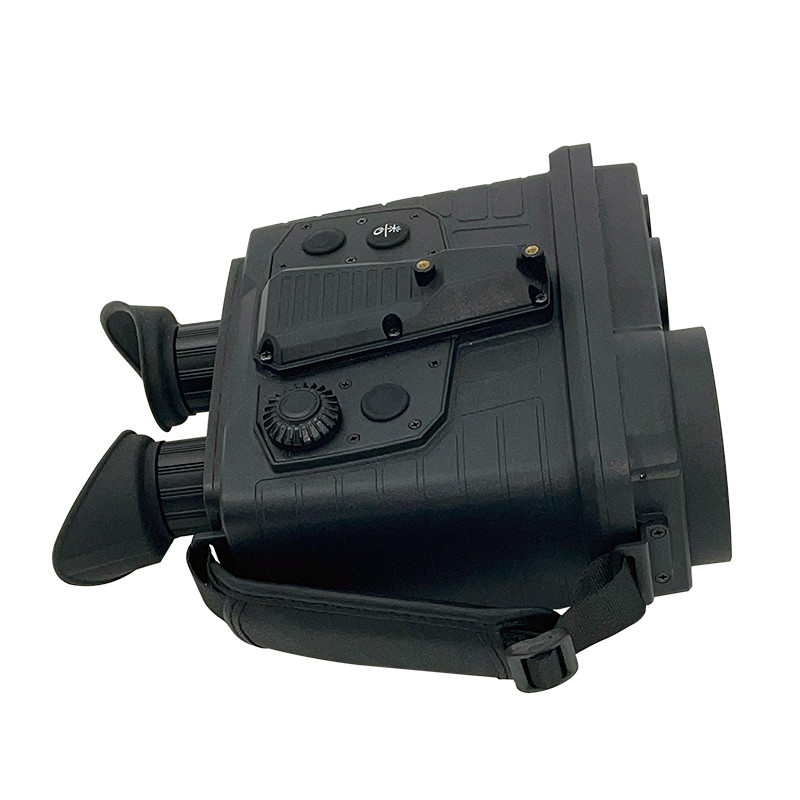

Multi Function Uncooled Thermal Imaging Binoculars For Outdoor Adventures

  • Multi Function Uncooled Thermal Imaging Binoculars For Outdoor Adventures
  • Multi Function Uncooled Thermal Imaging Binoculars For Outdoor Adventures
  • Multi Function Uncooled Thermal Imaging Binoculars For Outdoor Adventures
Place of Origin China
Brand Name Particle
Model Number NVD3000
Minimum Order Quantity 1
Price $17,000
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name High-Efficiency Multifunctional Handheld Infrared Night Vision Telescope For Surveillance Infrared Recognition Distance Mid-Size Vehicle：≥2.8km; Standing Man：≥1km
Infrared Detector 640×512@12um Infrared Focal Length 70mm
FOV ≥6.3°×5.0° Visible Light Recognition Distance Mid-Size Vehicle：≥6.6km；Standing Man：≥3km
Visible Light Resolution 2592×1944@2.7um Visible Light Focal Length 105mm
Visible Light Focal Length Adaptation Range 50m～∞ Visible Light ≥3.2°×2.4°
Laser Ranging （1）Minimum Range：≤50m； （2）Maximum Range：≥6km； （3）Precision：≤2m； （4）Accurate Rate：≥98%； （5）Repeat Frequency：≥0.5Hz Laser Ranging Logic Select To Display The First Or Last Target Capability Measured
Laser Ranging Wavelength Human Eye Safety Band Positioning Precision ≤7m（CEP），≤10m（PE）
Magnetic Azimuth ≤0.5°（RMS） Target Positioning Accuracy At 2km Of The Distance，≤20m（CEP）
Diopter -4SD～+4SD Digital Zoom 1×~4×
Working Time（Room Temperature） ≥10h Memory Storage 32G
Operating Temperature -40℃～+55℃ IP Grade IP67
Weight ≤1.6kg External Interface Data USB
External Interface Video PAL Communication RS232
Interface Type Reserved Picatinny Rail Defog Support
Highlight

Uncooled thermal imaging binoculars

,

Multi Function thermal imaging binoculars

,

Outdoor Adventures thermal night vision binoculars
Leave a Message
Product Description

Multi-function Uncooled Thermal Imaging Binoculars for Outdoor Adventures



APPLICATIONS



The NVD3000 is a versatile binocular handheld uncooled thermal imaging telescope, designed to meet the diverse needs of users in various scenarios. Equipped with a built-in thermal imaging detector and visible light sensor, it allows seamless switching between thermal and visible light images with a single button. Additionally, it integrates satellite positioning modules, laser ranging modules, and an electronic compass, enabling precise self-positioning and target positioning data calculations. Ideal for field observation, surveillance, and target location information acquisition, the NVD3000 excels in target identification and search guidance.



Technical Parameters



  Product model

NVD3000

  Infrared

Mid-Size Vehicle, km

≥2.8

Standing Man, km

≥1

Infrared detection resolution, Pixel@um

640×512@12um

Lens focal length, mm

70

Infrared FOV, °

≥6.3×5.0

  Visible Light

Mid-Size Vehicle, km

≥6.6

Standing Man, km

≥3

Resolution, Pixel@um

2592×1944@2.7um

Focal Length, mm

105

 Focal Length Adaptation Range, m

50～∞

Visible FOV, °

≥3.2×2.4

Defog

Support

  Laser Ranging

Minimum Range, m

≤50

Maximum Range, km

≥6

Precision, m

≤2

Repeat Frequency, Hz

≥0.5

Ranging Logic

Select to display the first or last target capability measured；

Laser Wavelength

Human eye safety band；

  Positioning Orientation

Positioning Precision, m

≤7(CEP), ≤10(PE)

Magnetic Azimuth, °

≤0.5(RMS)

Target Positioning Accuracy, m

at 2km of the distance≤20(CEP)

  Other

Diopter, SD

-4～+4

Digital zoom, ×

1~4

Working Time(Room temperature), h

≥10

Memory Storage, G

32

Operating Temperature, ℃

-40～+55

IP Grade

IP67

Weight, kg

≤1.6



* These parameters are for illustrative purposes only and are subject to change without prior notice due to product updates and improvements.



Product Details



Multi Function Uncooled Thermal Imaging Binoculars For Outdoor Adventures 0



► Thermal imaging observation mode and visible light observation mode can be switched with one click, and screen brightness, contrast, image quality enhancement, etc. can be personalized



Multi Function Uncooled Thermal Imaging Binoculars For Outdoor Adventures 1


► Supports guided search function after entering target coordinates



Multi Function Uncooled Thermal Imaging Binoculars For Outdoor Adventures 2



► PIP



Multi Function Uncooled Thermal Imaging Binoculars For Outdoor Adventures 3

► Supports fog penetration function in visible light (color, black and white) observation mode

Multi Function Uncooled Thermal Imaging Binoculars For Outdoor Adventures 4

► Laser ranging and real-time display of distance, longitude, latitude, elevation and other data of the measured target

Multi Function Uncooled Thermal Imaging Binoculars For Outdoor Adventures 5


► Relative ranging function supports relative distance calculation between targets



Multi Function Uncooled Thermal Imaging Binoculars For Outdoor Adventures 6
