Lightweight Night Vision Infrared Telescope For Outdoor Exploration
| Place of Origin | China |
|---|---|
| Brand Name | Particle |
| Model Number | NVD3000 |
| Price | $17,000 |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | ≤1.6kg | Battery Life | Long-lasting |
|---|---|---|---|
| Durability | Durable | Vision | Night Vision |
| Resolution | High | Handheld | Yes |
| Night Vision | Yes | Function | Multifunctional |
| Infrared Recognition Distance | Mid-Size Vehicle：≥2.8km; Standing Man：≥1km | Infrared Detector | 640×512@12um |
| Infrared Focal Length | 70mm | FOV | ≥6.3°×5.0° |
| Visible Light Recognition Distance | Mid-Size Vehicle：≥6.6km；Standing Man：≥3km | Visible Light Resolution | 2592×1944@2.7um |
| Visible Light Focal Length | 105mm | Visible Light Focal Length Adaptation Range | 50m～∞ |
| Visible Light | ≥3.2°×2.4° | Laser Ranging | （1）Minimum Range：≤50m； （2）Maximum Range：≥6km； （3）Precision：≤2m； （4）Accurate Rate：≥98%； （5）Repeat Frequency：≥0.5Hz |
| Laser Ranging Logic | Select To Display The First Or Last Target Capability Measured | Laser Ranging Wavelength | Human Eye Safety Band |
| Positioning Precision | ≤7m（CEP），≤10m（PE） | Magnetic Azimuth | ≤0.5°（RMS） |
| Target Positioning Accuracy | At 2km Of The Distance，≤20m（CEP） | Diopter | -4SD～+4SD |
| Digital Zoom | 1×~4× | Working Time（Room Temperature） | ≥10h |
| Memory Storage | 32G | Operating Temperature | -40℃～+55℃ |
| IP Grade | IP67 | External Interface Data | USB |
| External Interface Video | PAL | Communication | RS232 |
| Interface Type | Reserved Picatinny Rail | Defog | Support |
| Highlight | Lightweight night vision infrared,night vision infrared Telescope,Outdoor Exploration night vision goggles |
||
Product Description
Durable Lightweight Night Vision Infrared Telescope for Outdoor Exploration
APPLICATIONS

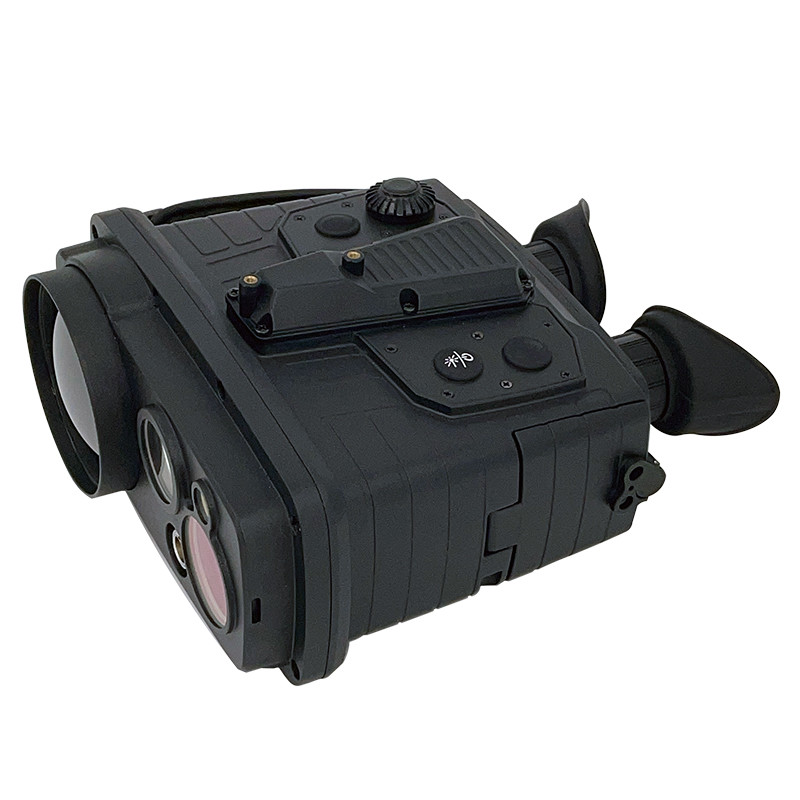

Designed for versatility, the NVD3000 is a binocular handheld uncooled thermal imaging telescope that meets the demands of multiple scenarios. It incorporates a thermal imaging detector and visible light sensor, facilitating a "one-key switch" between image modes. With integrated satellite positioning, laser ranging, and electronic compass modules, the NVD3000 provides precise self-positioning and target positioning, along with target identification and search guidance. It is especially useful for field observation, surveillance, and obtaining accurate target location information.
Technical Parameters:
* These parameters are for illustrative purposes only and are subject to change without prior notice due to product updates and improvements.
NVD 3000 Details:
► Thermal imaging observation mode and visible light observation mode can be switched with one click, and screen brightness, contrast, image quality enhancement, etc. can be personalized
 ► Supports guided search function after entering target coordinates
► PIP
► Supports fog penetration function in visible light (color, black and white) observation mode
► Laser ranging and real-time display of distance, longitude, latitude, elevation and other data of the measured target
► Relative ranging function supports relative distance calculation between targets
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
