Multifunctional Handheld Infrared Night Vision For Patrol Inspection And Key Area Monitorin
| Place of Origin | China |
|---|---|
| Brand Name | Particle |
| Model Number | NVD1000 |
| Minimum Order Quantity | 1 |
| Price | $6,173 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | High Definition | Type | Handheld |
|---|---|---|---|
| Feature | Night Vision | Name | Infrared-visible Image Fusion Equipment |
| Support | Multiple Video Modes | FOV | ≥16°×12° |
| Recognition Distance (Low-light Mode) | ≥300m (Visibility Not Less Than 8km, Illumination At 1×10-3～5×10-3lx, For Medium-sized Truck) | Recognition Distance (Thermal Imaging Mode) | ≥800m（Visibility Not Less Than 8km, The Background Temperature Difference Is Not More Than 3K，for Medium-sized Truck） |
| Recognition Distance (Fusion Mode) | ≥800m（Visibility Not Less Than 8km，the Background Temperature Difference Is Not More Than 3K，for Medium-sized Truck） | IR Detector Resolution | 640×512@17um |
| IR Detector Focus Lens | 35mm | Sensor（CCD）- Resolution | 800×600@18um |
| Sensor (CCD)- Focus Lens | 50mm | Weight | ≤1.2kg |
| Interface | PAL、USB | Battery | 18650 |
| Storage | 32G（Nominal） | Battery Life | ≥6h（Normal Temperature） |
| Operating Temperature | -40℃～+55℃ | IP Grade | IP67 |
| Observation Mode 1 | Low Light, Thermal Imaging, Fusion Black And White And Fusion Color | Observation Mode 2 | Marking Hot Source Targeting In Fusion Black And White, Fusion Color Modes |
| Observation Mode 3 | Five Typical Scene Modes Of Jungle, Snow, Ocean, City And Desert In The Fusion Color Mode | Video Recording | Supported |
| Photo Taking | Supported | Local Browsing And Export | Supported |
| Image Contrast | Adjustable 1-10 | Display Brightness | Adjustable 1-10 |
| Digital Zoom Function | 1×，2× | Anti-light Leakage Function | Supported |
| Highlight | Infrared military monoculars,Handheld military monoculars,Multifunctional military scope monocular |
||
Product Description
|
APPLICATIONS

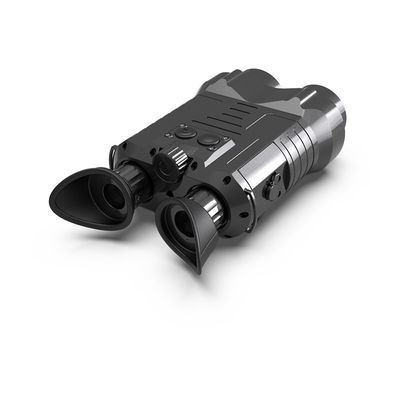

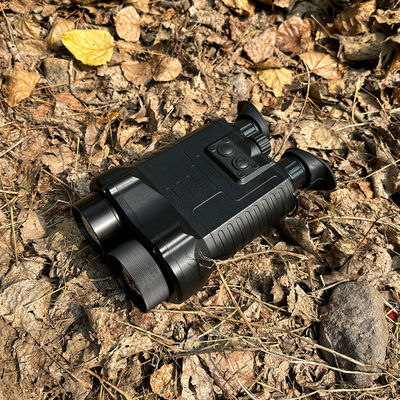

The NVD1000 fusion telescope combines thermal imaging and visible light images into a single display through advanced software algorithms. This fused image allows users to clearly detect and identify heat sources while also seeing the background environment's details. With distinct image layers and highlighted main targets, it is ideal for patrols, sentry duty, and monitoring key areas, especially in environments with alternating light and dark conditions and complex backgrounds. It aids in tasks such as concealed observation, mobile detection, screening, tracking, quick targeting, and covert video recording.
FUNCTION
► cfour display modes:low light, thermal imaging,fusion black and white and fusion color With target marking function (Fused Black & White and Fused Color modes)
► cfive scene palettes of jungle, snow,ocean,city, and desert
► Support video recording, photo taking, localbrowsing and export
► Support one-key switching of display mode
► Adjustable image contrast
► Adjustable display brightness
► With digital zoom function
► With anti-light leakage function
FEATURES
► Support multiple video modes
► Various color palettes background, suitable for observation in different scenes
► The image has clear layers and clear texture
► Realized the complementary advantages of visible light imaging and thermal imaging
► Easier to recognize objects
Technical Parameters:
NVD 1000 Details:
|
