50m-6000m LRF Multifunctional Handheld Infrared Night Vision For Nighttime Surveillance

  • 50m-6000m LRF Multifunctional Handheld Infrared Night Vision For Nighttime Surveillance
  • 50m-6000m LRF Multifunctional Handheld Infrared Night Vision For Nighttime Surveillance
  • 50m-6000m LRF Multifunctional Handheld Infrared Night Vision For Nighttime Surveillance
  • 50m-6000m LRF Multifunctional Handheld Infrared Night Vision For Nighttime Surveillance
Place of Origin China
Brand Name Particle
Model Number NVD3000
Minimum Order Quantity 1
Price $17,000
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resolution 2592×1944@2.7um Warranty 1 Year
Customized Support OED,ODM,OBM Product Name High-Efficiency Multifunctional Handheld Infrared Night Vision Telescope For Surveillance
Visible FOV ≥3.2°×2.4° Application Outdoor,Law Enforcement Evidence Collection,Fire Patrol
LRF 50m~6000m Focal Length 105mm
Infrared Recognition Distance Mid-Size Vehicle：≥2.8km; Standing Man：≥1km Infrared Detector 640×512@12um
Infrared Focal Length 70mm FOV ≥6.3°×5.0°
Visible Light Recognition Distance Mid-Size Vehicle：≥6.6km；Standing Man：≥3km Visible Light Resolution 2592×1944@2.7um
Visible Light Focal Length 105mm Visible Light Focal Length Adaptation Range 50m～∞
Visible Light ≥3.2°×2.4° Laser Ranging （1）Minimum Range：≤50m； （2）Maximum Range：≥6km； （3）Precision：≤2m； （4）Accurate Rate：≥98%； （5）Repeat Frequency：≥0.5Hz
Laser Ranging Logic Select To Display The First Or Last Target Capability Measured Laser Ranging Wavelength Human Eye Safety Band
Positioning Precision ≤7m（CEP），≤10m（PE） Magnetic Azimuth ≤0.5°（RMS）
Target Positioning Accuracy At 2km Of The Distance，≤20m（CEP） Diopter -4SD～+4SD
Digital Zoom 1×~4× Working Time（Room Temperature） ≥10h
Memory Storage 32G Operating Temperature -40℃～+55℃
IP Grade IP67 Weight ≤1.6kg
External Interface Data USB External Interface Video PAL
Communication RS232 Interface Type Reserved Picatinny Rail
Defog Support
Highlight

6000m Infrared Night Vision

,

50m Infrared Night Vision

,

Multifunctional hand held thermal scope
Leave a Message
Product Description

Multifunctional Handheld Infrared Night Vision Perfect for Nighttime Surveillance



APPLICATIONS

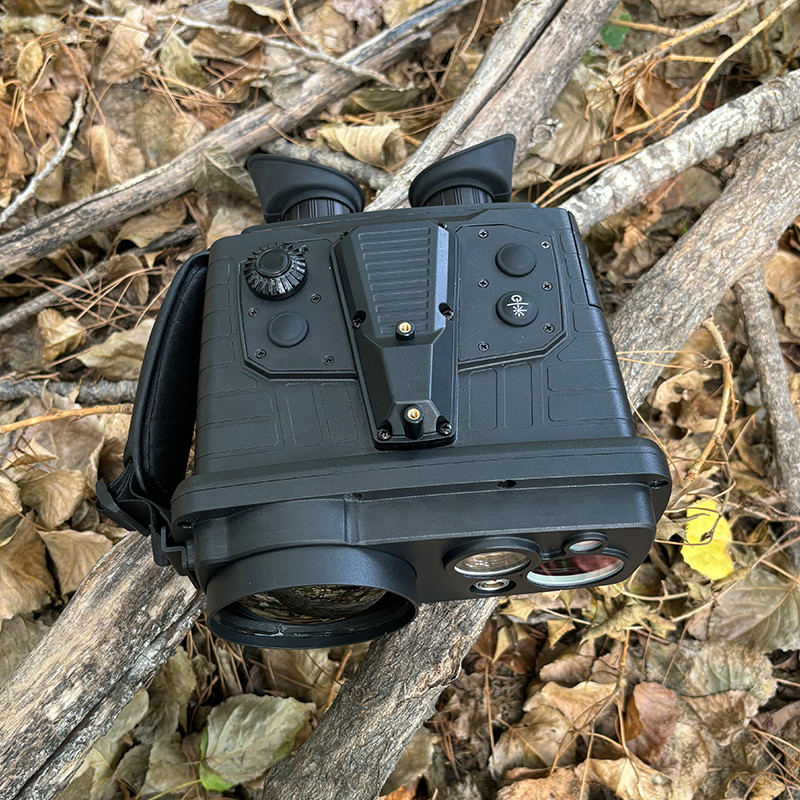

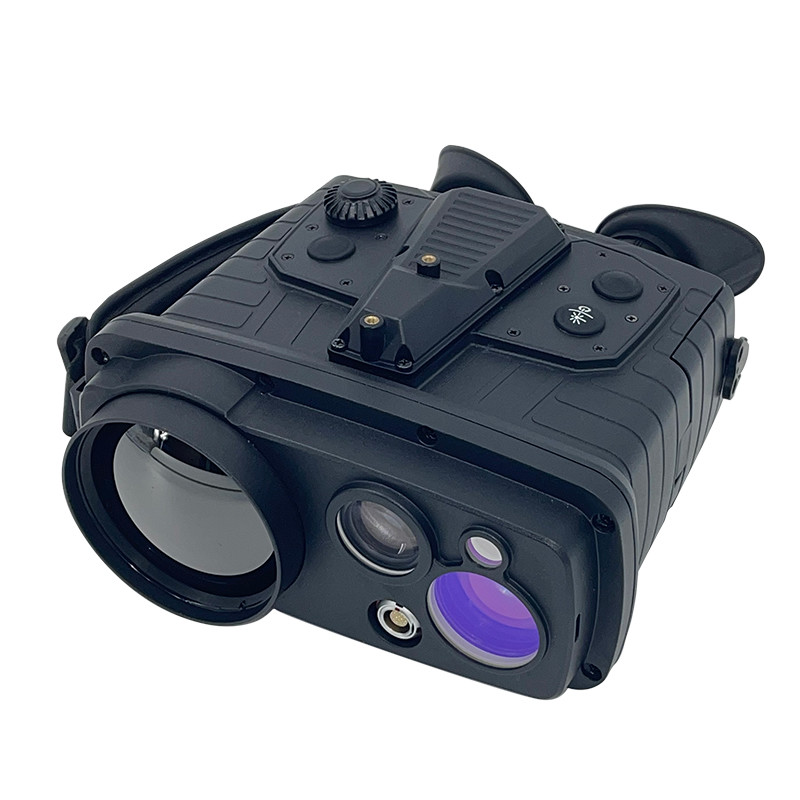

The NVD3000 is a cutting-edge binocular handheld uncooled thermal imaging telescope, designed to meet the demands of diverse scenarios. It includes a thermal imaging detector and a visible light sensor for effortless switching between thermal and visible light images. This device integrates satellite positioning, laser ranging modules, and an electronic compass, providing precise self-positioning and target positioning data. Ideal for field observation, surveillance, and acquiring target location information, the NVD3000 excels in target identification and search guidance.

Technical Parameters:

Product model NVD3000
Infrared
Mid-Size Vehicle ≥2.8km
Standing Man ≥1km
Infrared detection resolution 640×512@12um
Lens focal length 70mm
Infrared FOV ≥6.3°×5.0°
Visible Light
Mid-Size Vehicle ≥6.6km
Standing Man ≥3km
Resolution 2592×1944@2.7um
Focal Length 105mm
Focal Length Adaptation Range 50m～∞
Visible FOV ≥3.2°×2.4°
Defog Support
Laser Ranging
Minimum Range ≤50m；
Maximum Range ≥6km；
Precision ≤2m；
Repeat Frequency ≥0.5Hz；
Ranging Logic Select to display the first or last target capability measured；
Laser Wavelength Human eye safety band；
Positioning Orientation
Positioning Precision ≤7m(CEP),≤10m(PE)
Magnetic Azimuth ≤0.5°(RMS)
Target Positioning Accuracy at 2km of the distance,≤20m(CEP)
Other
Diopter -4SD～+4SD；
Digital zoom 1×~4×；
Working Time(Room temperature ≥10h
Memory Storage 32G；
Operating Temperature -40℃～+55℃；
IP Grade IP67；
Weight ≤1.6kg；



* These parameters are for illustrative purposes only and are subject to change without prior notice due to product updates and improvements.



NVD 3000 Details:



50m-6000m LRF Multifunctional Handheld Infrared Night Vision For Nighttime Surveillance 0



► Thermal imaging observation mode and visible light observation mode can be switched with one click, and screen brightness, contrast, image quality enhancement, etc. can be personalized
50m-6000m LRF Multifunctional Handheld Infrared Night Vision For Nighttime Surveillance 1

► Supports guided search function after entering target coordinates
50m-6000m LRF Multifunctional Handheld Infrared Night Vision For Nighttime Surveillance 2

► PIP
50m-6000m LRF Multifunctional Handheld Infrared Night Vision For Nighttime Surveillance 3

► Supports fog penetration function in visible light (color, black and white) observation mode
50m-6000m LRF Multifunctional Handheld Infrared Night Vision For Nighttime Surveillance 4

► Laser ranging and real-time display of distance, longitude, latitude, elevation and other data of the measured target
50m-6000m LRF Multifunctional Handheld Infrared Night Vision For Nighttime Surveillance 5

► Relative ranging function supports relative distance calculation between targets
50m-6000m LRF Multifunctional Handheld Infrared Night Vision For Nighttime Surveillance 6
