Multifunctional Infrared Hand Held Night Vision Scope For Field Observation

  • Multifunctional Infrared Hand Held Night Vision Scope For Field Observation
  • Multifunctional Infrared Hand Held Night Vision Scope For Field Observation
  • Multifunctional Infrared Hand Held Night Vision Scope For Field Observation
Place of Origin China
Brand Name Particle
Model Number NVD3000
Minimum Order Quantity 1
Price $17,000
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
CMOS Sensor 2592×1944@2.7um Focal Length Adaptation Range 50m～∞
Infrared FOV ≥6.3°×5.0° LRF 50m~6000m
Color Black Customized Support OED,ODM,OBM
Warranty 1 Year Infrared Recognition Distance Mid-Size Vehicle：≥2.8km; Standing Man：≥1km
Infrared Detector 640×512@12um Infrared Focal Length 70mm
FOV ≥6.3°×5.0° Visible Light Recognition Distance Mid-Size Vehicle：≥6.6km；Standing Man：≥3km
Visible Light Resolution 2592×1944@2.7um Visible Light Focal Length 105mm
Visible Light Focal Length Adaptation Range 50m～∞ Visible Light ≥3.2°×2.4°
Laser Ranging （1）Minimum Range：≤50m； （2）Maximum Range：≥6km； （3）Precision：≤2m； （4）Accurate Rate：≥98%； （5）Repeat Frequency：≥0.5Hz Laser Ranging Logic Select To Display The First Or Last Target Capability Measured
Laser Ranging Wavelength Human Eye Safety Band Positioning Precision ≤7m（CEP），≤10m（PE）
Magnetic Azimuth ≤0.5°（RMS） Target Positioning Accuracy At 2km Of The Distance，≤20m（CEP）
Diopter -4SD～+4SD Digital Zoom 1×~4×
Working Time（Room Temperature） ≥10h Memory Storage 32G
Operating Temperature -40℃～+55℃ IP Grade IP67
Weight ≤1.6kg External Interface Data USB
External Interface Video PAL Communication RS232
Interface Type Reserved Picatinny Rail Defog Support
Highlight

Multifunctional hand held night vision scope

,

Infrared hand held night vision scope

,

RS232 handheld thermal for hunting
Leave a Message
Product Description

High-Performance Multifunctional Handheld Infrared Night Vision for Field Observation



APPLICATIONS

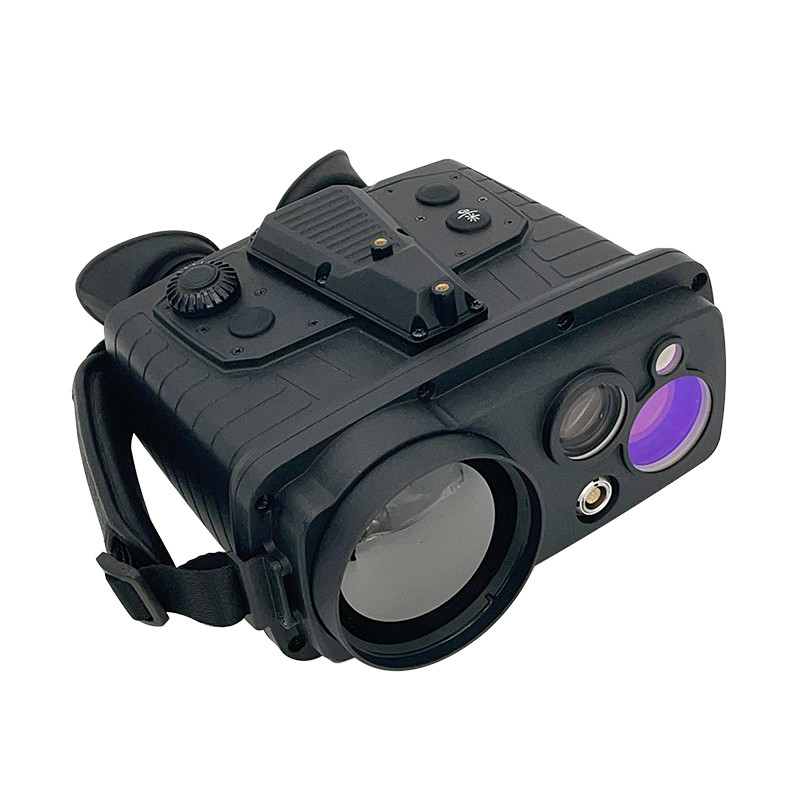

The NVD3000 is a binocular handheld uncooled thermal imaging telescope that excels in various scenarios. It features a built-in thermal imaging detector and visible light sensor, enabling easy switching between thermal and visible light images. With integrated satellite positioning, laser ranging modules, and an electronic compass, the NVD3000 offers precise self-positioning and target data calculation. Perfect for field observation, surveillance, and target location acquisition, this device excels in target identification and search guidance.



Technical Parameters



  Product model

NVD3000

  Infrared

Mid-Size Vehicle, km

≥2.8

Standing Man, km

≥1

Infrared detection resolution, Pixel@um

640×512@12um

Lens focal length, mm

70

Infrared FOV, °

≥6.3×5.0

  Visible Light

Mid-Size Vehicle, km

≥6.6

Standing Man, km

≥3

Resolution, Pixel@um

2592×1944@2.7um

Focal Length, mm

105

 Focal Length Adaptation Range, m

50～∞

Visible FOV, °

≥3.2×2.4

Defog

Support

  Laser Ranging

Minimum Range, m

≤50

Maximum Range, km

≥6

Precision, m

≤2

Repeat Frequency, Hz

≥0.5

Ranging Logic

Select to display the first or last target capability measured；

Laser Wavelength

Human eye safety band；

  Positioning Orientation

Positioning Precision, m

≤7(CEP), ≤10(PE)

Magnetic Azimuth, °

≤0.5(RMS)

Target Positioning Accuracy, m

at 2km of the distance≤20(CEP)

  Other

Diopter, SD

-4～+4

Digital zoom, ×

1~4

Working Time(Room temperature), h

≥10

Memory Storage, G

32

Operating Temperature, ℃

-40～+55

IP Grade

IP67

Weight, kg

≤1.6



* These parameters are for illustrative purposes only and are subject to change without prior notice due to product updates and improvements.



Product Details



Multifunctional Infrared Hand Held Night Vision Scope For Field Observation 0



► Thermal imaging observation mode and visible light observation mode can be switched with one click, and screen brightness, contrast, image quality enhancement, etc. can be personalized



Multifunctional Infrared Hand Held Night Vision Scope For Field Observation 1


► Supports guided search function after entering target coordinates



Multifunctional Infrared Hand Held Night Vision Scope For Field Observation 2



► PIP



Multifunctional Infrared Hand Held Night Vision Scope For Field Observation 3

► Supports fog penetration function in visible light (color, black and white) observation mode

Multifunctional Infrared Hand Held Night Vision Scope For Field Observation 4

► Laser ranging and real-time display of distance, longitude, latitude, elevation and other data of the measured target

Multifunctional Infrared Hand Held Night Vision Scope For Field Observation 5


► Relative ranging function supports relative distance calculation between targets



Multifunctional Infrared Hand Held Night Vision Scope For Field Observation 6
