Place of Origin	China
Brand Name	Particle
Model Number	NVD3000
Minimum Order Quantity	1
Price	$17,000
Payment Terms	T/T

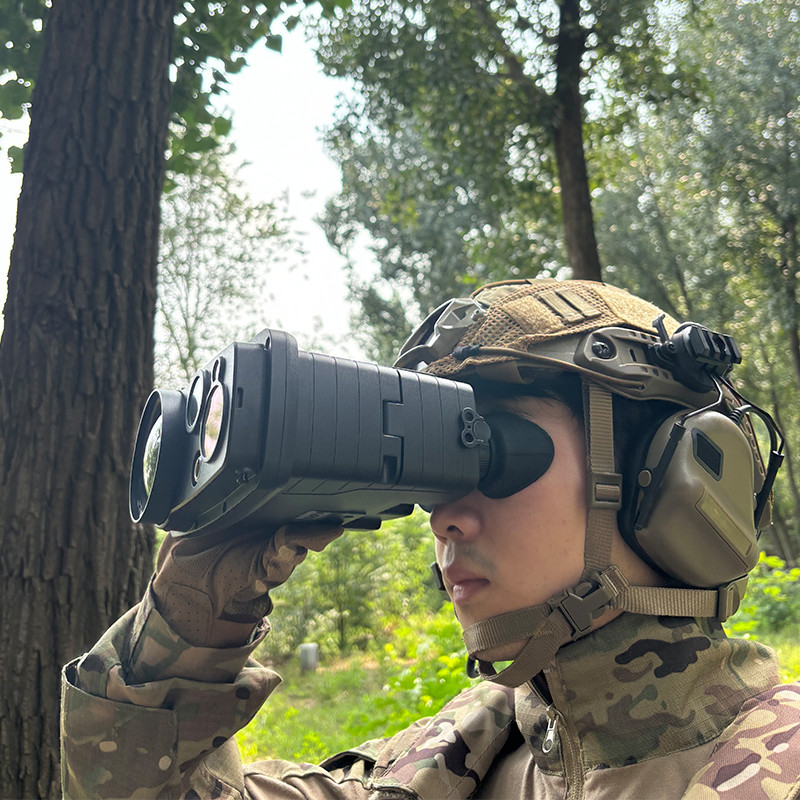

Product Name	High-Efficiency Multifunctional Handheld Infrared Night Vision Telescope For Surveillance	Color	Black
Product Category	Multifunctional Handheld Infrared Night Vision	Application	Outdoor,Law Enforcement Evidence Collection,Fire Patrol
CMOS Sensor	2592×1944@2.7um	Customized Support	OED,ODM,OBM
IR Detector	640×512@12um	Infrared Recognition Distance	Mid-Size Vehicle：≥2.8km; Standing Man：≥1km
Infrared Detector	640×512@12um	Infrared Focal Length	70mm
FOV	≥6.3°×5.0°	Visible Light Recognition Distance	Mid-Size Vehicle：≥6.6km；Standing Man：≥3km
Visible Light Resolution	2592×1944@2.7um	Visible Light Focal Length	105mm
Visible Light Focal Length Adaptation Range	50m～∞	Visible Light	≥3.2°×2.4°
Laser Ranging	（1）Minimum Range：≤50m；（2）Maximum Range：≥6km；（3）Precision：≤2m；（4）Accurate Rate：≥98%；（5）Repeat Frequency：≥0.5Hz	Laser Ranging Logic	Select To Display The First Or Last Target Capability Measured
Laser Ranging Wavelength	Human Eye Safety Band	Positioning Precision	≤7m（CEP），≤10m（PE）
Magnetic Azimuth	≤0.5°（RMS）	Target Positioning Accuracy	At 2km Of The Distance，≤20m（CEP）
Diopter	-4SD～+4SD	Digital Zoom	1×~4×
Working Time（Room Temperature）	≥10h	Memory Storage	32G
Operating Temperature	-40℃～+55℃	IP Grade	IP67
Weight	≤1.6kg	External Interface Data	USB
External Interface Video	PAL	Communication	RS232
Interface Type	Reserved Picatinny Rail	Defog	Support
Highlight	Multifunctional Infrared Night Vision Device , Handheld Infrared Night Vision Device , IP67 night vision device

Product model	NVD3000
Infrared
Mid-Size Vehicle, km	≥2.8
Standing Man, km	≥1
Infrared detection resolution, Pixel@um	640×512@12um
Lens focal length, mm	70
Infrared FOV, °	≥6.3×5.0
Visible Light
Mid-Size Vehicle, km	≥6.6
Standing Man, km	≥3
Resolution, Pixel@um	2592×1944@2.7um
Focal Length, mm	105
Focal Length Adaptation Range, m	50～∞
Visible FOV, °	≥3.2×2.4
Defog	Support
Laser Ranging
Minimum Range, m	≤50
Maximum Range, km	≥6
Precision, m	≤2
Repeat Frequency, Hz	≥0.5
Ranging Logic	Select to display the first or last target capability measured；
Laser Wavelength	Human eye safety band；
Positioning Orientation
Positioning Precision, m	≤7(CEP), ≤10(PE)
Magnetic Azimuth, °	≤0.5(RMS)
Target Positioning Accuracy, m	at 2km of the distance≤20(CEP)
Other
Diopter, SD	-4～+4
Digital zoom, ×	1~4
Working Time(Room temperature), h	≥10
Memory Storage, G	32
Operating Temperature, ℃	-40～+55
IP Grade	IP67
Weight, kg	≤1.6
