High Resolution Multifunctional Infrared Night Vision Goggles Handheld

  • High Resolution Multifunctional Infrared Night Vision Goggles Handheld
  • High Resolution Multifunctional Infrared Night Vision Goggles Handheld
  • High Resolution Multifunctional Infrared Night Vision Goggles Handheld
  • High Resolution Multifunctional Infrared Night Vision Goggles Handheld
Place of Origin China
Brand Name Particle
Model Number NVD3000
Price $17,000

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Night Vision Yes Resolution High
Function Multifunctional Vision Night Vision
Durability Durable Weight ≤1.6kg
Type Handheld Technology Infrared
Infrared Recognition Distance Mid-Size Vehicle：≥2.8km; Standing Man：≥1km Infrared Detector 640×512@12um
Infrared Focal Length 70mm FOV ≥6.3°×5.0°
Visible Light Recognition Distance Mid-Size Vehicle：≥6.6km；Standing Man：≥3km Visible Light Resolution 2592×1944@2.7um
Visible Light Focal Length 105mm Visible Light Focal Length Adaptation Range 50m～∞
Visible Light ≥3.2°×2.4° Laser Ranging （1）Minimum Range：≤50m； （2）Maximum Range：≥6km； （3）Precision：≤2m； （4）Accurate Rate：≥98%； （5）Repeat Frequency：≥0.5Hz
Laser Ranging Logic Select To Display The First Or Last Target Capability Measured Laser Ranging Wavelength Human Eye Safety Band
Positioning Precision ≤7m（CEP），≤10m（PE） Magnetic Azimuth ≤0.5°（RMS）
Target Positioning Accuracy At 2km Of The Distance，≤20m（CEP） Diopter -4SD～+4SD
Digital Zoom 1×~4× Working Time（Room Temperature） ≥10h
Memory Storage 32G Operating Temperature -40℃～+55℃
IP Grade IP67 External Interface Data USB
External Interface Video PAL Communication RS232
Interface Type Reserved Picatinny Rail Defog Support
Highlight

Multifunctional infrared night vision goggles

,

High Resolution infrared night vision goggles

,

Handheld thermal imaging goggles
Leave a Message
Product Description

Resolution Multifunctional Infrared Night Vision Goggles for Enhanced Durability

APPLICATIONS

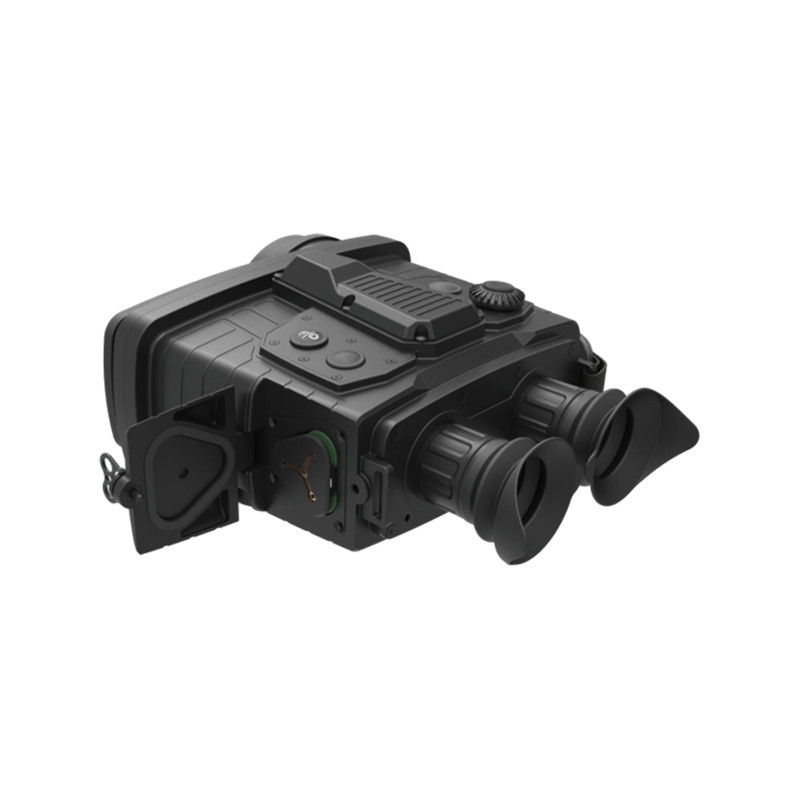

The NVD3000 is a versatile binocular handheld uncooled thermal imaging telescope designed to meet diverse user needs across various scenarios. It features a built-in thermal imaging detector and visible light sensor, allowing seamless switching between thermal and visible light images with a single button. Equipped with satellite positioning modules, laser ranging modules, and an electronic compass, the NVD3000 enables accurate self-positioning and target positioning data calculation, as well as target identification and search guidance. This makes it particularly suited for field observation, surveillance, and gathering target location information.

Technical Parameters:

Product model NVD3000
Infrared
Mid-Size Vehicle ≥2.8km
Standing Man ≥1km
Infrared detection resolution 640×512@12um
Lens focal length 70mm
Infrared FOV ≥6.3°×5.0°
Visible Light
Mid-Size Vehicle ≥6.6km
Standing Man ≥3km
Resolution 2592×1944@2.7um
Focal Length 105mm
Focal Length Adaptation Range 50m～∞
Visible FOV ≥3.2°×2.4°
Defog Support
Laser Ranging
Minimum Range ≤50m；
Maximum Range ≥6km；
Precision ≤2m；
Repeat Frequency ≥0.5Hz；
Ranging Logic Select to display the first or last target capability measured；
Laser Wavelength Human eye safety band；
Positioning Orientation
Positioning Precision ≤7m(CEP),≤10m(PE)
Magnetic Azimuth ≤0.5°(RMS)
Target Positioning Accuracy at 2km of the distance,≤20m(CEP)
Other
Diopter -4SD～+4SD；
Digital zoom 1×~4×；
Working Time(Room temperature ≥10h
Memory Storage 32G；
Operating Temperature -40℃～+55℃；
IP Grade IP67；
Weight ≤1.6kg；



* These parameters are for illustrative purposes only and are subject to change without prior notice due to product updates and improvements.



NVD 3000 Details:



High Resolution Multifunctional Infrared Night Vision Goggles Handheld 0



► Thermal imaging observation mode and visible light observation mode can be switched with one click, and screen brightness, contrast, image quality enhancement, etc. can be personalized
High Resolution Multifunctional Infrared Night Vision Goggles Handheld 1

► Supports guided search function after entering target coordinates
High Resolution Multifunctional Infrared Night Vision Goggles Handheld 2

► PIP
High Resolution Multifunctional Infrared Night Vision Goggles Handheld 3

► Supports fog penetration function in visible light (color, black and white) observation mode
High Resolution Multifunctional Infrared Night Vision Goggles Handheld 4

► Laser ranging and real-time display of distance, longitude, latitude, elevation and other data of the measured target
High Resolution Multifunctional Infrared Night Vision Goggles Handheld 5

► Relative ranging function supports relative distance calculation between targets
High Resolution Multifunctional Infrared Night Vision Goggles Handheld 6
