Medium Sized EOD Robot For Efficient Bomb Disposal Operations

  • Medium Sized EOD Robot For Efficient Bomb Disposal Operations
  • Medium Sized EOD Robot For Efficient Bomb Disposal Operations
  • Medium Sized EOD Robot For Efficient Bomb Disposal Operations
Place of Origin China
Brand Name Particle
Model Number REOD4000
Minimum Order Quantity 1
Price $356,653
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Movable Joints 7 Product Category Explosive Ordnance Disposal Robot
Maximum Gripping Diameter ≥355mm Functionality Remote Control To Approach The Dangerous Scene, Investigate Potential Sources Of Danger, Take Disposal Measures Or Transfer Hazards According To Mission Objectives, Protect Front-line Workers And The Public From Personal Injury
Protection Level And Environmental Adaptability IP66；-40℃～＋50℃； Mobility Tracks Or Wheels
Product Name Powerful Hound-III EOD Robot Safely Approaching And Disposing Of Explosive Hazards Applications Responding To Improvised Explosive Devices
Robot Size 1600×850×1300 Mm（Fully Stowed） Robot Weight ≤350kg（Contain Batteries）
Maximum Speed ≥5m/s Over Obstacle Ability ≥400mm
Across Groove Width ≥800mm Gradeability ≥45º
The Maximum Slope Passing Capacity 35° Wading Depth ≥500mm
Battery Life（Normal Temperature） ≥10h Maximum Grabbing Distance 2.6m
Maximum Grabbing Weight ≥200kg Maximum Gripping Depth 2.2m
Controller Size ≤400×300×100mm Controller Weight ≤3kg（Without Backpack）
Controller Display Screen ≥12'' LCD Controller Video Display ≥7-channel
Operation Method Dual-mode Operation Of Button Rocker And Touch Screen Control Method Cable Control≥200m（Standard Cable），Wireless Control≥1000m（Outdoor）
Robot Platform IP Grade IP66 Arm IP Grade IP66
Operating Temperature -40℃～＋50℃ Storage Temperature -45℃～＋60℃
Highlight

Medium Sized Explosive Ordnance Disposal Robot

,

IP66 Explosive Ordnance Disposal Robot

,

IP66 eod robot
Leave a Message
Product Description



Advanced Medium-Sized EOD Robot for Efficient Bomb Disposal Operations



Applications

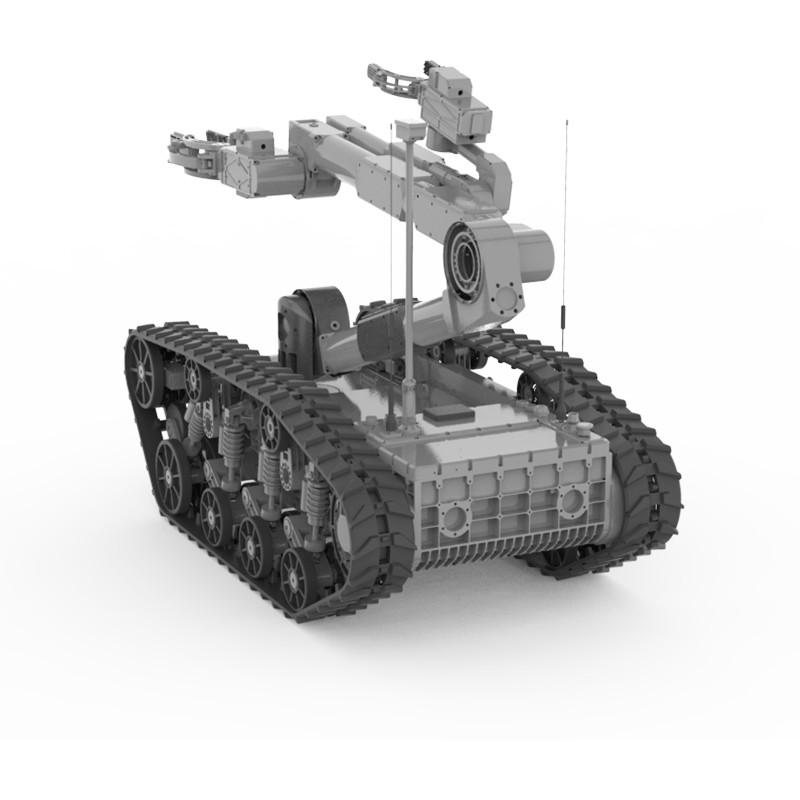

The JP REOD4000 is a medium-sized EOD robot boasting superior explosive transfer and disposal capabilities, along with excellent off-road performance. Equipped with up to seven video image sensors, it enhances operational precision. Its 7-degree-of-freedom robotic arm provides exceptional reach into dangerous areas, allowing for precise object handling even under restrictive conditions. With a maximum snatch weight of 200 kg, it outperforms similar equipment. The chassis features a "Christie" suspension system, ensuring smooth navigation over complex terrain.



Functionality

Remote control to approach the dangerous scene , Investigate potential sources of danger , Take disposal measures or transfer hazards according to mission objectives,Protect front-line workers and the public from personal injury.



Features

1. High-strength mechanical arm design, endows powerful snatch performance；
2."Christie" suspension track system, complex terrain like walking on flat ground；
3.Graphically dual-mode operation, convenient and reliable operation experience；
4.Remote 3D real-time display, fine operation in front of your eyes；
5.Intelligent "preset" control design, personalized setting of working posture；
6.The "X-Y-Z" three-dimensional space robotic arm linkage design based on automatic calculation helps you to control precisely；



Technical Parameters

1. Robot Platform
(1)Size 1600×850×1300 mm(Fully Stowed)；
(2)Weight ≤350kg(Contain batteries)；
(3)Maximum Speed ≥5m/s；
(4)Over Obstacle Ability ≥400mm；
(5)Across Groove Width ≥800mm；
(6)Gradeability ≥45º；
(7)The Maximum Slope Passing Capacity 35°；
(8)Wading Depth ≥500mm；
(9)Battery Life(Normal temperature) ≥10h；
2. Robotic Arm Grabbing Performance
(1)Maximum Grabbing Distance 2.6m；
(2)Maximum Grabbing Weight ≥200kg；
(3)Maximum Gripping Diameter ≥355mm；
(4)Maximum Gripping Depth 2.2m；
(5)Movable Joints 7；
3. Portable Controller
(1)Size ≤400×300×100mm(不含天线)；
(2)Weight ≤3kg(Without backpack)；
(3)Display Screen ≥12'' LCD；
(4)Video Display ≥7-channel；
(5)Operation Method Dual-mode operation of button rocker and touch screen；
(6)Control Method Cable control≥200m(Standard cable),Wireless control≥1000m(Outdoor).
4. Protection level and environmental adaptability
(1)Robot Platform IP66；
(2)Arm IP66；
(3)Operating Temperature -40℃～＋50℃；



REOD4000 Details
