EOD Robot For Bomb Disposal Personalized Working Posture Setting And 2 Claws

  • EOD Robot For Bomb Disposal Personalized Working Posture Setting And 2 Claws
  • EOD Robot For Bomb Disposal Personalized Working Posture Setting And 2 Claws
  • EOD Robot For Bomb Disposal Personalized Working Posture Setting And 2 Claws
Place of Origin China
Brand Name Particle
Model Number REOD500
Minimum Order Quantity 1
Price $205,761
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Climb Stairs ≥45° Richer Observation Perspectives 7-channel Video Images
Battery Life(Normal Temperature) ≥3h Operating Temperature -40℃～＋50℃
Wading Depth ≥200mm Remote 3D Real-time Display Fine Operation In Front Of Your Eyes
Enhanced Mechanical Arm Design Greatly Improved Gripping Performance Robotic Arm Design 8-degree-of-freedom
Robot Size ≤950×650×650mm（Fully Stowed） Robot Weight ≤50kg（Contains Two Sets Of Batteries）
Maximum Speed ≥2m/s（5 Gears, Continuously Variable） Over Obstacle Ability ≥400mm
Across Groove Width ≥400mm Gradeability ≥45°
Battery Life（Normal Temperature） ≥3h Arm Length 2000mm
Maximum Snatch Weight ≥40kg Claws 2
Movable Joints 8 Controller Size ≤270mm×170mm×100mm
Controller Weight ≤1.2kg（Without Backpack） Controller Display Screen 7'' LCD
Video Display 7-channel，one Of Which Has Auto Focus Zoom Function Operation Method Dual-mode Operation Of Button Rocker And Touch Screen
Control Method Cable Control≥100m（Standard Cable），Wireless Control≥1000m（Outdoor） Robot Platform IP Grade IP66
Arm IP Grade IP66 Storage Temperature -45℃～＋60℃
Highlight

2 Claws EOD Robot

,

7'' LCD EOD Robot

,

IP66 eod robots
Leave a Message
Product Description

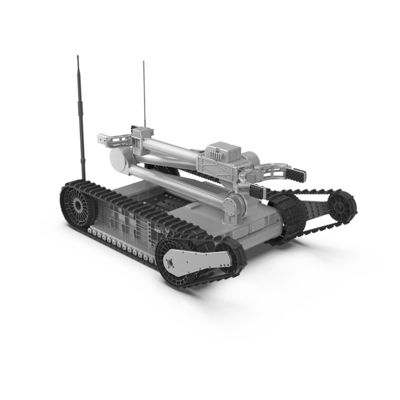

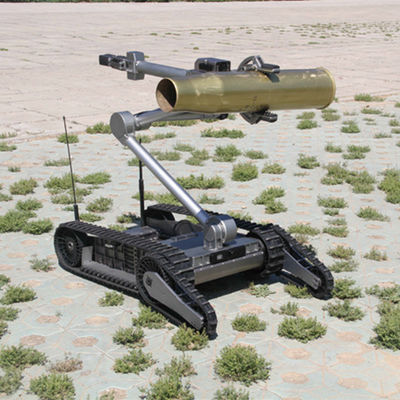

EOD Robot for Bomb Disposal Personalized Working Posture Setting and 2 Claws



Applications

The JP REOD500 adopts the cutting-edge design principles of the Hound series, incorporating swing-arm crawler walking platform technology. This innovative combination of the main crawler and swing-arm obstacle crawler dramatically improves the robot's ability to traverse obstacles. Furthermore, the multi-degree-of-freedom design of the robotic arm offers the front-end "claw" remarkable reach and enhanced gripping power, significantly boosting the robot's precision and safety in handling and transferring hazardous materials.



Functionality

Remote control to approach the dangerous scene,Investigate potential sources of danger,Take disposal measures or transfer hazards according to mission objectives,Protect front-line workers and the public from personal injury.



Features

1. Enhanced mechanical arm design, greatly improved gripping performance；

★2. "2- claws" patent design, multiple tasks can be solved at one time；

3. Graphically dual-mode operation, convenient and reliable operation experience；

★4. Remote 3D real-time display, fine operation in front of your eyes；

★5. Intelligent "preset" control design, personalized setting of working posture；

★6. The "X-Y-Z" three-dimensional space robotic arm linkage design based on automatic calculation helps you to control precisely；

7. 7-channel video images, richer observation perspectives；

8. 8-degree-of-freedom robotic arm design, more flexible control；

9. A variety of expansion tools can be quickly replaced to calmly deal with various working conditions；



Technical Parameters

1. Robot Platform
(1)Size ≤950×650×650mm(Fully Stowed)；
(2)Weight ≤50kg(Contains two sets of batteries)；
(3)Maximum Speed ≥2m/s(5 gears, continuously variable)；
★(4)Over Obstacle Ability ≥400mm；
(5)Across Groove Width ≥400mm；
(6)Gradeability ≥45°；
(7)Climb Stairs ≥45°；
★(8)Wading Depth ≥200mm；
(9)Battery Life(Normal temperature) ≥3h；
2. Robotic Arm Grabbing Performance
★(1)Arm Length 2000mm；
★(2)Maximum Snatch Weight ≥40kg；
★(3)Claws 2；
★(4)Movable Joints 8；
3. Portable Controller
★(1)Size ≤270mm×170mm×100mm；
(2)Weight ≤1.2kg(Without backpack)；

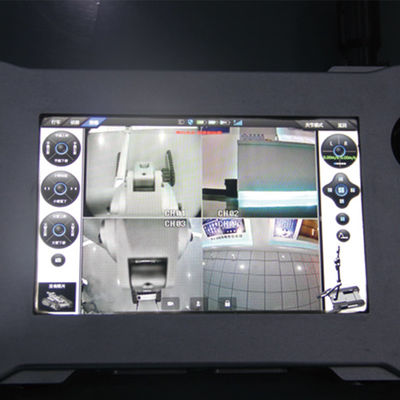

(3)Display Screen 7'' LCD；
★(4)Video Display 7-channel,one of which has auto focus zoom function；
★(5)Operation Method Dual-mode operation of button rocker and touch screen；
★(6)Control Method Cable control≥100m(Standard cable),Wireless control≥1000m(Outdoor).
4. Protection level and environmental adaptability
(1)Robot Platform IP66；
(2)Arm IP66；
★(3)Operating Temperature -40℃～＋50℃；
(4)Storage Temperature -45℃～＋60℃；



REOD500 Details
