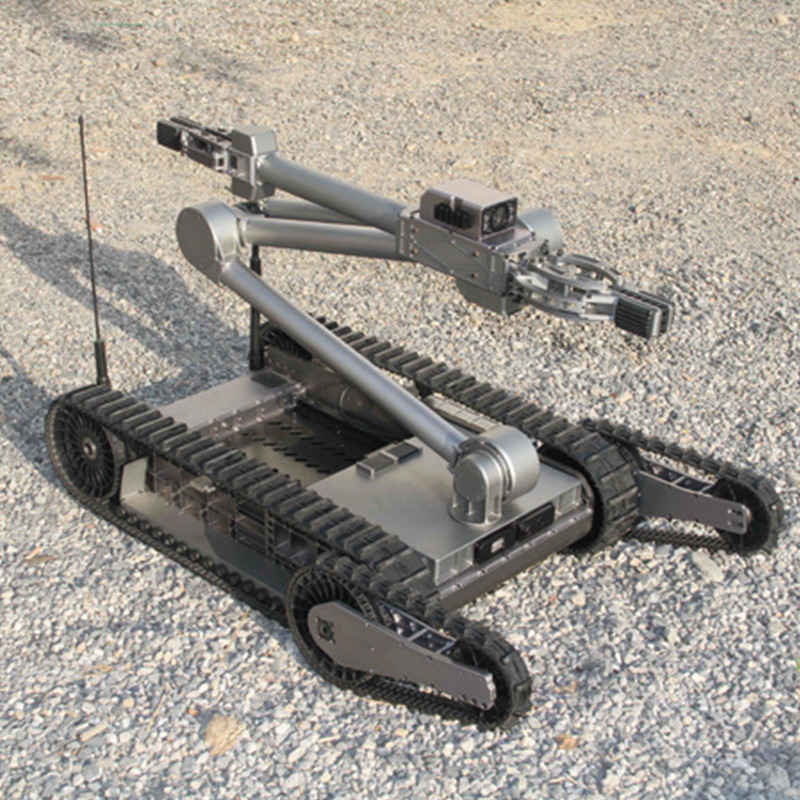

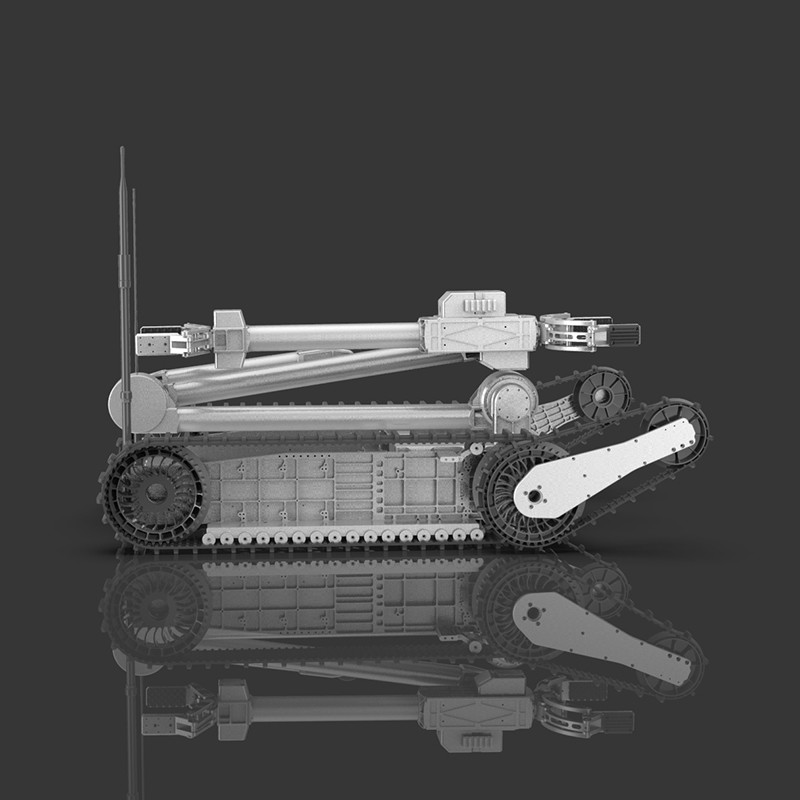

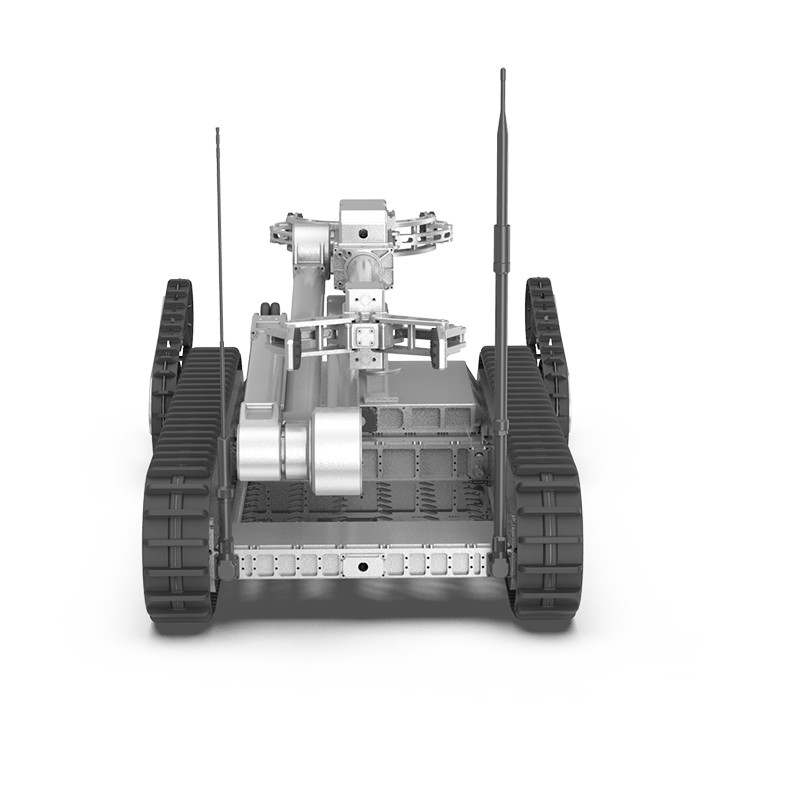

Intelligent Preset Control Military EOD Robots For Hazardous Environments

  • Intelligent Preset Control Military EOD Robots For Hazardous Environments
  • Intelligent Preset Control Military EOD Robots For Hazardous Environments
  • Intelligent Preset Control Military EOD Robots For Hazardous Environments
Place of Origin China
Brand Name Particle
Model Number REOD500
Minimum Order Quantity 1
Price $205,761
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wading Depth ≥200mm 8-degree-of-freedom Robotic Arm Design More Flexible Control
Remote 3D Real-time Display Fine Operation In Front Of Your Eyes Operating Temperature -40℃～＋50℃
Enhanced Mechanical Arm Design Greatly Improved Gripping Performance Manipulator Arm Yes
7-channel Video Images Richer Observation Perspectives Claws 2
Robot Size ≤950×650×650mm（Fully Stowed） Robot Weight ≤50kg（Contains Two Sets Of Batteries）
Maximum Speed ≥2m/s（5 Gears, Continuously Variable） Over Obstacle Ability ≥400mm
Across Groove Width ≥400mm Gradeability ≥45°
Climb Stairs ≥45° Battery Life（Normal Temperature） ≥3h
Arm Length 2000mm Maximum Snatch Weight ≥40kg
Movable Joints 8 Controller Size ≤270mm×170mm×100mm
Controller Weight ≤1.2kg（Without Backpack） Controller Display Screen 7'' LCD
Video Display 7-channel，one Of Which Has Auto Focus Zoom Function Operation Method Dual-mode Operation Of Button Rocker And Touch Screen
Control Method Cable Control≥100m（Standard Cable），Wireless Control≥1000m（Outdoor） Robot Platform IP Grade IP66
Arm IP Grade IP66 Storage Temperature -45℃～＋60℃
Highlight

EOD Robots IP66

,

Military EOD Robots

,

robot eod
Leave a Message
Product Description



Intelligent Preset Control Design Military EOD Robots for Hazardous Environments



Applications

Inheriting the forward-thinking design of the Hound series, the JP REOD500 utilizes a swing-arm crawler walking platform. This innovative technology, which combines the main crawler with a swing-arm obstacle crawler, significantly boosts the robot's obstacle-crossing abilities. This design not only enhances mobility but also ensures stability in various terrains, making the JP REOD500 a versatile tool for EOD missions.



Functionality

Remote control to approach the dangerous scene,Investigate potential sources of danger,Take disposal measures or transfer hazards according to mission objectives,Protect front-line workers and the public from personal injury.



Features

1. Enhanced mechanical arm design, greatly improved gripping performance；

★2. "2- claws" patent design, multiple tasks can be solved at one time；

3. Graphically dual-mode operation, convenient and reliable operation experience；

★4. Remote 3D real-time display, fine operation in front of your eyes；

★5. Intelligent "preset" control design, personalized setting of working posture；

★6. The "X-Y-Z" three-dimensional space robotic arm linkage design based on automatic calculation helps you to control precisely；

7. 7-channel video images, richer observation perspectives；

8. 8-degree-of-freedom robotic arm design, more flexible control；

9. A variety of expansion tools can be quickly replaced to calmly deal with various working conditions；



Technical Parameters

1. Robot Platform
(1)Size ≤950×650×650mm(Fully Stowed)；
(2)Weight ≤50kg(Contains two sets of batteries)；
(3)Maximum Speed ≥2m/s(5 gears, continuously variable)；
★(4)Over Obstacle Ability ≥400mm；
(5)Across Groove Width ≥400mm；
(6)Gradeability ≥45°；
(7)Climb Stairs ≥45°；
★(8)Wading Depth ≥200mm；
(9)Battery Life(Normal temperature) ≥3h；
2. Robotic Arm Grabbing Performance
★(1)Arm Length 2000mm；
★(2)Maximum Snatch Weight ≥40kg；
★(3)Claws 2；
★(4)Movable Joints 8；
3. Portable Controller
★(1)Size ≤270mm×170mm×100mm；
(2)Weight ≤1.2kg(Without backpack)；
(3)Display Screen 7'' LCD；
★(4)Video Display 7-channel,one of which has auto focus zoom function；
★(5)Operation Method Dual-mode operation of button rocker and touch screen；
★(6)Control Method Cable control≥100m(Standard cable),Wireless control≥1000m(Outdoor).
4. Protection level and environmental adaptability
(1)Robot Platform IP66；
(2)Arm IP66；
★(3)Operating Temperature -40℃～＋50℃；
(4)Storage Temperature -45℃～＋60℃；



REOD500 Details

Intelligent Preset Control Military EOD Robots For Hazardous Environments 0
