X-Y-Z Three Dimensional Space Robotic Arm Explosive Ordnance Disposal Robot

  • X-Y-Z Three Dimensional Space Robotic Arm Explosive Ordnance Disposal Robot
  • X-Y-Z Three Dimensional Space Robotic Arm Explosive Ordnance Disposal Robot
  • X-Y-Z Three Dimensional Space Robotic Arm Explosive Ordnance Disposal Robot
Place of Origin China
Brand Name Particle
Model Number REOD500
Minimum Order Quantity 1
Price $205,761
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Manipulator Arm Yes X-Y-Z Three-dimensional Space Robotic Arm Linkage Design Helps You To Control Precisely
8-degree-of-freedom Robotic Arm Design More Flexible Control Operating Temperature -40℃～＋50℃
Climb Stairs ≥45° Intelligent Preset Control Design Personalized Setting Of Working Posture
Robot Size ≤950×650×650mm（Fully Stowed） Robot Weight ≤50kg（Contains Two Sets Of Batteries）
Maximum Speed ≥2m/s（5 Gears, Continuously Variable） Over Obstacle Ability ≥400mm
Across Groove Width ≥400mm Gradeability ≥45°
Wading Depth ≥200mm Battery Life（Normal Temperature） ≥3h
Arm Length 2000mm Maximum Snatch Weight ≥40kg
Claws 2 Movable Joints 8
Controller Size ≤270mm×170mm×100mm Controller Weight ≤1.2kg（Without Backpack）
Controller Display Screen 7'' LCD Video Display 7-channel，one Of Which Has Auto Focus Zoom Function
Operation Method Dual-mode Operation Of Button Rocker And Touch Screen Control Method Cable Control≥100m（Standard Cable），Wireless Control≥1000m（Outdoor）
Robot Platform IP Grade IP66 Arm IP Grade IP66
Storage Temperature -45℃～＋60℃
Highlight

Three Dimensional explosive ordnance disposal robot

,

7 channel explosive ordnance disposal robot

,

IP66 disposal robot
Leave a Message
Product Description

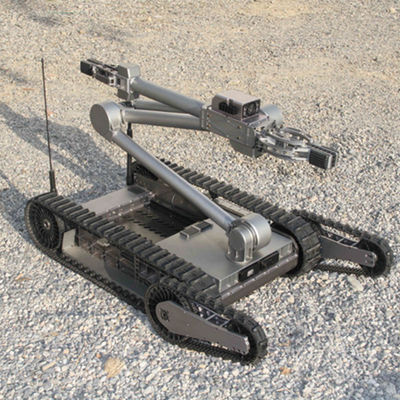

X-Y-Z Three-dimensional Space Robotic Arm Explosive Ordnance Disposal Robot



Applications

The JP REOD500, drawing from the innovative design principles of the Hound series, features a swing-arm crawler system that integrates both the main crawler and the swing-arm obstacle crawler. This unique combination greatly improves the robot's ability to overcome obstacles, providing it with unparalleled mobility and stability in difficult and hazardous conditions, thus enhancing the safety and effectiveness of EOD missions.



Functionality

Remote control to approach the dangerous scene,Investigate potential sources of danger,Take disposal measures or transfer hazards according to mission objectives,Protect front-line workers and the public from personal injury.



Features

1. Enhanced mechanical arm design, greatly improved gripping performance；

★2. "2- claws" patent design, multiple tasks can be solved at one time；

3. Graphically dual-mode operation, convenient and reliable operation experience；

★4. Remote 3D real-time display, fine operation in front of your eyes；

★5. Intelligent "preset" control design, personalized setting of working posture；

★6. The "X-Y-Z" three-dimensional space robotic arm linkage design based on automatic calculation helps you to control precisely；

7. 7-channel video images, richer observation perspectives；

8. 8-degree-of-freedom robotic arm design, more flexible control；

9. A variety of expansion tools can be quickly replaced to calmly deal with various working conditions；



Technical Parameters

1. Robot Platform
(1)Size ≤950×650×650mm(Fully Stowed)；
(2)Weight ≤50kg(Contains two sets of batteries)；
(3)Maximum Speed ≥2m/s(5 gears, continuously variable)；
★(4)Over Obstacle Ability ≥400mm；
(5)Across Groove Width ≥400mm；
(6)Gradeability ≥45°；
(7)Climb Stairs ≥45°；
★(8)Wading Depth ≥200mm；
(9)Battery Life(Normal temperature) ≥3h；
2. Robotic Arm Grabbing Performance
★(1)Arm Length 2000mm；
★(2)Maximum Snatch Weight ≥40kg；
★(3)Claws 2；
★(4)Movable Joints 8；

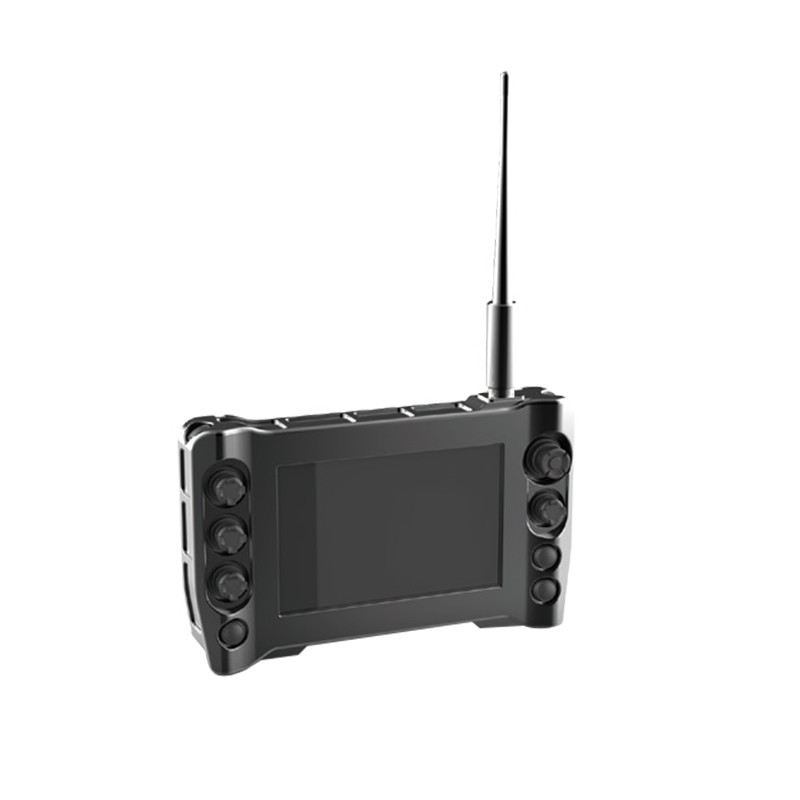

3. Portable Controller
★(1)Size ≤270mm×170mm×100mm；
(2)Weight ≤1.2kg(Without backpack)；
(3)Display Screen 7'' LCD；
★(4)Video Display 7-channel,one of which has auto focus zoom function；
★(5)Operation Method Dual-mode operation of button rocker and touch screen；
★(6)Control Method Cable control≥100m(Standard cable),Wireless control≥1000m(Outdoor).
4. Protection level and environmental adaptability
(1)Robot Platform IP66；
(2)Arm IP66；
★(3)Operating Temperature -40℃～＋50℃；
(4)Storage Temperature -45℃～＋60℃；

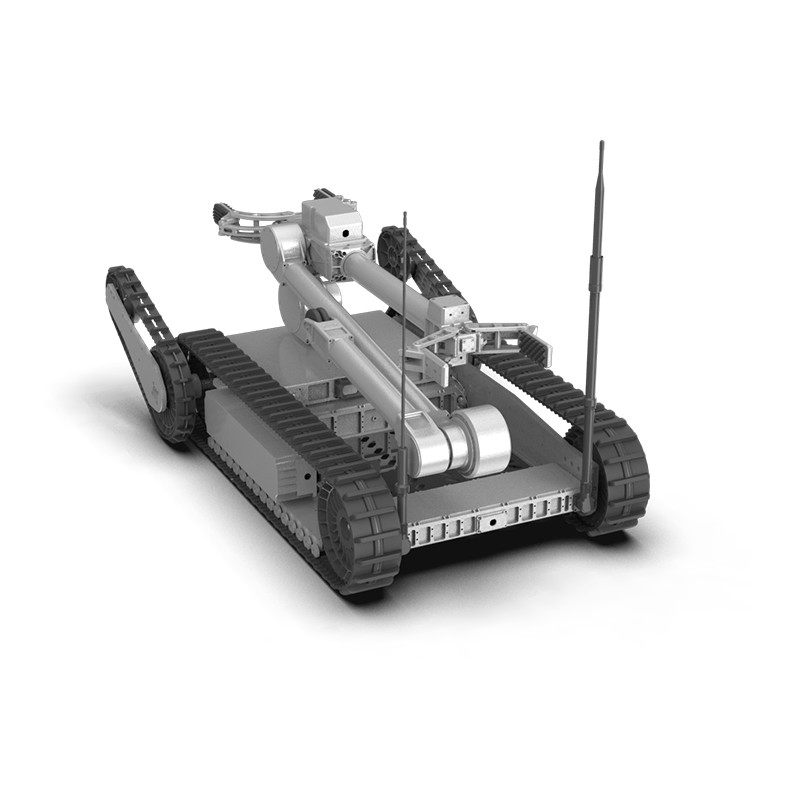

REOD500 Details

X-Y-Z Three Dimensional Space Robotic Arm Explosive Ordnance Disposal Robot 0
