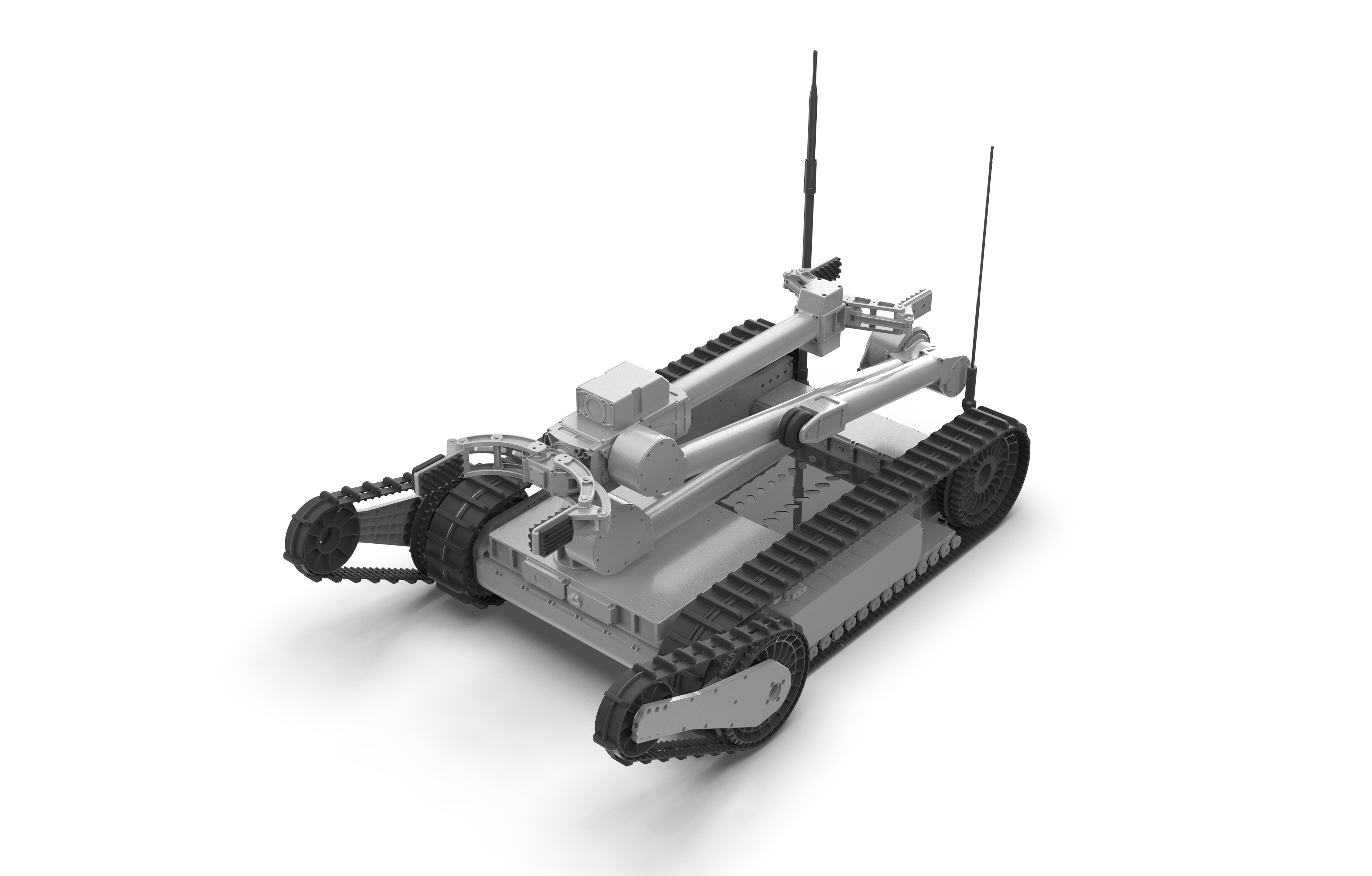

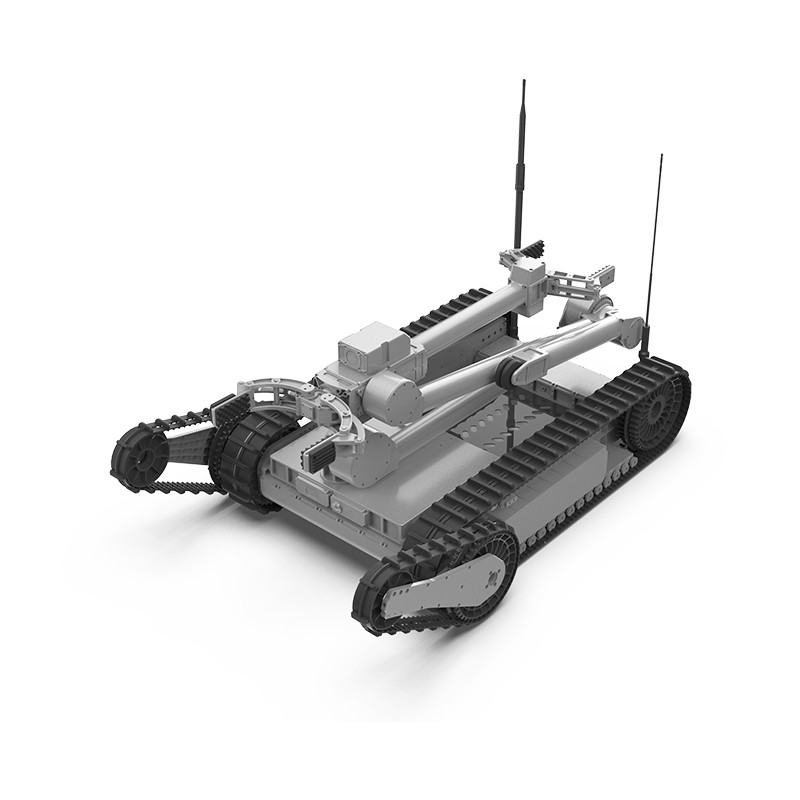

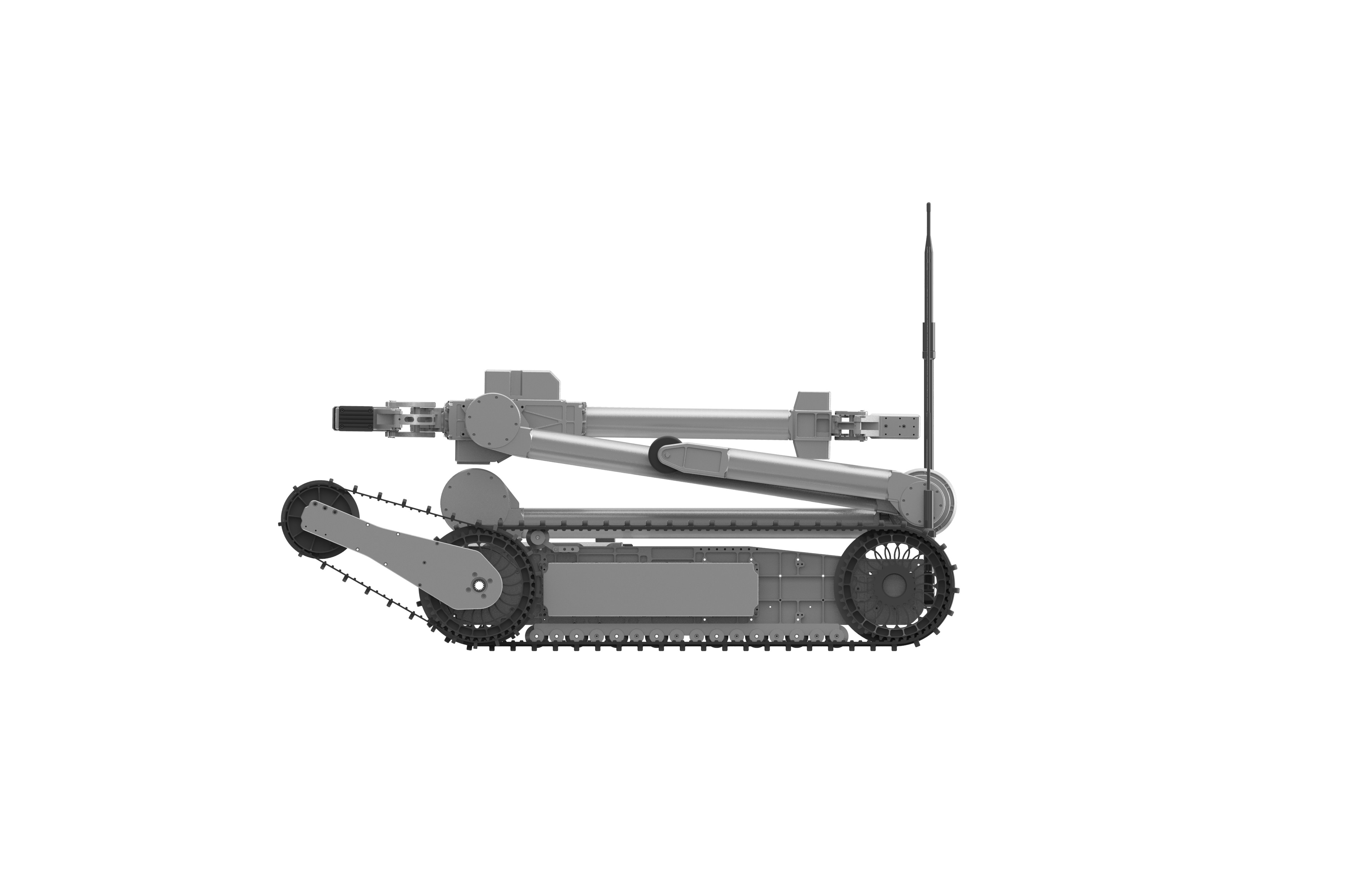

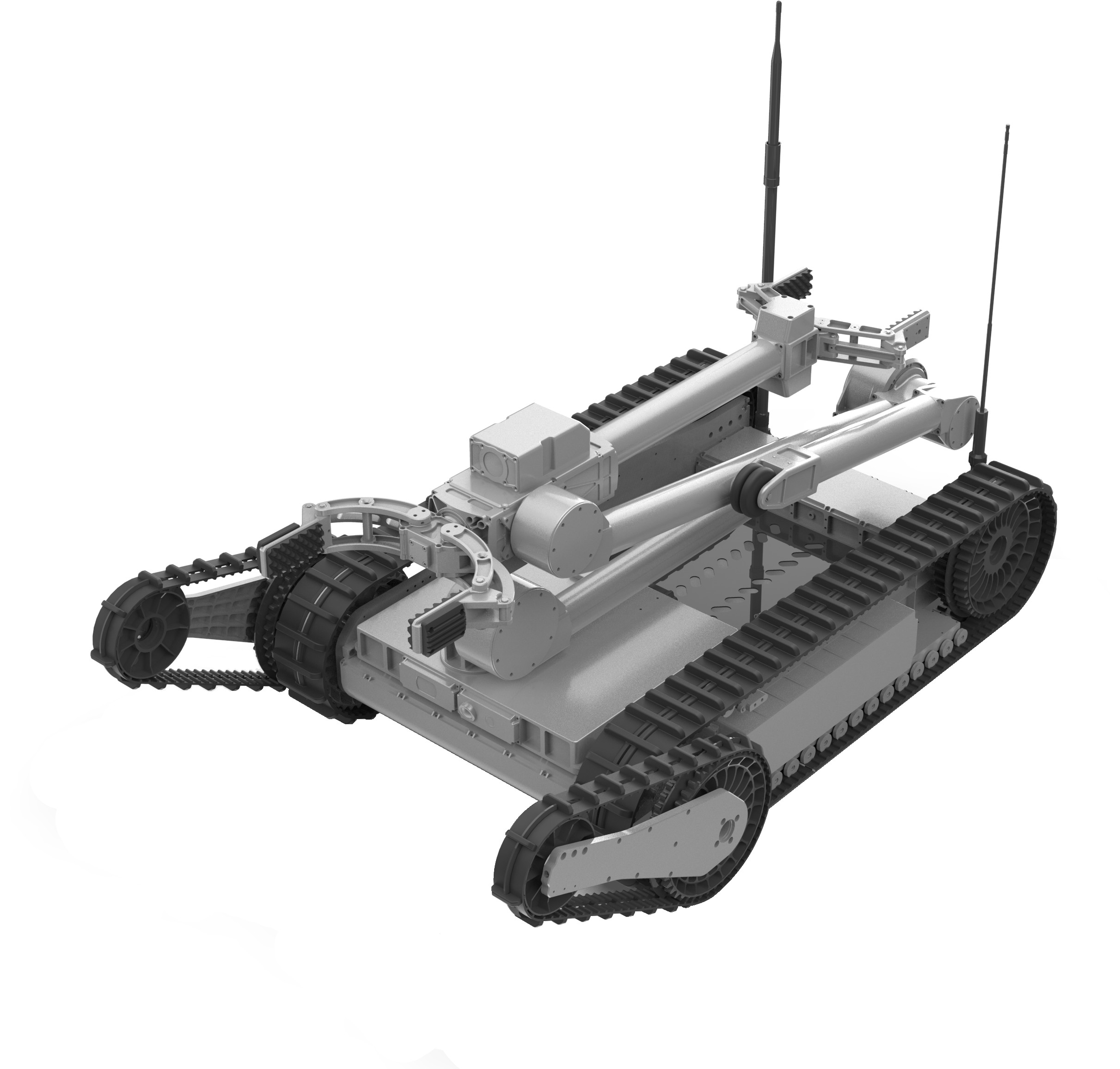

Remote 3D Intelligent Hound-II EOD Robot For Transferring Dangerous Objects

  • Remote 3D Intelligent Hound-II EOD Robot For Transferring Dangerous Objects
  • Remote 3D Intelligent Hound-II EOD Robot For Transferring Dangerous Objects
  • Remote 3D Intelligent Hound-II EOD Robot For Transferring Dangerous Objects
  • Remote 3D Intelligent Hound-II EOD Robot For Transferring Dangerous Objects
  • Remote 3D Intelligent Hound-II EOD Robot For Transferring Dangerous Objects
  • Remote 3D Intelligent Hound-II EOD Robot For Transferring Dangerous Objects
Place of Origin China
Brand Name Particle
Model Number REOD500
Minimum Order Quantity 1
Price $205,761
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Manipulator Arm Yes Operating Temperature -40℃～＋50℃
Remote Control Yes Weight ≤50kg（Contains Two Sets Of Batteries）
Power Source Battery Mobility Tracks Or Wheels
Robot Size ≤950×650×650mm（Fully Stowed） Robot Weight ≤50kg（Contains Two Sets Of Batteries）
Maximum Speed ≥2m/s（5 Gears, Continuously Variable） Over Obstacle Ability ≥400mm
Across Groove Width ≥400mm Gradeability ≥45°
Climb Stairs ≥45° Wading Depth ≥200mm
Battery Life（Normal Temperature） ≥3h Arm Length 2000mm
Maximum Snatch Weight ≥40kg Claws 2
Movable Joints 8 Controller Size ≤270mm×170mm×100mm
Controller Weight ≤1.2kg（Without Backpack） Controller Display Screen 7'' LCD
Video Display 7-channel，one Of Which Has Auto Focus Zoom Function Operation Method Dual-mode Operation Of Button Rocker And Touch Screen
Control Method Cable Control≥100m（Standard Cable），Wireless Control≥1000m（Outdoor） Robot Platform IP Grade IP66
Arm IP Grade IP66 Storage Temperature -45℃～＋60℃
Highlight

Intelligent robots eod

,

Hound-II robots eod

,

Battery explosive ordnance disposal robots
Leave a Message
Product Description



Remote 3D Intelligent Hound-II EOD Robot for transferring dangerous objects



Applications

The JP REOD500 inherits the avant-garde design concept of the Hound series robots. Based on the swing-arm crawler walking platform technology, the combination of the main crawler and the swing-arm obstacle crawler greatly improves the obstacle-crossing ability of the EOD robot. The robotic arm continues the multi-degree-of-freedom integrated design, providing the front-end "claw" with powerful space reach and stronger grasping performance, and greatly improving the robot's ability to handle and transfer dangerous objects.



Functionality

Remote control to approach the dangerous scene,Investigate potential sources of danger,Take disposal measures or transfer hazards according to mission objectives,Protect front-line workers and the public from personal injury.



Features

1. Enhanced mechanical arm design, greatly improved gripping performance；

★2. "2- claws" patent design, multiple tasks can be solved at one time；

3. Graphically dual-mode operation, convenient and reliable operation experience；

★4. Remote 3D real-time display, fine operation in front of your eyes；

★5. Intelligent "preset" control design, personalized setting of working posture；

★6. The "X-Y-Z" three-dimensional space robotic arm linkage design based on automatic calculation helps you to control precisely；

7. 7-channel video images, richer observation perspectives；

8. 8-degree-of-freedom robotic arm design, more flexible control；

9. A variety of expansion tools can be quickly replaced to calmly deal with various working conditions；



Technical Parameters

1. Robot Platform
(1)Size ≤950×650×650mm(Fully Stowed)；
(2)Weight ≤50kg(Contains two sets of batteries)；
(3)Maximum Speed ≥2m/s(5 gears, continuously variable)；
★(4)Over Obstacle Ability ≥400mm；
(5)Across Groove Width ≥400mm；
(6)Gradeability ≥45°；

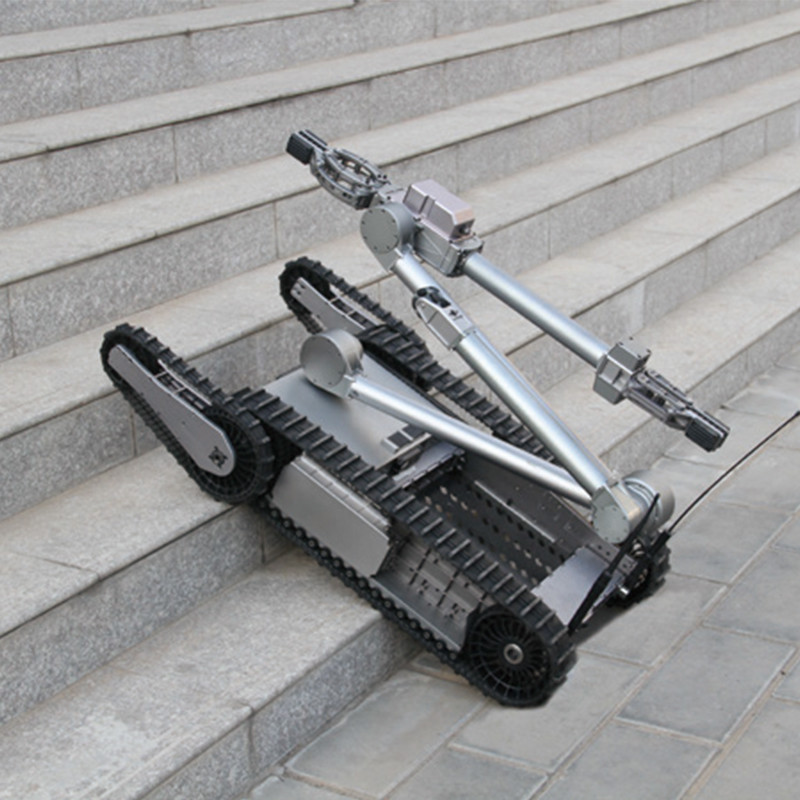

(7)Climb Stairs ≥45°；
★(8)Wading Depth ≥200mm；
(9)Battery Life(Normal temperature) ≥3h；
2. Robotic Arm Grabbing Performance
★(1)Arm Length 2000mm；
★(2)Maximum Snatch Weight ≥40kg；
★(3)Claws 2；
★(4)Movable Joints 8；

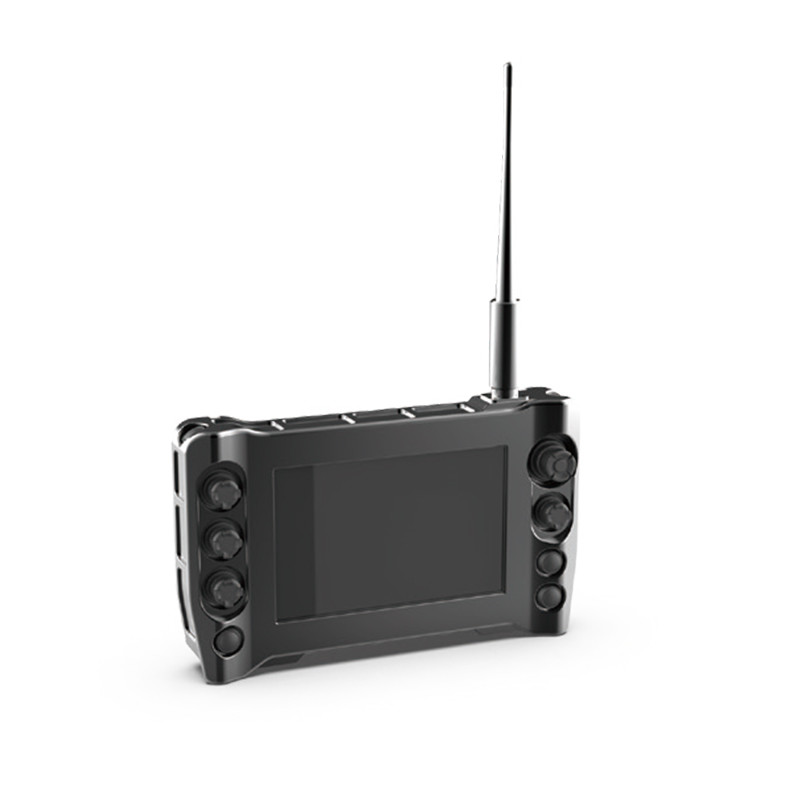

3. Portable Controller
★(1)Size ≤270mm×170mm×100mm；
(2)Weight ≤1.2kg(Without backpack)；
(3)Display Screen 7'' LCD；
★(4)Video Display 7-channel,one of which has auto focus zoom function；
★(5)Operation Method Dual-mode operation of button rocker and touch screen；
★(6)Control Method Cable control≥100m(Standard cable),Wireless control≥1000m(Outdoor).
4. Protection level and environmental adaptability
(1)Robot Platform IP66；
(2)Arm IP66；
★(3)Operating Temperature -40℃～＋50℃；
(4)Storage Temperature -45℃～＋60℃；



REOD500 Details

Remote 3D Intelligent Hound-II EOD Robot For Transferring Dangerous Objects 0
