Challenging Environments -40C-＋50C Explosive Ordnance Disposal Robot

  • Challenging Environments -40C-＋50C Explosive Ordnance Disposal Robot
  • Challenging Environments -40C-＋50C Explosive Ordnance Disposal Robot
  • Challenging Environments -40C-＋50C Explosive Ordnance Disposal Robot
Place of Origin China
Brand Name Particle
Model Number REOD4000
Minimum Order Quantity 1
Price $356,653
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features 1. High-strength Mechanical Arm Design, Endows Powerful Snatch Performance；2."Christie" Suspension Track System, Complex Terrain Like Walking On Flat Ground；3.Graphically Dual-mode Operation, Convenient And Reliable Operation Experience；4.Remote 3D Real-ti Product Category Explosive Ordnance Disposal Robot
Movable Joints 7 Weight ≤350kg(Contain Batteries)；
Maximum Grabbing Distance 2.6m Functionality Remote Control To Approach The Dangerous Scene, Investigate Potential Sources Of Danger, Take Disposal Measures Or Transfer Hazards According To Mission Objectives, Protect Front-line Workers And The Public From Personal Injury
Protection Level And Environmental Adaptability IP66；-40℃～＋50℃； Maximum Gripping Depth 2.2m
Robot Size 1600×850×1300 Mm（Fully Stowed） Robot Weight ≤350kg（Contain Batteries）
Maximum Speed ≥5m/s Over Obstacle Ability ≥400mm
Across Groove Width ≥800mm Gradeability ≥45º
The Maximum Slope Passing Capacity 35° Wading Depth ≥500mm
Battery Life（Normal Temperature） ≥10h Maximum Grabbing Weight ≥200kg
Maximum Gripping Diameter ≥355mm Controller Size ≤400×300×100mm
Controller Weight ≤3kg（Without Backpack） Controller Display Screen ≥12'' LCD
Controller Video Display ≥7-channel Operation Method Dual-mode Operation Of Button Rocker And Touch Screen
Control Method Cable Control≥200m（Standard Cable），Wireless Control≥1000m（Outdoor） Robot Platform IP Grade IP66
Arm IP Grade IP66 Operating Temperature -40℃～＋50℃
Storage Temperature -45℃～＋60℃
Highlight

2.6m Explosive Ordnance Disposal Robot

,

Challenging Environments Explosive Ordnance Disposal Robot

,

7 channel eod robot
Leave a Message
Product Description



Explosive Ordnance Disposal Robot for Challenging Environments -40C～＋50C



Applications

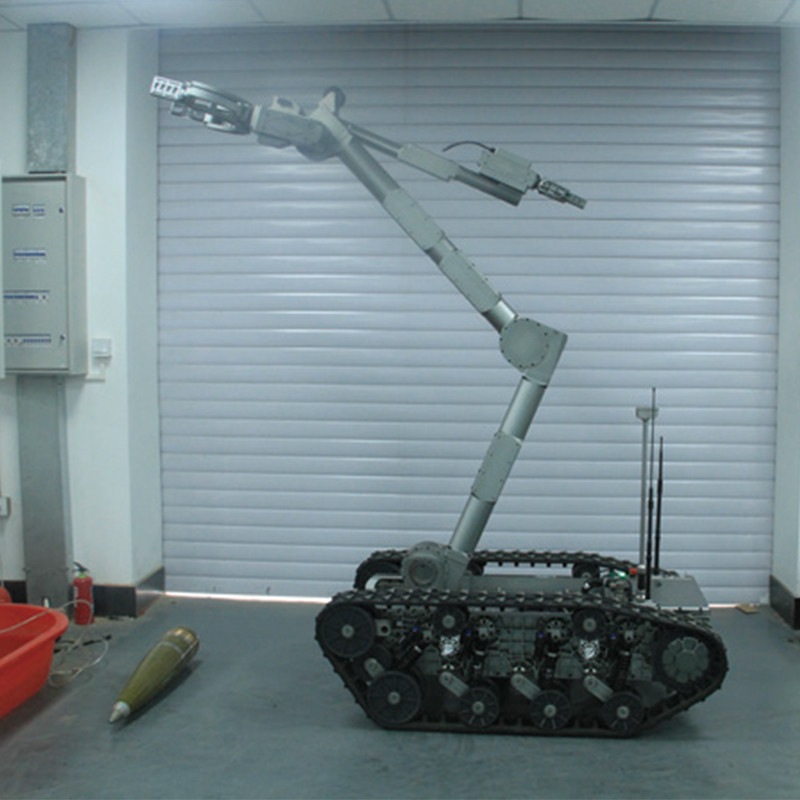

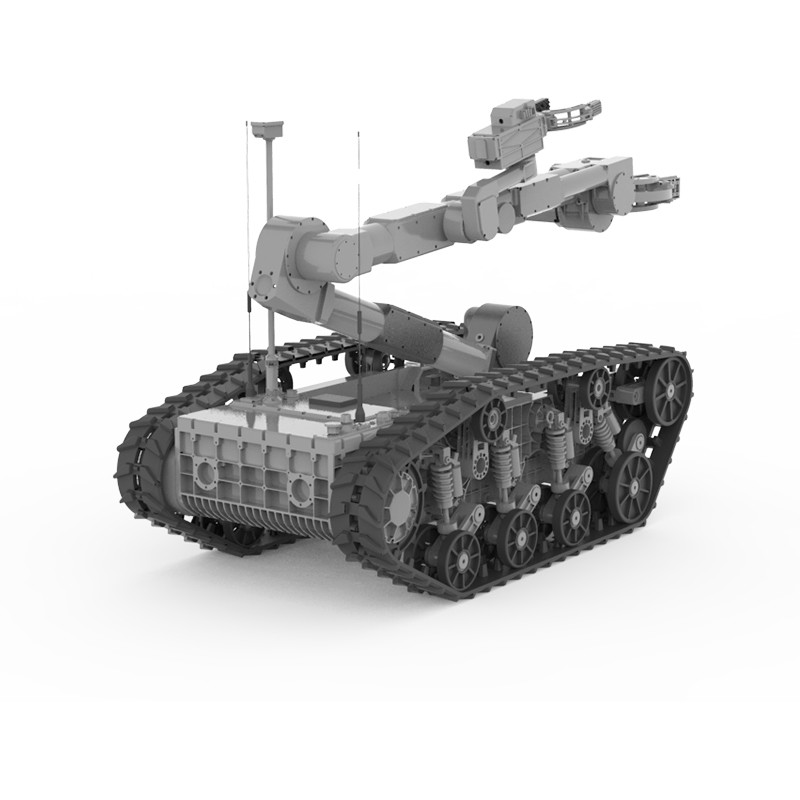

Introducing the JP REOD4000, a medium-sized EOD robot designed for outstanding explosive handling and disposal. This robot excels in off-road environments and is equipped with up to seven video image sensors for refined operation. Its 7-degree-of-freedom robotic arm offers remarkable reach into hazardous spaces and precise gripping capabilities under various constraints. The robot's maximum snatch weight of 200 kg surpasses competitors. The "Christie" suspension system on its chassis enables it to traverse difficult terrains effortlessly.



Functionality

Remote control to approach the dangerous scene , Investigate potential sources of danger , Take disposal measures or transfer hazards according to mission objectives,Protect front-line workers and the public from personal injury.



Features

1. High-strength mechanical arm design, endows powerful snatch performance；
2."Christie" suspension track system, complex terrain like walking on flat ground；
3.Graphically dual-mode operation, convenient and reliable operation experience；
4.Remote 3D real-time display, fine operation in front of your eyes；
5.Intelligent "preset" control design, personalized setting of working posture；
6.The "X-Y-Z" three-dimensional space robotic arm linkage design based on automatic calculation helps you to control precisely；



Technical Parameters

1. Robot Platform
(1)Size 1600×850×1300 mm(Fully Stowed)；
(2)Weight ≤350kg(Contain batteries)；
(3)Maximum Speed ≥5m/s；
(4)Over Obstacle Ability ≥400mm；
(5)Across Groove Width ≥800mm；
(6)Gradeability ≥45º；
(7)The Maximum Slope Passing Capacity 35°；
(8)Wading Depth ≥500mm；
(9)Battery Life(Normal temperature) ≥10h；
2. Robotic Arm Grabbing Performance
(1)Maximum Grabbing Distance 2.6m；
(2)Maximum Grabbing Weight ≥200kg；
(3)Maximum Gripping Diameter ≥355mm；
(4)Maximum Gripping Depth 2.2m；
(5)Movable Joints 7；

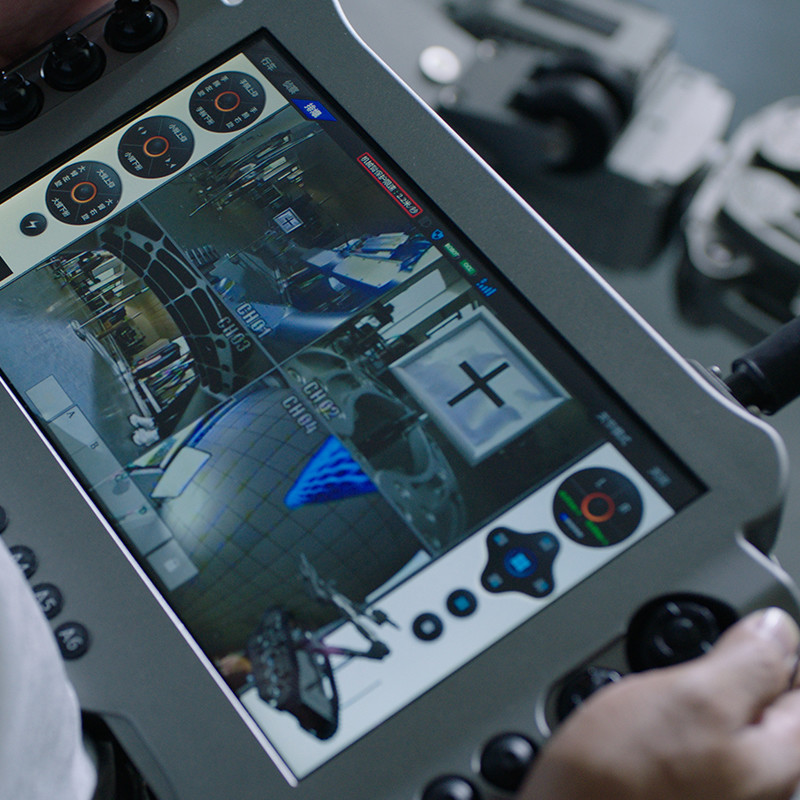

3. Portable Controller
(1)Size ≤400×300×100mm(不含天线)；
(2)Weight ≤3kg(Without backpack)；
(3)Display Screen ≥12'' LCD；
(4)Video Display ≥7-channel；
(5)Operation Method Dual-mode operation of button rocker and touch screen；
(6)Control Method Cable control≥200m(Standard cable),Wireless control≥1000m(Outdoor).
4. Protection level and environmental adaptability
(1)Robot Platform IP66；
(2)Arm IP66；
(3)Operating Temperature -40℃～＋50℃；



REOD4000 Details

Challenging Environments -40C-＋50C Explosive Ordnance Disposal Robot 0
