Cutting Edge Explosive Ordnance Disposal Robot For Bomb Disposal Operations

  • Cutting Edge Explosive Ordnance Disposal Robot For Bomb Disposal Operations
  • Cutting Edge Explosive Ordnance Disposal Robot For Bomb Disposal Operations
  • Cutting Edge Explosive Ordnance Disposal Robot For Bomb Disposal Operations
Place of Origin China
Brand Name Particle
Model Number REOD400
Price $102,881
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features 1. High-strength Mechanical Arm Design, Endows Powerful Snatch Performance；2."Christie" Suspension Track System, Complex Terrain Like Walking On Flat Ground；3.Graphically Dual-mode Operation, Convenient And Reliable Operation Experience；4.Remote 3D Real-ti Functionality Remote Control To Approach The Dangerous Scene, Investigate Potential Sources Of Danger, Take Disposal Measures Or Transfer Hazards According To Mission Objectives, Protect Front-line Workers And The Public From Personal Injury
Maximum Gripping Diameter ≥355mm； Movable Joints 8
Product Name Powerful Hound-III EOD Robot Safely Approaching And Disposing Of Explosive Hazards Maximum Grabbing Weight ≥200kg；
Maximum Speed ≥5m/s Operating Temperature -40℃～＋50℃
Size ≤830mm×600mm×460mm（Fully Stowed） Weight ≤37kg（Contains Two Sets Of Batteries）
Over Obstacle Ability ≥300mm Across Groove Width ≥400mm
Gradeability ≥45° Climb Stairs ≥45°
Farthest Grabbing Distance ≥1650mm Maximum Opening Width Of Gripper ≥160mm
Lift Capacity 6-16kg Operation Method Dual-mode Operation Of Button Rocker And Touch Screen
Control Method Cable Control≥100m（Standard Cable），Wireless Control≥1000m（Outdoor） Battery Life（Normal Temperature） ≥2h
IP Grade IP65
Highlight

Cutting Edge Explosive Ordnance Disposal Robot

,

Explosive Ordnance Disposal Robot

,

IP65 eod robot
Leave a Message
Product Description



Cutting-Edge Explosive Ordnance Disposal Robot for Enhanced Bomb Disposal Operations



Applications

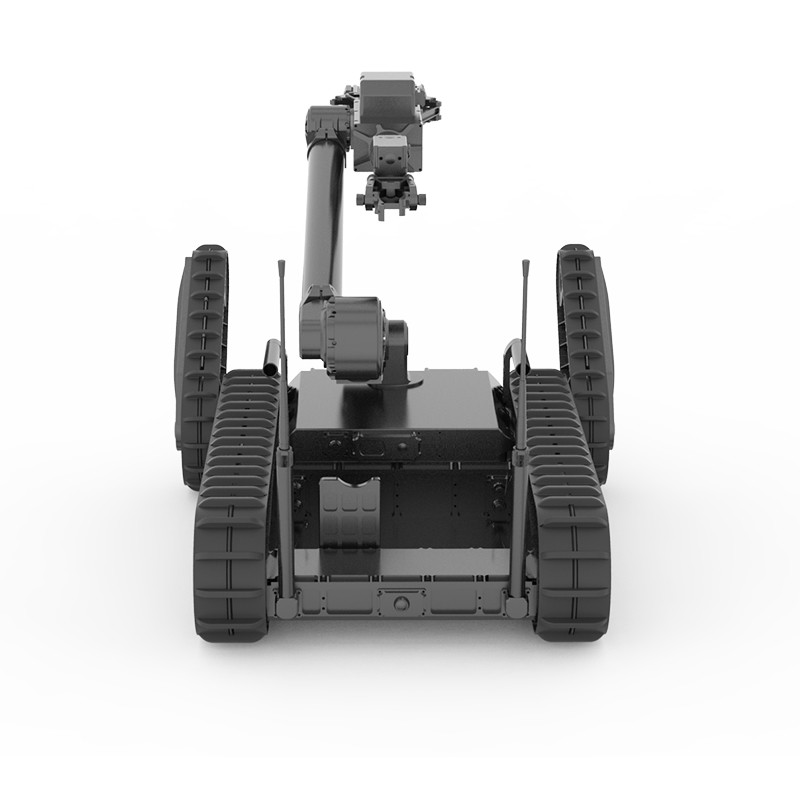

Meet the JP REOD4000, a medium-sized EOD robot engineered for superior explosive disposal and transfer. It offers excellent off-road capabilities and is equipped with seven video image sensors to refine operations. The 7-degree-of-freedom robotic arm provides extensive reach into danger zones, ensuring precise object handling even in restrictive environments. With a maximum snatch weight of 200 kg, it outperforms similar robots. Its chassis, featuring the "Christie" suspension system, makes navigating complex terrains easy.



Functionality

Remote control to approach the dangerous scene , Investigate potential sources of danger , Take disposal measures or transfer hazards according to mission objectives,Protect front-line workers and the public from personal injury.



Features

1. High-strength mechanical arm design, endows powerful snatch performance；

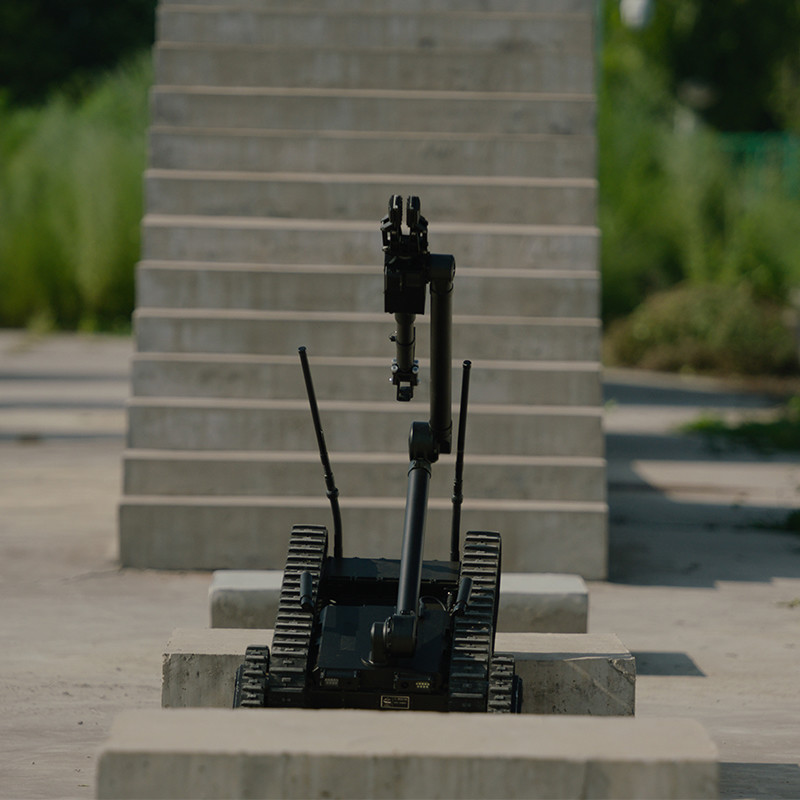

2."Christie" suspension track system, complex terrain like walking on flat ground；
3.Graphically dual-mode operation, convenient and reliable operation experience；
4.Remote 3D real-time display, fine operation in front of your eyes；
5.Intelligent "preset" control design, personalized setting of working posture；

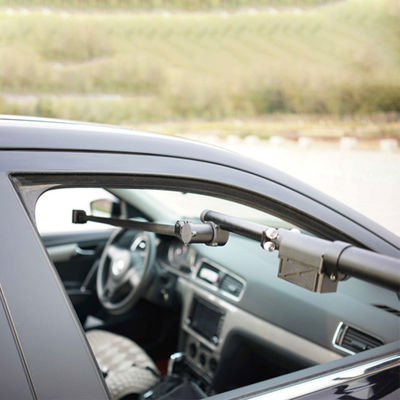

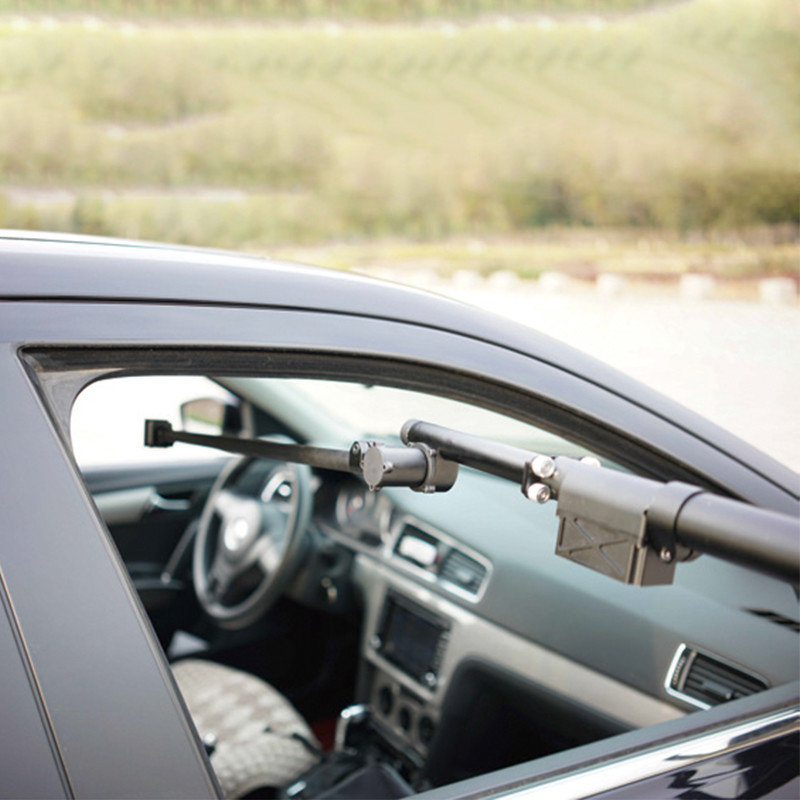

6.The "X-Y-Z" three-dimensional space robotic arm linkage design based on automatic calculation helps you to control precisely；



Technical Parameters

1. Robot Platform
(1)Size 1600×850×1300 mm(Fully Stowed)；
(2)Weight ≤350kg(Contain batteries)；
(3)Maximum Speed ≥5m/s；
(4)Over Obstacle Ability ≥400mm；
(5)Across Groove Width ≥800mm；
(6)Gradeability ≥45º；
(7)The Maximum Slope Passing Capacity 35°；
(8)Wading Depth ≥500mm；
(9)Battery Life(Normal temperature) ≥10h；
2. Robotic Arm Grabbing Performance
(1)Maximum Grabbing Distance 2.6m；
(2)Maximum Grabbing Weight ≥200kg；
(3)Maximum Gripping Diameter ≥355mm；
(4)Maximum Gripping Depth 2.2m；
(5)Movable Joints 7；
3. Portable Controller
(1)Size ≤400×300×100mm(不含天线)；
(2)Weight ≤3kg(Without backpack)；
(3)Display Screen ≥12'' LCD；
(4)Video Display ≥7-channel；
(5)Operation Method Dual-mode operation of button rocker and touch screen；
(6)Control Method Cable control≥200m(Standard cable),Wireless control≥1000m(Outdoor).
4. Protection level and environmental adaptability
(1)Robot Platform IP66；
(2)Arm IP66；
(3)Operating Temperature -40℃～＋50℃；



REOD4000 Details

Cutting Edge Explosive Ordnance Disposal Robot For Bomb Disposal Operations 0
