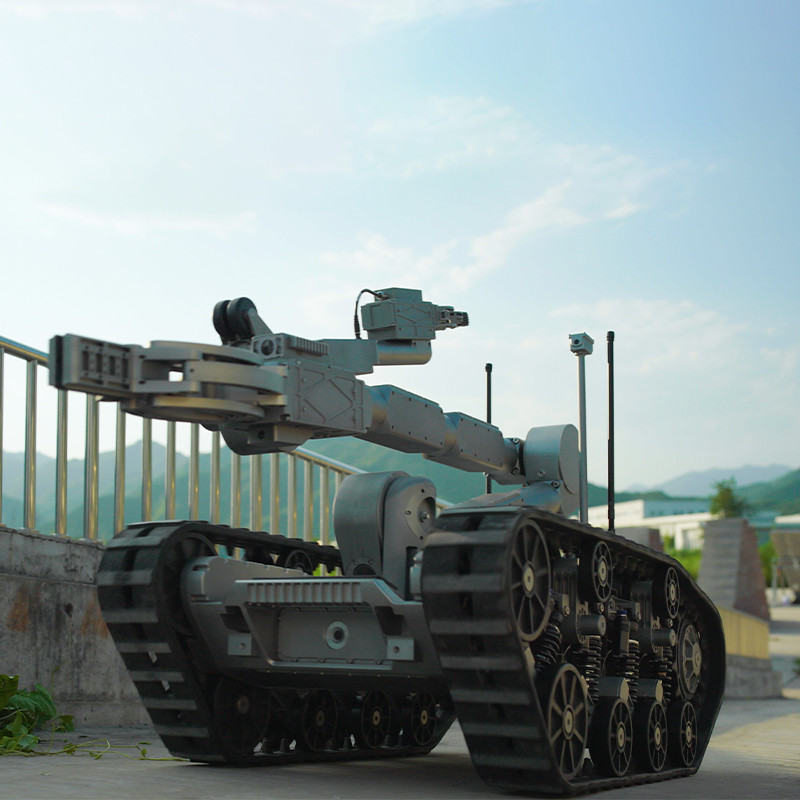

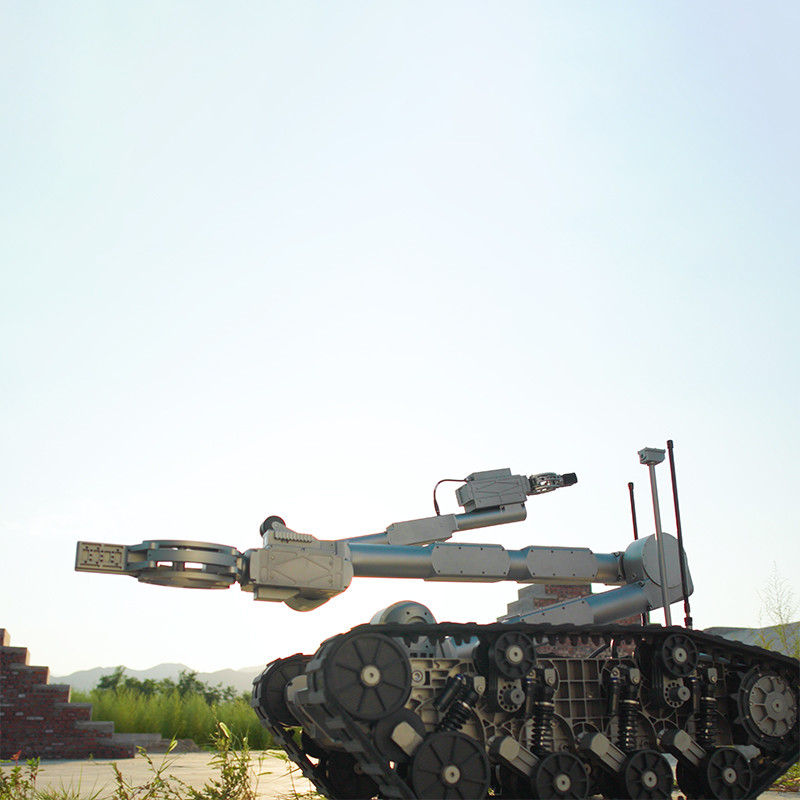

Explosive Ordnance Disposal Robot For Harsh Environments

  • Explosive Ordnance Disposal Robot For Harsh Environments
  • Explosive Ordnance Disposal Robot For Harsh Environments
  • Explosive Ordnance Disposal Robot For Harsh Environments
Place of Origin China
Brand Name Particle
Model Number REOD4000
Minimum Order Quantity 1
Price $356,653
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features 1. High-strength Mechanical Arm Design, Endows Powerful Snatch Performance；2."Christie" Suspension Track System, Complex Terrain Like Walking On Flat Ground；3.Graphically Dual-mode Operation, Convenient And Reliable Operation Experience；4.Remote 3D Real-ti Applications Responding To Improvised Explosive Devices
Size 1600×850×1300 Mm(Fully Stowed)； Manipulator Arm Yes
Maximum Gripping Depth 2.2m Weight ≤350kg(Contain Batteries)；
Product Name Powerful Hound-III EOD Robot Safely Approaching And Disposing Of Explosive Hazards Operating Temperature -40℃～＋50℃
Robot Size 1600×850×1300 Mm（Fully Stowed） Robot Weight ≤350kg（Contain Batteries）
Maximum Speed ≥5m/s Over Obstacle Ability ≥400mm
Across Groove Width ≥800mm Gradeability ≥45º
The Maximum Slope Passing Capacity 35° Wading Depth ≥500mm
Battery Life（Normal Temperature） ≥10h Maximum Grabbing Distance 2.6m
Maximum Grabbing Weight ≥200kg Maximum Gripping Diameter ≥355mm
Movable Joints 7 Controller Size ≤400×300×100mm
Controller Weight ≤3kg（Without Backpack） Controller Display Screen ≥12'' LCD
Controller Video Display ≥7-channel Operation Method Dual-mode Operation Of Button Rocker And Touch Screen
Control Method Cable Control≥200m（Standard Cable），Wireless Control≥1000m（Outdoor） Robot Platform IP Grade IP66
Arm IP Grade IP66 Storage Temperature -45℃～＋60℃
Highlight

Harsh Environments Explosive Ordnance Disposal Robot

,

1300mm Explosive Ordnance Disposal Robot

,

IP66 robot eod
Leave a Message
Product Description



Explosive ordnance disposal robot for Harsh Environments



Applications

The JP REOD4000 is a versatile medium-sized EOD robot known for its exceptional explosive handling and disposal capabilities. It excels in off-road performance and comes equipped with up to seven video image sensors for detailed operational control. The 7-degree-of-freedom robotic arm offers significant reach into hazardous areas, allowing for precise object handling under various restrictive conditions. Boasting a maximum snatch weight of 200 kg, it surpasses comparable equipment. The chassis uses the "Christie" suspension system for smooth traversal of complex terrains.



Functionality

Remote control to approach the dangerous scene , Investigate potential sources of danger , Take disposal measures or transfer hazards according to mission objectives,Protect front-line workers and the public from personal injury.



Features

1. High-strength mechanical arm design, endows powerful snatch performance；
2."Christie" suspension track system, complex terrain like walking on flat ground；
3.Graphically dual-mode operation, convenient and reliable operation experience；
4.Remote 3D real-time display, fine operation in front of your eyes；
5.Intelligent "preset" control design, personalized setting of working posture；
6.The "X-Y-Z" three-dimensional space robotic arm linkage design based on automatic calculation helps you to control precisely；



Technical Parameters

1. Robot Platform
(1)Size 1600×850×1300 mm(Fully Stowed)；
(2)Weight ≤350kg(Contain batteries)；
(3)Maximum Speed ≥5m/s；
(4)Over Obstacle Ability ≥400mm；
(5)Across Groove Width ≥800mm；
(6)Gradeability ≥45º；
(7)The Maximum Slope Passing Capacity 35°；
(8)Wading Depth ≥500mm；
(9)Battery Life(Normal temperature) ≥10h；
2. Robotic Arm Grabbing Performance
(1)Maximum Grabbing Distance 2.6m；
(2)Maximum Grabbing Weight ≥200kg；
(3)Maximum Gripping Diameter ≥355mm；
(4)Maximum Gripping Depth 2.2m；
(5)Movable Joints 7；
3. Portable Controller
(1)Size ≤400×300×100mm(No antenna)；
(2)Weight ≤3kg(Without backpack)；
(3)Display Screen ≥12'' LCD；
(4)Video Display ≥7-channel；
(5)Operation Method Dual-mode operation of button rocker and touch screen；
(6)Control Method Cable control≥200m(Standard cable),Wireless control≥1000m(Outdoor).
4. Protection level and environmental adaptability
(1)Robot Platform IP66；
(2)Arm IP66；
(3)Operating Temperature -40℃～＋50℃；

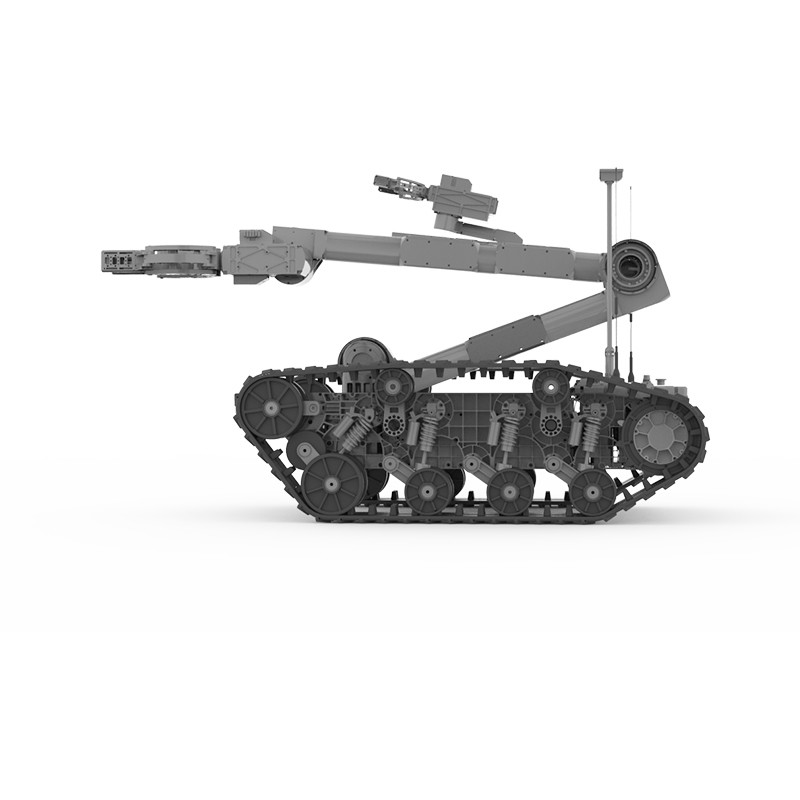

REOD4000 Details

Explosive Ordnance Disposal Robot For Harsh Environments 0
