Advanced Explosive Ordnance Disposal Robot With Manipulator Arm And Speed

  • Advanced Explosive Ordnance Disposal Robot With Manipulator Arm And Speed
  • Advanced Explosive Ordnance Disposal Robot With Manipulator Arm And Speed
  • Advanced Explosive Ordnance Disposal Robot With Manipulator Arm And Speed
Place of Origin China
Brand Name Particle
Model Number REOD4000
Minimum Order Quantity 1
Price $356,653
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Powerful Hound-III EOD Robot Safely Approaching And Disposing Of Explosive Hazards Special Features Explosion-proof, Waterproof, Remote Disarming Capability
Movable Joints 7 Mobility Tracks Or Wheels
Size 1600×850×1300 Mm(Fully Stowed)； Manipulator Arm Yes
Maximum Gripping Diameter ≥355mm Protection Level And Environmental Adaptability IP66；-40℃～＋50℃；
Robot Size 1600×850×1300 Mm（Fully Stowed） Robot Weight ≤350kg（Contain Batteries）
Maximum Speed ≥5m/s Over Obstacle Ability ≥400mm
Across Groove Width ≥800mm Gradeability ≥45º
The Maximum Slope Passing Capacity 35° Wading Depth ≥500mm
Battery Life（Normal Temperature） ≥10h Maximum Grabbing Distance 2.6m
Maximum Grabbing Weight ≥200kg Maximum Gripping Depth 2.2m
Controller Size ≤400×300×100mm Controller Weight ≤3kg（Without Backpack）
Controller Display Screen ≥12'' LCD Controller Video Display ≥7-channel
Operation Method Dual-mode Operation Of Button Rocker And Touch Screen Control Method Cable Control≥200m（Standard Cable），Wireless Control≥1000m（Outdoor）
Robot Platform IP Grade IP66 Arm IP Grade IP66
Operating Temperature -40℃～＋50℃ Storage Temperature -45℃～＋60℃
Highlight

Explosive Ordnance Disposal Robot IP66

,

Manipulator Arm Explosive Ordnance Disposal Robot

,

IP66 disposal robot
Leave a Message
Product Description



Advanced Explosive Ordnance Disposal Robot with Manipulator Arm and Speed



Applications

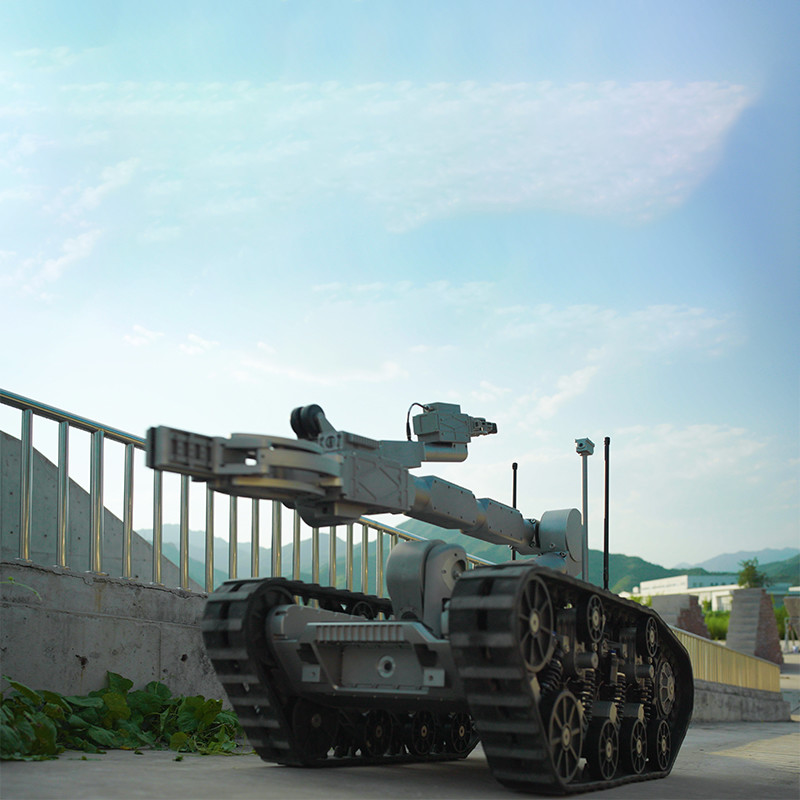

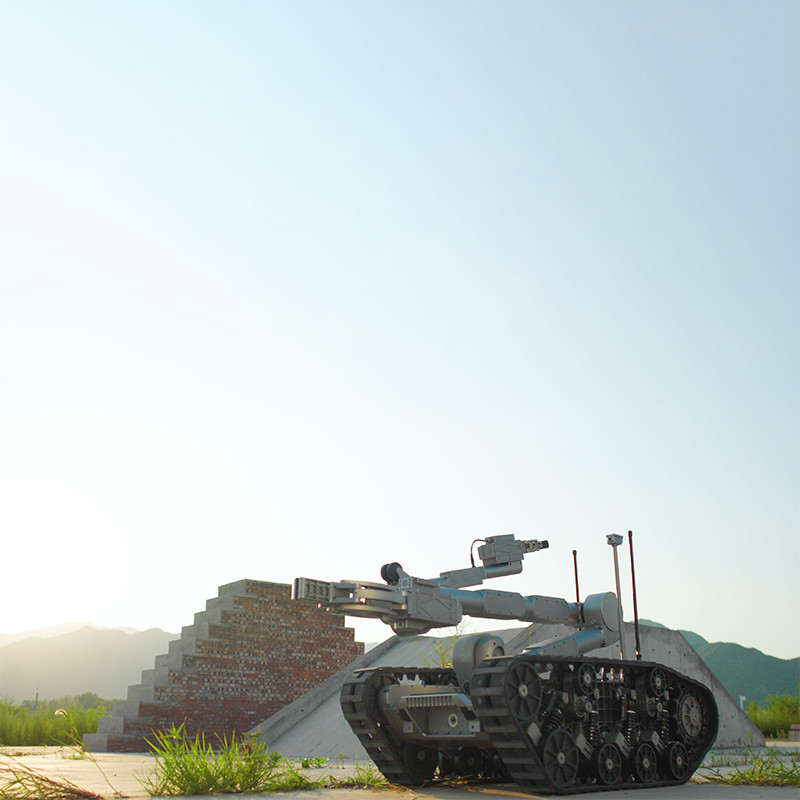

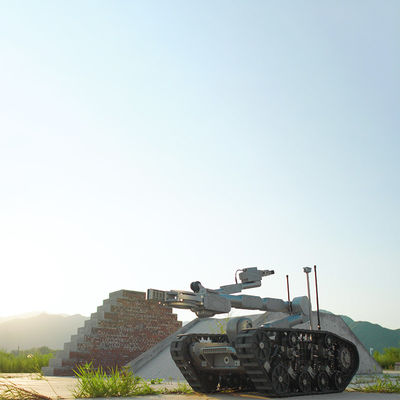

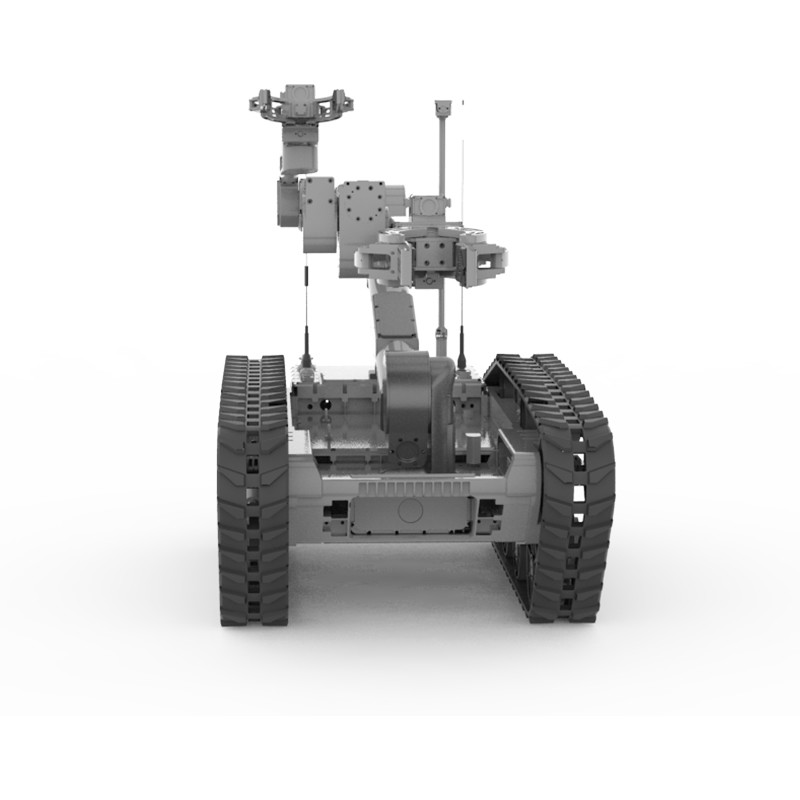

Introducing the JP REOD4000, a medium-sized EOD robot with top-tier explosive transfer and disposal capabilities. It delivers outstanding off-road performance and is equipped with up to seven video image sensors for refined operations. The 7-degree-of-freedom robotic arm offers extraordinary reach into dangerous spaces and precise gripping under restrictive conditions. With a maximum snatch weight of 200 kg, it stands above similar equipment. The "Christie" suspension system on its chassis ensures effortless movement over complex terrain.



Functionality

Remote control to approach the dangerous scene , Investigate potential sources of danger , Take disposal measures or transfer hazards according to mission objectives,Protect front-line workers and the public from personal injury.



Features

1. High-strength mechanical arm design, endows powerful snatch performance；
2."Christie" suspension track system, complex terrain like walking on flat ground；
3.Graphically dual-mode operation, convenient and reliable operation experience；
4.Remote 3D real-time display, fine operation in front of your eyes；
5.Intelligent "preset" control design, personalized setting of working posture；
6.The "X-Y-Z" three-dimensional space robotic arm linkage design based on automatic calculation helps you to control precisely；



Technical Parameters

1. Robot Platform
(1)Size 1600×850×1300 mm(Fully Stowed)；
(2)Weight ≤350kg(Contain batteries)；
(3)Maximum Speed ≥5m/s；
(4)Over Obstacle Ability ≥400mm；
(5)Across Groove Width ≥800mm；
(6)Gradeability ≥45º；
(7)The Maximum Slope Passing Capacity 35°；
(8)Wading Depth ≥500mm；
(9)Battery Life(Normal temperature) ≥10h；
2. Robotic Arm Grabbing Performance
(1)Maximum Grabbing Distance 2.6m；
(2)Maximum Grabbing Weight ≥200kg；
(3)Maximum Gripping Diameter ≥355mm；
(4)Maximum Gripping Depth 2.2m；
(5)Movable Joints 7；
3. Portable Controller
(1)Size ≤400×300×100mm(不含天线)；
(2)Weight ≤3kg(Without backpack)；
(3)Display Screen ≥12'' LCD；
(4)Video Display ≥7-channel；
(5)Operation Method Dual-mode operation of button rocker and touch screen；
(6)Control Method Cable control≥200m(Standard cable),Wireless control≥1000m(Outdoor).
4. Protection level and environmental adaptability
(1)Robot Platform IP66；
(2)Arm IP66；
(3)Operating Temperature -40℃～＋50℃；



REOD4000 Details
