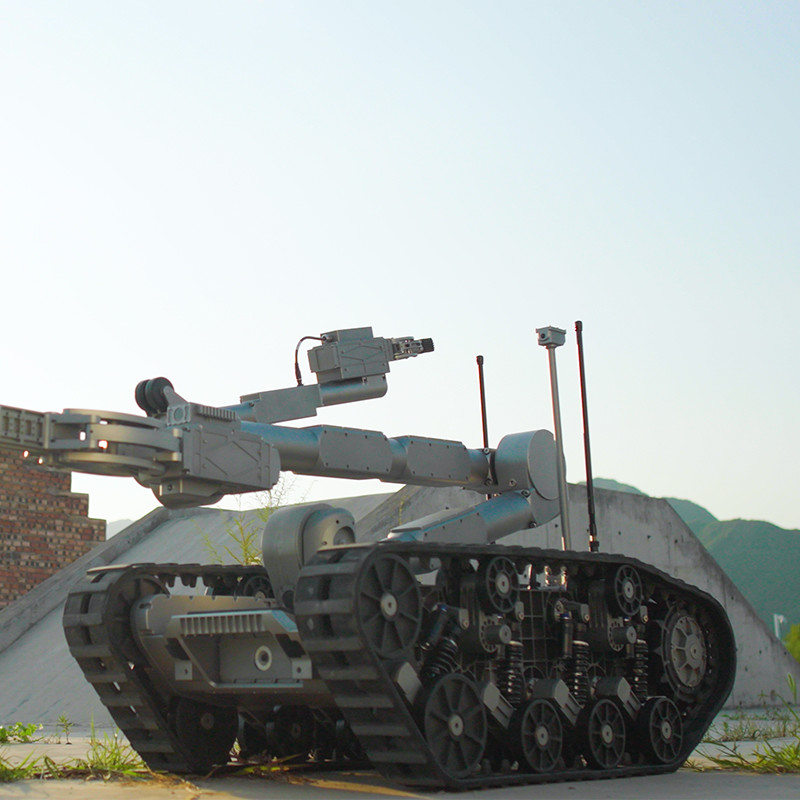

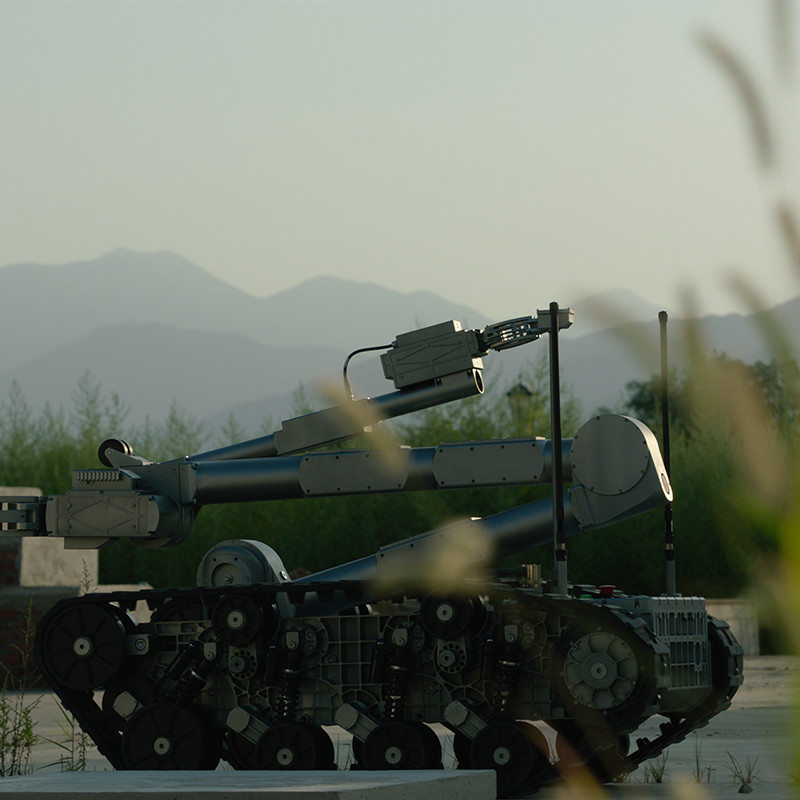

Robust Bomb Disposal Robot With Manipulator Arm And Maximum

  • Robust Bomb Disposal Robot With Manipulator Arm And Maximum
  • Robust Bomb Disposal Robot With Manipulator Arm And Maximum
  • Robust Bomb Disposal Robot With Manipulator Arm And Maximum
Place of Origin China
Brand Name Particle
Model Number REOD4000
Minimum Order Quantity 1
Price $356,653
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Temperature -40℃～＋50℃ Size 1600×850×1300 Mm(Fully Stowed)；
Mobility Tracks Or Wheels Functionality Remote Control To Approach The Dangerous Scene, Investigate Potential Sources Of Danger, Take Disposal Measures Or Transfer Hazards According To Mission Objectives, Protect Front-line Workers And The Public From Personal Injury
Special Features Explosion-proof, Waterproof, Remote Disarming Capability Weight ≤350kg(Contain Batteries)；
Over Obstacle Ability ≥400mm Movable Joints 7
Robot Size 1600×850×1300 Mm（Fully Stowed） Robot Weight ≤350kg（Contain Batteries）
Maximum Speed ≥5m/s Across Groove Width ≥800mm
Gradeability ≥45º The Maximum Slope Passing Capacity 35°
Wading Depth ≥500mm Battery Life（Normal Temperature） ≥10h
Maximum Grabbing Distance 2.6m Maximum Grabbing Weight ≥200kg
Maximum Gripping Diameter ≥355mm Maximum Gripping Depth 2.2m
Controller Size ≤400×300×100mm Controller Weight ≤3kg（Without Backpack）
Controller Display Screen ≥12'' LCD Controller Video Display ≥7-channel
Operation Method Dual-mode Operation Of Button Rocker And Touch Screen Control Method Cable Control≥200m（Standard Cable），Wireless Control≥1000m（Outdoor）
Robot Platform IP Grade IP66 Arm IP Grade IP66
Storage Temperature -45℃～＋60℃
Highlight

Robust bomb disposal robot

,

7 channel bomb disposal robot

,

400mm robots eod
Leave a Message
Product Description



Robust Bomb Disposal Robot with Manipulator Arm and Maximum



Applications

The JP REOD4000 is a medium-sized EOD robot that excels in explosive transfer and disposal, featuring excellent off-road capabilities. It is equipped with up to seven video image sensors for enhanced operational precision. The 7-degree-of-freedom robotic arm provides extensive reach into hazardous areas, allowing for accurate object handling even in restrictive environments. With a maximum snatch weight of 200 kg, it surpasses its competitors. The "Christie" suspension system ensures smooth navigation across challenging terrains.



Functionality

Remote control to approach the dangerous scene , Investigate potential sources of danger , Take disposal measures or transfer hazards according to mission objectives,Protect front-line workers and the public from personal injury.



Features

1. High-strength mechanical arm design, endows powerful snatch performance；
2."Christie" suspension track system, complex terrain like walking on flat ground；
3.Graphically dual-mode operation, convenient and reliable operation experience；
4.Remote 3D real-time display, fine operation in front of your eyes；
5.Intelligent "preset" control design, personalized setting of working posture；
6.The "X-Y-Z" three-dimensional space robotic arm linkage design based on automatic calculation helps you to control precisely；



Technical Parameters

1. Robot Platform
(1)Size 1600×850×1300 mm(Fully Stowed)；
(2)Weight ≤350kg(Contain batteries)；
(3)Maximum Speed ≥5m/s；
(4)Over Obstacle Ability ≥400mm；
(5)Across Groove Width ≥800mm；
(6)Gradeability ≥45º；
(7)The Maximum Slope Passing Capacity 35°；
(8)Wading Depth ≥500mm；
(9)Battery Life(Normal temperature) ≥10h；
2. Robotic Arm Grabbing Performance
(1)Maximum Grabbing Distance 2.6m；
(2)Maximum Grabbing Weight ≥200kg；
(3)Maximum Gripping Diameter ≥355mm；
(4)Maximum Gripping Depth 2.2m；
(5)Movable Joints 7；
3. Portable Controller
(1)Size ≤400×300×100mm(不含天线)；
(2)Weight ≤3kg(Without backpack)；
(3)Display Screen ≥12'' LCD；
(4)Video Display ≥7-channel；
(5)Operation Method Dual-mode operation of button rocker and touch screen；
(6)Control Method Cable control≥200m(Standard cable),Wireless control≥1000m(Outdoor).
4. Protection level and environmental adaptability
(1)Robot Platform IP66；
(2)Arm IP66；
(3)Operating Temperature -40℃～＋50℃；

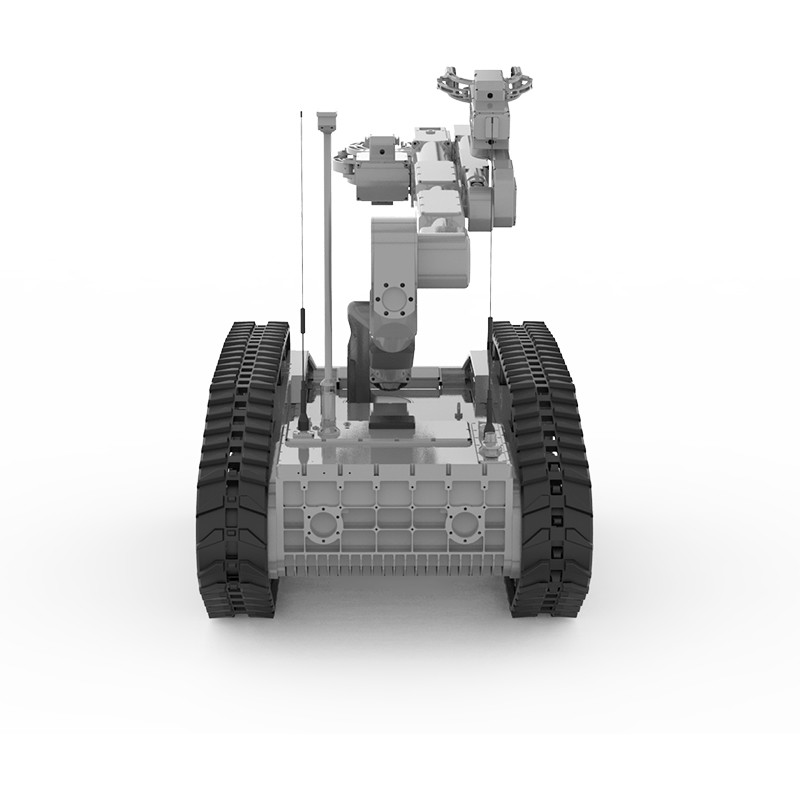

REOD4000 Details

Robust Bomb Disposal Robot With Manipulator Arm And Maximum 0
