Professional Medium Sized Explosive Ordnance Disposal Robot For Hazardous Environments

  • Professional Medium Sized Explosive Ordnance Disposal Robot For Hazardous Environments
  • Professional Medium Sized Explosive Ordnance Disposal Robot For Hazardous Environments
  • Professional Medium Sized Explosive Ordnance Disposal Robot For Hazardous Environments
Place of Origin China
Brand Name Particle
Model Number REOD4000
Minimum Order Quantity 1
Price $356,653
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features 1. High-strength Mechanical Arm Design, Endows Powerful Snatch Performance；2."Christie" Suspension Track System, Complex Terrain Like Walking On Flat Ground；3.Graphically Dual-mode Operation, Convenient And Reliable Operation Experience；4.Remote 3D Real-ti Functionality Remote Control To Approach The Dangerous Scene, Investigate Potential Sources Of Danger, Take Disposal Measures Or Transfer Hazards According To Mission Objectives, Protect Front-line Workers And The Public From Personal Injury
Robot Platform Gradeability ≥45º； Product Category Explosive Ordnance Disposal Robot
Robot Platform Weight ≤350kg(Contain Batteries)； Battery Life(Normal Temperature) ≥10h；
Maximum Speed ≥5m/s Mobility Tracks Or Wheels
Robot Size 1600×850×1300 Mm（Fully Stowed） Robot Weight ≤350kg（Contain Batteries）
Over Obstacle Ability ≥400mm Across Groove Width ≥800mm
Gradeability ≥45º The Maximum Slope Passing Capacity 35°
Wading Depth ≥500mm Battery Life（Normal Temperature） ≥10h
Maximum Grabbing Distance 2.6m Maximum Grabbing Weight ≥200kg
Maximum Gripping Diameter ≥355mm Maximum Gripping Depth 2.2m
Movable Joints 7 Controller Size ≤400×300×100mm
Controller Weight ≤3kg（Without Backpack） Controller Display Screen ≥12'' LCD
Controller Video Display ≥7-channel Operation Method Dual-mode Operation Of Button Rocker And Touch Screen
Control Method Cable Control≥200m（Standard Cable），Wireless Control≥1000m（Outdoor） Robot Platform IP Grade IP66
Arm IP Grade IP66 Operating Temperature -40℃～＋50℃
Storage Temperature -45℃～＋60℃
Highlight

Medium Sized eod robots

,

Hazardous Environments eod robots

,

IP66 eod robot
Leave a Message
Product Description

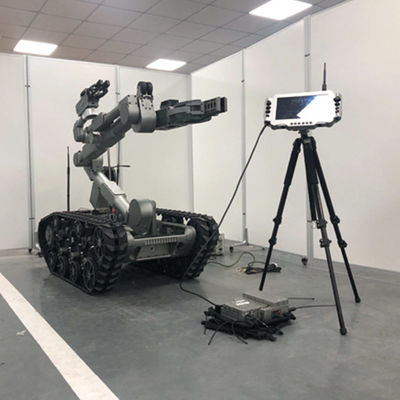

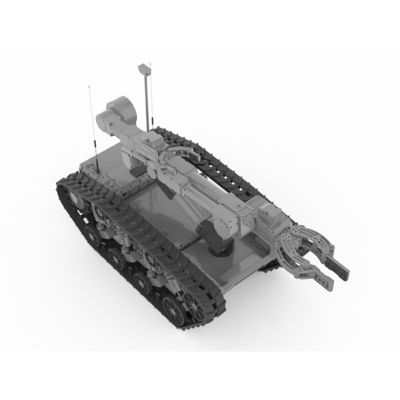

Medium-Sized Explosive Ordnance Disposal Robot for Hazardous Environments




Applications

The medium-sized JP REOD4000 EOD robot combines innovative design with high performance in explosive transfer and disposal. Its "Christie" suspension system ensures it handles rough terrains with ease, while the 7-channel video image sensors enhance operational precision. The robot's 7-degree-of-freedom arm provides exceptional reach and accuracy, capable of handling objects up to 200 kg, setting it apart from similar robots in its class.



Functionality

Remote control to approach the dangerous scene , Investigate potential sources of danger , Take disposal measures or transfer hazards according to mission objectives,Protect front-line workers and the public from personal injury.



Features

1. High-strength mechanical arm design, endows powerful snatch performance；
2."Christie" suspension track system, complex terrain like walking on flat ground；
3.Graphically dual-mode operation, convenient and reliable operation experience；
4.Remote 3D real-time display, fine operation in front of your eyes；
5.Intelligent "preset" control design, personalized setting of working posture；
6.The "X-Y-Z" three-dimensional space robotic arm linkage design based on automatic calculation helps you to control precisely；



Technical Parameters

1. Robot Platform
(1)Size 1600×850×1300 mm(Fully Stowed)；
(2)Weight ≤350kg(Contain batteries)；
(3)Maximum Speed ≥5m/s；
(4)Over Obstacle Ability ≥400mm；
(5)Across Groove Width ≥800mm；
(6)Gradeability ≥45º；
(7)The Maximum Slope Passing Capacity 35°；
(8)Wading Depth ≥500mm；
(9)Battery Life(Normal temperature) ≥10h；
2. Robotic Arm Grabbing Performance
(1)Maximum Grabbing Distance 2.6m；
(2)Maximum Grabbing Weight ≥200kg；
(3)Maximum Gripping Diameter ≥355mm；
(4)Maximum Gripping Depth 2.2m；
(5)Movable Joints 7；

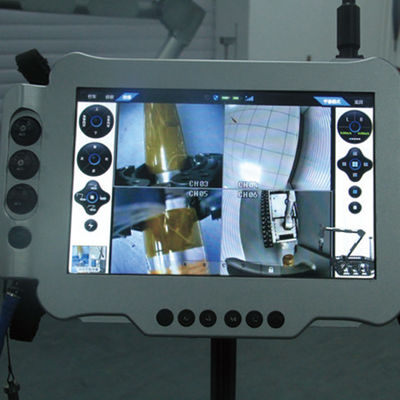

3. Portable Controller
(1)Size ≤400×300×100mm(不含天线)；
(2)Weight ≤3kg(Without backpack)；
(3)Display Screen ≥12'' LCD；
(4)Video Display ≥7-channel；
(5)Operation Method Dual-mode operation of button rocker and touch screen；
(6)Control Method Cable control≥200m(Standard cable),Wireless control≥1000m(Outdoor).
4. Protection level and environmental adaptability
(1)Robot Platform IP66；
(2)Arm IP66；
(3)Operating Temperature -40℃～＋50℃；



REOD4000 Details
