Lightweight Explosive Ordnance Disposal Robot With 35° Slope Passing Capacity

  • Lightweight Explosive Ordnance Disposal Robot With 35° Slope Passing Capacity
  • Lightweight Explosive Ordnance Disposal Robot With 35° Slope Passing Capacity
  • Lightweight Explosive Ordnance Disposal Robot With 35° Slope Passing Capacity
Place of Origin China
Brand Name Particle
Model Number REOD4000
Minimum Order Quantity 1
Price $356,653
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features 1. High-strength Mechanical Arm Design, Endows Powerful Snatch Performance；2."Christie" Suspension Track System, Complex Terrain Like Walking On Flat Ground；3.Graphically Dual-mode Operation, Convenient And Reliable Operation Experience；4.Remote 3D Real-ti Maximum Speed ≥5m/s
Robot Platform Over Obstacle Ability ≥400mm； Mobility Tracks Or Wheels
Applications Responding To Improvised Explosive Devices Manipulator Arm Yes
Operating Temperature -40℃～＋50℃ Robot Platform Gradeability ≥45º；
Robot Size 1600×850×1300 Mm（Fully Stowed） Robot Weight ≤350kg（Contain Batteries）
Over Obstacle Ability ≥400mm Across Groove Width ≥800mm
Gradeability ≥45º The Maximum Slope Passing Capacity 35°
Wading Depth ≥500mm Battery Life（Normal Temperature） ≥10h
Maximum Grabbing Distance 2.6m Maximum Grabbing Weight ≥200kg
Maximum Gripping Diameter ≥355mm Maximum Gripping Depth 2.2m
Movable Joints 7 Controller Size ≤400×300×100mm
Controller Weight ≤3kg（Without Backpack） Controller Display Screen ≥12'' LCD
Controller Video Display ≥7-channel Operation Method Dual-mode Operation Of Button Rocker And Touch Screen
Control Method Cable Control≥200m（Standard Cable），Wireless Control≥1000m（Outdoor） Robot Platform IP Grade IP66
Arm IP Grade IP66 Storage Temperature -45℃～＋60℃
Highlight

Lightweight explosive ordnance disposal robot

,

7 channel explosive ordnance disposal robot

,

IP66 eod robots
Leave a Message
Product Description



Lightweight Explosive Ordnance Disposal Robot with 35° Slope Passing Capacity​



Applications

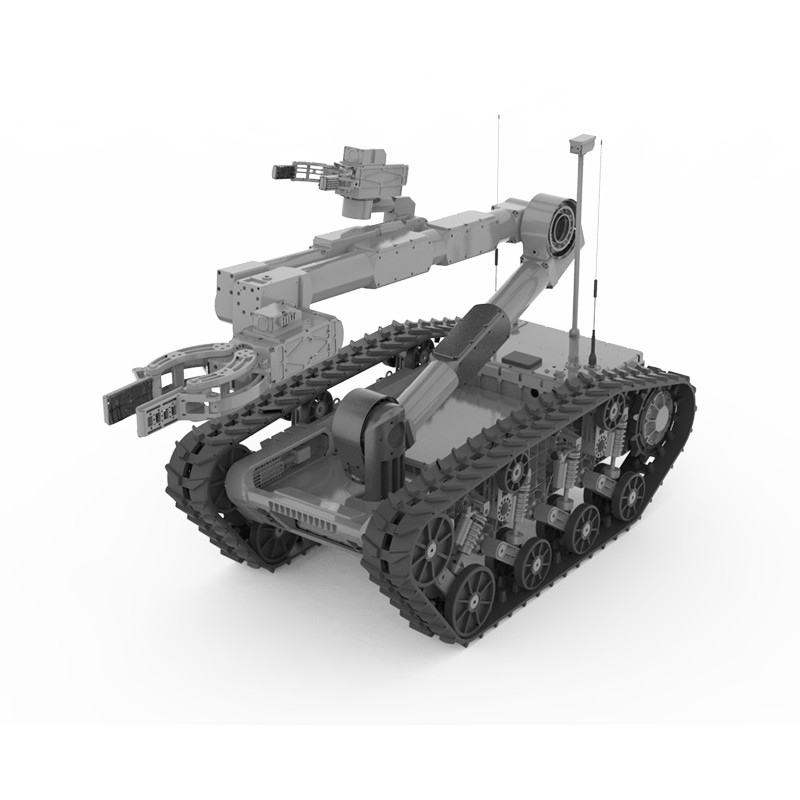

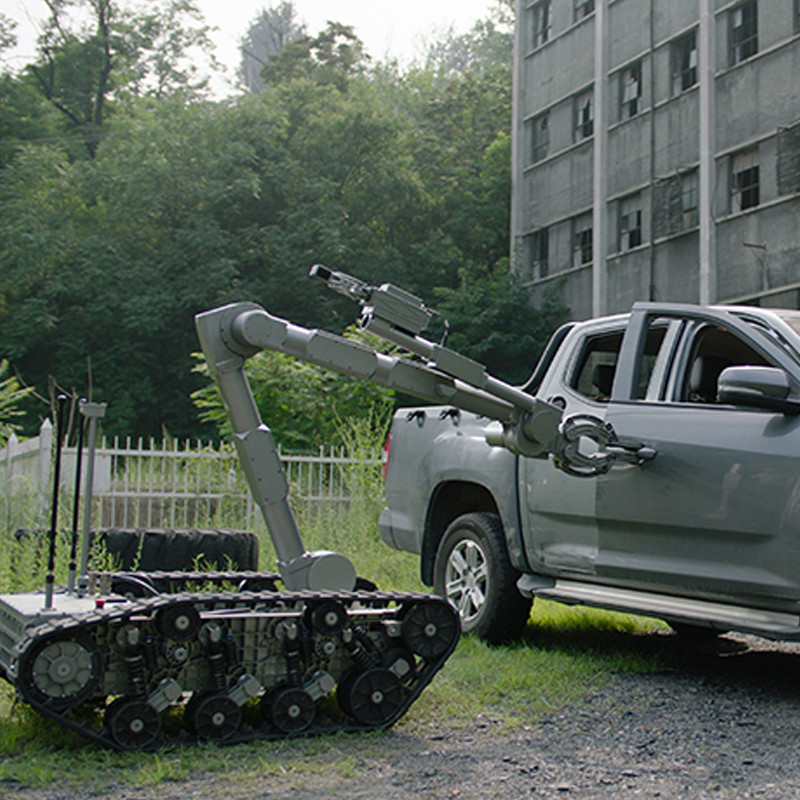

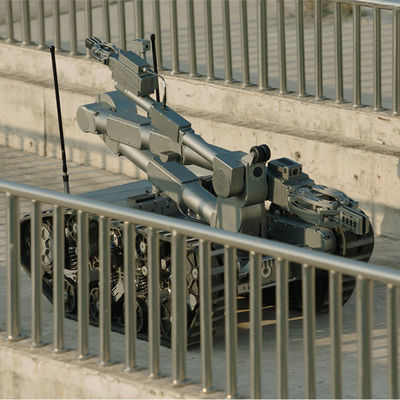

The JP REOD4000, a medium-sized EOD robot, excels in explosive disposal and transfer with its robust design. The "Christie" suspension system provides unparalleled stability and off-road performance, making difficult terrains manageable. Equipped with 7-channel video image sensors, the robot offers precise operational control. Its 7-degree-of-freedom robotic arm delivers incredible reach and accurate object handling under restrictive conditions, with a remarkable maximum snatch weight of 200 kg, outpacing similar robots.



Functionality

Remote control to approach the dangerous scene , Investigate potential sources of danger , Take disposal measures or transfer hazards according to mission objectives,Protect front-line workers and the public from personal injury.



Features

1. High-strength mechanical arm design, endows powerful snatch performance；
2."Christie" suspension track system, complex terrain like walking on flat ground；
3.Graphically dual-mode operation, convenient and reliable operation experience；
4.Remote 3D real-time display, fine operation in front of your eyes；
5.Intelligent "preset" control design, personalized setting of working posture；
6.The "X-Y-Z" three-dimensional space robotic arm linkage design based on automatic calculation helps you to control precisely；



Technical Parameters

1. Robot Platform
(1)Size 1600×850×1300 mm(Fully Stowed)；
(2)Weight ≤350kg(Contain batteries)；
(3)Maximum Speed ≥5m/s；
(4)Over Obstacle Ability ≥400mm；
(5)Across Groove Width ≥800mm；
(6)Gradeability ≥45º；
(7)The Maximum Slope Passing Capacity 35°；
(8)Wading Depth ≥500mm；
(9)Battery Life(Normal temperature) ≥10h；
2. Robotic Arm Grabbing Performance
(1)Maximum Grabbing Distance 2.6m；
(2)Maximum Grabbing Weight ≥200kg；
(3)Maximum Gripping Diameter ≥355mm；
(4)Maximum Gripping Depth 2.2m；
(5)Movable Joints 7；
3. Portable Controller
(1)Size ≤400×300×100mm(不含天线)；
(2)Weight ≤3kg(Without backpack)；
(3)Display Screen ≥12'' LCD；
(4)Video Display ≥7-channel；
(5)Operation Method Dual-mode operation of button rocker and touch screen；
(6)Control Method Cable control≥200m(Standard cable),Wireless control≥1000m(Outdoor).
4. Protection level and environmental adaptability
(1)Robot Platform IP66；
(2)Arm IP66；
(3)Operating Temperature -40℃～＋50℃；



REOD4000 Details

Lightweight Explosive Ordnance Disposal Robot With 35° Slope Passing Capacity 0
