Mission Objectives Hound-III EOD Robot For Disposal Measures And Hazard Transfer

  • Mission Objectives Hound-III EOD Robot For Disposal Measures And Hazard Transfer
  • Mission Objectives Hound-III EOD Robot For Disposal Measures And Hazard Transfer
  • Mission Objectives Hound-III EOD Robot For Disposal Measures And Hazard Transfer
Place of Origin China
Brand Name Particle
Model Number REOD4000
Minimum Order Quantity 1
Price $356,653
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Special Features Explosion-proof, Waterproof, Remote Disarming Capability Operating Temperature -40℃～＋50℃
Maximum Speed ≥5m/s Maximum Gripping Depth 2.2m
Movable Joints 7 Display Screen ≥12'' LCD；
Robot Size 1600×850×1300 Mm（Fully Stowed） Robot Weight ≤350kg（Contain Batteries）
Over Obstacle Ability ≥400mm Across Groove Width ≥800mm
Gradeability ≥45º The Maximum Slope Passing Capacity 35°
Wading Depth ≥500mm Battery Life（Normal Temperature） ≥10h
Maximum Grabbing Distance 2.6m Maximum Grabbing Weight ≥200kg
Maximum Gripping Diameter ≥355mm Controller Size ≤400×300×100mm
Controller Weight ≤3kg（Without Backpack） Controller Display Screen ≥12'' LCD
Controller Video Display ≥7-channel Operation Method Dual-mode Operation Of Button Rocker And Touch Screen
Control Method Cable Control≥200m（Standard Cable），Wireless Control≥1000m（Outdoor） Robot Platform IP Grade IP66
Arm IP Grade IP66 Storage Temperature -45℃～＋60℃
Highlight

Hound-III EOD Robot

,

Hazard Transfer EOD Robot

,

IP66 robot eod
Leave a Message
Product Description



Mission Objectives Hound-III EOD Robot for Disposal Measures and Hazard Transfer



Applications

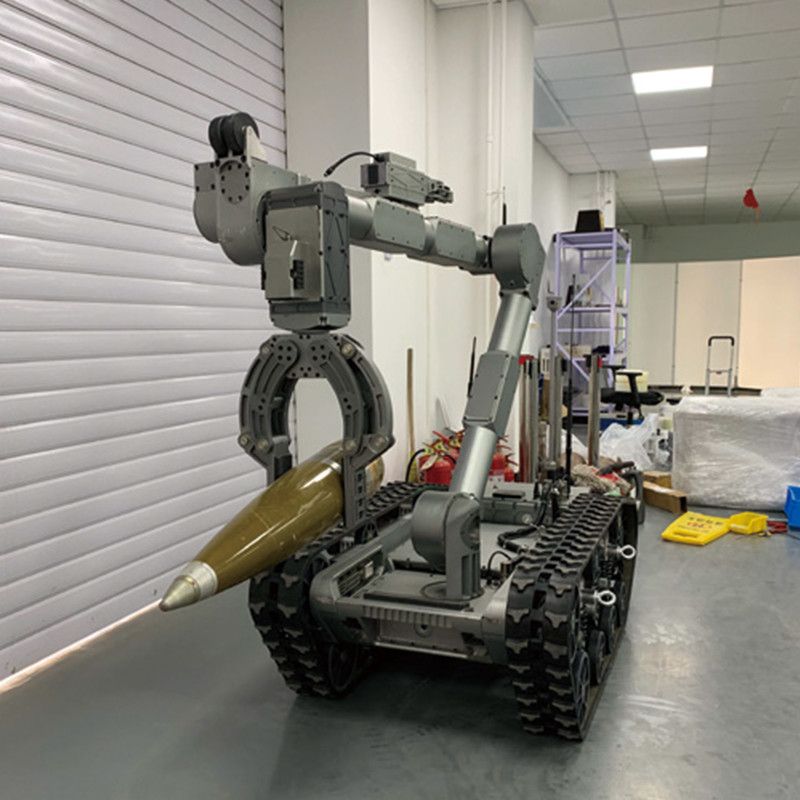

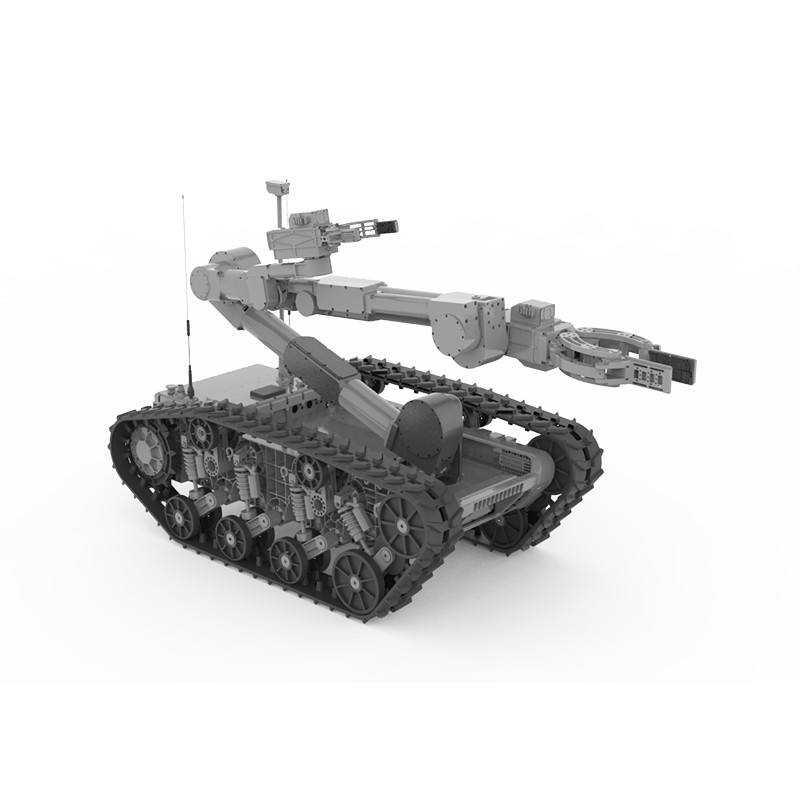

The REOD4000 robot is a highly advanced medium-sized EOD robot designed for superior explosive transfer and disposal capabilities. With its excellent off-road performance, the robot can navigate challenging terrains effortlessly, thanks to its "Christie" suspension system. It is equipped with up to 7-channel video image sensors that enable operators to perform precise and refined operations. The robot's 7-degree-of-freedom robotic arm allows it to reach dangerous spaces and accurately grasp objects under various restrictive conditions. It boasts a maximum snatch weight of 200 kg, surpassing similar equipment in its class.



Functionality

Remote control to approach the dangerous scene , Investigate potential sources of danger , Take disposal measures or transfer hazards according to mission objectives,Protect front-line workers and the public from personal injury.



Features

1. High-strength mechanical arm design, endows powerful snatch performance；

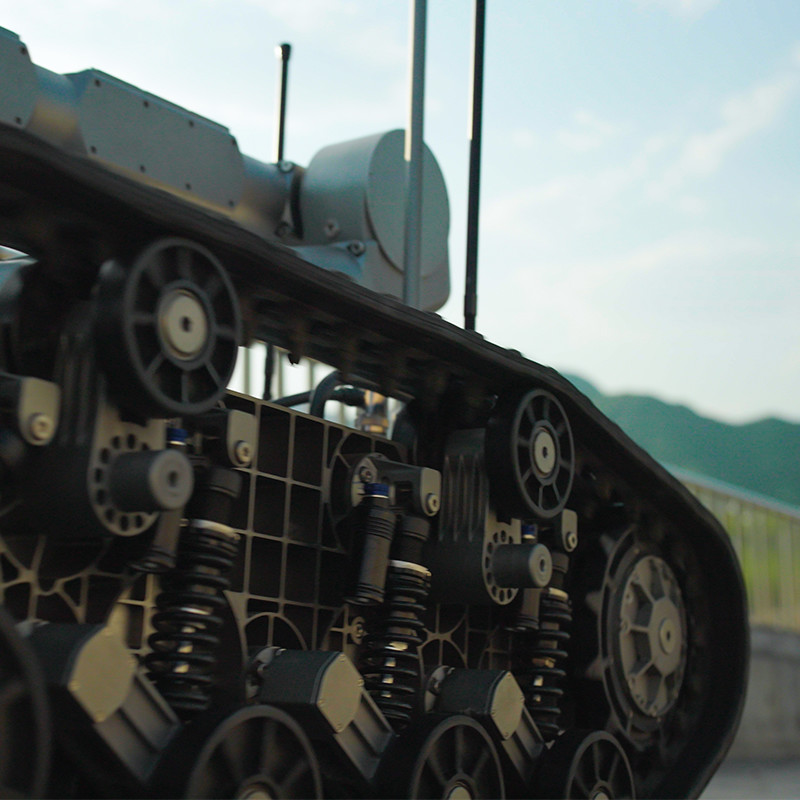

2."Christie" suspension track system, complex terrain like walking on flat ground；
3.Graphically dual-mode operation, convenient and reliable operation experience；
4.Remote 3D real-time display, fine operation in front of your eyes；
5.Intelligent "preset" control design, personalized setting of working posture；
6.The "X-Y-Z" three-dimensional space robotic arm linkage design based on automatic calculation helps you to control precisely；



Technical Parameters

1. Robot Platform
(1)Size 1600×850×1300 mm(Fully Stowed)；
(2)Weight ≤350kg(Contain batteries)；
(3)Maximum Speed ≥5m/s；
(4)Over Obstacle Ability ≥400mm；
(5)Across Groove Width ≥800mm；
(6)Gradeability ≥45º；
(7)The Maximum Slope Passing Capacity 35°；
(8)Wading Depth ≥500mm；
(9)Battery Life(Normal temperature) ≥10h；
2. Robotic Arm Grabbing Performance
(1)Maximum Grabbing Distance 2.6m；
(2)Maximum Grabbing Weight ≥200kg；
(3)Maximum Gripping Diameter ≥355mm；
(4)Maximum Gripping Depth 2.2m；
(5)Movable Joints 7；
3. Portable Controller
(1)Size ≤400×300×100mm(不含天线)；
(2)Weight ≤3kg(Without backpack)；
(3)Display Screen ≥12'' LCD；
(4)Video Display ≥7-channel；
(5)Operation Method Dual-mode operation of button rocker and touch screen；
(6)Control Method Cable control≥200m(Standard cable),Wireless control≥1000m(Outdoor).
4. Protection level and environmental adaptability
(1)Robot Platform IP66；
(2)Arm IP66；
(3)Operating Temperature -40℃～＋50℃；



REOD4000 Details

Mission Objectives Hound-III EOD Robot For Disposal Measures And Hazard Transfer 0
