Military And Law Enforcement Explosive Ordnance Disposal Robots

  • Military And Law Enforcement Explosive Ordnance Disposal Robots
  • Military And Law Enforcement Explosive Ordnance Disposal Robots
Place of Origin China
Brand Name Particle
Model Number REOD500
Minimum Order Quantity 1
Price $205,761
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Manipulator Arm Yes Remote Control Yes
Remote 3D Real-time Display Fine Operation In Front Of Your Eyes Climb Stairs ≥45°
Enhanced Mechanical Arm Design Greatly Improved Gripping Performance Maximum Snatch Weight ≥40kg
7-channel Video Images Richer Observation Perspectives Intelligent Preset Control Design Personalized Setting Of Working Posture
Robot Size ≤950×650×650mm（Fully Stowed） Robot Weight ≤50kg（Contains Two Sets Of Batteries）
Maximum Speed ≥2m/s（5 Gears, Continuously Variable） Over Obstacle Ability ≥400mm
Across Groove Width ≥400mm Gradeability ≥45°
Wading Depth ≥200mm Battery Life（Normal Temperature） ≥3h
Arm Length 2000mm Claws 2
Movable Joints 8 Controller Size ≤270mm×170mm×100mm
Controller Weight ≤1.2kg（Without Backpack） Controller Display Screen 7'' LCD
Video Display 7-channel，one Of Which Has Auto Focus Zoom Function Operation Method Dual-mode Operation Of Button Rocker And Touch Screen
Control Method Cable Control≥100m（Standard Cable），Wireless Control≥1000m（Outdoor） Robot Platform IP Grade IP66
Arm IP Grade IP66 Operating Temperature -40℃～＋50℃
Storage Temperature -45℃～＋60℃
Highlight

IP66 explosive ordnance disposal robots

,

Military explosive ordnance disposal robots

,

IP66 disposal robot
Leave a Message
Product Description

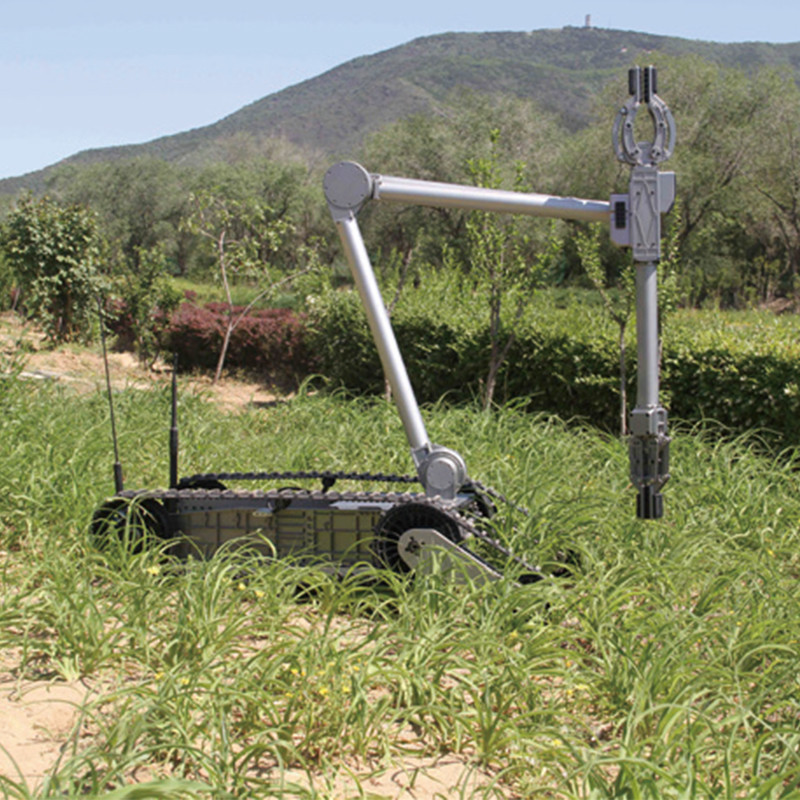

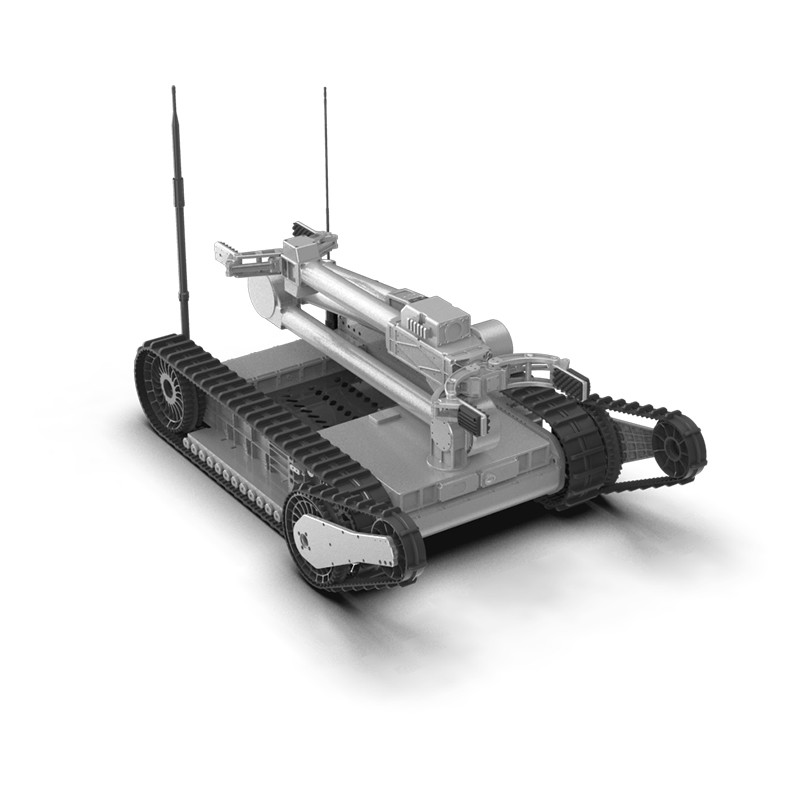

Explosive Ordnance Disposal Robot for Military and Law Enforcement



Applications

The JP REOD500's robotic arm, designed with a multi-degree-of-freedom integrated approach, offers the front-end "claw" exceptional space reach and gripping strength. This enhancement greatly improves the robot's ability to handle and transfer hazardous materials, ensuring that it can perform complex tasks with high precision and reliability, thereby increasing operational safety and efficiency.



Functionality

Remote control to approach the dangerous scene,Investigate potential sources of danger,Take disposal measures or transfer hazards according to mission objectives,Protect front-line workers and the public from personal injury.



Features

1. Enhanced mechanical arm design, greatly improved gripping performance；

★2. "2- claws" patent design, multiple tasks can be solved at one time；

3. Graphically dual-mode operation, convenient and reliable operation experience；

★4. Remote 3D real-time display, fine operation in front of your eyes；

★5. Intelligent "preset" control design, personalized setting of working posture；

★6. The "X-Y-Z" three-dimensional space robotic arm linkage design based on automatic calculation helps you to control precisely；

7. 7-channel video images, richer observation perspectives；

8. 8-degree-of-freedom robotic arm design, more flexible control；

9. A variety of expansion tools can be quickly replaced to calmly deal with various working conditions；



Technical Parameters

1. Robot Platform
(1)Size ≤950×650×650mm(Fully Stowed)；
(2)Weight ≤50kg(Contains two sets of batteries)；
(3)Maximum Speed ≥2m/s(5 gears, continuously variable)；
★(4)Over Obstacle Ability ≥400mm；
(5)Across Groove Width ≥400mm；
(6)Gradeability ≥45°；
(7)Climb Stairs ≥45°；
★(8)Wading Depth ≥200mm；
(9)Battery Life(Normal temperature) ≥3h；
2. Robotic Arm Grabbing Performance
★(1)Arm Length 2000mm；
★(2)Maximum Snatch Weight ≥40kg；
★(3)Claws 2；
★(4)Movable Joints 8；
3. Portable Controller
★(1)Size ≤270mm×170mm×100mm；
(2)Weight ≤1.2kg(Without backpack)；
(3)Display Screen 7'' LCD；
★(4)Video Display 7-channel,one of which has auto focus zoom function；
★(5)Operation Method Dual-mode operation of button rocker and touch screen；
★(6)Control Method Cable control≥100m(Standard cable),Wireless control≥1000m(Outdoor).
4. Protection level and environmental adaptability
(1)Robot Platform IP66；
(2)Arm IP66；
★(3)Operating Temperature -40℃～＋50℃；
(4)Storage Temperature -45℃～＋60℃；



REOD500 Details
