Urban Anti Terrorism Explosive Detection And Disposal Tactical Robot

  • Urban Anti Terrorism Explosive Detection And Disposal Tactical Robot
  • Urban Anti Terrorism Explosive Detection And Disposal Tactical Robot
  • Urban Anti Terrorism Explosive Detection And Disposal Tactical Robot
  • Urban Anti Terrorism Explosive Detection And Disposal Tactical Robot
Place of Origin China
Brand Name Particle
Model Number REOD400
Price $102,881
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Gradeability ≥45° Weight Of Portable Controller ≤2kg(Without Backpack)
Size Of Portable Controller ≤360×210×70mm Maximum Speed ≥1.7m/s(5 Gears, Continuously Variable )
Controller Operation Method Dual-mode Operation Of Button Rocker And Touch Screen Retracted State ≥16kg
Function Remote Control To Approach The Dangerous Scene, Investigate Potential Sources Of Danger, Take Disposal Measures Or Transfer Hazards According To Mission Objectives, Protect Front-line Workers And The Public From Personal Injury Applications Urban Anti-terrorism, Public Safety, Earthquake Relief, Suspicious Object Inspection, Roadside Bomb Removal
Size ≤830mm×600mm×460mm（Fully Stowed） Weight ≤37kg（Contains Two Sets Of Batteries）
Over Obstacle Ability ≥300mm Across Groove Width ≥400mm
Climb Stairs ≥45° Movable Joints 8
Farthest Grabbing Distance ≥1650mm Maximum Opening Width Of Gripper ≥160mm
Lift Capacity 6-16kg Operation Method Dual-mode Operation Of Button Rocker And Touch Screen
Control Method Cable Control≥100m（Standard Cable），Wireless Control≥1000m（Outdoor） Battery Life（Normal Temperature） ≥2h
IP Grade IP65
Highlight

Urban Anti Terrorism tactical robot

,

Public Safety tactical robot

,

IP65 tactical robots
Leave a Message
Product Description



Explosive Detection And Disposal Tactical Robot Retracted State ≥16kg

APPLICATIONS

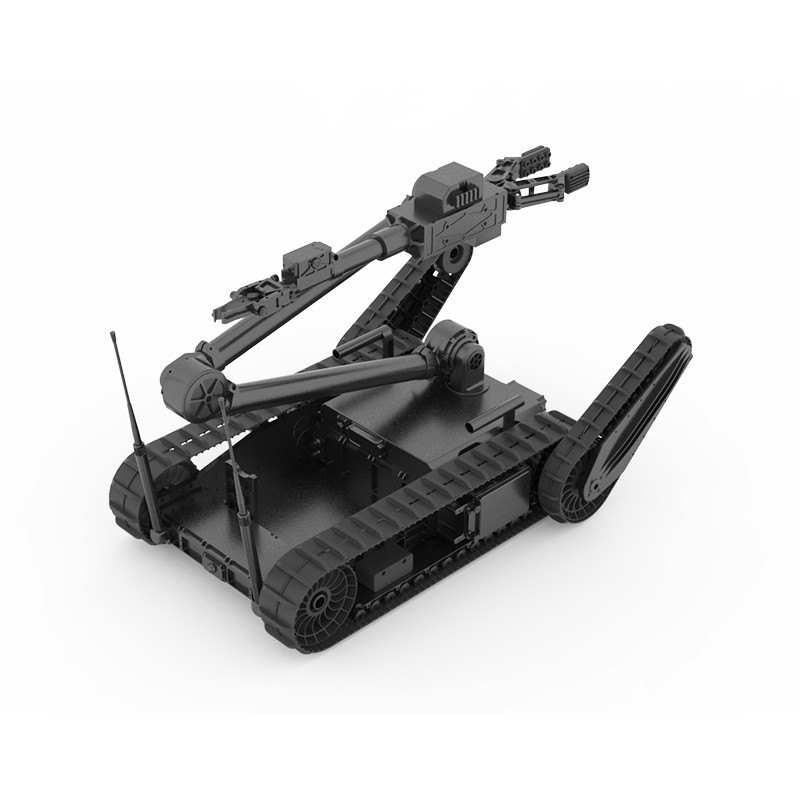

The JP REOD400 is uniquely recognized as the only small and medium-sized EOD robot globally equipped with dual-hand claws. It excels with its multi-view operational capability, seamlessly integrating reconnaissance, transport, and disposal functions. Compact and lightweight at just 37kg, it can effectively clamp objects weighing up to 16kg. Built for durability, it meets stringent standards for dustproof, waterproof, and corrosion resistance. This makes it an optimal choice for high-risk operations including urban counter-terrorism, public safety missions, earthquake relief efforts, suspicious package examinations, and roadside bomb disposal tasks.


Function

Remote control to approach the dangerous scene,Investigate potential sources of danger,Take disposal measures or transfer hazards according to mission objectives,Protect front-line workers and the public from personal injury.



FEATURES

► The original "two-hand claw" design can solve various operation at one time
► Graphically dual-mode operation, convenient and reliable operation experience
► Remote 3D real-time display
► Intelligent "preset" control design, personalized setting of working posture
► The "X-Y-Z" three-dimensional space robotic arm linkage design based on automatic calculation helps you to control precisely
► 7-channel video images observation perspectives
► 8-degree-of-freedom robotic arm design
► A variety of expansion tools can be quickly replaced to calmly deal with various working conditions

Technical Parameters:
1.Robot Platform
Size ≤830mm×600mm×460mm(Fully Stowed)
Weight ≤37kg(Contains two sets of batteries )
Maximum Speed ≥1.7m/s(5 gears, continuously variable )
Over Obstacle Ability ≥300mm；
Across Groove Width ≥400mm；
Gradeability ≥45°；

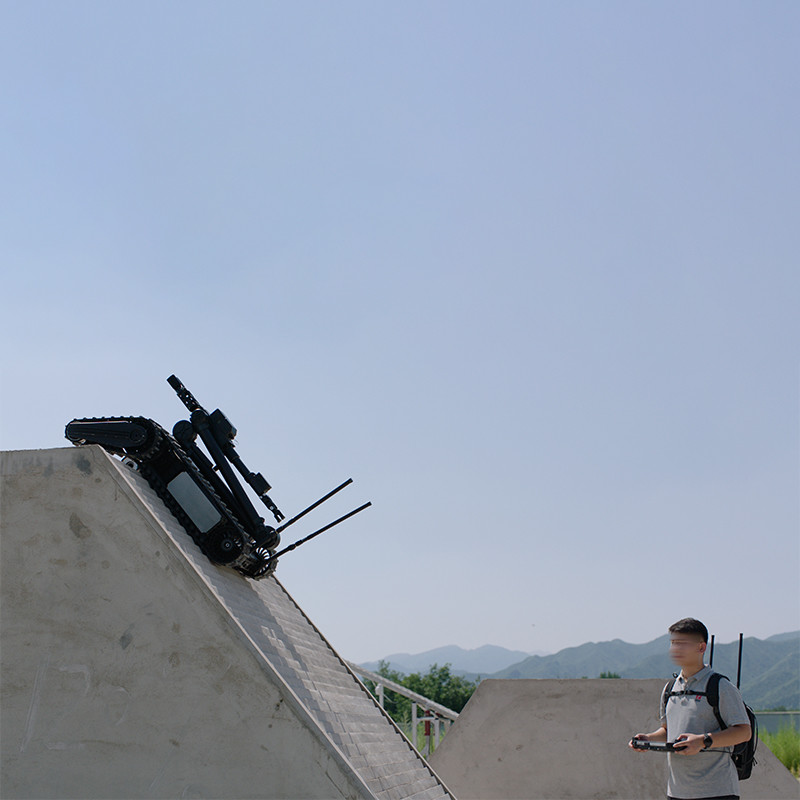

Climb Stairs ≥45°；
Battery Life(Normal temperature) ≥2h；
IP Grade IP65；
2. Robotic Arm Grabbing Performance
Extended State ≥6kg；
Retracted State ≥16kg；
Clawer 2；
Movable Joints 8；
Maximum Observation Height ≥2400mm；
Maximum Gripping Height ≥1700mm(Main clawer),≥2000mm(Vice- clawer)
Farthest Grabbing Distance ≥1380mm(Main clawer),≥1650mm(Vice- clawer)
Maximum opening width of gripper ≥160mm；

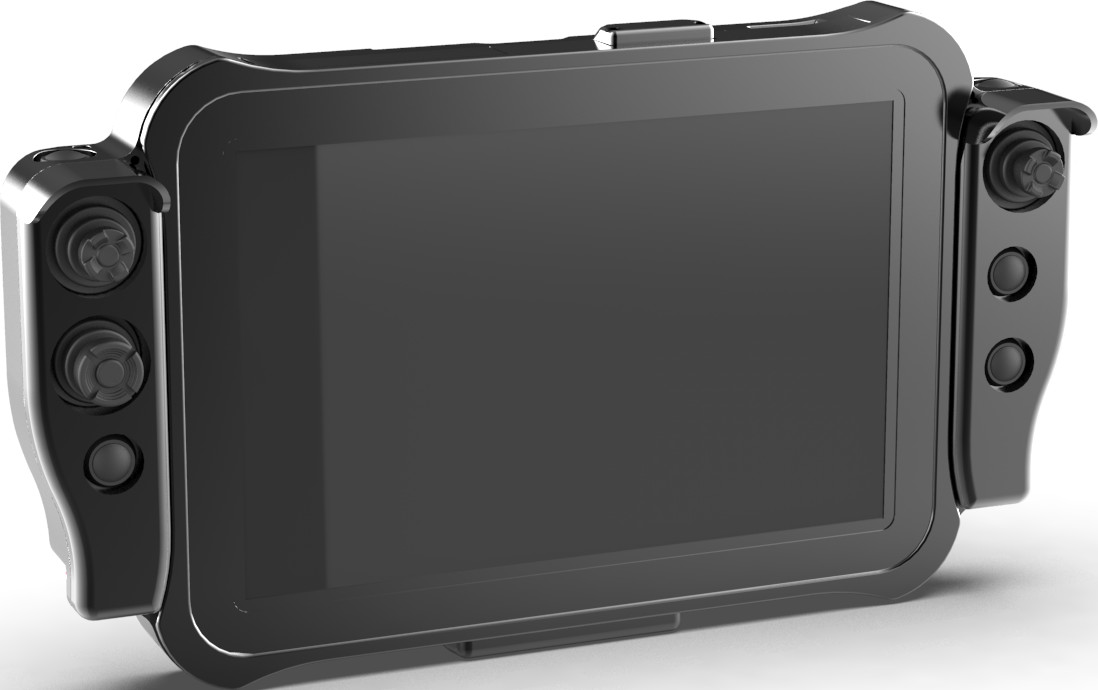

3. Portable Controller
Size ≤360×210×70mm；
Weight ≤2kg(Without backpack
Display Screen 10.1'' LCD；
Video Display 7-channel；



REOD400 Details

Urban Anti Terrorism Explosive Detection And Disposal Tactical Robot 0
