Dual Hand Claws Explosive Ordnance Disposal Robot For High Risk Scenarios

  • Dual Hand Claws Explosive Ordnance Disposal Robot For High Risk Scenarios
  • Dual Hand Claws Explosive Ordnance Disposal Robot For High Risk Scenarios
  • Dual Hand Claws Explosive Ordnance Disposal Robot For High Risk Scenarios
Place of Origin China
Brand Name Particle
Model Number REOD400
Price $102,881
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Two-hand Claw Design, Graphically Dual-mode Operation, Remote 3D Real-time Display, Intelligent Preset Control Design, X-Y-Z Three-dimensional Space Robotic Arm Linkage Design, 7-channel Video Images Observation Perspectives, 8-degree-of-freedom Robotic Ar Climb Stairs ≥45°
Farthest Grabbing Distance ≥1650mm Controller Operation Method Dual-mode Operation Of Button Rocker And Touch Screen
Function Remote Control To Approach The Dangerous Scene, Investigate Potential Sources Of Danger, Take Disposal Measures Or Transfer Hazards According To Mission Objectives, Protect Front-line Workers And The Public From Personal Injury Battery Life(Normal Temperature) ≥2h
Maximum Observation Height ≥2400mm Retracted State ≥16kg
Size ≤830mm×600mm×460mm（Fully Stowed） Weight ≤37kg（Contains Two Sets Of Batteries）
Over Obstacle Ability ≥300mm Across Groove Width ≥400mm
Gradeability ≥45° Movable Joints 8
Maximum Opening Width Of Gripper ≥160mm Lift Capacity 6-16kg
Operation Method Dual-mode Operation Of Button Rocker And Touch Screen Control Method Cable Control≥100m（Standard Cable），Wireless Control≥1000m（Outdoor）
Battery Life（Normal Temperature） ≥2h IP Grade IP65
Highlight

Dual Hand Claws Explosive Ordnance Disposal Robot

,

Explosive Ordnance Disposal Robot IP65

,

High Risk Scenarios eod robot
Leave a Message
Product Description

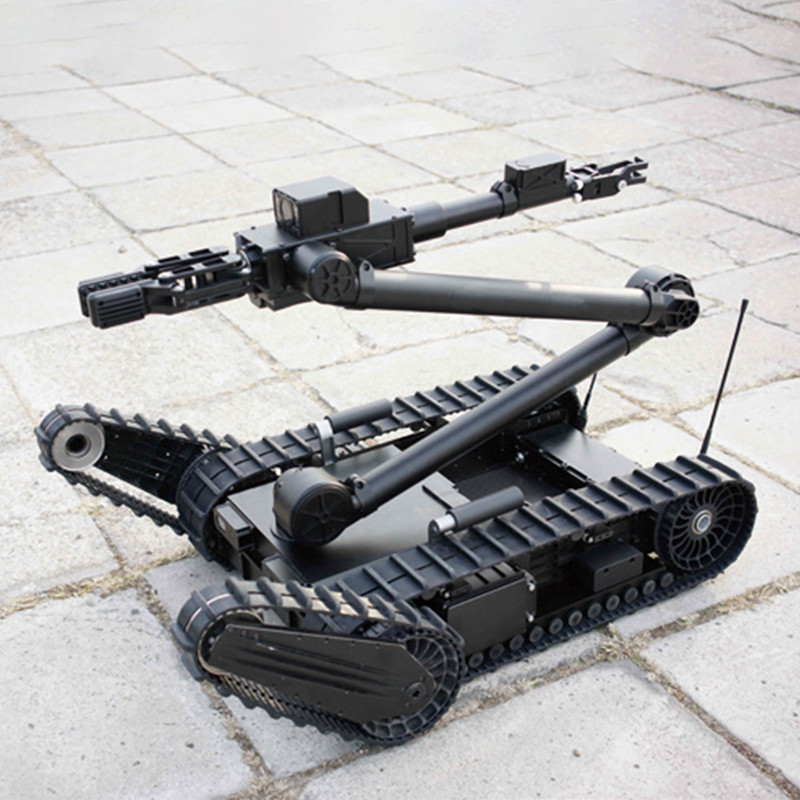

Explosive Ordnance Disposal Robot with Dual-Hand Claws for High-Risk Scenarios

APPLICATIONS
The JP REOD400 is the world's first and only small to medium-sized EOD robot designed with dual-hand claws. Its versatile multi-view operation seamlessly integrates reconnaissance, transfer, and disposal tasks. This compact robot weighs only 37kg but can handle clamping weights of up to 16kg. Its robust and durable construction ensures it meets the highest standards for dustproofing, waterproofing, and corrosion resistance, making it an excellent choice for high-risk scenarios including urban anti-terrorism efforts, public safety operations, earthquake rescues, suspicious package inspections, and roadside bomb neutralization.


Function

Remote control to approach the dangerous scene,Investigate potential sources of danger,Take disposal measures or transfer hazards according to mission objectives,Protect front-line workers and the public from personal injury.



FEATURES

► The original "two-hand claw" design can solve various operation at one time
► Graphically dual-mode operation, convenient and reliable operation experience
► Remote 3D real-time display
► Intelligent "preset" control design, personalized setting of working posture
► The "X-Y-Z" three-dimensional space robotic arm linkage design based on automatic calculation helps you to control precisely
► 7-channel video images observation perspectives
► 8-degree-of-freedom robotic arm design
► A variety of expansion tools can be quickly replaced to calmly deal with various working conditions

Technical Parameters:
1.Robot Platform
Size ≤830mm×600mm×460mm(Fully Stowed)
Weight ≤37kg(Contains two sets of batteries )
Maximum Speed ≥1.7m/s(5 gears, continuously variable )
Over Obstacle Ability ≥300mm；
Across Groove Width ≥400mm；
Gradeability ≥45°；

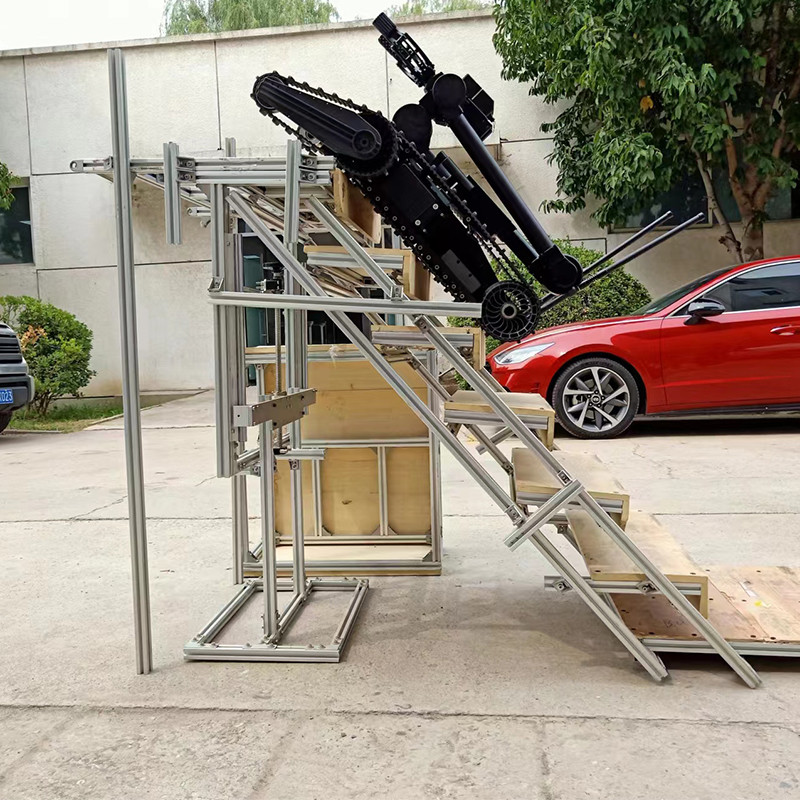

Climb Stairs ≥45°；
Battery Life(Normal temperature) ≥2h；
IP Grade IP65；
2. Robotic Arm Grabbing Performance
Extended State ≥6kg；
Retracted State ≥16kg；
Clawer 2；
Movable Joints 8；
Maximum Observation Height ≥2400mm；
Maximum Gripping Height ≥1700mm(Main clawer),≥2000mm(Vice- clawer)
Farthest Grabbing Distance ≥1380mm(Main clawer),≥1650mm(Vice- clawer)
Maximum opening width of gripper ≥160mm；
3. Portable Controller
Size ≤360×210×70mm；
Weight ≤2kg(Without backpack
Display Screen 10.1'' LCD；
Video Display 7-channel；



REOD400 Details
