Highly Explosive Ordnance Disposal Robot For Safe Precise Bomb Disposal Operations
| Place of Origin | China |
|---|---|
| Brand Name | Particle |
| Model Number | REOD400 |
| Price | $102,881 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Across Groove Width | ≥400mm | Farthest Grabbing Distance | ≥1650mm |
|---|---|---|---|
| Function | Remote Control To Approach The Dangerous Scene, Investigate Potential Sources Of Danger, Take Disposal Measures Or Transfer Hazards According To Mission Objectives, Protect Front-line Workers And The Public From Personal Injury | Maximum Gripping Height | ≥1700mm(Main Clawer),≥2000mm(Vice- Clawer) |
| Maximum Speed | ≥1.7m/s(5 Gears, Continuously Variable ) | Weight | ≤37kg（Contains Two Sets Of Batteries） |
| Display Screen Of Portable Controller | 10.1'' LCD | Over Obstacle Ability | ≥300mm |
| Size | ≤830mm×600mm×460mm（Fully Stowed） | Gradeability | ≥45° |
| Climb Stairs | ≥45° | Movable Joints | 8 |
| Maximum Opening Width Of Gripper | ≥160mm | Lift Capacity | 6-16kg |
| Operation Method | Dual-mode Operation Of Button Rocker And Touch Screen | Control Method | Cable Control≥100m（Standard Cable），Wireless Control≥1000m（Outdoor） |
| Battery Life（Normal Temperature） | ≥2h | IP Grade | IP65 |
| Highlight | Highly explosive ordnance disposal robot,explosive ordnance disposal robot,eod robots IP65 |
||
Product Description
|

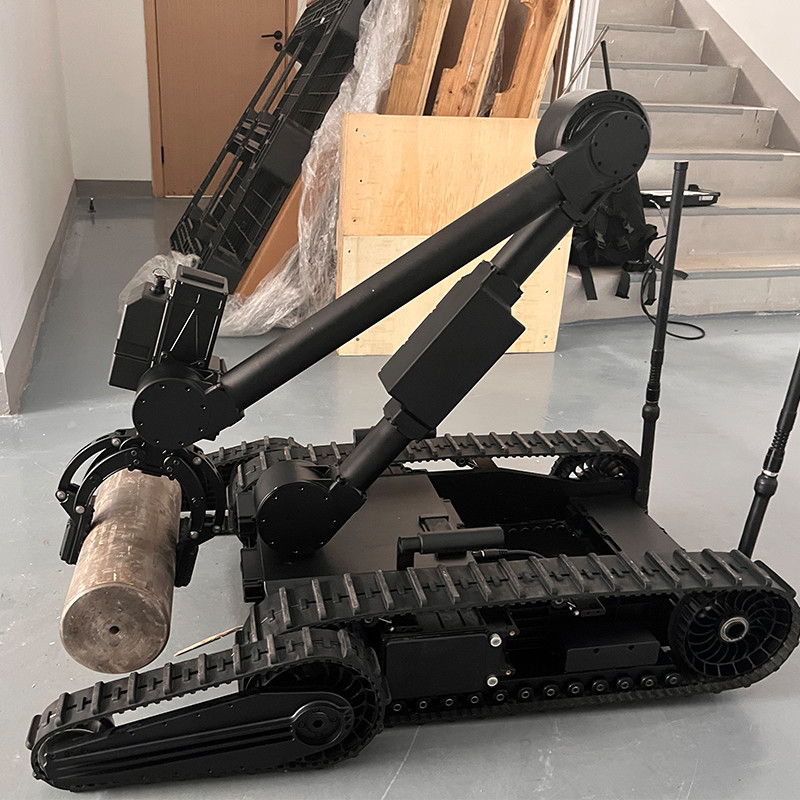

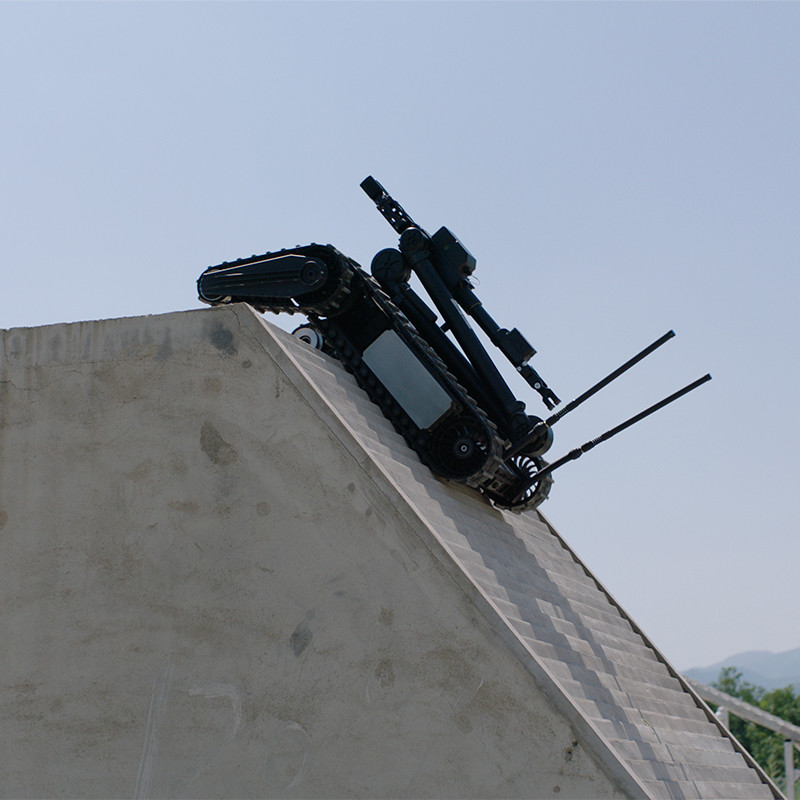

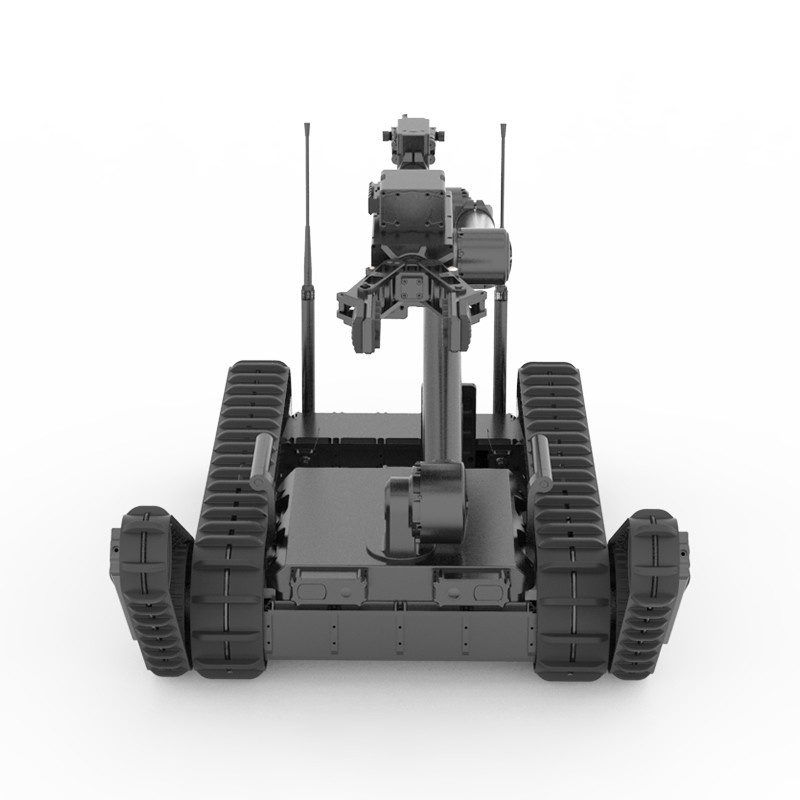

Highly Explosive Ordnance Disposal Robot for Safe and Precise Bomb Disposal Operations
APPLICATIONS
The JP REOD400 stands out as the sole small-to-medium EOD robot worldwide equipped with dual-hand claws. It boasts a multi-perspective control system and seamlessly blends reconnaissance, transport, and neutralization functions. Despite its compact size and lightweight design at just 37kg, it can handle clamping loads of up to 16kg. Built to endure, it meets rigorous standards for dust, water, and corrosion resistance, making it ideal for high-risk scenarios like urban counter-terrorism, public safety operations, earthquake rescues, suspicious package inspections, and roadside bomb defusals.
Function Remote control to approach the dangerous scene,Investigate potential sources of danger,Take disposal measures or transfer hazards according to mission objectives,Protect front-line workers and the public from personal injury.
FEATURES ► The original "two-hand claw" design can solve various operation at one time
► Graphically dual-mode operation, convenient and reliable operation experience
► Remote 3D real-time display
► Intelligent "preset" control design, personalized setting of working posture
► The "X-Y-Z" three-dimensional space robotic arm linkage design based on automatic calculation helps you to control precisely
► 7-channel video images observation perspectives
► 8-degree-of-freedom robotic arm design
► A variety of expansion tools can be quickly replaced to calmly deal with various working conditions
Technical Parameters:
REOD400 Details
|
||||||||||||||||||||||||||||||||||||||||||||||||
