Multi View Explosive Ordnance Disposal Robot For Safe And Effective Operations

  • Multi View Explosive Ordnance Disposal Robot For Safe And Effective Operations
  • Multi View Explosive Ordnance Disposal Robot For Safe And Effective Operations
  • Multi View Explosive Ordnance Disposal Robot For Safe And Effective Operations
Place of Origin China
Brand Name Particle
Model Number REOD400
Price $102,881
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Movable Joints 8 Across Groove Width ≥400mm
Maximum Opening Width Of Gripper ≥160mm Product Name Multi-View Operation Small Hound I EOD Reconnaissance Robot
Weight ≤37kg（Contains Two Sets Of Batteries） Maximum Gripping Height ≥1700mm(Main Clawer),≥2000mm(Vice- Clawer)
Climb Stairs ≥45° Type Remote-controlled Robot
Size ≤830mm×600mm×460mm（Fully Stowed） Over Obstacle Ability ≥300mm
Gradeability ≥45° Farthest Grabbing Distance ≥1650mm
Lift Capacity 6-16kg Operation Method Dual-mode Operation Of Button Rocker And Touch Screen
Control Method Cable Control≥100m（Standard Cable），Wireless Control≥1000m（Outdoor） Battery Life（Normal Temperature） ≥2h
IP Grade IP65
Highlight

Multi View Explosive Ordnance Disposal Robot

,

IP65 Explosive Ordnance Disposal Robot

,

Remote controlled robot eod
Leave a Message
Product Description



Advanced Explosive Ordnance Disposal Robot for Safe and Effective Operations

APPLICATIONS
The JP REOD400 is the world's only small-to-medium EOD robot with dual-hand claws, providing multi-view operation and integrating reconnaissance, transportation, and disposal capabilities. Weighing just 37kg, this compact robot can handle a maximum clamping weight of 16kg. Its rugged construction ensures durability, with protection against dust, water, and corrosion. Ideal for high-risk situations, it is perfect for urban counter-terrorism, public safety, earthquake relief, suspicious object inspections, and roadside bomb disposal.


Function

Remote control to approach the dangerous scene,Investigate potential sources of danger,Take disposal measures or transfer hazards according to mission objectives,Protect front-line workers and the public from personal injury.



FEATURES

► The original "two-hand claw" design can solve various operation at one time
► Graphically dual-mode operation, convenient and reliable operation experience
► Remote 3D real-time display
► Intelligent "preset" control design, personalized setting of working posture
► The "X-Y-Z" three-dimensional space robotic arm linkage design based on automatic calculation helps you to control precisely
► 7-channel video images observation perspectives
► 8-degree-of-freedom robotic arm design
► A variety of expansion tools can be quickly replaced to calmly deal with various working conditions

Technical Parameters:
1.Robot Platform
Size ≤830mm×600mm×460mm(Fully Stowed)
Weight ≤37kg(Contains two sets of batteries )
Maximum Speed ≥1.7m/s(5 gears, continuously variable )
Over Obstacle Ability ≥300mm；
Across Groove Width ≥400mm；
Gradeability ≥45°；
Climb Stairs ≥45°；
Battery Life(Normal temperature) ≥2h；
IP Grade IP65；
2. Robotic Arm Grabbing Performance
Extended State ≥6kg；
Retracted State ≥16kg；
Clawer 2；
Movable Joints 8；
Maximum Observation Height ≥2400mm；
Maximum Gripping Height ≥1700mm(Main clawer),≥2000mm(Vice- clawer)
Farthest Grabbing Distance ≥1380mm(Main clawer),≥1650mm(Vice- clawer)
Maximum opening width of gripper ≥160mm；
3. Portable Controller
Size ≤360×210×70mm；
Weight ≤2kg(Without backpack
Display Screen 10.1'' LCD；
Video Display 7-channel；

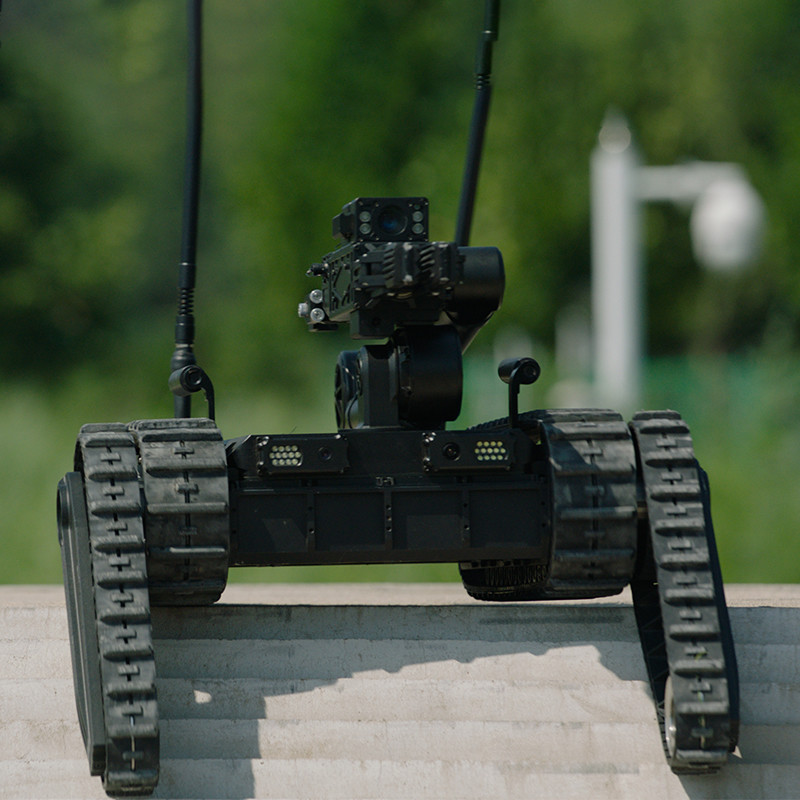

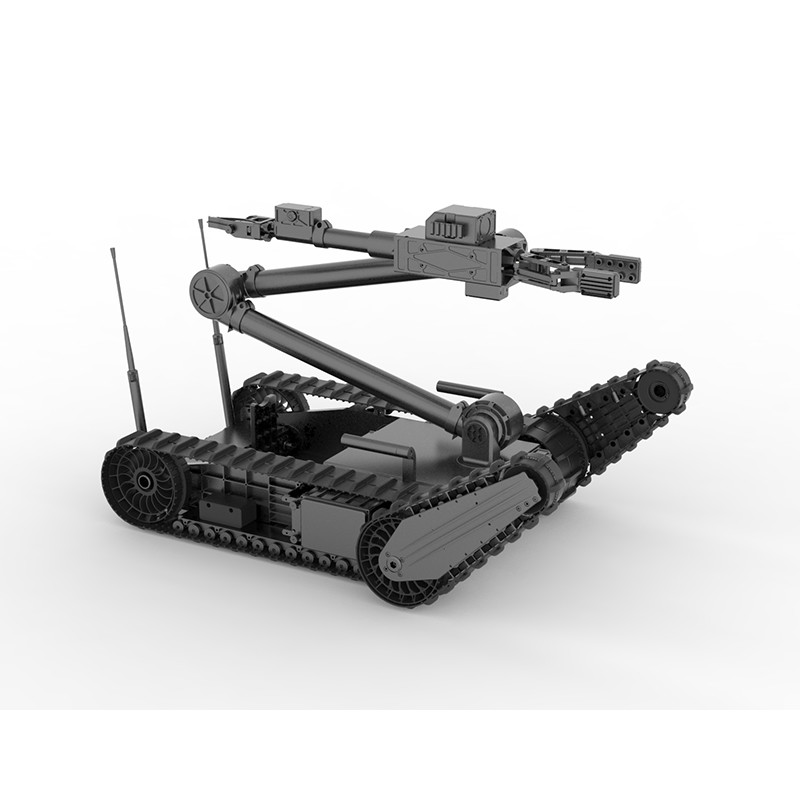

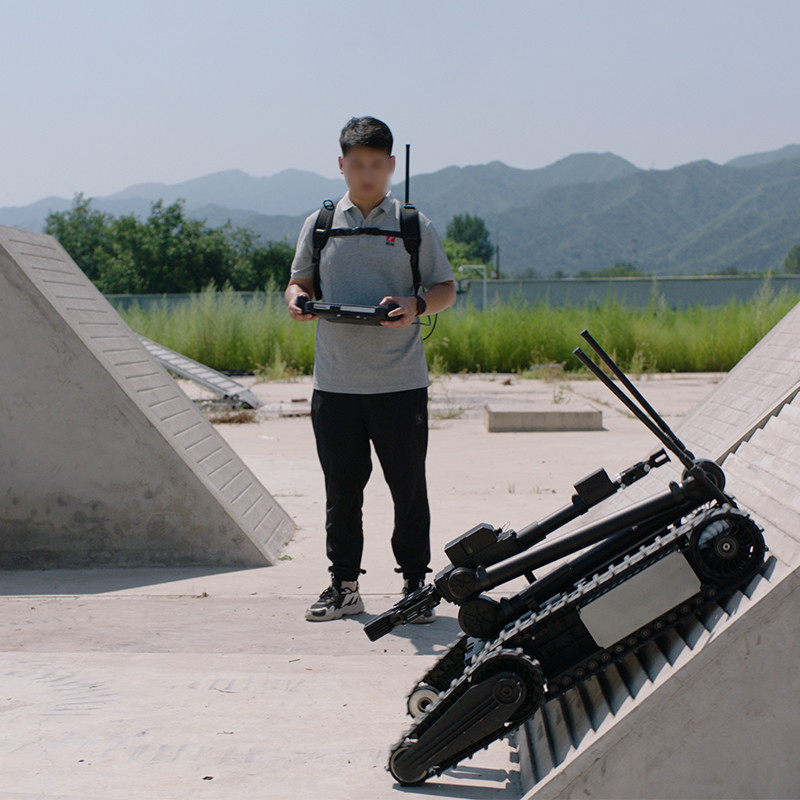

REOD400 Details

Multi View Explosive Ordnance Disposal Robot For Safe And Effective Operations 0
