Public Safety Explosive Ordnance Disposal Robot Two Batteries

  • Public Safety Explosive Ordnance Disposal Robot Two Batteries
  • Public Safety Explosive Ordnance Disposal Robot Two Batteries
  • Public Safety Explosive Ordnance Disposal Robot Two Batteries
Place of Origin China
Brand Name Particle
Model Number REOD400
Price $102,881
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Battery Life(Normal Temperature) ≥2h IP Grade IP65
Weight ≤37kg（Contains Two Sets Of Batteries） Controller Operation Method Dual-mode Operation Of Button Rocker And Touch Screen
Applications Urban Anti-terrorism, Public Safety, Earthquake Relief, Suspicious Object Inspection, Roadside Bomb Removal Movable Joints 8
Video Display Of Portable Controller 7-channel Maximum Gripping Height ≥1700mm(Main Clawer),≥2000mm(Vice- Clawer)
Size ≤830mm×600mm×460mm（Fully Stowed） Over Obstacle Ability ≥300mm
Across Groove Width ≥400mm Gradeability ≥45°
Climb Stairs ≥45° Farthest Grabbing Distance ≥1650mm
Maximum Opening Width Of Gripper ≥160mm Lift Capacity 6-16kg
Operation Method Dual-mode Operation Of Button Rocker And Touch Screen Control Method Cable Control≥100m（Standard Cable），Wireless Control≥1000m（Outdoor）
Battery Life（Normal Temperature） ≥2h
Highlight

Safety Explosive Ordnance Disposal Robot

,

Public Explosive Ordnance Disposal Robot

,

7 channel eod robots
Leave a Message
Product Description

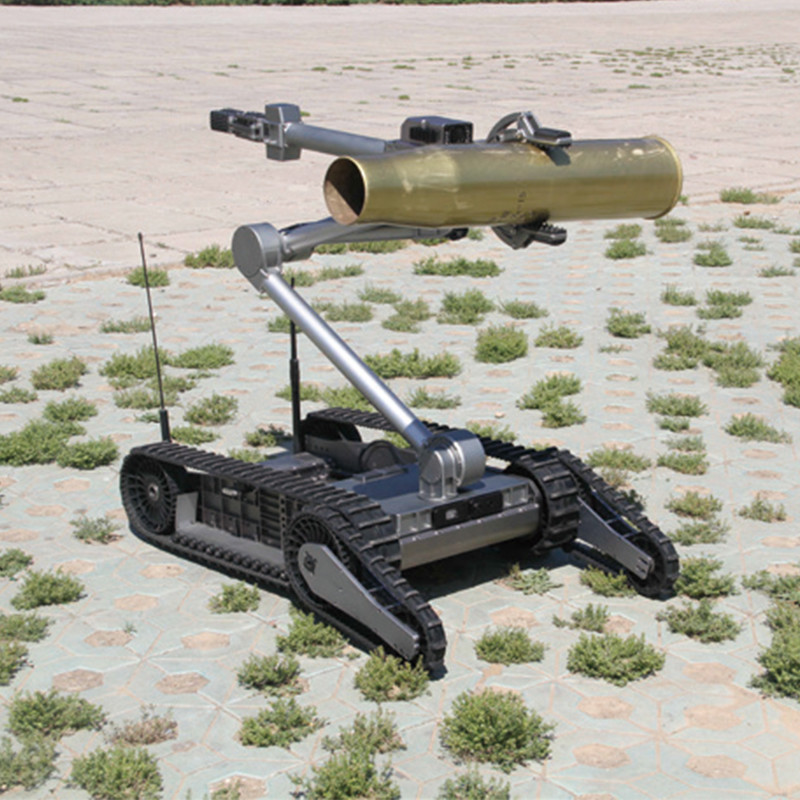

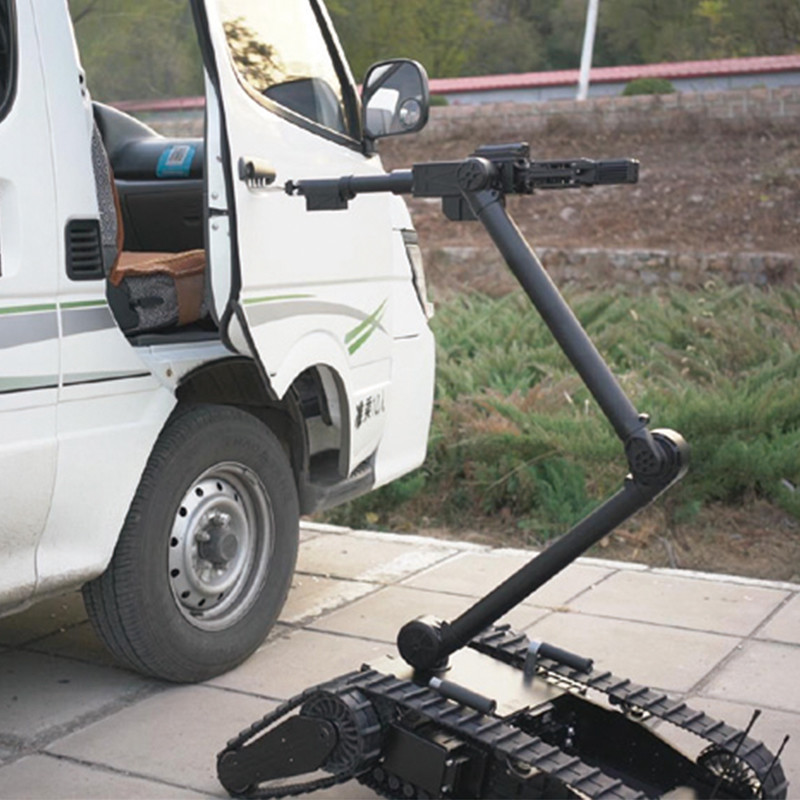

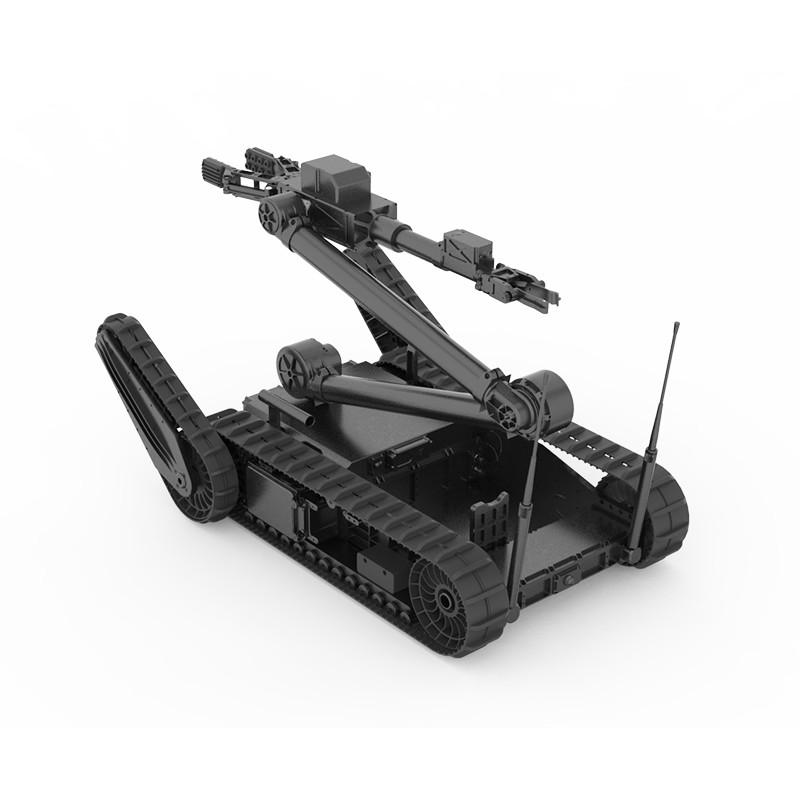

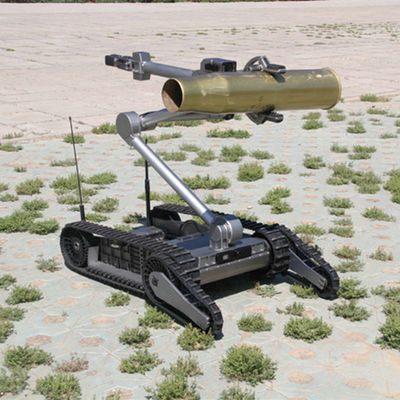

Public Safety Explosive Ordnance Disposal Robot Contains Two Sets Of Batteries

APPLICATIONS
The JP REOD400 is the unique small-to-medium EOD robot equipped with two-hand claws. It offers a multi-view operational system and integrates reconnaissance, transport, and disposal tasks. This compact, lightweight robot weighs only 37kg but can clamp objects up to 16kg. Its sturdy design meets the protection requirements for dustproof, waterproof, and corrosion-resistant environments, making it suitable for high-risk scenarios like urban counter-terrorism, public safety, earthquake rescue, suspicious package inspections, and roadside bomb removal.


Function

Remote control to approach the dangerous scene,Investigate potential sources of danger,Take disposal measures or transfer hazards according to mission objectives,Protect front-line workers and the public from personal injury.



FEATURES

► The original "two-hand claw" design can solve various operation at one time
► Graphically dual-mode operation, convenient and reliable operation experience
► Remote 3D real-time display
► Intelligent "preset" control design, personalized setting of working posture
► The "X-Y-Z" three-dimensional space robotic arm linkage design based on automatic calculation helps you to control precisely
► 7-channel video images observation perspectives
► 8-degree-of-freedom robotic arm design
► A variety of expansion tools can be quickly replaced to calmly deal with various working conditions

Technical Parameters:
1.Robot Platform
Size ≤830mm×600mm×460mm(Fully Stowed)
Weight ≤37kg(Contains two sets of batteries )
Maximum Speed ≥1.7m/s(5 gears, continuously variable )
Over Obstacle Ability ≥300mm；
Across Groove Width ≥400mm；
Gradeability ≥45°；
Climb Stairs ≥45°；
Battery Life(Normal temperature) ≥2h；
IP Grade IP65；
2. Robotic Arm Grabbing Performance
Extended State ≥6kg；
Retracted State ≥16kg；
Clawer 2；
Movable Joints 8；
Maximum Observation Height ≥2400mm；
Maximum Gripping Height ≥1700mm(Main clawer),≥2000mm(Vice- clawer)
Farthest Grabbing Distance ≥1380mm(Main clawer),≥1650mm(Vice- clawer)
Maximum opening width of gripper ≥160mm；
3. Portable Controller
Size ≤360×210×70mm；
Weight ≤2kg(Without backpack
Display Screen 10.1'' LCD；
Video Display 7-channel；



REOD400 Details

Public Safety Explosive Ordnance Disposal Robot Two Batteries 0
