Hound-III Medium Sized EOD Robot For Responding To Improvised Explosive Devices

  • Hound-III Medium Sized EOD Robot For Responding To Improvised Explosive Devices
  • Hound-III Medium Sized EOD Robot For Responding To Improvised Explosive Devices
  • Hound-III Medium Sized EOD Robot For Responding To Improvised Explosive Devices
  • Hound-III Medium Sized EOD Robot For Responding To Improvised Explosive Devices
  • Hound-III Medium Sized EOD Robot For Responding To Improvised Explosive Devices
  • Hound-III Medium Sized EOD Robot For Responding To Improvised Explosive Devices
Place of Origin China
Brand Name Particle
Model Number REOD4000
Minimum Order Quantity 1
Price $356,653
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Special Features Explosion-proof, Waterproof, Remote Disarming Capability Operating Temperature -40℃～＋50℃
Maximum Speed ≥5m/s Size 1600×850×1300 Mm（Fully Stowed）
Manipulator Arm Yes Mobility Tracks Or Wheels
Robot Size 1600×850×1300 Mm（Fully Stowed） Robot Weight ≤350kg（Contain Batteries）
Over Obstacle Ability ≥400mm Across Groove Width ≥800mm
Gradeability ≥45º The Maximum Slope Passing Capacity 35°
Wading Depth ≥500mm Battery Life（Normal Temperature） ≥10h
Maximum Grabbing Distance 2.6m Maximum Grabbing Weight ≥200kg
Maximum Gripping Diameter ≥355mm Maximum Gripping Depth 2.2m
Movable Joints 7 Controller Size ≤400×300×100mm
Controller Weight ≤3kg（Without Backpack） Controller Display Screen ≥12'' LCD
Controller Video Display ≥7-channel Operation Method Dual-mode Operation Of Button Rocker And Touch Screen
Control Method Cable Control≥200m（Standard Cable），Wireless Control≥1000m（Outdoor） Robot Platform IP Grade IP66
Arm IP Grade IP66 Storage Temperature -45℃～＋60℃
Highlight

Hound-III explosive ordnance disposal robots

,

EOD explosive ordnance disposal robots

,

Hound-III disposal robot
Leave a Message
Product Description

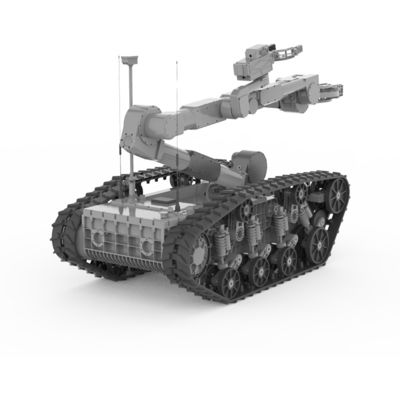

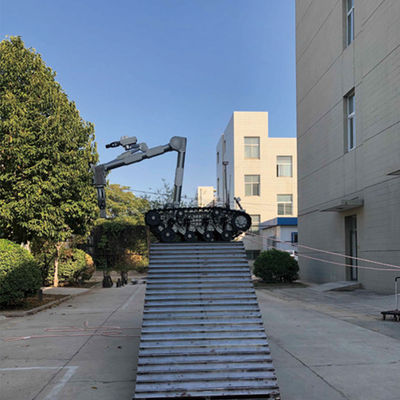

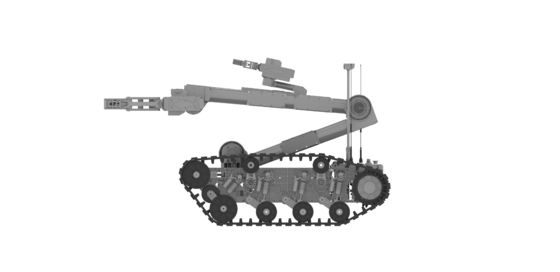

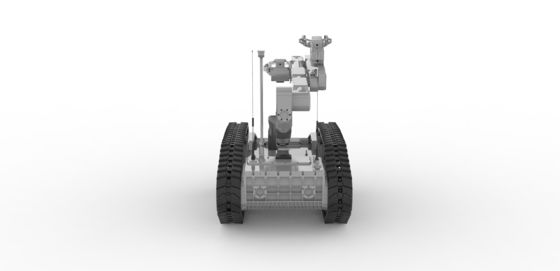

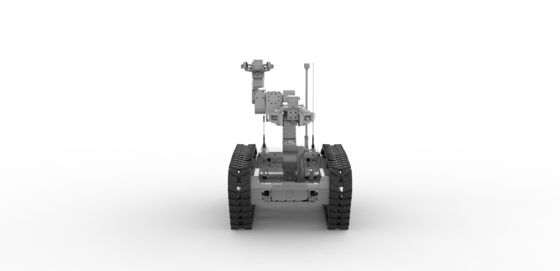

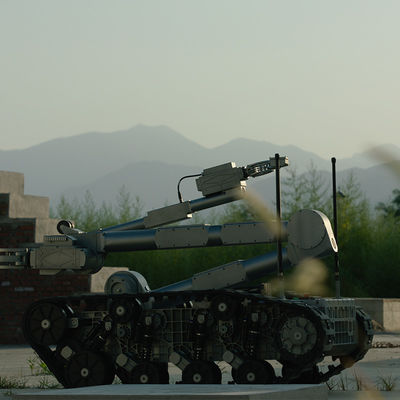

Hound-III EOD Robot For Responding To Improvised Explosive Devices



Applications

The JP REOD4000 is a medium-sized EOD robot. It has super transfer , disposal explosives capabilities and excellent off-road performance. It is equipped with up to 7-channel video
image sensors to help you refine operations. The 7-degree-of-freedom robotic arm gives it an incredible ability to reach danger-space, and it can still accurately grab objects under various restrictive conditions,The maximum snatch weight is as high as 200 kg, which has surpassed similar equipment. Its chassis adopts the "Christie" suspension system, and the complex terrain is like walking on flat ground.



Functionality

Remote control to approach the dangerous scene , Investigate potential sources of danger , Take disposal measures or transfer hazards according to mission objectives,Protect front-line workers and the public from personal injury.



Features

1. High-strength mechanical arm design, endows powerful snatch performance；
2."Christie" suspension track system, complex terrain like walking on flat ground；
3.Graphically dual-mode operation, convenient and reliable operation experience；
4.Remote 3D real-time display, fine operation in front of your eyes；
5.Intelligent "preset" control design, personalized setting of working posture；
6.The "X-Y-Z" three-dimensional space robotic arm linkage design based on automatic calculation helps you to control precisely；



Technical Parameters

1. Robot Platform
(1)Size 1600×850×1300 mm(Fully Stowed)；
(2)Weight ≤350kg(Contain batteries)；
(3)Maximum Speed ≥5m/s；
(4)Over Obstacle Ability ≥400mm；
(5)Across Groove Width ≥800mm；
(6)Gradeability ≥45º；
(7)The Maximum Slope Passing Capacity 35°；
(8)Wading Depth ≥500mm；
(9)Battery Life(Normal temperature) ≥10h；
2. Robotic Arm Grabbing Performance
(1)Maximum Grabbing Distance 2.6m；
(2)Maximum Grabbing Weight ≥200kg；
(3)Maximum Gripping Diameter ≥355mm；
(4)Maximum Gripping Depth 2.2m；
(5)Movable Joints 7；
3. Portable Controller
(1)Size ≤400×300×100mm(不含天线)；
(2)Weight ≤3kg(Without backpack)；
(3)Display Screen ≥12'' LCD；
(4)Video Display ≥7-channel；
(5)Operation Method Dual-mode operation of button rocker and touch screen；
(6)Control Method Cable control≥200m(Standard cable),Wireless control≥1000m(Outdoor).
4. Protection level and environmental adaptability
(1)Robot Platform IP66；
(2)Arm IP66；
(3)Operating Temperature -40℃～＋50℃；



REOD4000 Details

Hound-III Medium Sized EOD Robot For Responding To Improvised Explosive Devices 0
