Small Hound I EOD Robot For Reconnaissance Transfer Disposal

  • Small Hound I EOD Robot For Reconnaissance Transfer Disposal
  • Small Hound I EOD Robot For Reconnaissance Transfer Disposal
  • Small Hound I EOD Robot For Reconnaissance Transfer Disposal
Place of Origin China
Brand Name Particle
Model Number REOD400
Price $102,881
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Controller Operation Method Dual-mode Operation Of Button Rocker And Touch Screen； Manipulator Arm Yes
Size ≤830mm×600mm×460mm（Fully Stowed） Special Features Explosive Detection And Disposal Capabilities
Weight ≤37kg（Contains Two Sets Of Batteries） Mobility Tracks Or Wheels
Type Remote-controlled Robot Maximum Speed ≥1.7m/s（5 Gears, Continuously Variable）
Over Obstacle Ability ≥300mm Across Groove Width ≥400mm
Gradeability ≥45° Climb Stairs ≥45°
Movable Joints 8 Farthest Grabbing Distance ≥1650mm
Maximum Opening Width Of Gripper ≥160mm Lift Capacity 6-16kg
Operation Method Dual-mode Operation Of Button Rocker And Touch Screen Control Method Cable Control≥100m（Standard Cable），Wireless Control≥1000m（Outdoor）
Battery Life（Normal Temperature） ≥2h IP Grade IP65
Highlight

Hound I EOD Robot

,

Small EOD Robot

,

IP65 robot eod
Leave a Message
Product Description

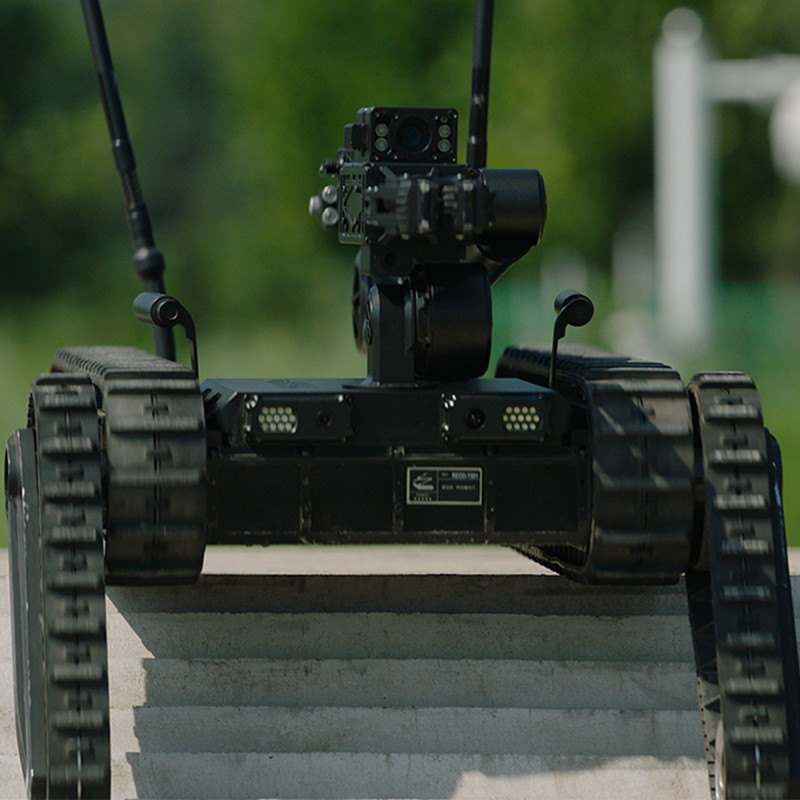

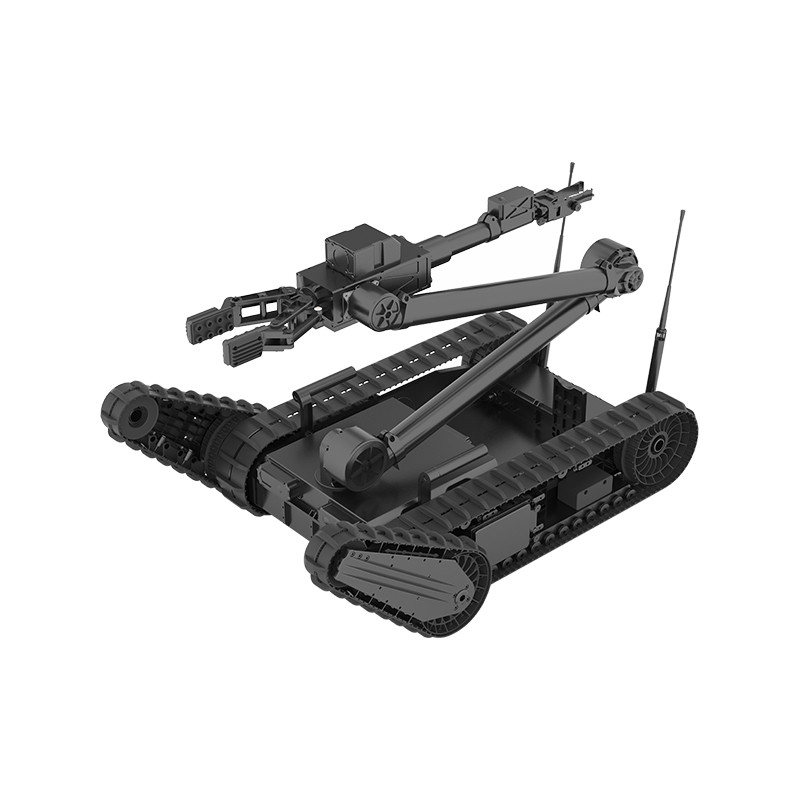

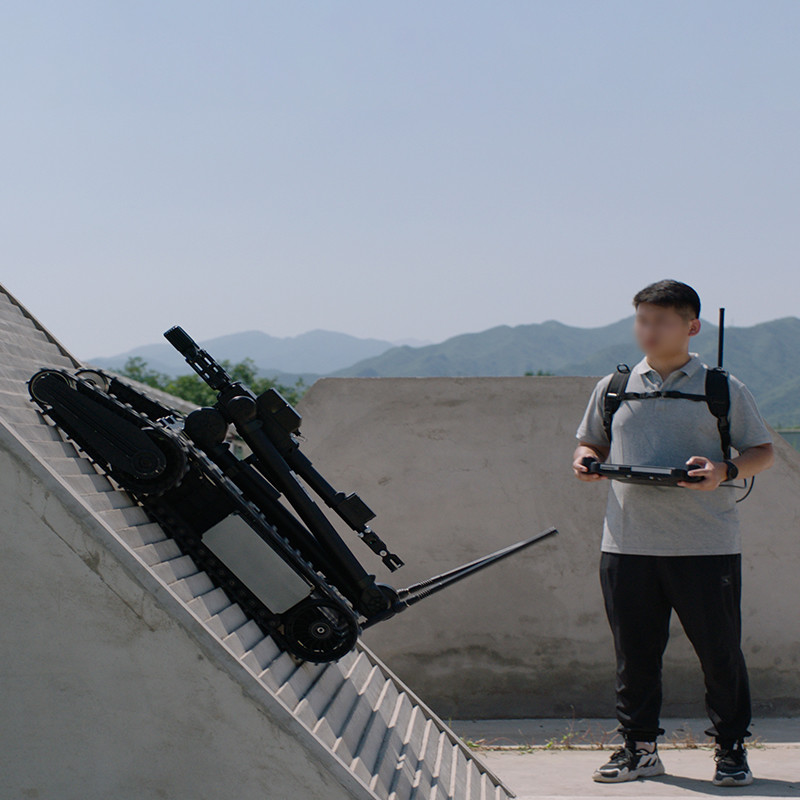

Small Hound I EOD Robot For Reconnaissance / Transfer / Disposal


APPLICATIONS
The JP REOD400 is the only small and medium-sized EOD robot designed with two-hand claws in the world. It has a multi-view operation and integrates reconnaissance, transfer, and disposal. It is small in size and weighs only 37kg, and the maximum clamping weight can reach 16KG. The robot has a rugged and reliable structure, and its protection meets the requirements of dustproof, waterproof, and corrosion resistance. It can be widely used in high-risk environments such as urban anti-terrorism, public safety, earthquake relief, suspicious object inspection, and roadside bomb removal.


Function

Remote control to approach the dangerous scene,Investigate potential sources of danger,Take disposal measures or transfer hazards according to mission objectives,Protect front-line workers and the public from personal injury.



FEATURES

► The original "two-hand claw" design can solve various operation at one time
► Graphically dual-mode operation, convenient and reliable operation experience
► Remote 3D real-time display
► Intelligent "preset" control design, personalized setting of working posture
► The "X-Y-Z" three-dimensional space robotic arm linkage design based on automatic calculation helps you to control precisely
► 7-channel video images observation perspectives
► 8-degree-of-freedom robotic arm design
► A variety of expansion tools can be quickly replaced to calmly deal with various working conditions

Technical Parameters:
1.Robot Platform
Size ≤830mm×600mm×460mm(Fully Stowed)
Weight ≤37kg(Contains two sets of batteries )
Maximum Speed ≥1.7m/s(5 gears, continuously variable )
Over Obstacle Ability ≥300mm；
Across Groove Width ≥400mm；
Gradeability ≥45°；
Climb Stairs ≥45°；
Battery Life(Normal temperature) ≥2h；
IP Grade IP65；
2. Robotic Arm Grabbing Performance
Extended State ≥6kg；
Retracted State ≥16kg；
Clawer 2；
Movable Joints 8；
Maximum Observation Height ≥2400mm；
Maximum Gripping Height ≥1700mm(Main clawer),≥2000mm(Vice- clawer)
Farthest Grabbing Distance ≥1380mm(Main clawer),≥1650mm(Vice- clawer)
Maximum opening width of gripper ≥160mm；
3. Portable Controller
Size ≤360×210×70mm；
Weight ≤2kg(Without backpack
Display Screen 10.1'' LCD；
Video Display 7-channel；



REOD400 Details

Small Hound I EOD Robot For Reconnaissance Transfer Disposal 0
