Ultra Waterproof small Reconnaissance Robot With IR Auxiliary Illumination Support

  • Ultra Waterproof small Reconnaissance Robot With IR Auxiliary Illumination Support
  • Ultra Waterproof small Reconnaissance Robot With IR Auxiliary Illumination Support
  • Ultra Waterproof small Reconnaissance Robot With IR Auxiliary Illumination Support
  • Ultra Waterproof small Reconnaissance Robot With IR Auxiliary Illumination Support
Place of Origin China
Brand Name Particle
Model Number R30S
Minimum Order Quantity 1
Price $27,160
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Mobility Remote-controlled Strong Impact-Resistant Design Can Be Thrown To The Target Area
Stealth Capability Silent Auxiliary-Support-Arm Ensures The Robot Can Quickly Right Itself If It Overturns
Working Time ≥2h Dual Vision System Features A Thermal Imaging Sensor In The Front And A Visible Light Sensor In The Rear
Voice Monitoring Supported Dual-mode Observation Visible Light And Thermal Imaging
Robot Weight ≤3kg（Including Battery） Daytime Detection Distance 50m, Recognition Distance 20m;
Night Detection Distance 25m, Recognition Distance 10m Horizontal FOV ≥60°
Overcoming Obstacles ≥10cm Climbing ≥35°
Drop Height ≥4m CCD Resolution 1/3in，720×576
IR Resolution 384×288@17μm Driving Capability Foliage, Sandy Slopes, Wading
Controller Working Time ≥3.5h Controller Weight ≤1.2kg（Including Battery）
Memory Card 32G（Build In） Control Method Joystick + Button
Remote Control Outdoor ≥350m Remote Control Indoor ≥50m
IP Grade ≥IP67 Operation Temperature －40℃～+55℃
Highlight

Ultra Waterproof recon robot

,

small recon robot

,

IR Auxiliary Illumination tactical robot
Leave a Message
Product Description

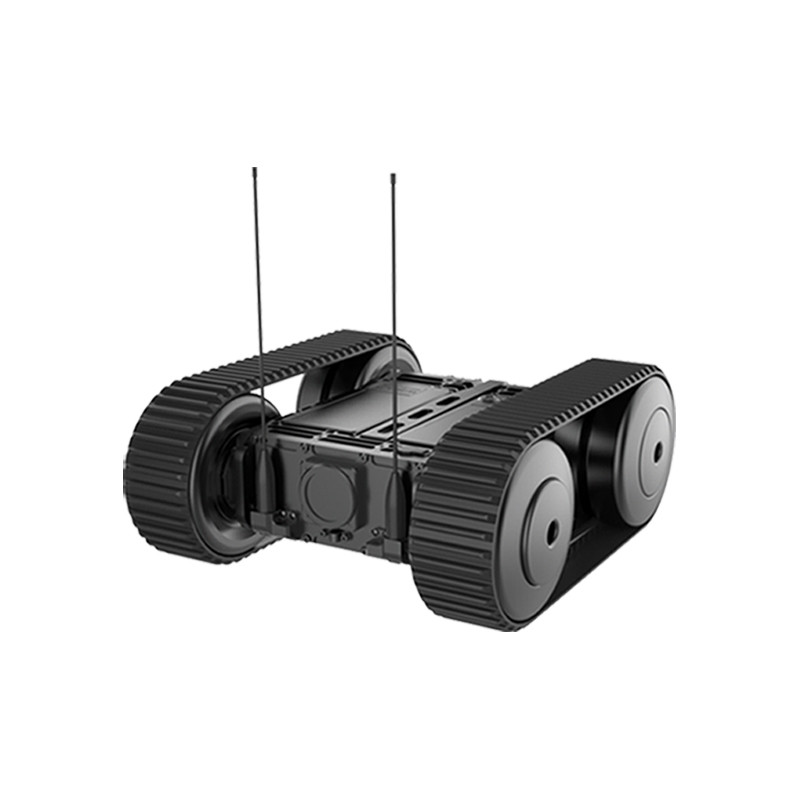

Ultra Waterproof Miniature Reconnaissance Robot with IR Auxiliary Illumination Support



APPLICATIONS

The JP R30S is an advanced small wheel-track composite reconnaissance robot designed for high-stakes operations. Capable of being thrown into a scene or breaking windows to enter buildings, it performs critical reconnaissance missions. With remote control capabilities, it can discreetly approach targets or initiate actions. Its crawler design ensures adaptability to diverse terrains, including underground pipes, caves, jungles, and grasslands. The unique "dual vision" system features a front thermal imaging sensor and a rear visible light image sensor, enabling it to capture thermal imaging videos and visible light images in low-light conditions, ensuring effective day and night reconnaissance. Additionally, the Auxiliary-Support-Arm helps it quickly recover from any "capsizing" incidents.



FUNCTION

►The dual-mode observation with visible light and thermal imaging
►Support IR auxiliary illumination
►Four thermal imaging display modes: white heat,black heat, false color, and outline
►Display of PIP(picture-in-picture)
►Voice monitoring
►Support photo and video recording, local browsing and export
►Can adjust the display brightness
►Support 3-speed change



Features

► Adopt wheel-crawler composite design, showing excellent through performance
► "Double-view"design,free switching between visible light observation mode and thermal imaging observation mode
► Unique arm design,quickly adjust the posture of the body
► Strong impact-resistant design,can be thrown to the target area

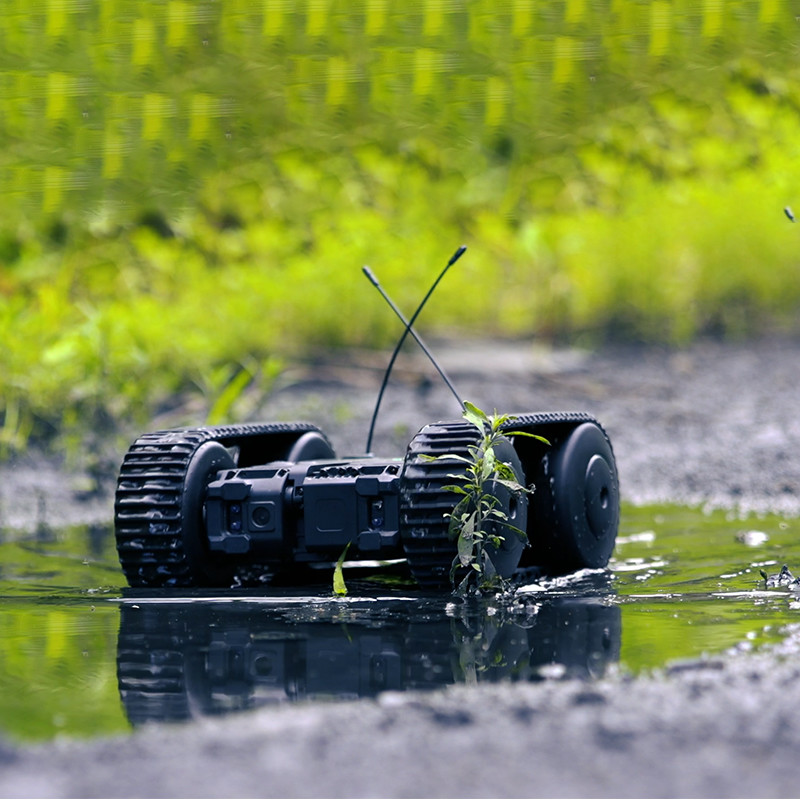

► Ultra waterproof performance, excellent wading ability


Technical Parameters:



1. Robot
(1)Weight ≤3kg(Including battery);
(2)Daytime Detection distance 50m, recognition distance 20m;
(3)Night Detection distance 25m, recognition distance 10m;
(4)Horizontal FOV ≥60°;
(5)Overcoming Obstacles ≥10cm;
(6)Climbing ≥35°;
(7)Drop Height ≥4m;
(8)Working Time ≥2h;
(9)CCD Resolution 1/3in,720×576;
(10)IR Resolution 384×288@17μm;
(11)Capable of driving in foliage, sandy slopes and wading;
2.Controller
(1)Working Time ≥3.5h;
(2)Weight ≤1.2kg(Including battery);
(3)Memory Card 32G(Build in);
(4)Control Method: Joystick + button;
3. Remote Control
(1)Outdoor ≥350m;
(2)Indoor ≥50m;
4.IP grade ≥IP67;
5.Operation Temperature －40℃～+55℃.



R30S Details
