All-Terrain Reconnaissance Robot Compact Wheeled Surveillance for Stealth Operations

  • All-Terrain Reconnaissance Robot Compact Wheeled Surveillance for Stealth Operations
  • All-Terrain Reconnaissance Robot Compact Wheeled Surveillance for Stealth Operations
  • All-Terrain Reconnaissance Robot Compact Wheeled Surveillance for Stealth Operations
  • All-Terrain Reconnaissance Robot Compact Wheeled Surveillance for Stealth Operations
  • All-Terrain Reconnaissance Robot Compact Wheeled Surveillance for Stealth Operations
  • All-Terrain Reconnaissance Robot Compact Wheeled Surveillance for Stealth Operations
Place of Origin China
Brand Name Particle
Model Number R10
Minimum Order Quantity 1
Price $13,717
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Maximum Throwing Distance Compact Wheeled Reconnaissance And Surveillance Robot Robot Working Time ≥2h
Maximum Throwing Distance 9m(vertical)，20m (horizontal) Maximum Climbing Angle 25°
Speed 0.65m/s IR Illumination ≥7m
Monitor Ability The Ambient Noise Is Not Greater Than 45 Decibels, And The Voice Information Of 60 Decibels Within A Range Of 3 Meters Can Be Heard Clearly Daytime Recognition ≥40m（human）
COMS Resolution 1/3in,2560×1440 Controller Working Time ≥3.5h
Operating Temperature -25℃～+55℃ IP Grade IP66
Robot Weight ≤1kg Storage Capacity 32G（built-in）
Controller Weight ≤1.1kg（with Battery） Communication Ability Indoor ≥50m
Operation Joystick + Button Communication Ability Outdoor ≥100m
Highlight

Uncooled thermal imaging binoculars

,

Multi Function thermal imaging binoculars

,

Outdoor Adventures thermal night vision binoculars
Leave a Message
Product Description

All-Terrain Reconnaissance Robot Compact Wheeled Surveillance for Stealth Operations



Applications

The JP-R10, a small throwable reconnaissance and surveillance robot, excels in spaces where larger robots cannot operate. Built for high-impact resistance, it can be thrown into specific areas or break through windows to enter buildings. The robot’s high-definition camera and IR lighting provide excellent visibility even in low-light conditions. Its advanced image transmission system delivers clear and smooth video and audio to the operator’s screen, ensuring commanders can accurately assess and respond to the scene.



Function

► Capable of enter designated areas or buildings by throwing to perform monitoring tasks
► Support audio and video monitoring (listening) functions
► Support digital zoom function
► Support IR auxiliary illumination
► It has the function of taking photos and videos, which can be browsed or exported to other storage devices


Features

► Rugged body while maintaining light weight
► Can be used even at night or low light
► Ultra-low walking noise
► Excellent audio monitoring capabilities
► Clear and smooth video
► 5.5-inch high-definition OLED screen
► Remote control distance is longer "Joystick + button" control mode

Technical Parameters:
1. Robot
Weight ≤1kg；
Working Time ≥2h；
Maximum Throwing Distance 9m(vertical),20m (horizontal)；
Maximum Climbing Angle 25°；
Speed ≥0.65m/s；
IR Illumination ≥7m；
Daytime Recognition ≥40m(human)
Monitor Ability The ambient noise is not greater than 45 decibels, and the voice information of 60 decibels within a range of 3 meters can be heard clearly；
COMS Resolution 1/3in,2560×1440；
2. Controller
Working Time ≥3.5h；
Weight ≤1.1kg(with battery)
Storage Capacity 32G(built-in)
Operation Joystick + button；
3. Communication Ability
Indoor ≥50m；
Outdoor ≥100m；
4. Environmental Adaptability
Working Temperature -25℃～+55℃；
IP grade IP66；



JP R10 Details

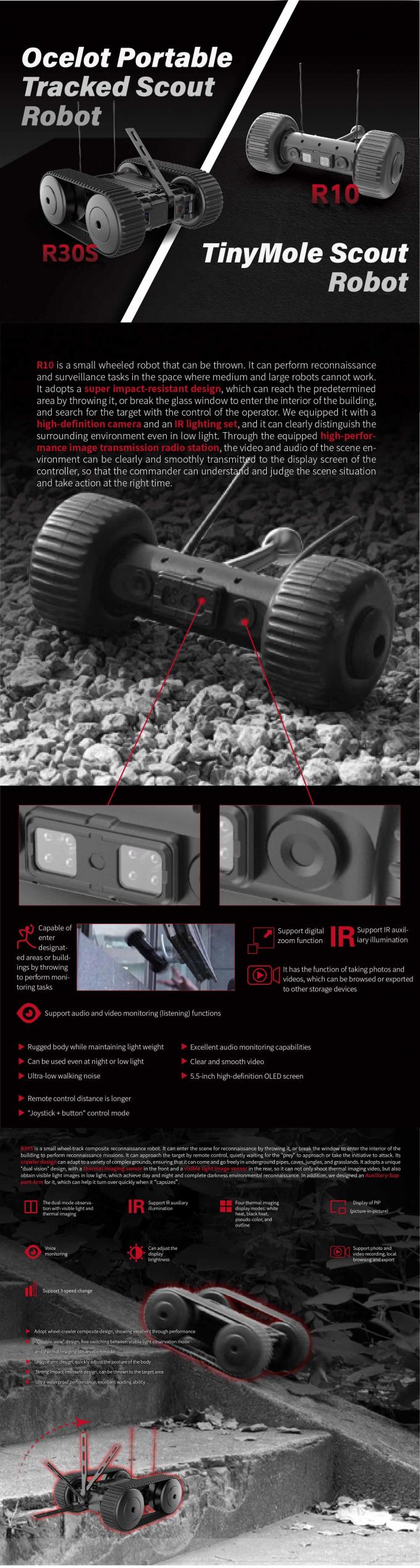

Small Powerful Micro Robot Reconnaissance Systems With 25° Maximum Climbing Angle 0
