IP67 Grade Autonomous Scouting Vehicle High Durability and Efficiency

  • IP67 Grade Autonomous Scouting Vehicle High Durability and Efficiency
  • IP67 Grade Autonomous Scouting Vehicle High Durability and Efficiency
  • IP67 Grade Autonomous Scouting Vehicle High Durability and Efficiency
  • IP67 Grade Autonomous Scouting Vehicle High Durability and Efficiency
Place of Origin China
Brand Name Particle
Model Number R30S
Minimum Order Quantity 1
Price $27,160
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight Lightweight Display Brightness Adjustment Supported
Size Small Photo And Video Recording Supported
Durability Robust Product Name Advanced Tracked Scout Robot Multi-Functional Reconnaissance System For Tactical Use
Product Category Miniature Reconnaissance Robot Dual-mode Observation Visible Light And Thermal Imaging
Robot Weight ≤3kg（Including Battery） Daytime Detection Distance 50m, Recognition Distance 20m;
Night Detection Distance 25m, Recognition Distance 10m Horizontal FOV ≥60°
Overcoming Obstacles ≥10cm Climbing ≥35°
Drop Height ≥4m Working Time ≥2h
CCD Resolution 1/3in，720×576 IR Resolution 384×288@17μm
Driving Capability Foliage, Sandy Slopes, Wading Controller Working Time ≥3.5h
Controller Weight ≤1.2kg（Including Battery） Memory Card 32G（Build In）
Control Method Joystick + Button Remote Control Outdoor ≥350m
Remote Control Indoor ≥50m IP Grade ≥IP67
Operation Temperature －40℃～+55℃
Highlight

IP67 Grade Autonomous Scouting Vehicle

,

High Durability Autonomous Scouting Vehicle

,

Efficiency Autonomous Scouting Vehicle
Leave a Message
Product Description



IP67 Grade Autonomous Scouting Vehicle High Durability and Efficiency



APPLICATIONS

The JP R30S is an advanced reconnaissance robot featuring a small wheel-track hybrid design. It can be thrown into action or break windows to access buildings for reconnaissance tasks. It can be remotely controlled to approach targets silently or initiate an attack. Its track system is designed to handle diverse and challenging terrains, ensuring it can move through underground pipes, caves, jungles, and grasslands with ease. The "dual vision" system with a front thermal imaging sensor and rear visible light sensor allows it to capture thermal and low-light images, making it effective for day and night reconnaissance. An Auxiliary-Support-Arm is included to help it quickly right itself if overturned.



FUNCTION

►The dual-mode observation with visible light and thermal imaging
►Support IR auxiliary illumination
►Four thermal imaging display modes: white heat,black heat, false color, and outline
►Display of PIP(picture-in-picture)
►Voice monitoring
►Support photo and video recording, local browsing and export
►Can adjust the display brightness
►Support 3-speed change



Features

► Adopt wheel-crawler composite design, showing excellent through performance
► "Double-view"design,free switching between visible light observation mode and thermal imaging observation mode
► Unique arm design,quickly adjust the posture of the body
► Strong impact-resistant design,can be thrown to the target area

► Ultra waterproof performance, excellent wading ability


Technical Parameters:



1. Robot
(1)Weight ≤3kg(Including battery);
(2)Daytime Detection distance 50m, recognition distance 20m;
(3)Night Detection distance 25m, recognition distance 10m;
(4)Horizontal FOV ≥60°;
(5)Overcoming Obstacles ≥10cm;
(6)Climbing ≥35°;
(7)Drop Height ≥4m;
(8)Working Time ≥2h;
(9)CCD Resolution 1/3in,720×576;
(10)IR Resolution 384×288@17μm;
(11)Capable of driving in foliage, sandy slopes and wading;
2.Controller
(1)Working Time ≥3.5h;
(2)Weight ≤1.2kg(Including battery);
(3)Memory Card 32G(Build in);
(4)Control Method: Joystick + button;
3. Remote Control
(1)Outdoor ≥350m;
(2)Indoor ≥50m;
4.IP grade ≥IP67;
5.Operation Temperature －40℃～+55℃.

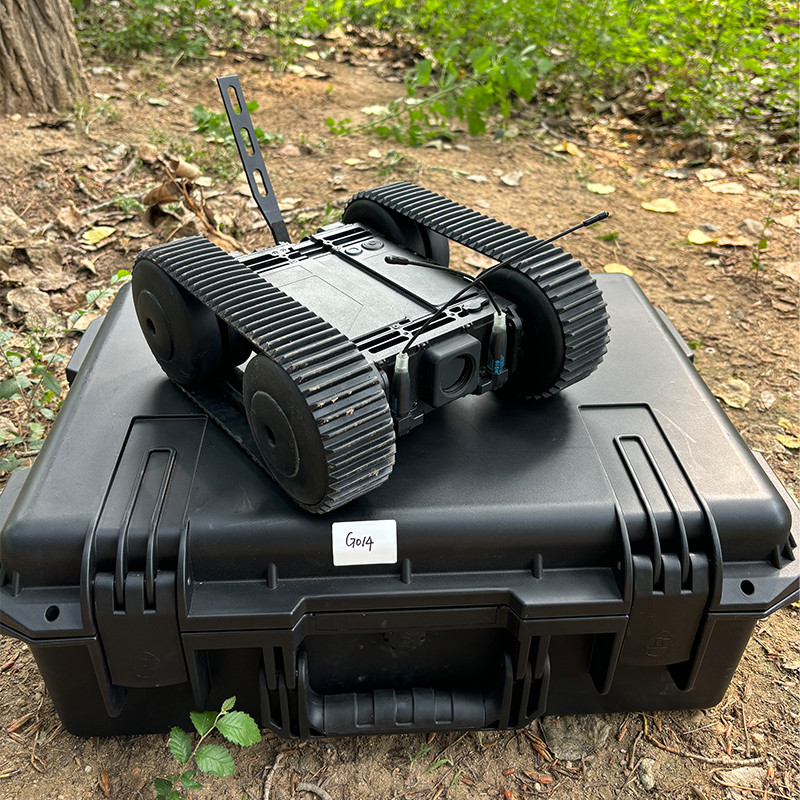

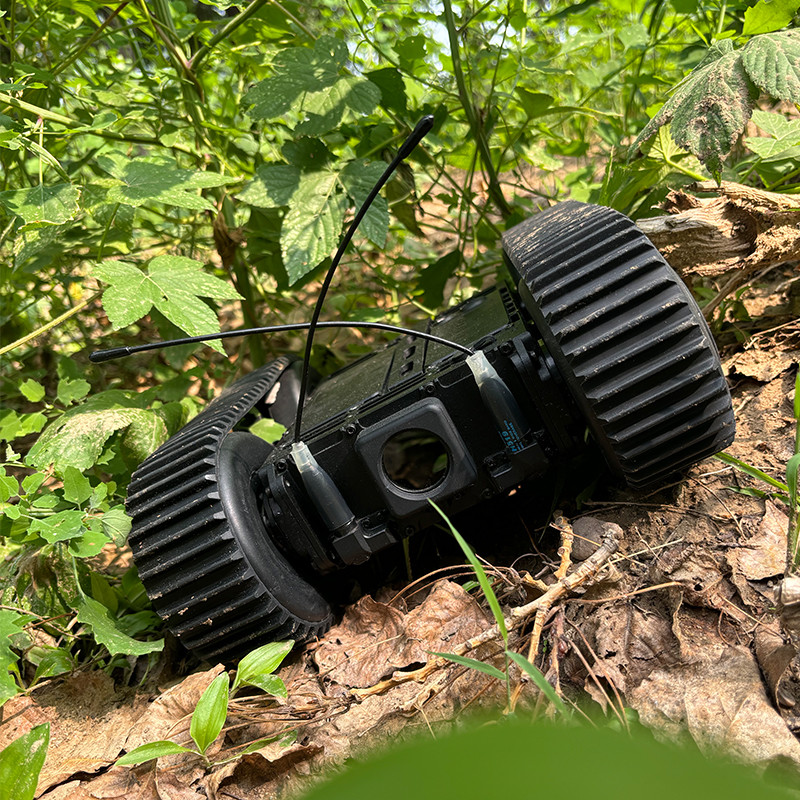

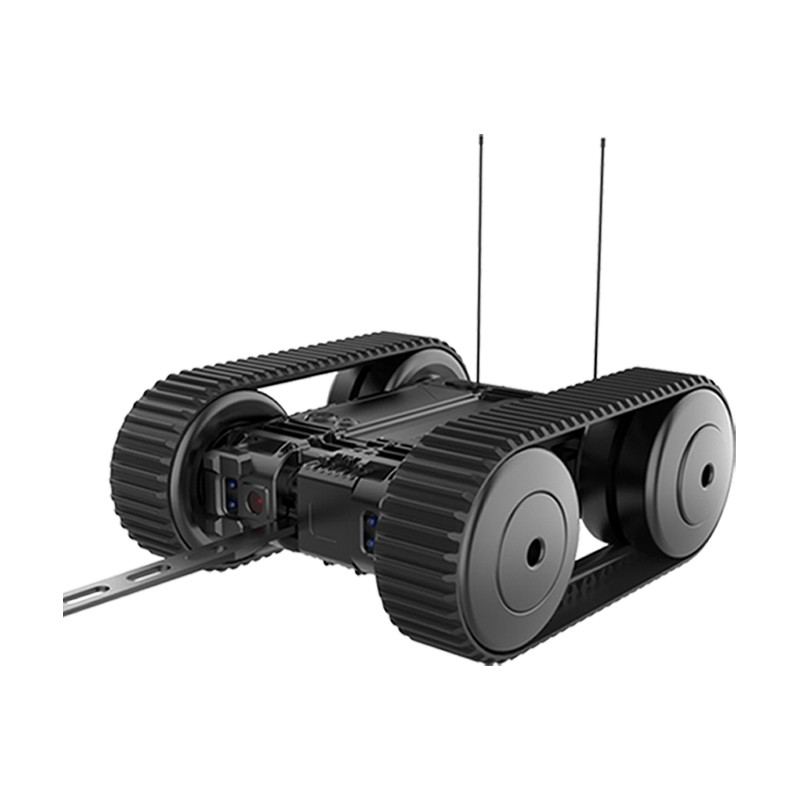

R30S Details

IP67 Grade Autonomous Scouting Vehicle High Durability and Efficiency 0
