The Ultimate Rugged Recon Reconnaissance Robot for Instant Situational Awareness

  • The Ultimate Rugged Recon Reconnaissance Robot for Instant Situational Awareness
  • The Ultimate Rugged Recon Reconnaissance Robot for Instant Situational Awareness
  • The Ultimate Rugged Recon Reconnaissance Robot for Instant Situational Awareness
  • The Ultimate Rugged Recon Reconnaissance Robot for Instant Situational Awareness
  • The Ultimate Rugged Recon Reconnaissance Robot for Instant Situational Awareness
Place of Origin China
Brand Name Particle
Model Number R30
Minimum Order Quantity 1
Price $27,160
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wheel-Crawler Composite Design Hows Excellent Through Performance Stealth Capability Silent
Working Time ≥2h IR Auxiliary Illumination Supported
Robot Weight ≤3kg（Including Battery） Night Detection Distance 25m, Recognition Distance 10m
Overcoming Obstacles ≥10cm Drop Height ≥4m
IR Resolution 384×288@17μm Controller Working Time ≥3.5h
Memory Card 32G（Build In） Remote Control Outdoor ≥350m
IP Grade ≥IP67 Operation Temperature －40℃～+55℃
Remote Control Indoor ≥50m Control Method Joystick + Button
Controller Weight ≤1.2kg（Including Battery） Driving Capability Foliage, Sandy Slopes, Wading
CCD Resolution 1/3in，720×576 Climbing ≥35°
Daytime Detection Distance 50m, Recognition Distance 20m; Applications Can Be Used For Reconnaissance In Various Terrains And Environments
Dual Vision System Features A Thermal Imaging Sensor In The Front And A Visible Light Sensor In The Rear Dual-mode Observation Visible Light And Thermal Imaging
Highlight

Multifunctional infrared night vision

,

4x infrared night vision

,

1x hand held night vision
Leave a Message
Product Description

The Ultimate Rugged Recon Reconnaissance Robot for Instant Situational Awareness



APPLICATIONS

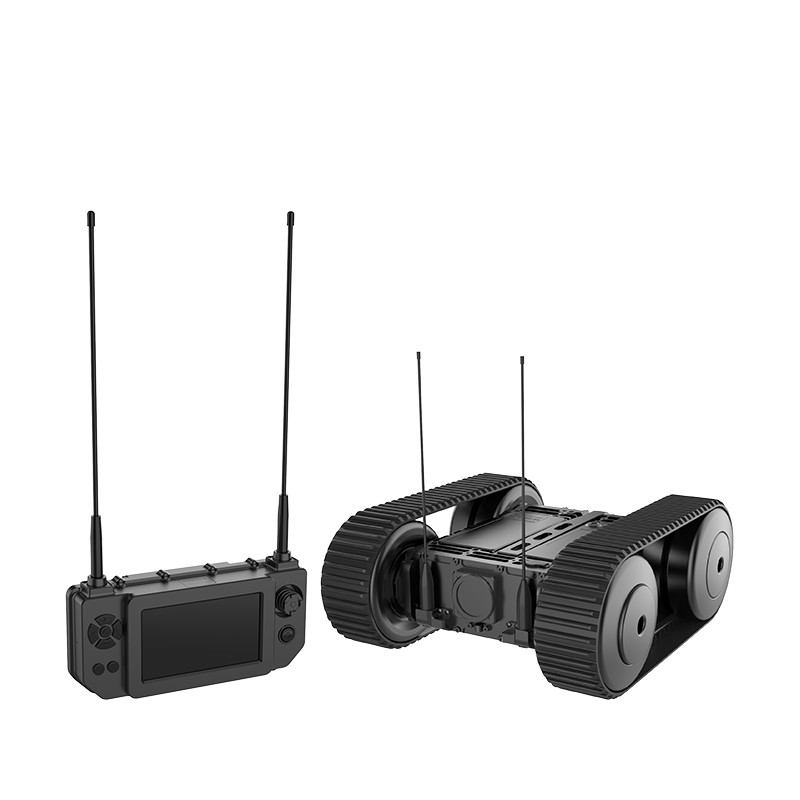

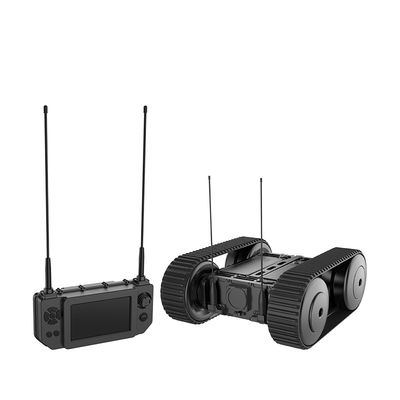

The JP R30S is a cutting-edge small wheel-track composite reconnaissance robot engineered for flexible deployment. It can be thrown into a scene or break through windows to enter buildings, making it ideal for reconnaissance missions. Remote control enables it to approach targets stealthily or engage proactively. Its crawler design ensures adaptability to complex terrains, including underground pipes, caves, jungles, and grasslands. Featuring a "dual vision" system with a thermal imaging sensor in the front and a visible light image sensor in the rear, it captures thermal imaging and visible light images in low-light conditions, providing comprehensive day and night reconnaissance. The Auxiliary-Support-Arm ensures quick recovery from any overturning incidents.



FUNCTION

►The dual-mode observation with visible light and thermal imaging
►Support IR auxiliary illumination
►Four thermal imaging display modes: white heat,black heat, false color, and outline
►Display of PIP(picture-in-picture)
►Voice monitoring
►Support photo and video recording, local browsing and export
►Can adjust the display brightness
►Support 3-speed change



Features

► Adopt wheel-crawler composite design, showing excellent through performance
► "Double-view"design,free switching between visible light observation mode and thermal imaging observation mode
► Unique arm design,quickly adjust the posture of the body
► Strong impact-resistant design,can be thrown to the target area

► Ultra waterproof performance, excellent wading ability

Technical Parameters:



1. Robot
(1)Weight ≤3kg(Including battery);
(2)Daytime Detection distance 50m, recognition distance 20m;
(3)Night Detection distance 25m, recognition distance 10m;
(4)Horizontal FOV ≥60°;
(5)Overcoming Obstacles ≥10cm;
(6)Climbing ≥35°;
(7)Drop Height ≥4m;
(8)Working Time ≥2h;
(9)CCD Resolution 1/3in,720×576;
(10)IR Resolution 384×288@17μm;
(11)Capable of driving in foliage, sandy slopes and wading;
2.Controller
(1)Working Time ≥3.5h;
(2)Weight ≤1.2kg(Including battery);
(3)Memory Card 32G(Build in);
(4)Control Method: Joystick + button;
3. Remote Control
(1)Outdoor ≥350m;
(2)Indoor ≥50m;
4.IP grade ≥IP67;
5.Operation Temperature －40℃～+55℃.



R30S Details
