Small Powerful Miniature Reconnaissance Robot for Surveillance Tasks

  • Small Powerful Miniature Reconnaissance Robot for Surveillance Tasks
  • Small Powerful Miniature Reconnaissance Robot for Surveillance Tasks
  • Small Powerful Miniature Reconnaissance Robot for Surveillance Tasks
  • Small Powerful Miniature Reconnaissance Robot for Surveillance Tasks
  • Small Powerful Miniature Reconnaissance Robot for Surveillance Tasks
Place of Origin China
Brand Name Particle
Model Number R10
Minimum Order Quantity 1
Price $13,717
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Source Battery Terrain Adaptability All-terrain
Speed Fast Durability Robust
Weight Lightweight Stealth Capability Silent
Mobility Remote-controlled Size Small
Operating Environment Indoor/Outdoor Communication Wireless
Robot Weight ≤1kg Robot Working Time ≥2h
Maximum Throwing Distance 9m(vertical)，20m (horizontal) Maximum Climbing Angle 25°
Speed 0.65m/s IR Illumination ≥7m
Daytime Recognition ≥40m（human） Monitor Ability The Ambient Noise Is Not Greater Than 45 Decibels, And The Voice Information Of 60 Decibels Within A Range Of 3 Meters Can Be Heard Clearly
COMS Resolution 1/3in,2560×1440 Controller Working Time ≥3.5h
Controller Weight ≤1.1kg（with Battery） Storage Capacity 32G（built-in）
Operation Joystick + Button Communication Ability Indoor ≥50m
Communication Ability Outdoor ≥100m Working Temperature -25℃～+55℃
IP Grade IP66
Highlight

Powerful Miniature Reconnaissance Robot

,

Surveillance Tasks Miniature Reconnaissance Robot
Leave a Message
Product Description


Small Powerful Miniature Reconnaissance Robot for Surveillance Tasks



Applications

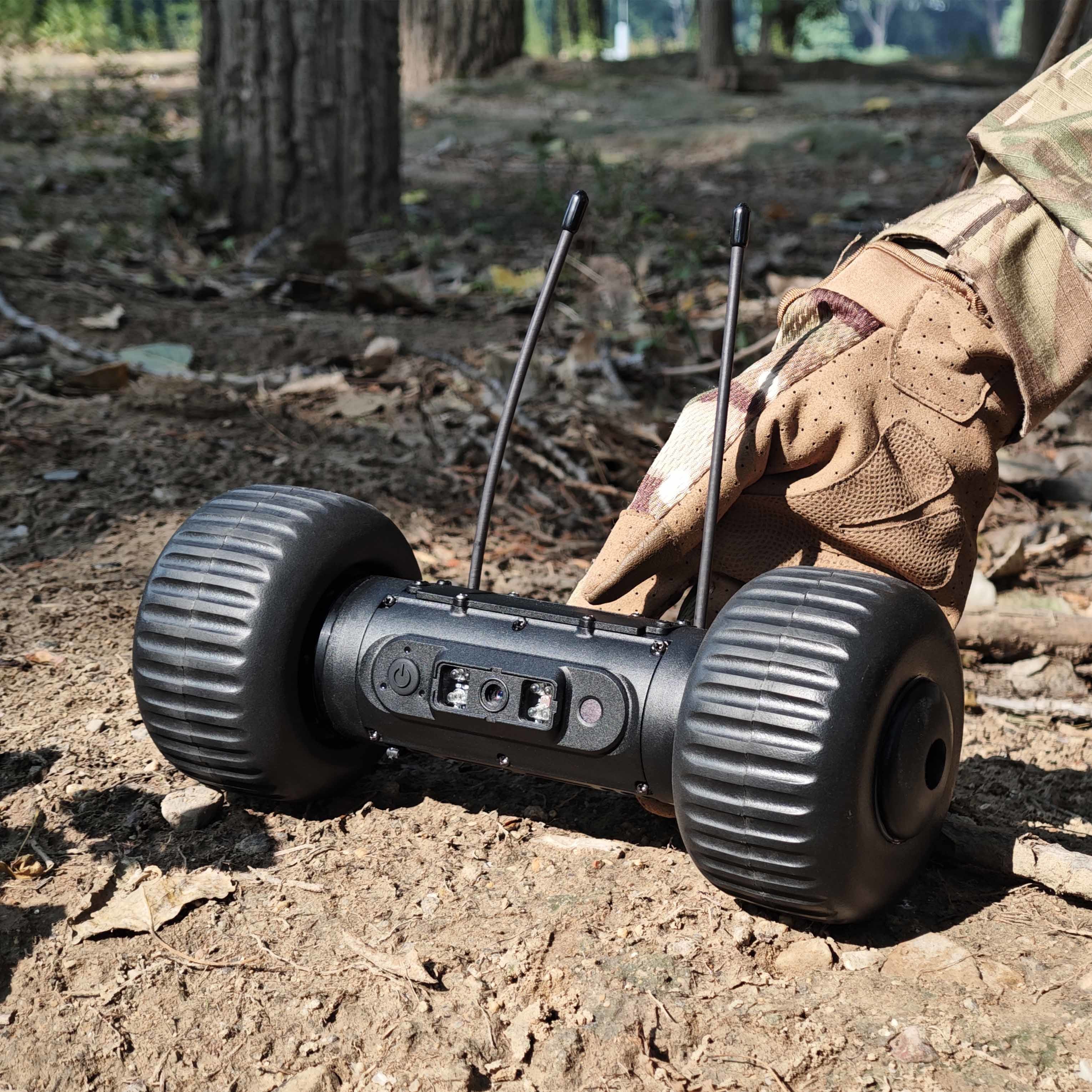

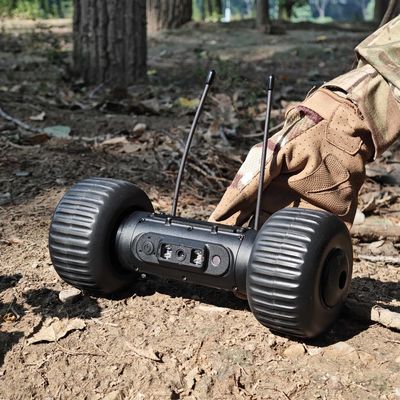

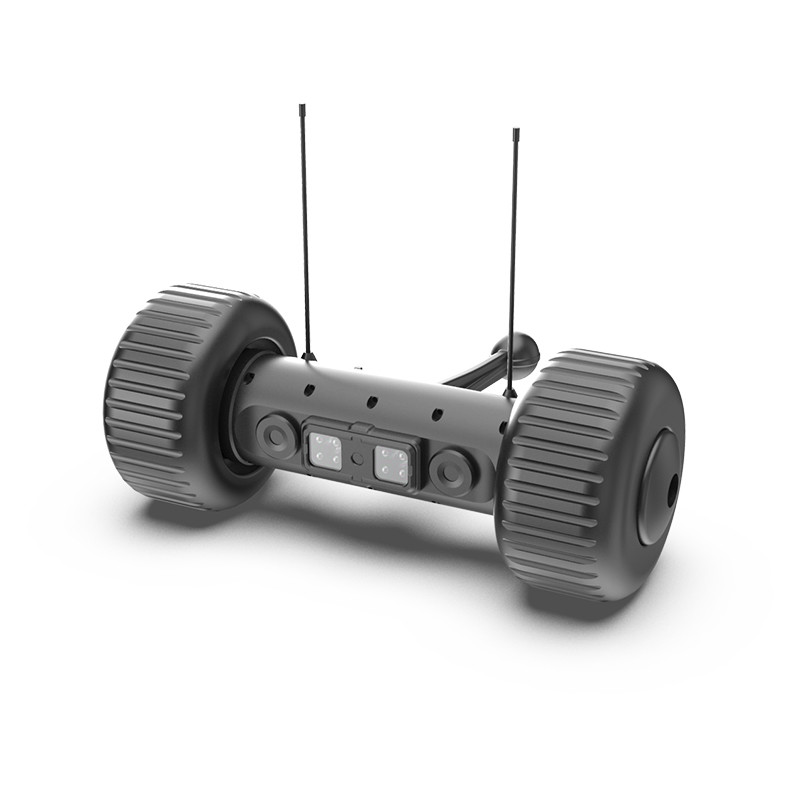

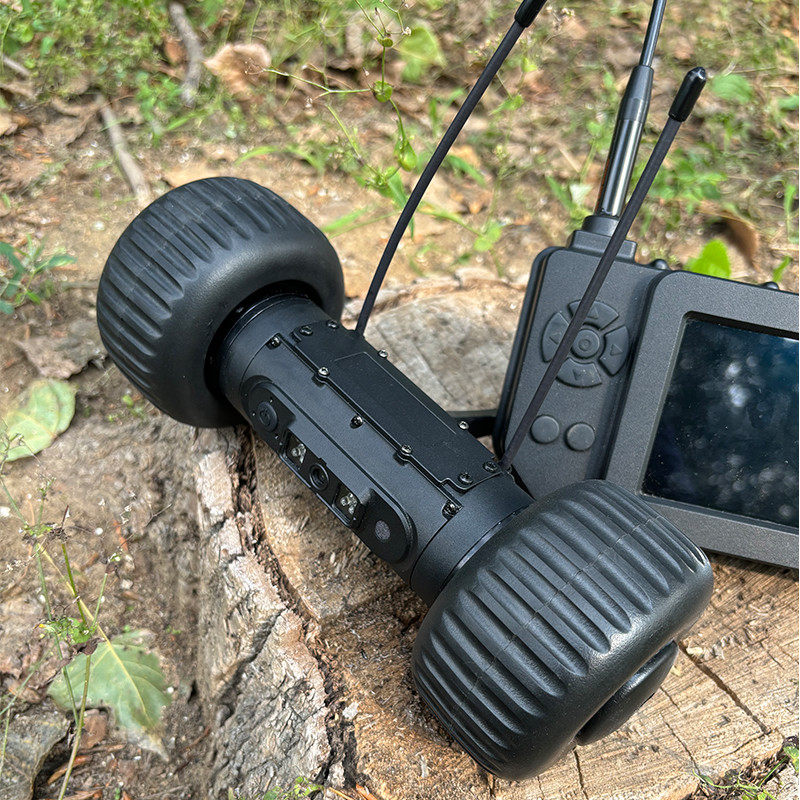

The R10 is a versatile small wheeled robot designed for reconnaissance and surveillance in environments inaccessible to larger robots. Its robust construction allows it to be thrown into designated areas, including through glass windows, to gain entry into buildings. Equipped with a high-definition camera and infrared lighting, the JP-R10 can capture clear images and videos even in low-light conditions. The high-performance image transmission system ensures smooth and clear video and audio feeds are sent back to the controller's display. This enables the commander to accurately assess the situation and make timely decisions. The JP-R10's combination of durability, advanced imaging, and reliable communication makes it an invaluable tool for tactical operations.



Function

► Capable of enter designated areas or buildings by throwing to perform monitoring tasks
► Support audio and video monitoring (listening) functions
► Support digital zoom function
► Support IR auxiliary illumination
► It has the function of taking photos and videos, which can be browsed or exported to other storage devices


Features

► Rugged body while maintaining light weight
► Can be used even at night or low light
► Ultra-low walking noise
► Excellent audio monitoring capabilities
► Clear and smooth video
► 5.5-inch high-definition OLED screen
► Remote control distance is longer "Joystick + button" control mode

Technical Parameters:
1. Robot
Weight ≤1kg；
Working Time ≥2h；
Maximum Throwing Distance 9m(vertical),20m (horizontal)；
Maximum Climbing Angle 25°；
Speed ≥0.65m/s；
IR Illumination ≥7m；
Daytime Recognition ≥40m(human)
Monitor Ability The ambient noise is not greater than 45 decibels, and the voice information of 60 decibels within a range of 3 meters can be heard clearly；
COMS Resolution 1/3in,2560×1440；
2. Controller
Working Time ≥3.5h；
Weight ≤1.1kg(with battery)
Storage Capacity 32G(built-in)
Operation Joystick + button；
3. Communication Ability
Indoor ≥50m；
Outdoor ≥100m；
4. Environmental Adaptability
Working Temperature -25℃～+55℃；
IP grade IP66；



JP R10 Details

Small Powerful Miniature Reconnaissance Robot for Surveillance Tasks 0
