Throwable Strong Impact-Resistant Hybrid Reconnaissance Robot

  • Throwable Strong Impact-Resistant Hybrid Reconnaissance Robot
  • Throwable Strong Impact-Resistant Hybrid Reconnaissance Robot
  • Throwable Strong Impact-Resistant Hybrid Reconnaissance Robot
  • Throwable Strong Impact-Resistant Hybrid Reconnaissance Robot
Place of Origin China
Brand Name Particle
Model Number R30S
Minimum Order Quantity 1
Price $27,160
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Thermal Imaging Display Modes White Heat, Black Heat, False Color, And Outline Wheel-Crawler Composite Design Shows Excellent Through Performance
Stealth Capability Silent Dual Vision System Features A Thermal Imaging Sensor In The Front And A Visible Light Sensor In The Rear
Working Time ≥2h Dual-mode Observation Visible Light And Thermal Imaging
IR Auxiliary Illumination Supported Applications Can Be Used For Reconnaissance In Various Terrains And Environments
Robot Weight ≤3kg（Including Battery） Daytime Detection Distance 50m, Recognition Distance 20m;
Night Detection Distance 25m, Recognition Distance 10m Horizontal FOV ≥60°
Overcoming Obstacles ≥10cm Climbing ≥35°
Drop Height ≥4m CCD Resolution 1/3in，720×576
IR Resolution 384×288@17μm Driving Capability Foliage, Sandy Slopes, Wading
Controller Working Time ≥3.5h Controller Weight ≤1.2kg（Including Battery）
Memory Card 32G（Build In） Control Method Joystick + Button
Remote Control Outdoor ≥350m Remote Control Indoor ≥50m
IP Grade ≥IP67 Operation Temperature －40℃～+55℃
Highlight

Throwable Reconnaissance Robot

,

Hybrid Reconnaissance Robot
Leave a Message
Product Description



Dual-mode Observation Miniature Reconnaissance Robot with PIP Display and Brightness Adjustment



APPLICATIONS

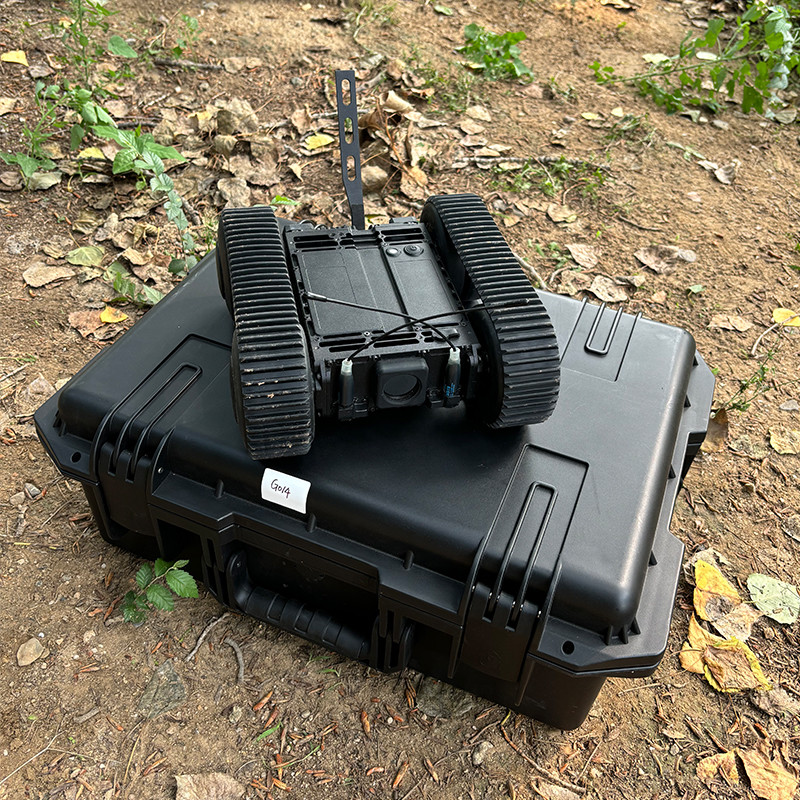

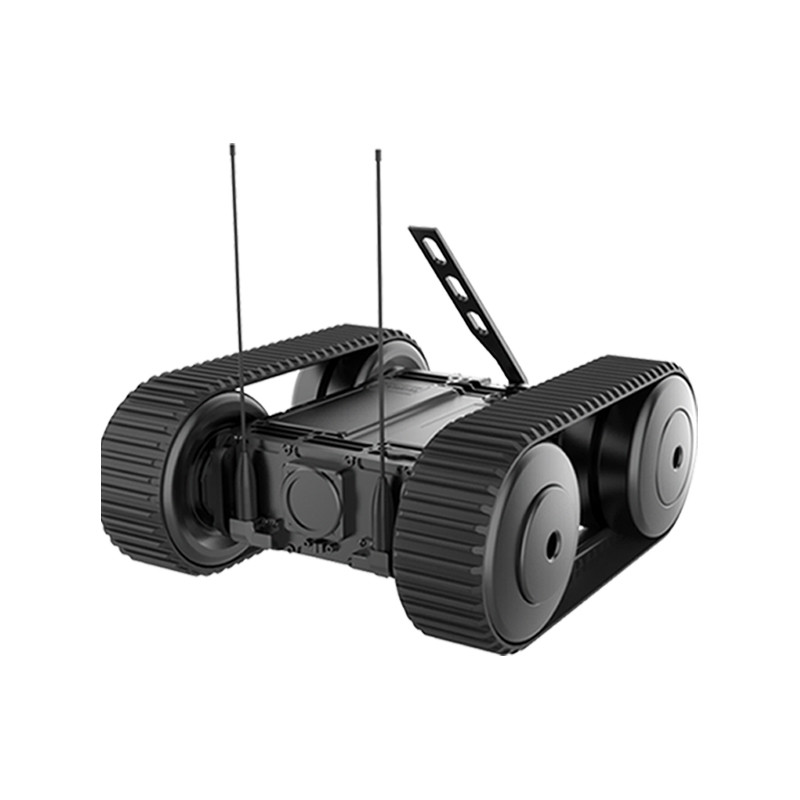

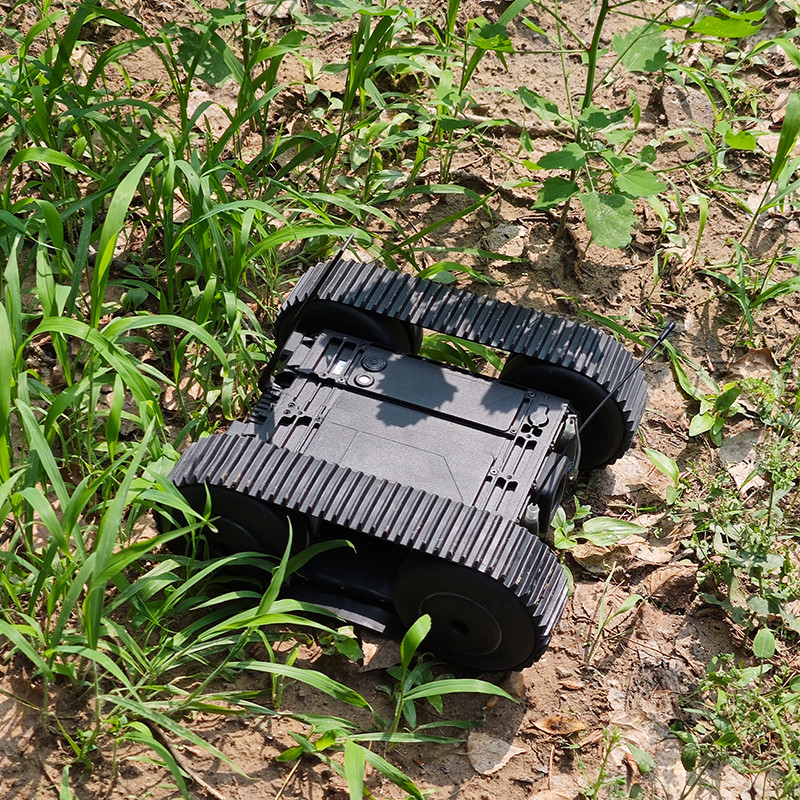

The JP R30S is a cutting-edge small wheel-track composite reconnaissance robot engineered for flexible deployment. It can be thrown into a scene or break through windows to enter buildings, making it ideal for reconnaissance missions. Remote control enables it to approach targets stealthily or engage proactively. Its crawler design ensures adaptability to complex terrains, including underground pipes, caves, jungles, and grasslands. Featuring a "dual vision" system with a thermal imaging sensor in the front and a visible light image sensor in the rear, it captures thermal imaging and visible light images in low-light conditions, providing comprehensive day and night reconnaissance. The Auxiliary-Support-Arm ensures quick recovery from any overturning incidents.



FUNCTION

►The dual-mode observation with visible light and thermal imaging
►Support IR auxiliary illumination
►Four thermal imaging display modes: white heat,black heat, false color, and outline
►Display of PIP(picture-in-picture)
►Voice monitoring
►Support photo and video recording, local browsing and export
►Can adjust the display brightness
►Support 3-speed change



Features

► Adopt wheel-crawler composite design, showing excellent through performance
► "Double-view"design,free switching between visible light observation mode and thermal imaging observation mode
► Unique arm design,quickly adjust the posture of the body
► Strong impact-resistant design,can be thrown to the target area

► Ultra waterproof performance, excellent wading ability


Technical Parameters:



1. Robot
(1)Weight ≤3kg(Including battery);
(2)Daytime Detection distance 50m, recognition distance 20m;
(3)Night Detection distance 25m, recognition distance 10m;
(4)Horizontal FOV ≥60°;
(5)Overcoming Obstacles ≥10cm;
(6)Climbing ≥35°;
(7)Drop Height ≥4m;
(8)Working Time ≥2h;
(9)CCD Resolution 1/3in,720×576;
(10)IR Resolution 384×288@17μm;
(11)Capable of driving in foliage, sandy slopes and wading;
2.Controller
(1)Working Time ≥3.5h;
(2)Weight ≤1.2kg(Including battery);
(3)Memory Card 32G(Build in);
(4)Control Method: Joystick + button;
3. Remote Control
(1)Outdoor ≥350m;
(2)Indoor ≥50m;
4.IP grade ≥IP67;
5.Operation Temperature －40℃～+55℃.



R30S Details

Throwable Strong Impact-Resistant Hybrid Reconnaissance Robot 0
