Composite Track Reconnaissance Vehicle Robot For Reconnaissance

  • Composite Track Reconnaissance Vehicle Robot For Reconnaissance
  • Composite Track Reconnaissance Vehicle Robot For Reconnaissance
  • Composite Track Reconnaissance Vehicle Robot For Reconnaissance
  • Composite Track Reconnaissance Vehicle Robot For Reconnaissance
Place of Origin China
Brand Name Particle
Model Number R30S
Minimum Order Quantity 1
Price $27,160
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dual Vision System Features A Thermal Imaging Sensor In The Front And A Visible Light Sensor In The Rear Applications Can Be Used For Reconnaissance In Various Terrains And Environments
Strong Impact-Resistant Design Can Be Thrown To The Target Area Product Category Miniature Reconnaissance Robot
Wheel-Crawler Composite Design Shows Excellent Through Performance Product Name Compact And Versatile Miniature Reconnaissance Robot For Various Applications
Thermal Imaging Display Modes White Heat, Black Heat, False Color, And Outline Working Time ≥2h
Robot Weight ≤3kg（Including Battery） Daytime Detection Distance 50m, Recognition Distance 20m;
Night Detection Distance 25m, Recognition Distance 10m Horizontal FOV ≥60°
Overcoming Obstacles ≥10cm Climbing ≥35°
Drop Height ≥4m CCD Resolution 1/3in，720×576
IR Resolution 384×288@17μm Driving Capability Foliage, Sandy Slopes, Wading
Controller Working Time ≥3.5h Controller Weight ≤1.2kg（Including Battery）
Memory Card 32G（Build In） Control Method Joystick + Button
Remote Control Outdoor ≥350m Remote Control Indoor ≥50m
IP Grade ≥IP67 Operation Temperature －40℃～+55℃
Highlight

Composite tracked robot

,

Reconnaissance tracked robot

,

mobile surveillance robot
Leave a Message
Product Description

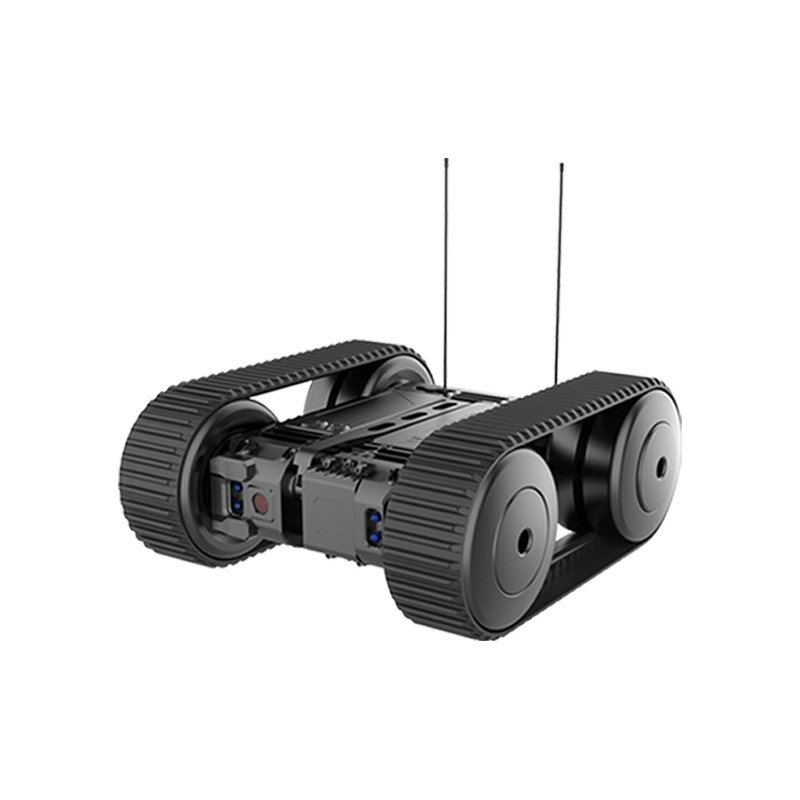

Versatile Composite Track Reconnaissance Vehicle Robot for Reconnaissance



APPLICATIONS

Meet the JP R30S, a compact wheel-track composite reconnaissance robot engineered for versatile deployment. Designed to be thrown or to break into buildings through windows, it excels in reconnaissance tasks. Controlled remotely, it can stealthily wait for the right moment or take proactive measures. The crawler design ensures it navigates complex terrains like underground pipes, caves, jungles, and grasslands effortlessly. The "dual vision" design incorporates a thermal imaging sensor at the front and a visible light image sensor at the rear, providing both thermal imaging videos and visible light images in low-light conditions for round-the-clock surveillance. The innovative Auxiliary-Support-Arm ensures it can swiftly right itself if overturned.



FUNCTION

►The dual-mode observation with visible light and thermal imaging
►Support IR auxiliary illumination
►Four thermal imaging display modes: white heat,black heat, false color, and outline
►Display of PIP(picture-in-picture)
►Voice monitoring
►Support photo and video recording, local browsing and export
►Can adjust the display brightness
►Support 3-speed change



Features

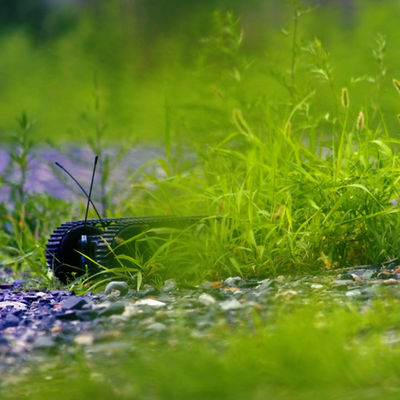

► Adopt wheel-crawler composite design, showing excellent through performance
► "Double-view"design,free switching between visible light observation mode and thermal imaging observation mode
► Unique arm design,quickly adjust the posture of the body
► Strong impact-resistant design,can be thrown to the target area

► Ultra waterproof performance, excellent wading ability


Technical Parameters:



1. Robot
(1)Weight ≤3kg(Including battery);
(2)Daytime Detection distance 50m, recognition distance 20m;
(3)Night Detection distance 25m, recognition distance 10m;
(4)Horizontal FOV ≥60°;
(5)Overcoming Obstacles ≥10cm;
(6)Climbing ≥35°;
(7)Drop Height ≥4m;
(8)Working Time ≥2h;
(9)CCD Resolution 1/3in,720×576;
(10)IR Resolution 384×288@17μm;
(11)Capable of driving in foliage, sandy slopes and wading;
2.Controller
(1)Working Time ≥3.5h;
(2)Weight ≤1.2kg(Including battery);
(3)Memory Card 32G(Build in);
(4)Control Method: Joystick + button;
3. Remote Control
(1)Outdoor ≥350m;
(2)Indoor ≥50m;
4.IP grade ≥IP67;
5.Operation Temperature －40℃～+55℃.



R30S Details

Composite Track Reconnaissance Vehicle Robot For Reconnaissance 0
