Min Reconnaissance Robot With Thermal Imaging And Visible Light Sensors

  • Min Reconnaissance Robot With Thermal Imaging And Visible Light Sensors
  • Min Reconnaissance Robot With Thermal Imaging And Visible Light Sensors
  • Min Reconnaissance Robot With Thermal Imaging And Visible Light Sensors
  • Min Reconnaissance Robot With Thermal Imaging And Visible Light Sensors
Place of Origin China
Brand Name Particle
Model Number R30S
Minimum Order Quantity 1
Price $27,160
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Category Miniature Reconnaissance Robot Applications Can Be Used For Reconnaissance In Various Terrains And Environments
Auxiliary-Support-Arm Ensures The Robot Can Quickly Right Itself If It Overturns Photo And Video Recording Supported
Thermal Imaging Display Modes White Heat, Black Heat, False Color, And Outline Dual Vision System Features A Thermal Imaging Sensor In The Front And A Visible Light Sensor In The Rear
Stealth Capability Silent Voice Monitoring Supported
Robot Weight ≤3kg（Including Battery） Daytime Detection Distance 50m, Recognition Distance 20m;
Night Detection Distance 25m, Recognition Distance 10m Horizontal FOV ≥60°
Overcoming Obstacles ≥10cm Climbing ≥35°
Drop Height ≥4m Working Time ≥2h
CCD Resolution 1/3in，720×576 IR Resolution 384×288@17μm
Driving Capability Foliage, Sandy Slopes, Wading Controller Working Time ≥3.5h
Controller Weight ≤1.2kg（Including Battery） Memory Card 32G（Build In）
Control Method Joystick + Button Remote Control Outdoor ≥350m
Remote Control Indoor ≥50m IP Grade ≥IP67
Operation Temperature －40℃～+55℃
Highlight

Miniature Reconnaissance Robot

,

Thermal Imaging Reconnaissance Robot

,

IP67 recon robot
Leave a Message
Product Description

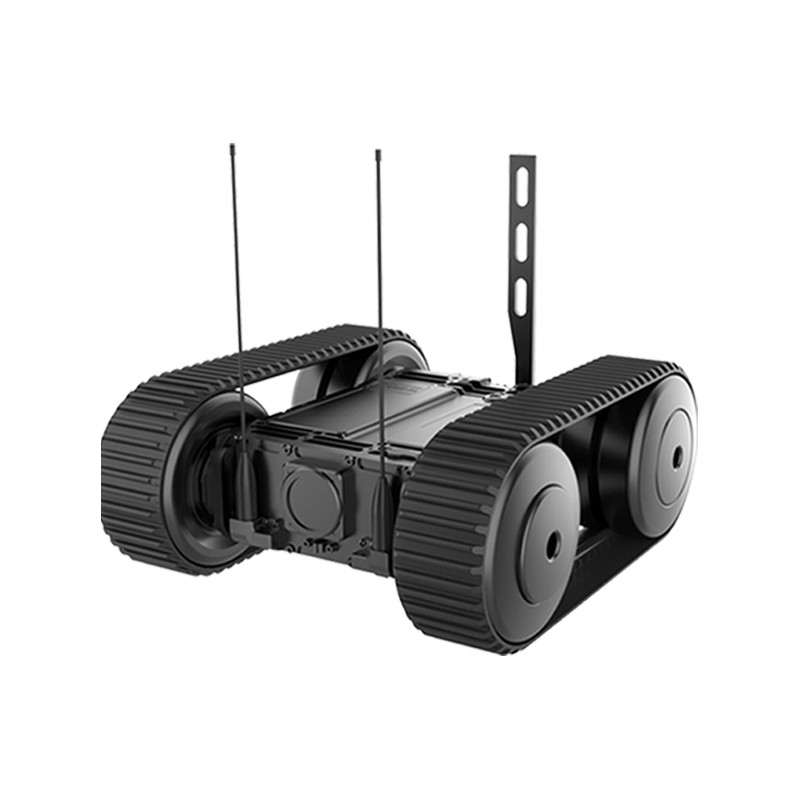

Miniature Reconnaissance Robot with Thermal Imaging and Visible Light Sensors



APPLICATIONS

The JP R30S is a state-of-the-art small wheel-track composite reconnaissance robot, perfect for challenging reconnaissance missions. It can be deployed by throwing or breaking through windows to enter buildings. Remote control functionality allows it to stealthily approach targets or take direct action. Its crawler design adapts to varied terrains such as underground pipes, caves, jungles, and grasslands. Equipped with a "dual vision" system, it features a thermal imaging sensor in the front and a visible light image sensor in the rear, capturing thermal imaging and visible light images in low-light conditions, ensuring effective reconnaissance in all environments. The Auxiliary-Support-Arm aids in quick recovery if the robot overturns.



FUNCTION

►The dual-mode observation with visible light and thermal imaging
►Support IR auxiliary illumination
►Four thermal imaging display modes: white heat,black heat, false color, and outline
►Display of PIP(picture-in-picture)
►Voice monitoring
►Support photo and video recording, local browsing and export
►Can adjust the display brightness
►Support 3-speed change



Features

► Adopt wheel-crawler composite design, showing excellent through performance
► "Double-view"design,free switching between visible light observation mode and thermal imaging observation mode
► Unique arm design,quickly adjust the posture of the body
► Strong impact-resistant design,can be thrown to the target area

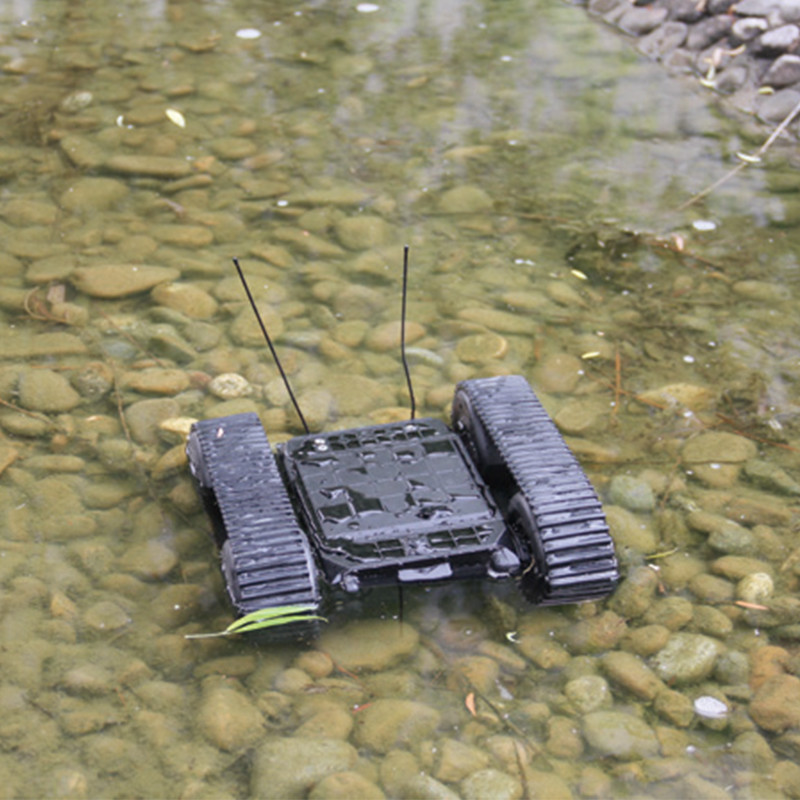

► Ultra waterproof performance, excellent wading ability


Technical Parameters:



1. Robot
(1)Weight ≤3kg(Including battery);
(2)Daytime Detection distance 50m, recognition distance 20m;
(3)Night Detection distance 25m, recognition distance 10m;
(4)Horizontal FOV ≥60°;
(5)Overcoming Obstacles ≥10cm;
(6)Climbing ≥35°;
(7)Drop Height ≥4m;
(8)Working Time ≥2h;
(9)CCD Resolution 1/3in,720×576;
(10)IR Resolution 384×288@17μm;
(11)Capable of driving in foliage, sandy slopes and wading;
2.Controller
(1)Working Time ≥3.5h;
(2)Weight ≤1.2kg(Including battery);
(3)Memory Card 32G(Build in);
(4)Control Method: Joystick + button;
3. Remote Control
(1)Outdoor ≥350m;
(2)Indoor ≥50m;
4.IP grade ≥IP67;
5.Operation Temperature －40℃～+55℃.



R30S Details
