Silent Miniature Reconnaissance Robot Strong Impact Resistant

  • Silent Miniature Reconnaissance Robot Strong Impact Resistant
  • Silent Miniature Reconnaissance Robot Strong Impact Resistant
  • Silent Miniature Reconnaissance Robot Strong Impact Resistant
  • Silent Miniature Reconnaissance Robot Strong Impact Resistant
Place of Origin China
Brand Name Particle
Model Number R30S
Minimum Order Quantity 1
Price $27,160
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Auxiliary-Support-Arm Ensures The Robot Can Quickly Right Itself If It Overturns IR Auxiliary Illumination Supported
Photo And Video Recording Supported Product Name Compact And Versatile Miniature Reconnaissance Robot For Various Applications
Stealth Capability Silent Strong Impact-Resistant Design Can Be Thrown To The Target Area
Voice Monitoring Supported Applications Can Be Used For Reconnaissance In Various Terrains And Environments
Robot Weight ≤3kg（Including Battery） Daytime Detection Distance 50m, Recognition Distance 20m;
Night Detection Distance 25m, Recognition Distance 10m Horizontal FOV ≥60°
Overcoming Obstacles ≥10cm Climbing ≥35°
Drop Height ≥4m Working Time ≥2h
CCD Resolution 1/3in，720×576 IR Resolution 384×288@17μm
Driving Capability Foliage, Sandy Slopes, Wading Controller Working Time ≥3.5h
Controller Weight ≤1.2kg（Including Battery） Memory Card 32G（Build In）
Control Method Joystick + Button Remote Control Outdoor ≥350m
Remote Control Indoor ≥50m IP Grade ≥IP67
Operation Temperature －40℃～+55℃
Highlight

Silent Reconnaissance Robot

,

Impact Resistant Reconnaissance Robot

,

Impact Resistant recon robot
Leave a Message
Product Description



Miniature Reconnaissance Robot Strong Impact-Resistant



APPLICATIONS

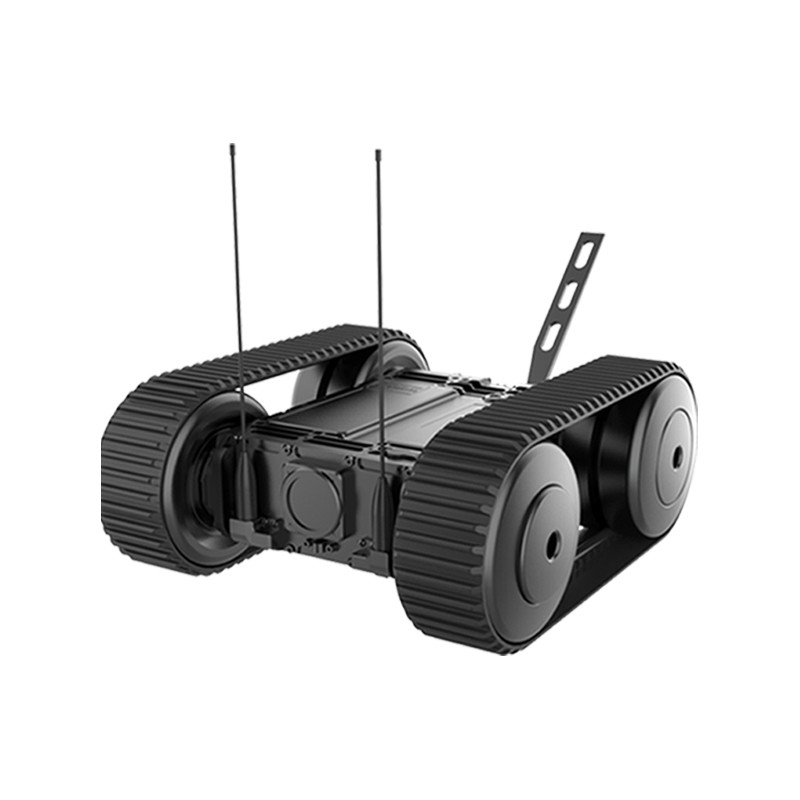

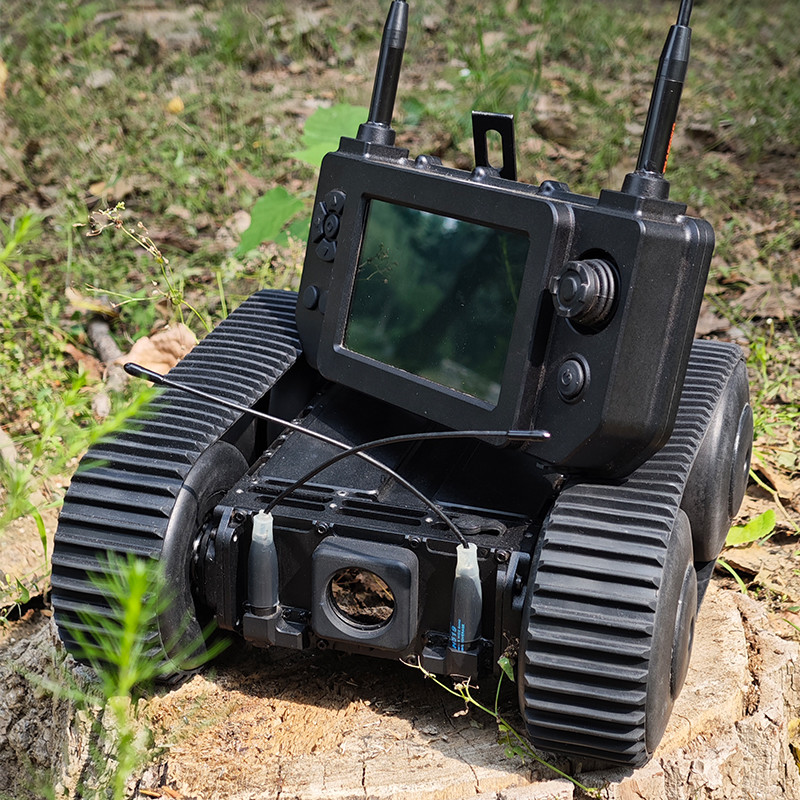

The JP R30S is a compact and powerful wheel-track composite reconnaissance robot designed for demanding missions. Capable of being thrown into the scene or breaking windows to enter buildings, it performs essential reconnaissance tasks. With remote control, it can discreetly approach targets or act swiftly. Its crawler design adapts to challenging terrains such as underground pipes, caves, jungles, and grasslands. The "dual vision" design, featuring a thermal imaging sensor in the front and a visible light image sensor in the rear, allows it to capture thermal imaging videos and visible light images in low-light conditions, ensuring day and night reconnaissance capabilities. The Auxiliary-Support-Arm facilitates rapid recovery from overturning.



FUNCTION

►The dual-mode observation with visible light and thermal imaging
►Support IR auxiliary illumination
►Four thermal imaging display modes: white heat,black heat, false color, and outline
►Display of PIP(picture-in-picture)
►Voice monitoring
►Support photo and video recording, local browsing and export
►Can adjust the display brightness
►Support 3-speed change



Features

► Adopt wheel-crawler composite design, showing excellent through performance
► "Double-view"design,free switching between visible light observation mode and thermal imaging observation mode
► Unique arm design,quickly adjust the posture of the body
► Strong impact-resistant design,can be thrown to the target area

► Ultra waterproof performance, excellent wading ability


Technical Parameters:



1. Robot
(1)Weight ≤3kg(Including battery);
(2)Daytime Detection distance 50m, recognition distance 20m;
(3)Night Detection distance 25m, recognition distance 10m;
(4)Horizontal FOV ≥60°;
(5)Overcoming Obstacles ≥10cm;
(6)Climbing ≥35°;
(7)Drop Height ≥4m;
(8)Working Time ≥2h;
(9)CCD Resolution 1/3in,720×576;
(10)IR Resolution 384×288@17μm;
(11)Capable of driving in foliage, sandy slopes and wading;
2.Controller
(1)Working Time ≥3.5h;
(2)Weight ≤1.2kg(Including battery);
(3)Memory Card 32G(Build in);
(4)Control Method: Joystick + button;
3. Remote Control
(1)Outdoor ≥350m;
(2)Indoor ≥50m;
4.IP grade ≥IP67;
5.Operation Temperature －40℃～+55℃.



R30S Details

Silent Miniature Reconnaissance Robot Strong Impact Resistant 0
