Compact And Versatile Miniature Reconnaissance Robot Remote Controlled

  • Compact And Versatile Miniature Reconnaissance Robot Remote Controlled
  • Compact And Versatile Miniature Reconnaissance Robot Remote Controlled
  • Compact And Versatile Miniature Reconnaissance Robot Remote Controlled
Place of Origin China
Brand Name Particle
Model Number R30S
Minimum Order Quantity 1
Price $27,160
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IR Auxiliary Illumination Supported Thermal Imaging Display Modes White Heat, Black Heat, False Color, And Outline
Dual-mode Observation Visible Light And Thermal Imaging Voice Monitoring Supported
Stealth Capability Silent Photo And Video Recording Supported
Mobility Remote-controlled Product Category Miniature Reconnaissance Robot
Robot Weight ≤3kg（Including Battery） Daytime Detection Distance 50m, Recognition Distance 20m;
Night Detection Distance 25m, Recognition Distance 10m Horizontal FOV ≥60°
Overcoming Obstacles ≥10cm Climbing ≥35°
Drop Height ≥4m Working Time ≥2h
CCD Resolution 1/3in，720×576 IR Resolution 384×288@17μm
Driving Capability Foliage, Sandy Slopes, Wading Controller Working Time ≥3.5h
Controller Weight ≤1.2kg（Including Battery） Memory Card 32G（Build In）
Control Method Joystick + Button Remote Control Outdoor ≥350m
Remote Control Indoor ≥50m IP Grade ≥IP67
Operation Temperature －40℃～+55℃
Highlight

Remote Controlled Reconnaissance Robot

,

Versatile Reconnaissance Robot

,

smart surveillance robot
Leave a Message
Product Description



Compact and Versatile Miniature Reconnaissance Robot for Various Applications



APPLICATIONS

The R30S is a cutting-edge small wheel-track composite reconnaissance robot designed for versatile and reliable performance in various environments. Its robust construction allows it to be thrown into the scene or break through windows to gain access to buildings for reconnaissance missions. With remote control capabilities, the JP R30S can approach targets stealthily, either lying in wait for the "prey" or taking the initiative to engage. Its crawler design ensures adaptability to complex terrains, including underground pipes, caves, jungles, and grasslands. The unique "dual vision" system features a thermal imaging sensor in the front and a visible light sensor in the rear, enabling it to capture both thermal imaging and visible light images in low-light conditions, ensuring effective day and night reconnaissance. Additionally, the Auxiliary-Support-Arm allows the robot to quickly right itself if it overturns, ensuring continuous operation and reliability in the field.



FUNCTION

►The dual-mode observation with visible light and thermal imaging
►Support IR auxiliary illumination
►Four thermal imaging display modes: white heat,black heat, false color, and outline
►Display of PIP(picture-in-picture)
►Voice monitoring
►Support photo and video recording, local browsing and export
►Can adjust the display brightness
►Support 3-speed change



Features

► Adopt wheel-crawler composite design, showing excellent through performance
► "Double-view"design,free switching between visible light observation mode and thermal imaging observation mode
► Unique arm design,quickly adjust the posture of the body
► Strong impact-resistant design,can be thrown to the target area

► Ultra waterproof performance, excellent wading ability


Technical Parameters:



1. Robot
(1)Weight ≤3kg(Including battery);
(2)Daytime Detection distance 50m, recognition distance 20m;
(3)Night Detection distance 25m, recognition distance 10m;
(4)Horizontal FOV ≥60°;
(5)Overcoming Obstacles ≥10cm;
(6)Climbing ≥35°;
(7)Drop Height ≥4m;
(8)Working Time ≥2h;
(9)CCD Resolution 1/3in,720×576;
(10)IR Resolution 384×288@17μm;
(11)Capable of driving in foliage, sandy slopes and wading;
2.Controller
(1)Working Time ≥3.5h;
(2)Weight ≤1.2kg(Including battery);
(3)Memory Card 32G(Build in);
(4)Control Method: Joystick + button;
3. Remote Control
(1)Outdoor ≥350m;
(2)Indoor ≥50m;
4.IP grade ≥IP67;
5.Operation Temperature －40℃～+55℃.



R30S Details

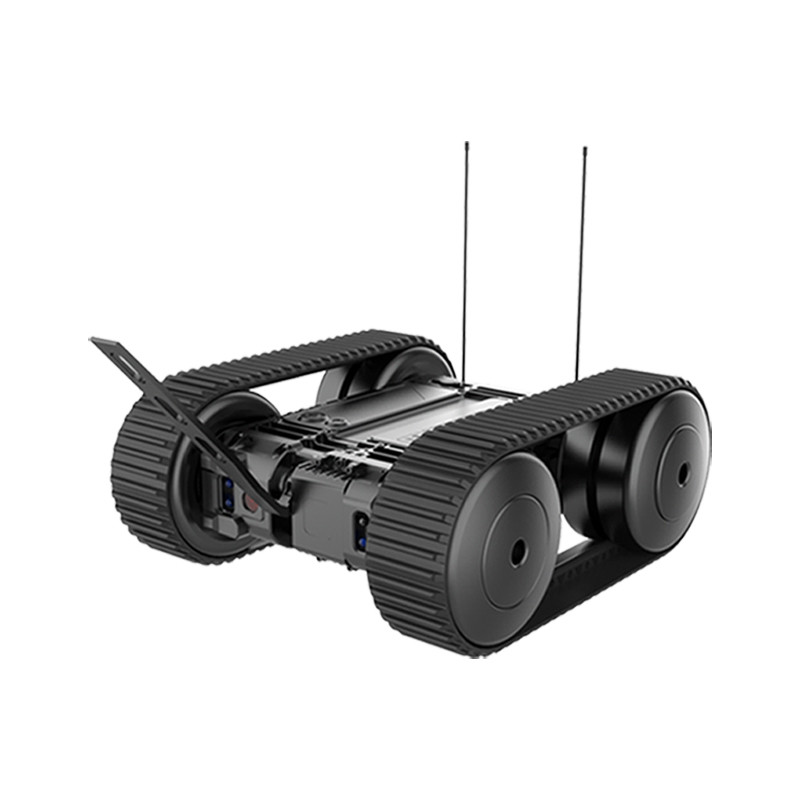

Compact And Versatile Miniature Reconnaissance Robot Remote Controlled 0
