3 Speed Change Miniature Reconnaissance Robot For High Performance Surveillance

  • 3 Speed Change Miniature Reconnaissance Robot For High Performance Surveillance
  • 3 Speed Change Miniature Reconnaissance Robot For High Performance Surveillance
  • 3 Speed Change Miniature Reconnaissance Robot For High Performance Surveillance
  • 3 Speed Change Miniature Reconnaissance Robot For High Performance Surveillance
Place of Origin China
Brand Name Particle
Model Number R30S
Minimum Order Quantity 1
Price $27,160
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Thermal Imaging Display Modes White Heat, Black Heat, False Color, And Outline Product Name Advanced Tracked Scout Robot Multi-Functional Reconnaissance System For Tactical Use
IR Auxiliary Illumination Supported IP Grade ≥IP67
Voice Monitoring Supported Speed Change 3-speed Change
Product Category Miniature Reconnaissance Robot PIP Display Supported
Robot Weight ≤3kg（Including Battery） Daytime Detection Distance 50m, Recognition Distance 20m;
Night Detection Distance 25m, Recognition Distance 10m Horizontal FOV ≥60°
Overcoming Obstacles ≥10cm Climbing ≥35°
Drop Height ≥4m Working Time ≥2h
CCD Resolution 1/3in，720×576 IR Resolution 384×288@17μm
Driving Capability Foliage, Sandy Slopes, Wading Controller Working Time ≥3.5h
Controller Weight ≤1.2kg（Including Battery） Memory Card 32G（Build In）
Control Method Joystick + Button Remote Control Outdoor ≥350m
Remote Control Indoor ≥50m Operation Temperature －40℃～+55℃
Highlight

3 Speed Change Reconnaissance Robot

,

White heat Reconnaissance Robot

,

Surveillance recon robot
Leave a Message
Product Description



Miniature Reconnaissance Robot for High-Performance Surveillance



APPLICATIONS

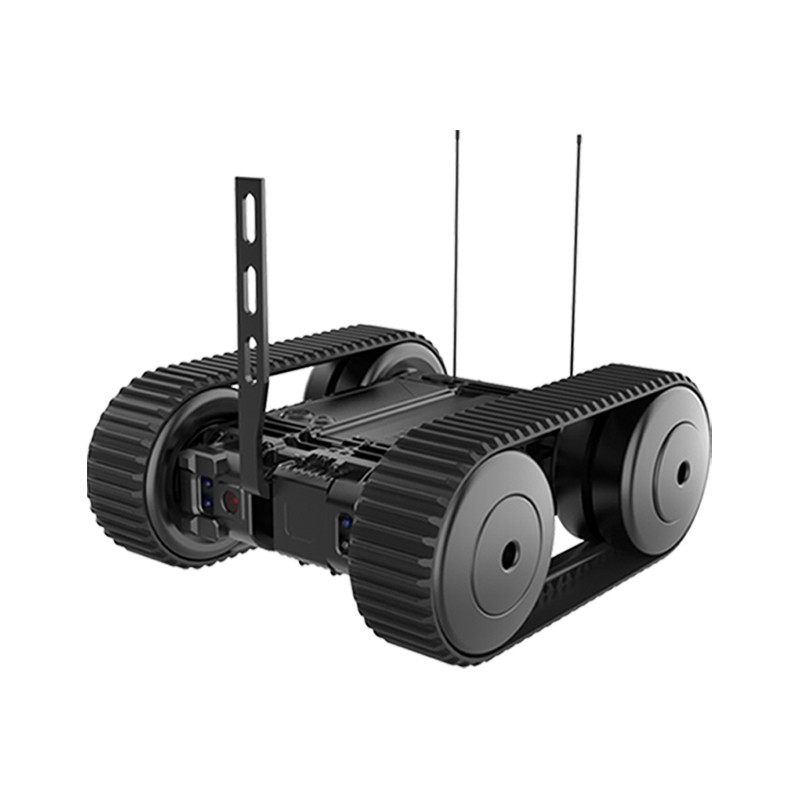

The JP R30S is a compact reconnaissance robot with a wheel-track hybrid design. It can be thrown into the scene or break windows to enter buildings for reconnaissance. With remote control capabilities, it can silently approach targets or launch attacks. Its crawler system adapts to complex terrains like underground pipes, caves, jungles, and grasslands. The "dual vision" design features a thermal imaging sensor in the front and a visible light sensor in the rear, capturing thermal and visible light images even in low light, making it suitable for day, night, and complete darkness reconnaissance. An Auxiliary-Support-Arm ensures it can quickly right itself if overturned.



FUNCTION

►The dual-mode observation with visible light and thermal imaging
►Support IR auxiliary illumination
►Four thermal imaging display modes: white heat,black heat, false color, and outline
►Display of PIP(picture-in-picture)
►Voice monitoring
►Support photo and video recording, local browsing and export
►Can adjust the display brightness
►Support 3-speed change



Features

► Adopt wheel-crawler composite design, showing excellent through performance
► "Double-view"design,free switching between visible light observation mode and thermal imaging observation mode
► Unique arm design,quickly adjust the posture of the body
► Strong impact-resistant design,can be thrown to the target area

► Ultra waterproof performance, excellent wading ability


Technical Parameters:



1. Robot
(1)Weight ≤3kg(Including battery);
(2)Daytime Detection distance 50m, recognition distance 20m;
(3)Night Detection distance 25m, recognition distance 10m;
(4)Horizontal FOV ≥60°;
(5)Overcoming Obstacles ≥10cm;
(6)Climbing ≥35°;
(7)Drop Height ≥4m;
(8)Working Time ≥2h;
(9)CCD Resolution 1/3in,720×576;
(10)IR Resolution 384×288@17μm;
(11)Capable of driving in foliage, sandy slopes and wading;
2.Controller
(1)Working Time ≥3.5h;
(2)Weight ≤1.2kg(Including battery);
(3)Memory Card 32G(Build in);
(4)Control Method: Joystick + button;
3. Remote Control
(1)Outdoor ≥350m;
(2)Indoor ≥50m;
4.IP grade ≥IP67;
5.Operation Temperature －40℃～+55℃.



R30S Details

3 Speed Change Miniature Reconnaissance Robot For High Performance Surveillance 0
