Silent Portable Scouting Robot With IR Auxiliary Illumination

  • Silent Portable Scouting Robot With IR Auxiliary Illumination
  • Silent Portable Scouting Robot With IR Auxiliary Illumination
  • Silent Portable Scouting Robot With IR Auxiliary Illumination
  • Silent Portable Scouting Robot With IR Auxiliary Illumination
Place of Origin China
Brand Name Particle
Model Number R30S
Minimum Order Quantity 1
Price $27,160
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IP Grade ≥IP67 Durability Robust
Stealth Capability Silent IR Auxiliary Illumination Supported
PIP Display Supported Product Category Miniature Reconnaissance Robot
Photo And Video Recording Supported Dual-mode Observation Visible Light And Thermal Imaging
Robot Weight ≤3kg（Including Battery） Daytime Detection Distance 50m, Recognition Distance 20m;
Night Detection Distance 25m, Recognition Distance 10m Horizontal FOV ≥60°
Overcoming Obstacles ≥10cm Climbing ≥35°
Drop Height ≥4m Working Time ≥2h
CCD Resolution 1/3in，720×576 IR Resolution 384×288@17μm
Driving Capability Foliage, Sandy Slopes, Wading Controller Working Time ≥3.5h
Controller Weight ≤1.2kg（Including Battery） Memory Card 32G（Build In）
Control Method Joystick + Button Remote Control Outdoor ≥350m
Remote Control Indoor ≥50m Operation Temperature －40℃～+55℃
Highlight

Silent scouting robot

,

Portable scouting robot

,

IR Auxiliary Illumination scout robots
Leave a Message
Product Description

案例中心



Silent Portable scouting robot with IR auxiliary illumination



APPLICATIONS

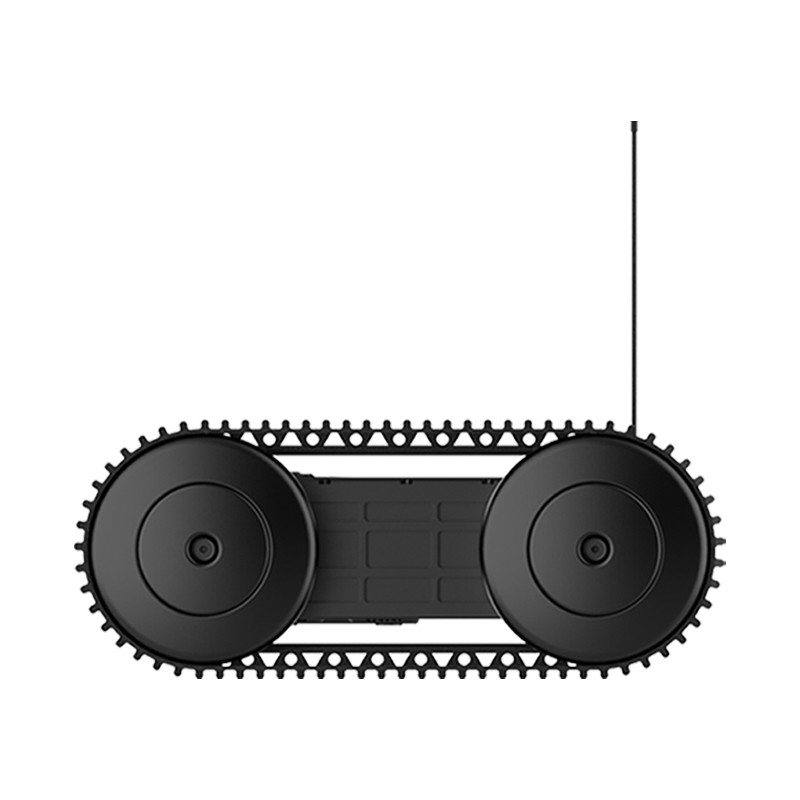

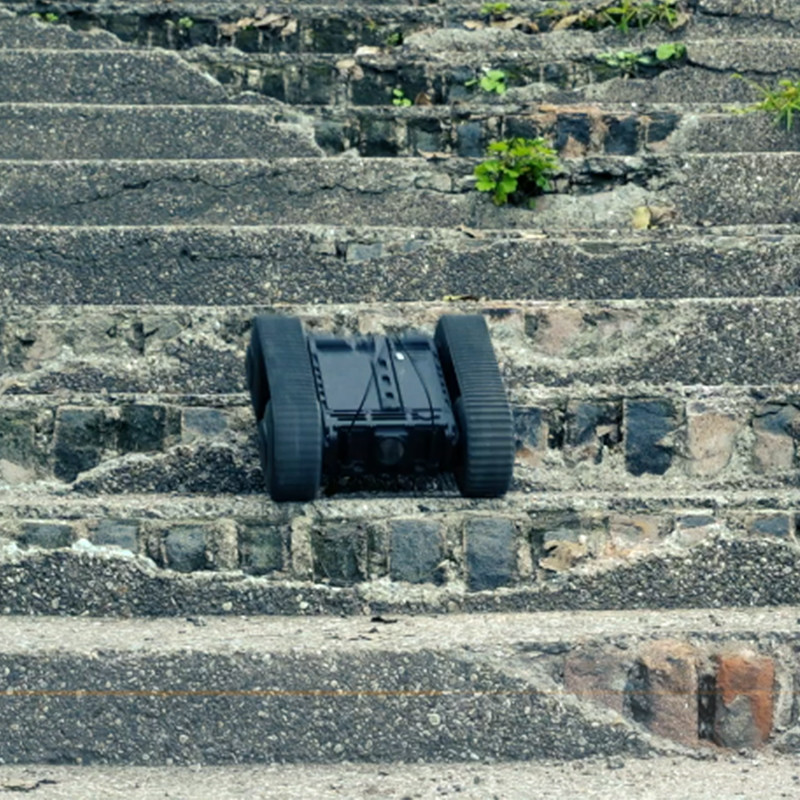

The JP R30S is a small, wheel-track composite reconnaissance robot designed for versatile deployment. It can be thrown into the scene or break through windows to enter buildings for reconnaissance missions. Remote control allows it to stealthily approach targets or take the initiative in an attack. Its crawler design can handle various complex terrains, ensuring it can navigate underground pipes, caves, jungles, and grasslands with ease. The innovative "dual vision" system features a thermal imaging sensor in the front and a visible light sensor in the rear, providing thermal and low-light images for effective day and night reconnaissance. The Auxiliary-Support-Arm helps it quickly right itself if it overturns.



FUNCTION

►The dual-mode observation with visible light and thermal imaging
►Support IR auxiliary illumination
►Four thermal imaging display modes: white heat,black heat, false color, and outline
►Display of PIP(picture-in-picture)
►Voice monitoring
►Support photo and video recording, local browsing and export
►Can adjust the display brightness
►Support 3-speed change



Features

► Adopt wheel-crawler composite design, showing excellent through performance
► "Double-view"design,free switching between visible light observation mode and thermal imaging observation mode
► Unique arm design,quickly adjust the posture of the body
► Strong impact-resistant design,can be thrown to the target area

► Ultra waterproof performance, excellent wading ability


Technical Parameters:



1. Robot
(1)Weight ≤3kg(Including battery);
(2)Daytime Detection distance 50m, recognition distance 20m;
(3)Night Detection distance 25m, recognition distance 10m;
(4)Horizontal FOV ≥60°;
(5)Overcoming Obstacles ≥10cm;
(6)Climbing ≥35°;
(7)Drop Height ≥4m;
(8)Working Time ≥2h;
(9)CCD Resolution 1/3in,720×576;
(10)IR Resolution 384×288@17μm;
(11)Capable of driving in foliage, sandy slopes and wading;
2.Controller
(1)Working Time ≥3.5h;
(2)Weight ≤1.2kg(Including battery);
(3)Memory Card 32G(Build in);
(4)Control Method: Joystick + button;
3. Remote Control
(1)Outdoor ≥350m;
(2)Indoor ≥50m;
4.IP grade ≥IP67;
5.Operation Temperature －40℃～+55℃.



R30S Details

Silent Portable Scouting Robot With IR Auxiliary Illumination 0









Tags:

surveillance robot

Reconnaissance Robot

Tactical Robot
