Supported IR Auxiliary Illumination Tracked Reconnaissance Vehicle

  • Supported IR Auxiliary Illumination Tracked Reconnaissance Vehicle
  • Supported IR Auxiliary Illumination Tracked Reconnaissance Vehicle
  • Supported IR Auxiliary Illumination Tracked Reconnaissance Vehicle
  • Supported IR Auxiliary Illumination Tracked Reconnaissance Vehicle
Place of Origin China
Brand Name Particle
Model Number R30S
Minimum Order Quantity 1
Price $27,160
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IR Auxiliary Illumination Supported Thermal Imaging Display Modes White Heat, Black Heat, False Color, And Outline
Dual-mode Observation Visible Light And Thermal Imaging Voice Monitoring Supported
Stealth Capability Silent Photo And Video Recording Supported
Mobility Remote-controlled Product Category Miniature Reconnaissance Robot
Robot Weight ≤3kg（Including Battery） Daytime Detection Distance 50m, Recognition Distance 20m;
Night Detection Distance 25m, Recognition Distance 10m Horizontal FOV ≥60°
Overcoming Obstacles ≥10cm Climbing ≥35°
Drop Height ≥4m Working Time ≥2h
CCD Resolution 1/3in，720×576 IR Resolution 384×288@17μm
Driving Capability Foliage, Sandy Slopes, Wading Controller Working Time ≥3.5h
Controller Weight ≤1.2kg（Including Battery） Memory Card 32G（Build In）
Control Method Joystick + Button Remote Control Outdoor ≥350m
Remote Control Indoor ≥50m IP Grade ≥IP67
Operation Temperature －40℃～+55℃
Highlight

Remote controlled recon robot

,

Tracked recon robot

,

IR Auxiliary Illumination reconnaissance robot
Leave a Message
Product Description



Supported IR auxiliary illumination Tracked reconnaissance vehicle with IP grade≥IP67



APPLICATIONS

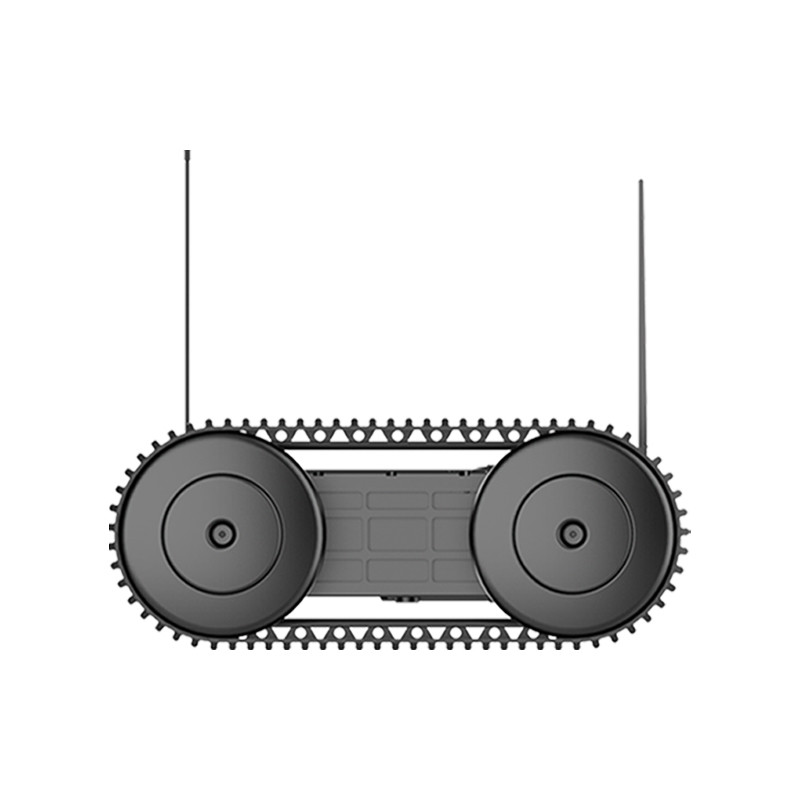

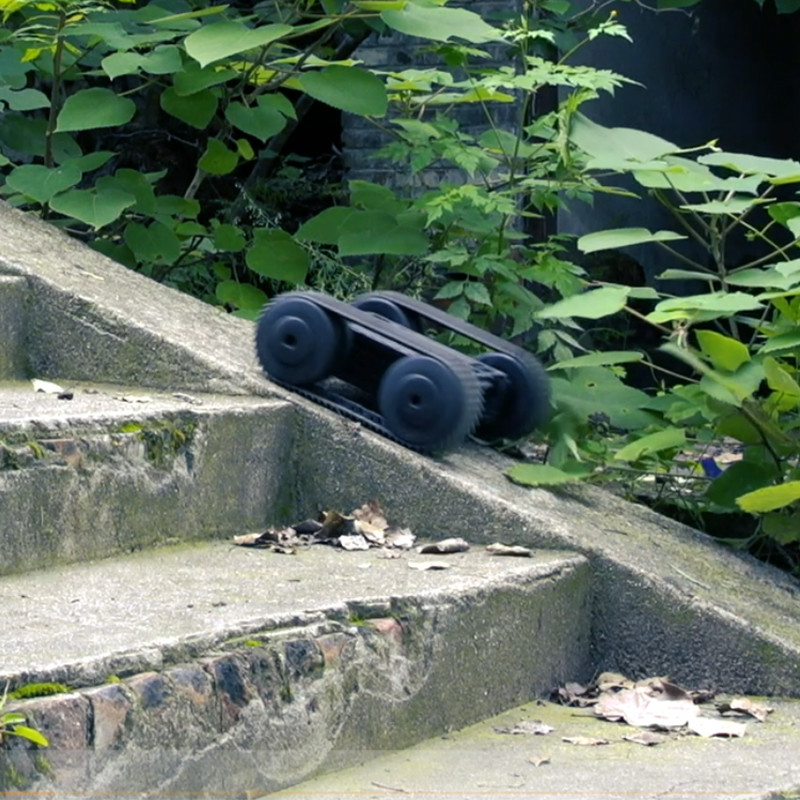

The JP R30S is a versatile reconnaissance robot with a compact wheel-track composite design. It can be deployed by throwing it into the scene or breaking windows to enter buildings for reconnaissance. With remote control capabilities, it can approach targets silently or take the initiative to attack. Its crawler design allows it to adapt to various complex terrains, ensuring it can navigate underground pipes, caves, jungles, and grasslands freely. The "dual vision" system features a thermal imaging sensor in the front and a visible light sensor in the rear, enabling it to capture thermal and low-light images, making it suitable for day, night, and complete darkness reconnaissance. The Auxiliary-Support-Arm ensures it can quickly right itself if it overturns.



FUNCTION

►The dual-mode observation with visible light and thermal imaging
►Support IR auxiliary illumination
►Four thermal imaging display modes: white heat,black heat, false color, and outline
►Display of PIP(picture-in-picture)
►Voice monitoring
►Support photo and video recording, local browsing and export
►Can adjust the display brightness
►Support 3-speed change



Features

► Adopt wheel-crawler composite design, showing excellent through performance
► "Double-view"design,free switching between visible light observation mode and thermal imaging observation mode
► Unique arm design,quickly adjust the posture of the body
► Strong impact-resistant design,can be thrown to the target area

► Ultra waterproof performance, excellent wading ability


Technical Parameters:



1. Robot
(1)Weight ≤3kg(Including battery);
(2)Daytime Detection distance 50m, recognition distance 20m;
(3)Night Detection distance 25m, recognition distance 10m;
(4)Horizontal FOV ≥60°;
(5)Overcoming Obstacles ≥10cm;
(6)Climbing ≥35°;
(7)Drop Height ≥4m;
(8)Working Time ≥2h;
(9)CCD Resolution 1/3in,720×576;
(10)IR Resolution 384×288@17μm;
(11)Capable of driving in foliage, sandy slopes and wading;

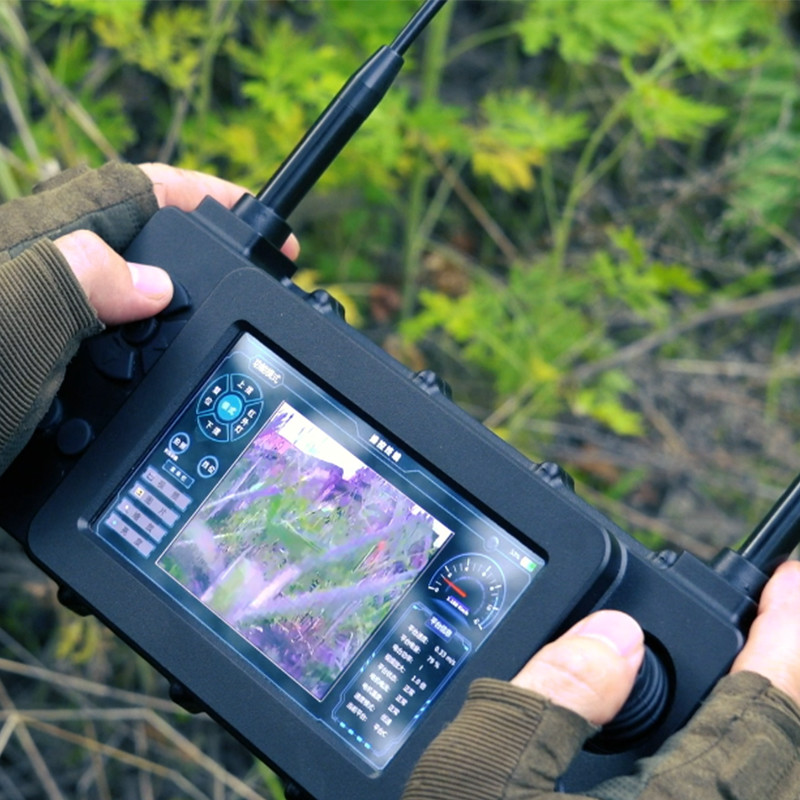

2.Controller
(1)Working Time ≥3.5h;
(2)Weight ≤1.2kg(Including battery);
(3)Memory Card 32G(Build in);
(4)Control Method: Joystick + button;
3. Remote Control
(1)Outdoor ≥350m;
(2)Indoor ≥50m;
4.IP grade ≥IP67;
5.Operation Temperature －40℃～+55℃.



R30S Details

Supported IR Auxiliary Illumination Tracked Reconnaissance Vehicle 0
