3 Speed Portable Tracked Surveillance Unit Robust Design

  • 3 Speed Portable Tracked Surveillance Unit Robust Design
  • 3 Speed Portable Tracked Surveillance Unit Robust Design
  • 3 Speed Portable Tracked Surveillance Unit Robust Design
  • 3 Speed Portable Tracked Surveillance Unit Robust Design
Place of Origin China
Brand Name Particle
Model Number R30S
Minimum Order Quantity 1
Price $27,160
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size Small Product Name Miniature Reconnaissance Robot For Multi-terrain Missions
Stealth Capability Silent Thermal Imaging Display Modes White Heat, Black Heat, False Color, And Outline
Terrain Adaptability All-terrain PIP Display Supported
IP Grade ≥IP67 Product Category Miniature Reconnaissance Robot
Robot Weight ≤3kg（Including Battery） Daytime Detection Distance 50m, Recognition Distance 20m;
Night Detection Distance 25m, Recognition Distance 10m Horizontal FOV ≥60°
Overcoming Obstacles ≥10cm Climbing ≥35°
Drop Height ≥4m Working Time ≥2h
CCD Resolution 1/3in，720×576 IR Resolution 384×288@17μm
Driving Capability Foliage, Sandy Slopes, Wading Controller Working Time ≥3.5h
Controller Weight ≤1.2kg（Including Battery） Memory Card 32G（Build In）
Control Method Joystick + Button Remote Control Outdoor ≥350m
Remote Control Indoor ≥50m Operation Temperature －40℃～+55℃
Highlight

Tracked surveillance unit

,

Portable surveillance unit

,

3 Speed outdoor security robot
Leave a Message
Product Description



3-Speed Portable Tracked Surveillance Unit Robust Design



APPLICATIONS

The JP R30S is a versatile small wheel-track composite reconnaissance robot. Designed for tactical insertion, it can be thrown or break windows to enter buildings. With remote control capabilities, it can stealthily approach targets or launch attacks. Its crawler tracks navigate complex terrains, including underground pipes, caves, jungles, and grasslands. Equipped with "dual vision" technology, it features a thermal imaging sensor and a visible light sensor, enabling comprehensive day and night reconnaissance. An Auxiliary-Support-Arm ensures quick recovery from overturns, maintaining mission readiness.



FUNCTION

►The dual-mode observation with visible light and thermal imaging
►Support IR auxiliary illumination
►Four thermal imaging display modes: white heat,black heat, false color, and outline
►Display of PIP(picture-in-picture)
►Voice monitoring
►Support photo and video recording, local browsing and export
►Can adjust the display brightness
►Support 3-speed change



Features

► Adopt wheel-crawler composite design, showing excellent through performance
► "Double-view"design,free switching between visible light observation mode and thermal imaging observation mode
► Unique arm design,quickly adjust the posture of the body
► Strong impact-resistant design,can be thrown to the target area

► Ultra waterproof performance, excellent wading ability


Technical Parameters:



1. Robot
(1)Weight ≤3kg(Including battery);
(2)Daytime Detection distance 50m, recognition distance 20m;
(3)Night Detection distance 25m, recognition distance 10m;
(4)Horizontal FOV ≥60°;
(5)Overcoming Obstacles ≥10cm;
(6)Climbing ≥35°;
(7)Drop Height ≥4m;
(8)Working Time ≥2h;
(9)CCD Resolution 1/3in,720×576;
(10)IR Resolution 384×288@17μm;
(11)Capable of driving in foliage, sandy slopes and wading;
2.Controller
(1)Working Time ≥3.5h;
(2)Weight ≤1.2kg(Including battery);
(3)Memory Card 32G(Build in);
(4)Control Method: Joystick + button;
3. Remote Control
(1)Outdoor ≥350m;
(2)Indoor ≥50m;
4.IP grade ≥IP67;
5.Operation Temperature －40℃～+55℃.

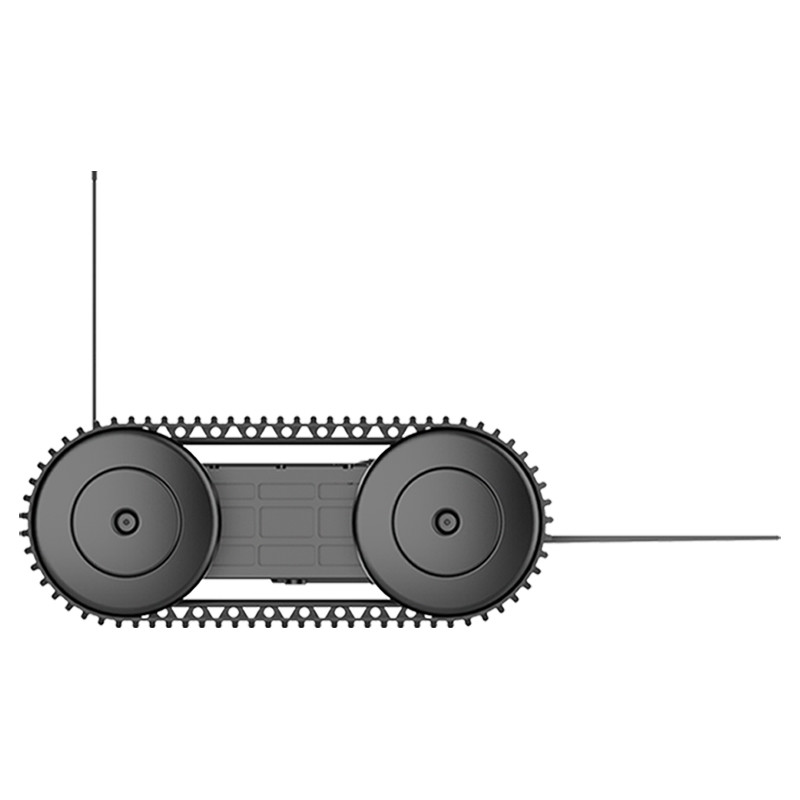

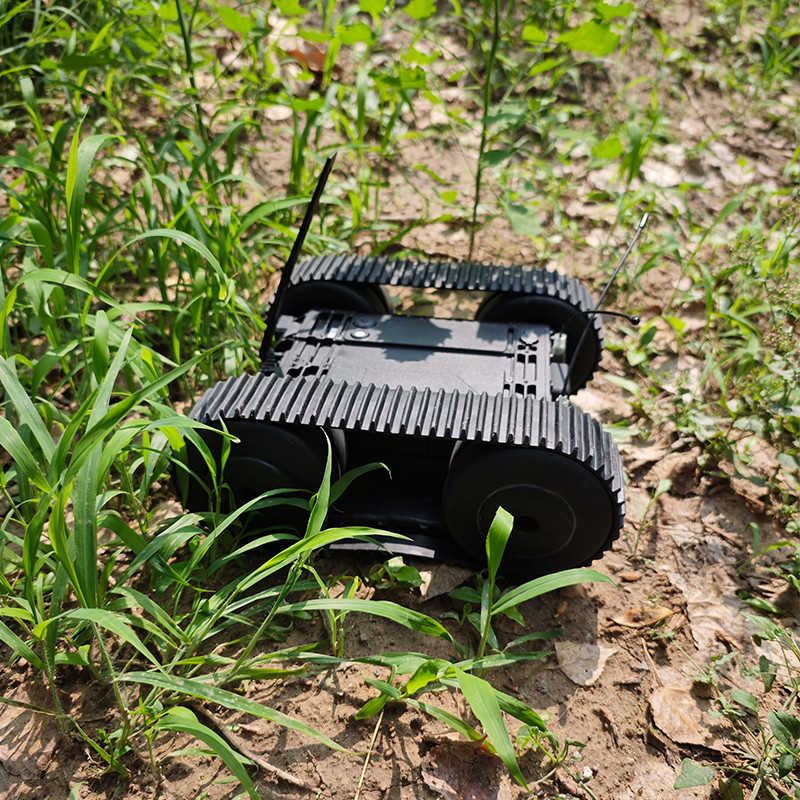

R30S Details

3 Speed Portable Tracked Surveillance Unit Robust Design 0
