Remote Control Compact Surveillance Robot On Tracks With Voice Monitoring

  • Remote Control Compact Surveillance Robot On Tracks With Voice Monitoring
  • Remote Control Compact Surveillance Robot On Tracks With Voice Monitoring
  • Remote Control Compact Surveillance Robot On Tracks With Voice Monitoring
  • Remote Control Compact Surveillance Robot On Tracks With Voice Monitoring
Place of Origin China
Brand Name Particle
Model Number R30S
Minimum Order Quantity 1
Price $27,160
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Terrain Adaptability All-terrain Size Small
IR Auxiliary Illumination Supported Speed Change 3-speed Change
Display Brightness Adjustment Supported Product Name Miniature Reconnaissance Robot For Multi-terrain Missions
Mobility Remote-controlled Operation Temperature －40℃～+55℃
Robot Weight ≤3kg（Including Battery） Daytime Detection Distance 50m, Recognition Distance 20m;
Night Detection Distance 25m, Recognition Distance 10m Horizontal FOV ≥60°
Overcoming Obstacles ≥10cm Climbing ≥35°
Drop Height ≥4m Working Time ≥2h
CCD Resolution 1/3in，720×576 IR Resolution 384×288@17μm
Driving Capability Foliage, Sandy Slopes, Wading Controller Working Time ≥3.5h
Controller Weight ≤1.2kg（Including Battery） Memory Card 32G（Build In）
Control Method Joystick + Button Remote Control Outdoor ≥350m
Remote Control Indoor ≥50m IP Grade ≥IP67
Highlight

Remote Control Surveillance Robot

,

Voice Monitoring Surveillance Robot

,

Mini military surveillance robot
Leave a Message
Product Description

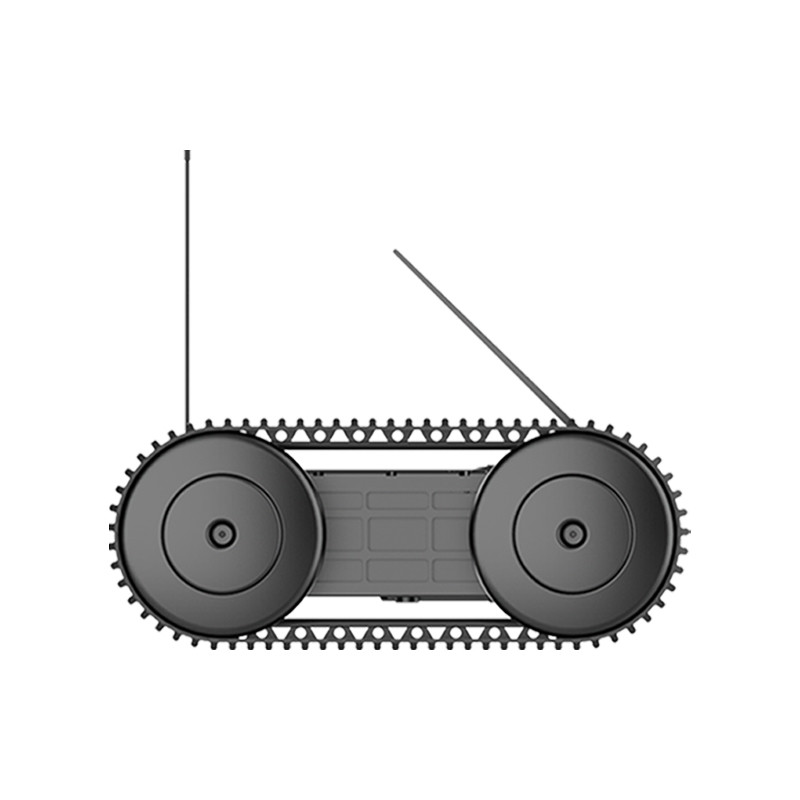

Remote Control Compact Surveillance Robot on Tracks with Voice Monitoring



APPLICATIONS

The JP R30S is a compact, wheel-track composite reconnaissance robot perfect for complex missions. It can be deployed by throwing or breaking windows to enter buildings. Controlled remotely, it can approach targets silently or engage them actively. Its crawler tracks navigate difficult terrains, including underground pipes, caves, jungles, and grasslands. Featuring "dual vision" technology, it combines a thermal imaging sensor and a visible light sensor for effective day and night reconnaissance. An Auxiliary-Support-Arm allows it to quickly right itself if overturned.



FUNCTION

►The dual-mode observation with visible light and thermal imaging
►Support IR auxiliary illumination
►Four thermal imaging display modes: white heat,black heat, false color, and outline
►Display of PIP(picture-in-picture)
►Voice monitoring
►Support photo and video recording, local browsing and export
►Can adjust the display brightness
►Support 3-speed change



Features

► Adopt wheel-crawler composite design, showing excellent through performance
► "Double-view"design,free switching between visible light observation mode and thermal imaging observation mode
► Unique arm design,quickly adjust the posture of the body
► Strong impact-resistant design,can be thrown to the target area

► Ultra waterproof performance, excellent wading ability


Technical Parameters:



1. Robot
(1)Weight ≤3kg(Including battery);
(2)Daytime Detection distance 50m, recognition distance 20m;
(3)Night Detection distance 25m, recognition distance 10m;
(4)Horizontal FOV ≥60°;
(5)Overcoming Obstacles ≥10cm;
(6)Climbing ≥35°;
(7)Drop Height ≥4m;
(8)Working Time ≥2h;
(9)CCD Resolution 1/3in,720×576;
(10)IR Resolution 384×288@17μm;
(11)Capable of driving in foliage, sandy slopes and wading;
2.Controller
(1)Working Time ≥3.5h;
(2)Weight ≤1.2kg(Including battery);
(3)Memory Card 32G(Build in);
(4)Control Method: Joystick + button;
3. Remote Control
(1)Outdoor ≥350m;
(2)Indoor ≥50m;
4.IP grade ≥IP67;
5.Operation Temperature －40℃～+55℃.



R30S Details

Remote Control Compact Surveillance Robot On Tracks With Voice Monitoring 0
