All Terrain Miniature Reconnaissance Robot Robust IR Auxiliary Illumination

  • All Terrain Miniature Reconnaissance Robot Robust IR Auxiliary Illumination
  • All Terrain Miniature Reconnaissance Robot Robust IR Auxiliary Illumination
  • All Terrain Miniature Reconnaissance Robot Robust IR Auxiliary Illumination
  • All Terrain Miniature Reconnaissance Robot Robust IR Auxiliary Illumination
Place of Origin China
Brand Name Particle
Model Number R30S
Minimum Order Quantity 1
Price $27,160
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Stealth Capability Silent Mobility Remote-controlled
Weight Lightweight IP Grade ≥IP67
Operation Temperature －40℃～+55℃ Display Brightness Adjustment Supported
Voice Monitoring Supported Product Category Miniature Reconnaissance Robot
Robot Weight ≤3kg（Including Battery） Daytime Detection Distance 50m, Recognition Distance 20m;
Night Detection Distance 25m, Recognition Distance 10m Horizontal FOV ≥60°
Overcoming Obstacles ≥10cm Climbing ≥35°
Drop Height ≥4m Working Time ≥2h
CCD Resolution 1/3in，720×576 IR Resolution 384×288@17μm
Driving Capability Foliage, Sandy Slopes, Wading Controller Working Time ≥3.5h
Controller Weight ≤1.2kg（Including Battery） Memory Card 32G（Build In）
Control Method Joystick + Button Remote Control Outdoor ≥350m
Remote Control Indoor ≥50m
Highlight

reconnaissance robot All Terrain

,

Robust reconnaissance robot

,

IR Auxiliary Illumination recon robot
Leave a Message
Product Description



All-Terrain Miniature Reconnaissance Robot Robust IR Auxiliary Illumination



APPLICATIONS

The JP R30S small wheel-track composite reconnaissance robot excels in versatility and adaptability. It can be thrown into a scene or break windows for building entry to perform reconnaissance. Controlled remotely, it can stealthily monitor or actively engage targets. Its tracks are designed for various terrains such as underground pipes, caves, jungles, and grasslands. The "dual vision" system integrates a front thermal imaging sensor and a rear visible light sensor, providing comprehensive surveillance in any lighting condition. An Auxiliary-Support-Arm enables swift recovery from overturns, ensuring continuous operation.



FUNCTION

►The dual-mode observation with visible light and thermal imaging
►Support IR auxiliary illumination
►Four thermal imaging display modes: white heat,black heat, false color, and outline
►Display of PIP(picture-in-picture)
►Voice monitoring
►Support photo and video recording, local browsing and export
►Can adjust the display brightness
►Support 3-speed change



Features

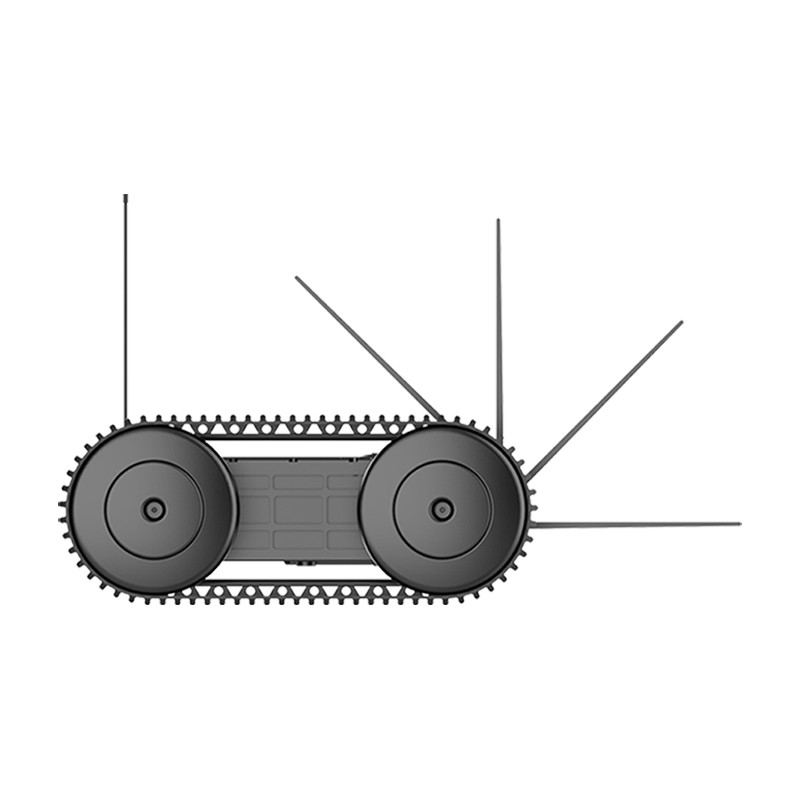

► Adopt wheel-crawler composite design, showing excellent through performance
► "Double-view"design,free switching between visible light observation mode and thermal imaging observation mode
► Unique arm design,quickly adjust the posture of the body
► Strong impact-resistant design,can be thrown to the target area

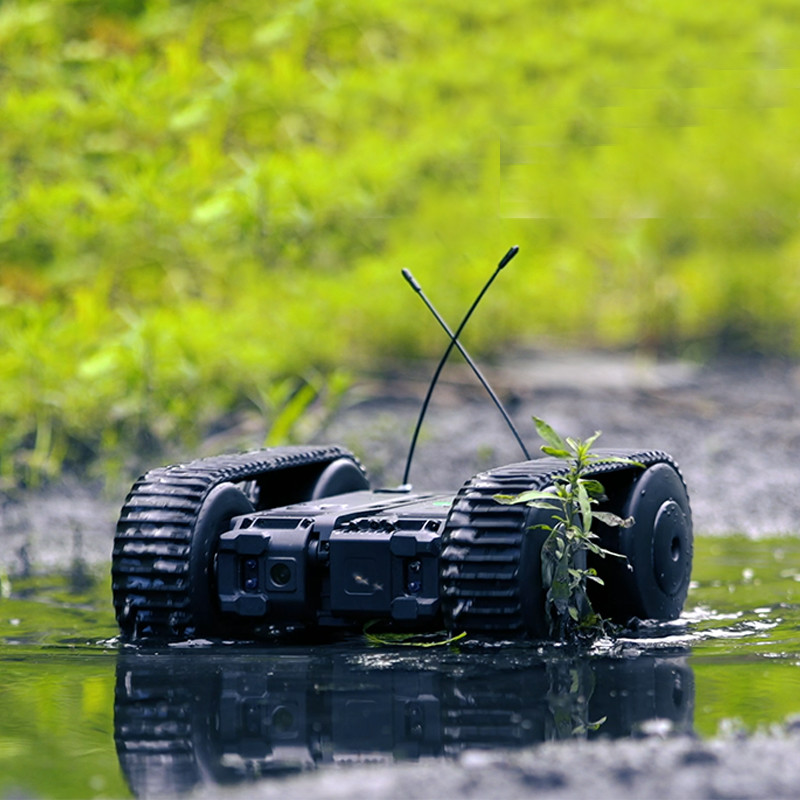

► Ultra waterproof performance, excellent wading ability


Technical Parameters:



1. Robot
(1)Weight ≤3kg(Including battery);
(2)Daytime Detection distance 50m, recognition distance 20m;
(3)Night Detection distance 25m, recognition distance 10m;
(4)Horizontal FOV ≥60°;
(5)Overcoming Obstacles ≥10cm;
(6)Climbing ≥35°;
(7)Drop Height ≥4m;
(8)Working Time ≥2h;
(9)CCD Resolution 1/3in,720×576;
(10)IR Resolution 384×288@17μm;
(11)Capable of driving in foliage, sandy slopes and wading;
2.Controller
(1)Working Time ≥3.5h;
(2)Weight ≤1.2kg(Including battery);
(3)Memory Card 32G(Build in);
(4)Control Method: Joystick + button;
3. Remote Control
(1)Outdoor ≥350m;
(2)Indoor ≥50m;
4.IP grade ≥IP67;
5.Operation Temperature －40℃～+55℃.



R30S Details

All Terrain Miniature Reconnaissance Robot Robust IR Auxiliary Illumination 0
