Highly Adaptable Remote Controlled Mobile Reconnaissance Tracked Robot For All Terrain

  • Highly Adaptable Remote Controlled Mobile Reconnaissance Tracked Robot For All Terrain
  • Highly Adaptable Remote Controlled Mobile Reconnaissance Tracked Robot For All Terrain
  • Highly Adaptable Remote Controlled Mobile Reconnaissance Tracked Robot For All Terrain
  • Highly Adaptable Remote Controlled Mobile Reconnaissance Tracked Robot For All Terrain
Place of Origin China
Brand Name Particle
Model Number R30S
Minimum Order Quantity 1
Price $27,160
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight Lightweight Display Brightness Adjustment Supported
Photo And Video Recording Supported Durability Robust
Thermal Imaging Display Modes White Heat, Black Heat, False Color, And Outline Product Category Miniature Reconnaissance Robot
Dual-mode Observation Visible Light And Thermal Imaging Mobility Remote-controlled
Robot Weight ≤3kg（Including Battery） Daytime Detection Distance 50m, Recognition Distance 20m;
Night Detection Distance 25m, Recognition Distance 10m Horizontal FOV ≥60°
Overcoming Obstacles ≥10cm Climbing ≥35°
Drop Height ≥4m Working Time ≥2h
CCD Resolution 1/3in，720×576 IR Resolution 384×288@17μm
Driving Capability Foliage, Sandy Slopes, Wading Controller Working Time ≥3.5h
Controller Weight ≤1.2kg（Including Battery） Memory Card 32G（Build In）
Control Method Joystick + Button Remote Control Outdoor ≥350m
Remote Control Indoor ≥50m IP Grade ≥IP67
Operation Temperature －40℃～+55℃
Highlight

Mobile Tracked Robot

,

Reconnaissance Tracked Robot

,

All Terrain reconnaissance robot
Leave a Message
Product Description



Highly Adaptable Remote-Controlled Mobile Reconnaissance Tracked Robot For All-Terrain



APPLICATIONS

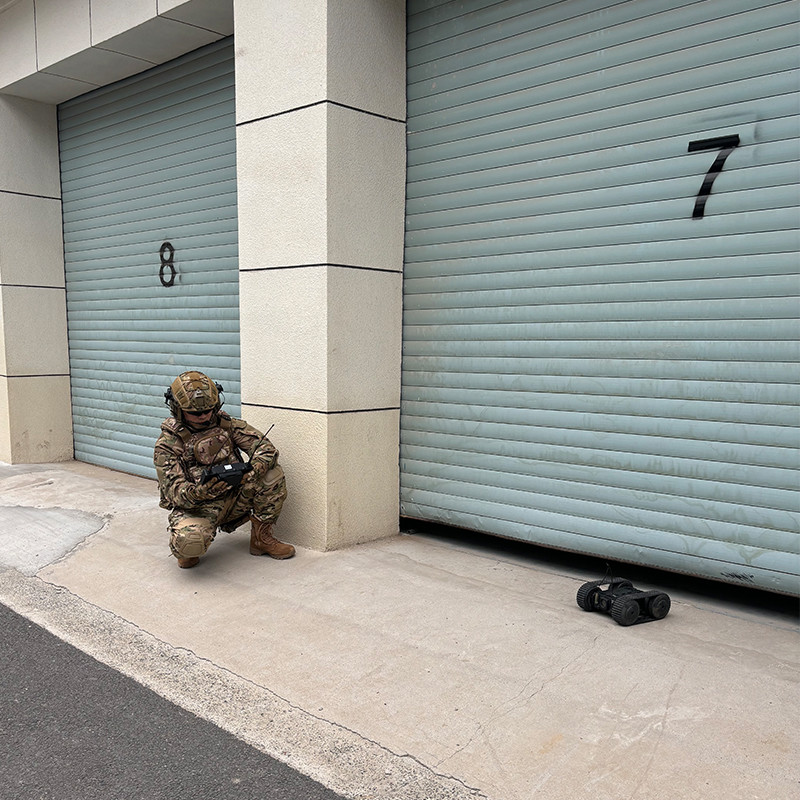

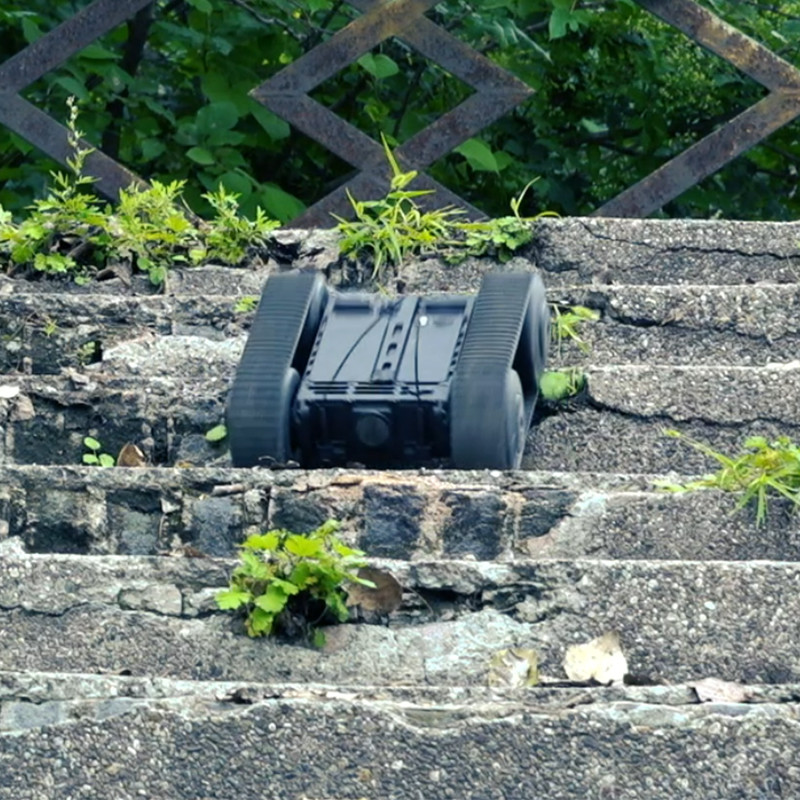

The JP R30S is a highly efficient small wheel-track composite reconnaissance robot, ideal for dynamic missions. Capable of being thrown or breaking windows for entry, it excels in both stealth and active engagement scenarios via remote control. Its durable crawler tracks navigate challenging terrains like underground pipes, caves, jungles, and grasslands. The robot features a "dual vision" system with a front thermal imaging sensor and a rear visible light sensor, ensuring reliable day and night reconnaissance. Additionally, an Auxiliary-Support-Arm allows for quick self-righting if overturned.



FUNCTION

►The dual-mode observation with visible light and thermal imaging
►Support IR auxiliary illumination
►Four thermal imaging display modes: white heat,black heat, false color, and outline
►Display of PIP(picture-in-picture)
►Voice monitoring
►Support photo and video recording, local browsing and export
►Can adjust the display brightness
►Support 3-speed change



Features

► Adopt wheel-crawler composite design, showing excellent through performance
► "Double-view"design,free switching between visible light observation mode and thermal imaging observation mode
► Unique arm design,quickly adjust the posture of the body
► Strong impact-resistant design,can be thrown to the target area

► Ultra waterproof performance, excellent wading ability


Technical Parameters:



1. Robot
(1)Weight ≤3kg(Including battery);
(2)Daytime Detection distance 50m, recognition distance 20m;
(3)Night Detection distance 25m, recognition distance 10m;
(4)Horizontal FOV ≥60°;
(5)Overcoming Obstacles ≥10cm;
(6)Climbing ≥35°;
(7)Drop Height ≥4m;
(8)Working Time ≥2h;
(9)CCD Resolution 1/3in,720×576;
(10)IR Resolution 384×288@17μm;
(11)Capable of driving in foliage, sandy slopes and wading;
2.Controller
(1)Working Time ≥3.5h;
(2)Weight ≤1.2kg(Including battery);
(3)Memory Card 32G(Build in);
(4)Control Method: Joystick + button;
3. Remote Control
(1)Outdoor ≥350m;
(2)Indoor ≥50m;
4.IP grade ≥IP67;
5.Operation Temperature －40℃～+55℃.

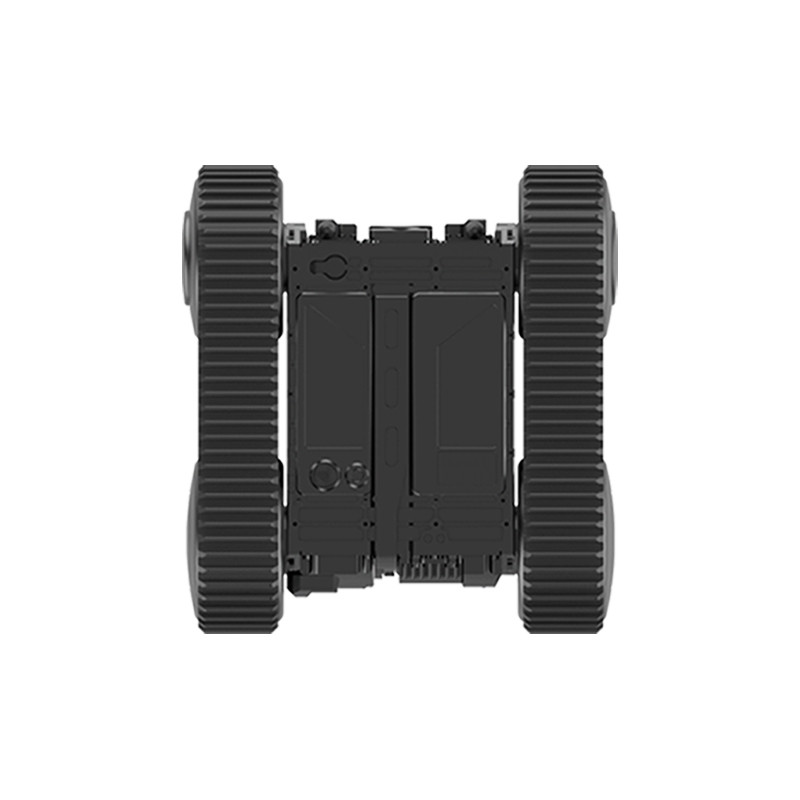

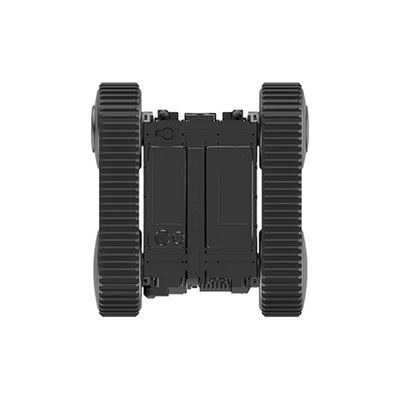

R30S Details

Highly Adaptable Remote Controlled Mobile Reconnaissance Tracked Robot For All Terrain 0
