All Terrain Miniature Reconnaissance Robot PIP Display Supported IP67

  • All Terrain Miniature Reconnaissance Robot PIP Display Supported IP67
  • All Terrain Miniature Reconnaissance Robot PIP Display Supported IP67
  • All Terrain Miniature Reconnaissance Robot PIP Display Supported IP67
  • All Terrain Miniature Reconnaissance Robot PIP Display Supported IP67
Place of Origin China
Brand Name Particle
Model Number R30S
Minimum Order Quantity 1
Price $27,160
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Brightness Adjustment Supported Operation Temperature －40℃～+55℃
Product Category Miniature Reconnaissance Robot Mobility Remote-controlled
Size Small Dual-mode Observation Visible Light And Thermal Imaging
Terrain Adaptability All-terrain IP Grade ≥IP67
Robot Weight ≤3kg（Including Battery） Daytime Detection Distance 50m, Recognition Distance 20m;
Night Detection Distance 25m, Recognition Distance 10m Horizontal FOV ≥60°
Overcoming Obstacles ≥10cm Climbing ≥35°
Drop Height ≥4m Working Time ≥2h
CCD Resolution 1/3in，720×576 IR Resolution 384×288@17μm
Driving Capability Foliage, Sandy Slopes, Wading Controller Working Time ≥3.5h
Controller Weight ≤1.2kg（Including Battery） Memory Card 32G（Build In）
Control Method Joystick + Button Remote Control Outdoor ≥350m
Remote Control Indoor ≥50m
Highlight

Reconnaissance Robot PIP Display

,

Reconnaissance Robot IP67

,

All Terrain recon robot
Leave a Message
Product Description



All-terrain Miniature Reconnaissance Robot PIP display supported IP grade ≥IP67



APPLICATIONS

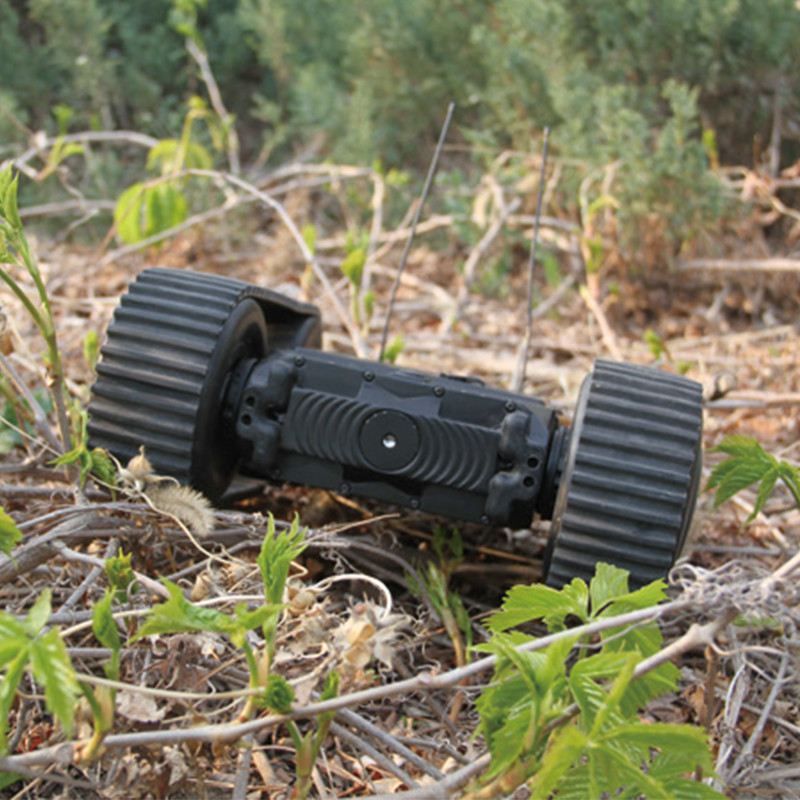

The R30S is a versatile small wheel-track reconnaissance robot that can be deployed into a scene by being thrown or by breaking through windows to perform interior reconnaissance missions. With remote control capabilities, it can stealthily approach targets, lying in wait or initiating an attack. Its crawler design allows it to navigate complex terrains such as underground pipes, caves, jungles, and grasslands. The robot features a "dual vision" system with a front-mounted thermal imaging sensor and a rear visible light sensor, enabling it to capture thermal and low-light visible images for day and night operations. Additionally, an Auxiliary-Support-Arm ensures it can quickly right itself if overturned.



FUNCTION

►The dual-mode observation with visible light and thermal imaging
►Support IR auxiliary illumination
►Four thermal imaging display modes: white heat,black heat, false color, and outline
►Display of PIP(picture-in-picture)
►Voice monitoring
►Support photo and video recording, local browsing and export
►Can adjust the display brightness
►Support 3-speed change



Features

► Adopt wheel-crawler composite design, showing excellent through performance
► "Double-view"design,free switching between visible light observation mode and thermal imaging observation mode
► Unique arm design,quickly adjust the posture of the body
► Strong impact-resistant design,can be thrown to the target area

► Ultra waterproof performance, excellent wading ability


Technical Parameters:



1. Robot
(1)Weight ≤3kg(Including battery);
(2)Daytime Detection distance 50m, recognition distance 20m;
(3)Night Detection distance 25m, recognition distance 10m;
(4)Horizontal FOV ≥60°;
(5)Overcoming Obstacles ≥10cm;
(6)Climbing ≥35°;
(7)Drop Height ≥4m;
(8)Working Time ≥2h;
(9)CCD Resolution 1/3in,720×576;
(10)IR Resolution 384×288@17μm;
(11)Capable of driving in foliage, sandy slopes and wading;

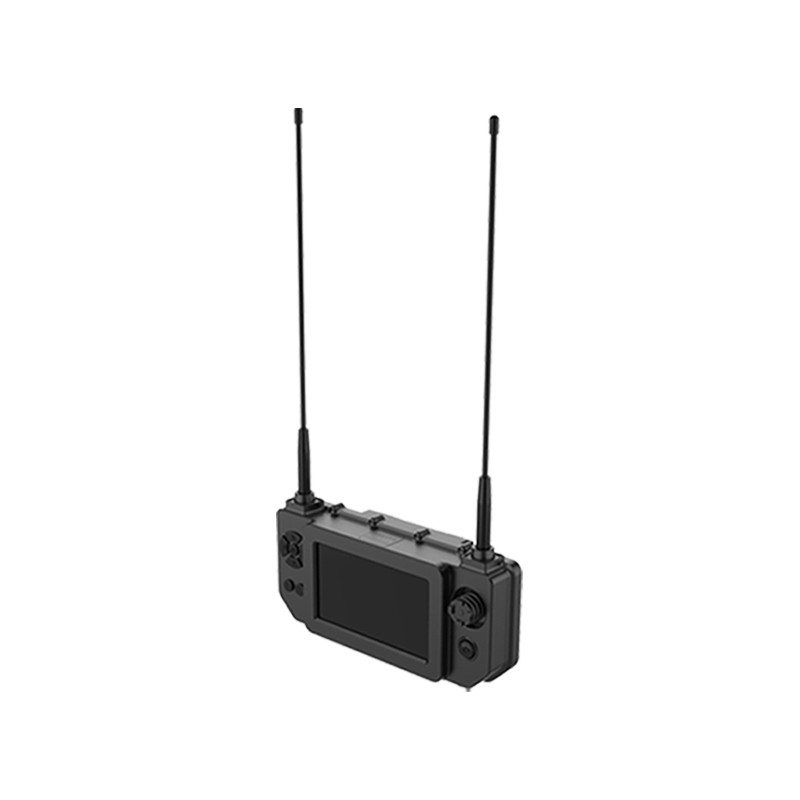

2.Controller
(1)Working Time ≥3.5h;
(2)Weight ≤1.2kg(Including battery);
(3)Memory Card 32G(Build in);
(4)Control Method: Joystick + button;
3. Remote Control
(1)Outdoor ≥350m;
(2)Indoor ≥50m;
4.IP grade ≥IP67;
5.Operation Temperature －40℃～+55℃.



R30S Details

All Terrain Miniature Reconnaissance Robot PIP Display Supported IP67 0
