All Terrain 3 Speed Change And Thermal Imaging Display Modes For Tactical Robot

  • All Terrain 3 Speed Change And Thermal Imaging Display Modes For Tactical Robot
  • All Terrain 3 Speed Change And Thermal Imaging Display Modes For Tactical Robot
  • All Terrain 3 Speed Change And Thermal Imaging Display Modes For Tactical Robot
  • All Terrain 3 Speed Change And Thermal Imaging Display Modes For Tactical Robot
Place of Origin China
Brand Name Particle
Model Number R30S
Minimum Order Quantity 1
Price $27,160
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dual-mode Observation Visible Light And Thermal Imaging Voice Monitoring Supported
IR Auxiliary Illumination Supported Display Brightness Adjustment Supported
PIP Display Supported Size Small
Terrain Adaptability All-terrain IP Grade ≥IP67
Robot Weight ≤3kg（Including Battery） Daytime Detection Distance 50m, Recognition Distance 20m;
Night Detection Distance 25m, Recognition Distance 10m Horizontal FOV ≥60°
Overcoming Obstacles ≥10cm Climbing ≥35°
Drop Height ≥4m Working Time ≥2h
CCD Resolution 1/3in，720×576 IR Resolution 384×288@17μm
Driving Capability Foliage, Sandy Slopes, Wading Controller Working Time ≥3.5h
Controller Weight ≤1.2kg（Including Battery） Memory Card 32G（Build In）
Control Method Joystick + Button Remote Control Outdoor ≥350m
Remote Control Indoor ≥50m Operation Temperature －40℃～+55℃
Highlight

All Terrain Tactical Robot

,

3 Speed Change Tactical Robot

,

Small tactical robots
Leave a Message
Product Description



3-Speed Change And Thermal Imaging Display Modes For Tactical Robot



APPLICATIONS

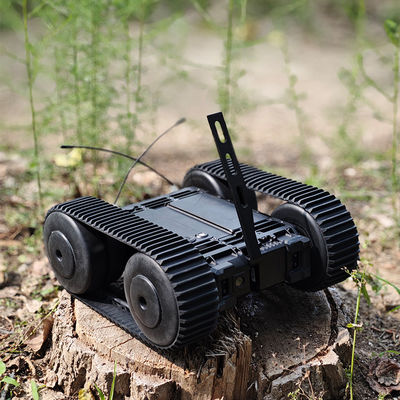

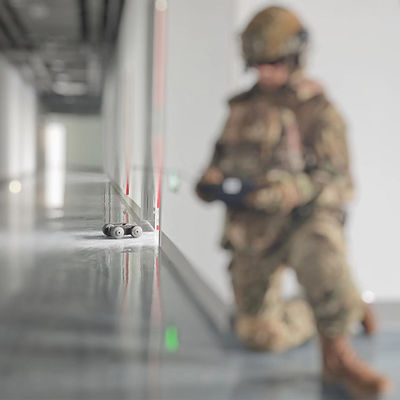

the R30S designed for dynamic reconnaissance, can be launched by throwing or by breaching windows to infiltrate buildings. This small wheel-track robot uses remote control to silently move towards its target, waiting for the right moment to act or taking proactive measures. Its adaptable crawler system handles various challenging surfaces, including underground tunnels, rugged caves, dense forests, and open grasslands. The dual vision setup, featuring thermal imaging at the front and visible light sensing at the rear, allows it to gather vital visual data in any lighting condition. The Auxiliary-Support-Arm provides stability, enabling the robot to recover quickly from any position.



FUNCTION

►The dual-mode observation with visible light and thermal imaging
►Support IR auxiliary illumination
►Four thermal imaging display modes: white heat,black heat, false color, and outline
►Display of PIP(picture-in-picture)
►Voice monitoring
►Support photo and video recording, local browsing and export
►Can adjust the display brightness
►Support 3-speed change



Features

► Adopt wheel-crawler composite design, showing excellent through performance
► "Double-view"design,free switching between visible light observation mode and thermal imaging observation mode
► Unique arm design,quickly adjust the posture of the body
► Strong impact-resistant design,can be thrown to the target area

► Ultra waterproof performance, excellent wading ability


Technical Parameters:



1. Robot
(1)Weight ≤3kg(Including battery);
(2)Daytime Detection distance 50m, recognition distance 20m;
(3)Night Detection distance 25m, recognition distance 10m;
(4)Horizontal FOV ≥60°;
(5)Overcoming Obstacles ≥10cm;
(6)Climbing ≥35°;
(7)Drop Height ≥4m;
(8)Working Time ≥2h;
(9)CCD Resolution 1/3in,720×576;
(10)IR Resolution 384×288@17μm;
(11)Capable of driving in foliage, sandy slopes and wading;

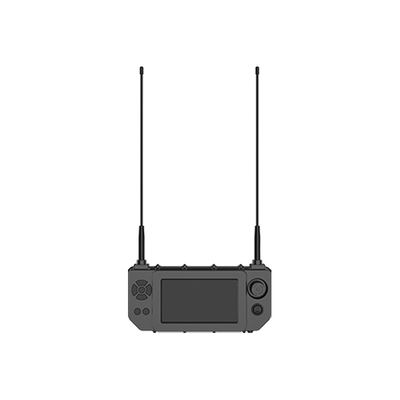

2.Controller
(1)Working Time ≥3.5h;
(2)Weight ≤1.2kg(Including battery);
(3)Memory Card 32G(Build in);
(4)Control Method: Joystick + button;
3. Remote Control
(1)Outdoor ≥350m;
(2)Indoor ≥50m;
4.IP grade ≥IP67;
5.Operation Temperature －40℃～+55℃.



R30S Details

All Terrain 3 Speed Change And Thermal Imaging Display Modes For Tactical Robot 0
