Mini Reconnaissance Robot With Voice Monitoring Black Heat Thermal Imaging Display Modes

  • Mini Reconnaissance Robot With Voice Monitoring Black Heat Thermal Imaging Display Modes
  • Mini Reconnaissance Robot With Voice Monitoring Black Heat Thermal Imaging Display Modes
  • Mini Reconnaissance Robot With Voice Monitoring Black Heat Thermal Imaging Display Modes
  • Mini Reconnaissance Robot With Voice Monitoring Black Heat Thermal Imaging Display Modes
Place of Origin China
Brand Name Particle
Model Number R30S
Minimum Order Quantity 1
Price $27,160
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight Lightweight IP Grade ≥IP67
Dual-mode Observation Visible Light And Thermal Imaging Durability Robust
Operation Temperature －40℃～+55℃ Voice Monitoring Supported
Stealth Capability Silent Product Name Compact Design Powerful Performance Ocelot Miniature Reconnaissance Robot
Robot Weight ≤3kg（Including Battery） Daytime Detection Distance 50m, Recognition Distance 20m;
Night Detection Distance 25m, Recognition Distance 10m Horizontal FOV ≥60°
Overcoming Obstacles ≥10cm Climbing ≥35°
Drop Height ≥4m Working Time ≥2h
CCD Resolution 1/3in，720×576 IR Resolution 384×288@17μm
Driving Capability Foliage, Sandy Slopes, Wading Controller Working Time ≥3.5h
Controller Weight ≤1.2kg（Including Battery） Memory Card 32G（Build In）
Control Method Joystick + Button Remote Control Outdoor ≥350m
Remote Control Indoor ≥50m
Highlight

Mini Reconnaissance Robot

,

Voice Monitoring Reconnaissance Robot

,

720x576 recon robot
Leave a Message
Product Description



Lightweight Miniature Reconnaissance Robot with Voice Monitoring and Black Heat Thermal Imaging Display Modes



APPLICATIONS

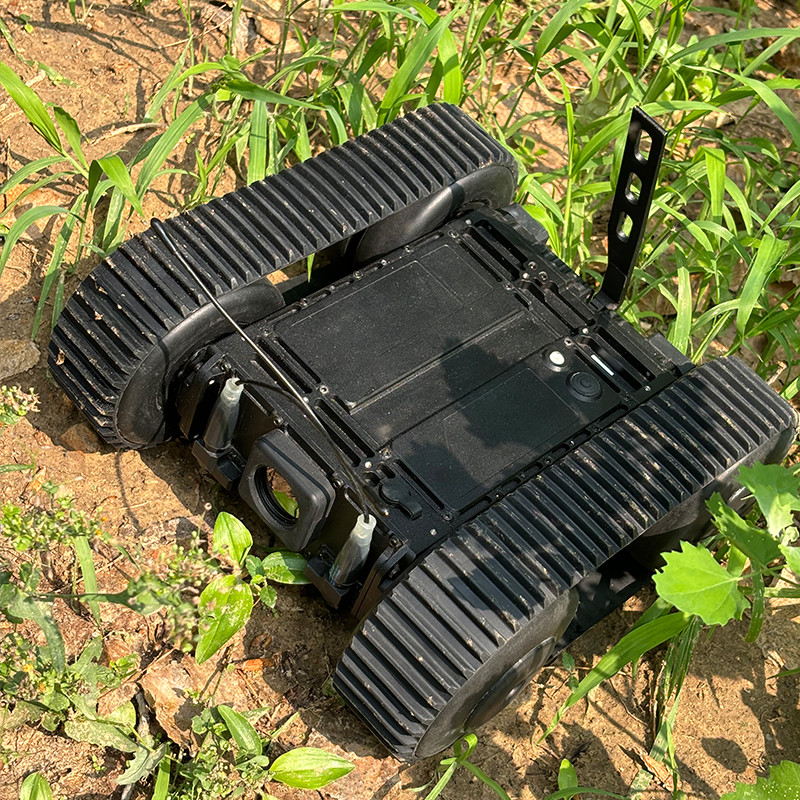

The R30S represents a compact yet powerful reconnaissance tool, capable of being deployed through tossing or window breaking for immediate mission engagement inside structures. Controlled remotely, it approaches targets stealthily, ready to observe or engage as needed. The robot’s crawler design ensures it can traverse a multitude of complex environments, from subterranean pipelines to natural terrains like jungles and grasslands. Equipped with thermal imaging and visible light sensors, the R30S excels in capturing crucial imagery in both daylight and complete darkness. Its Auxiliary-Support-Arm helps it to recover from capsizes, maintaining operational readiness.



FUNCTION

►The dual-mode observation with visible light and thermal imaging
►Support IR auxiliary illumination
►Four thermal imaging display modes: white heat,black heat, false color, and outline
►Display of PIP(picture-in-picture)
►Voice monitoring
►Support photo and video recording, local browsing and export
►Can adjust the display brightness
►Support 3-speed change



Features

► Adopt wheel-crawler composite design, showing excellent through performance
► "Double-view"design,free switching between visible light observation mode and thermal imaging observation mode
► Unique arm design,quickly adjust the posture of the body
► Strong impact-resistant design,can be thrown to the target area

► Ultra waterproof performance, excellent wading ability


Technical Parameters:



1. Robot
(1)Weight ≤3kg(Including battery);
(2)Daytime Detection distance 50m, recognition distance 20m;
(3)Night Detection distance 25m, recognition distance 10m;
(4)Horizontal FOV ≥60°;
(5)Overcoming Obstacles ≥10cm;
(6)Climbing ≥35°;
(7)Drop Height ≥4m;
(8)Working Time ≥2h;
(9)CCD Resolution 1/3in,720×576;
(10)IR Resolution 384×288@17μm;
(11)Capable of driving in foliage, sandy slopes and wading;

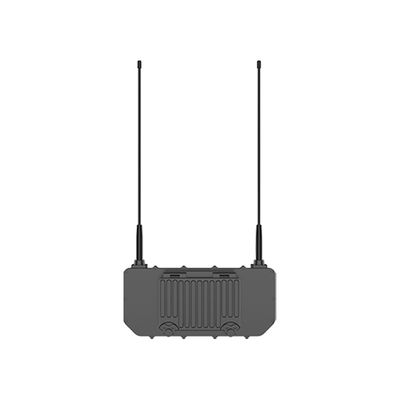

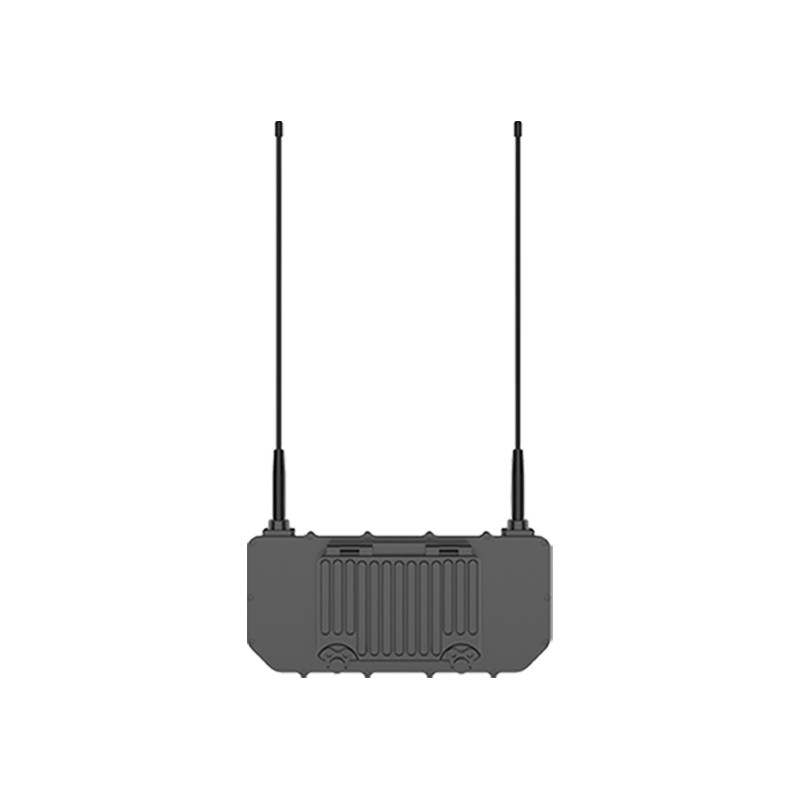

2.Controller
(1)Working Time ≥3.5h;
(2)Weight ≤1.2kg(Including battery);
(3)Memory Card 32G(Build in);
(4)Control Method: Joystick + button;
3. Remote Control
(1)Outdoor ≥350m;
(2)Indoor ≥50m;
4.IP grade ≥IP67;
5.Operation Temperature －40℃～+55℃.



R30S Details

Mini Reconnaissance Robot With Voice Monitoring Black Heat Thermal Imaging Display Modes 0
